Bottle jacks are ideal for temporarily lifting heavy loads in remodelling & maintenance operations in construction sites, warehouses, airports, commercial buildings and manufacturing
...Read more
A
B
A
A
B
C
D
E
A
B
C
D
E
F
A
A
B
C
A
B
| Model | Item | Price (ex. VAT) | |
|---|---|---|---|
| 35MT15 | AH4VUK | €160.24 |

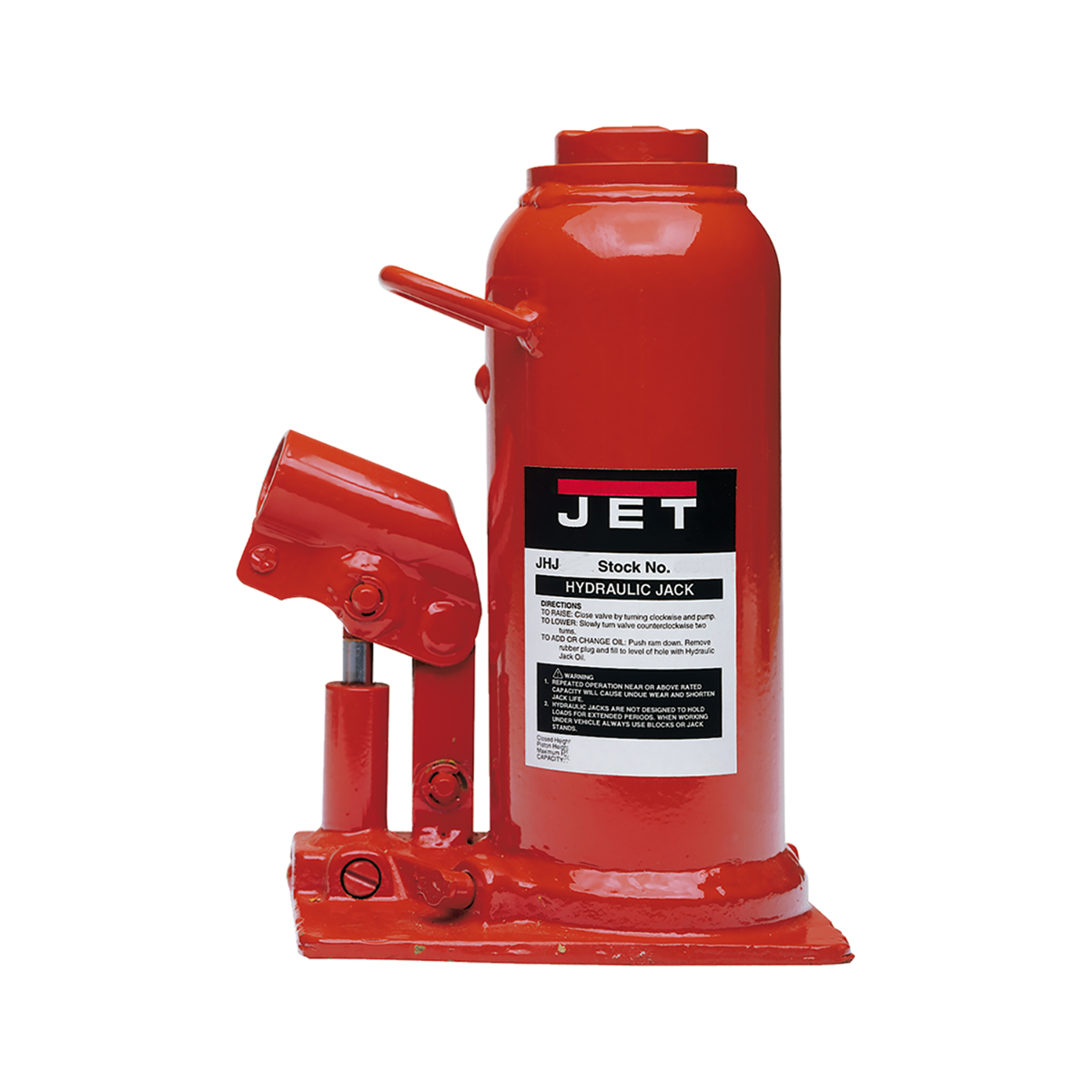

Bottle jacks are best suited for short vertical lifts as they can not sustain heavy loads for a long period of time. They are a type of hydraulic lever jack with a high-pressure master cylinder and a small diameter piston that pumps fluid into the slave cylinder. The two cylinders are mounted next to each other on the rectangular cast iron base. These bottle jacks use a simple lever to pump up the master cylinder and lift the equipment on top of the jack. The lever also acts as the wrench to operate a release valve for positive load control during the jack descent, as well as protect the tool from overpressure.

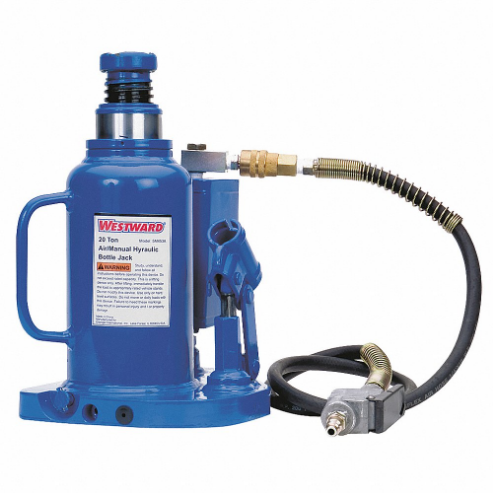

Westward hydraulic bottle jacks with a side pumpfeature a groove bypass mechanism to protect jacks against overjumping and overloading. They also have heat-treated extension screw saddles for facilitating low-pickup height adjustment and a maximum lift height. These bottle jacks feature an inline pumpwith a centred pump and ram for easy positioning of the lifted equipment. Selected Westward hydraulic bottle jacks are further equipped with a low profileside pump for lifting heavy loads while occupying less operating space.

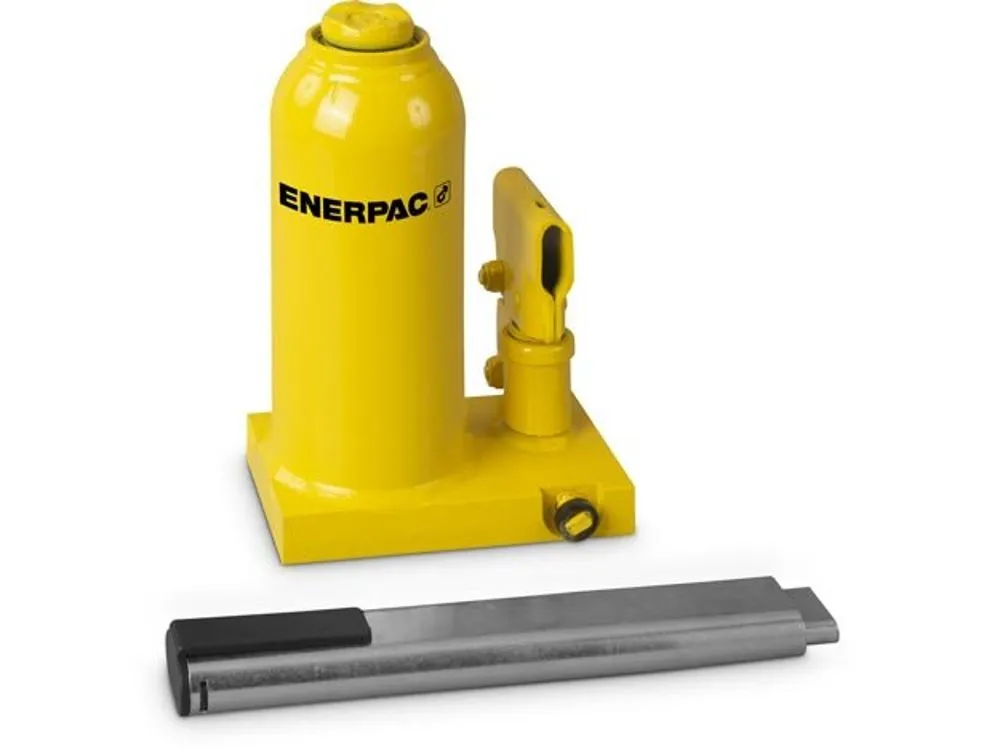

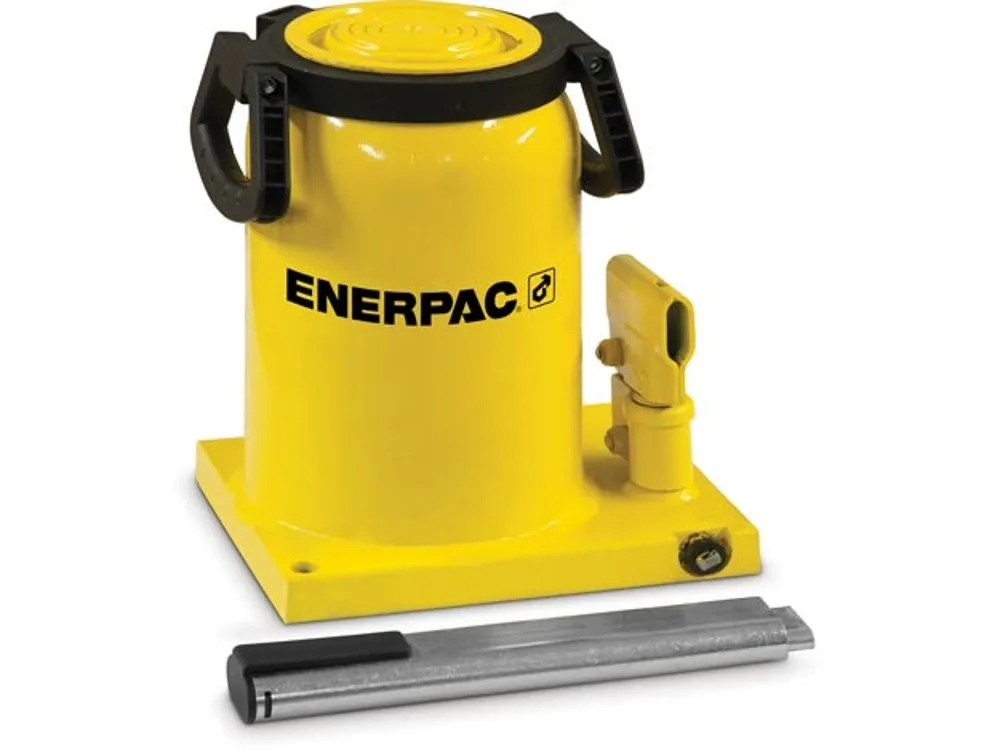

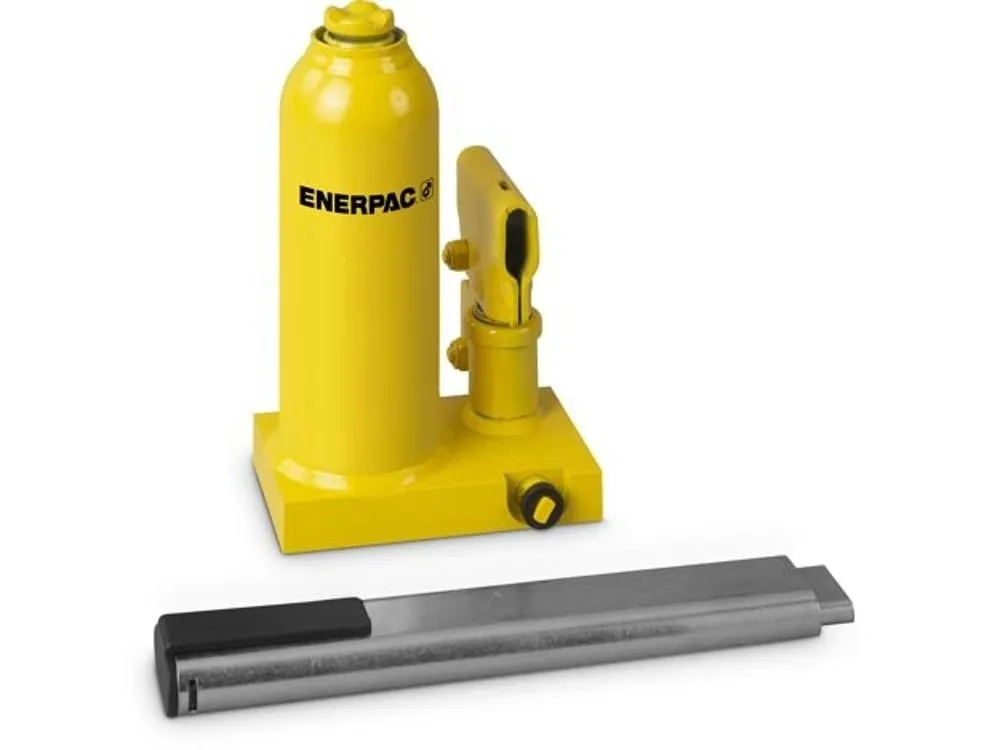

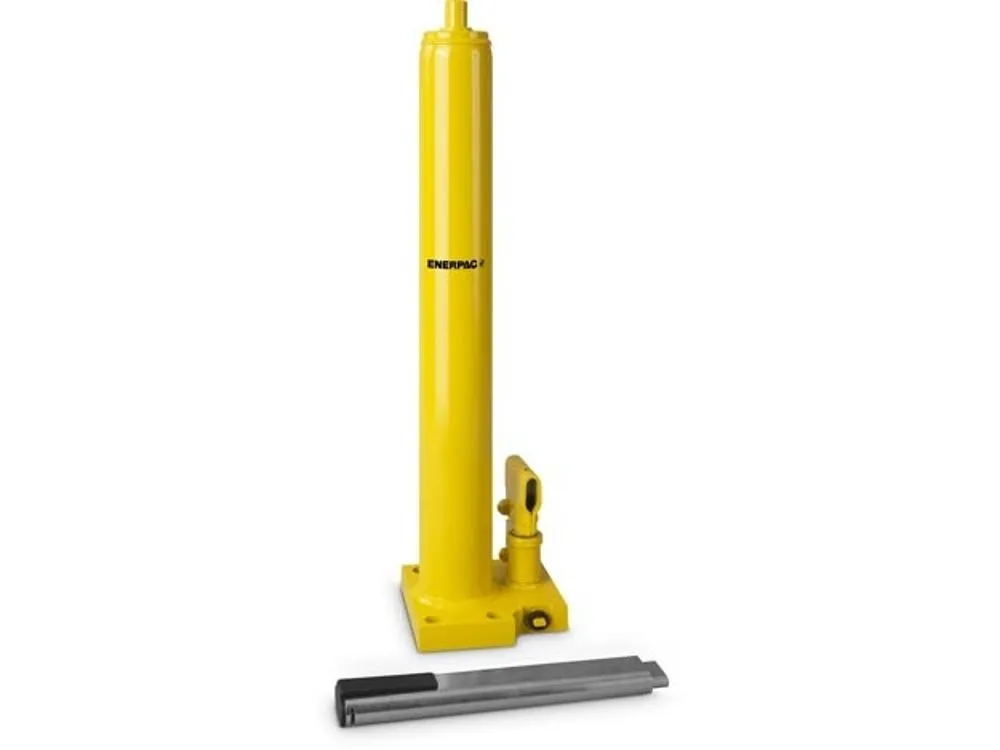

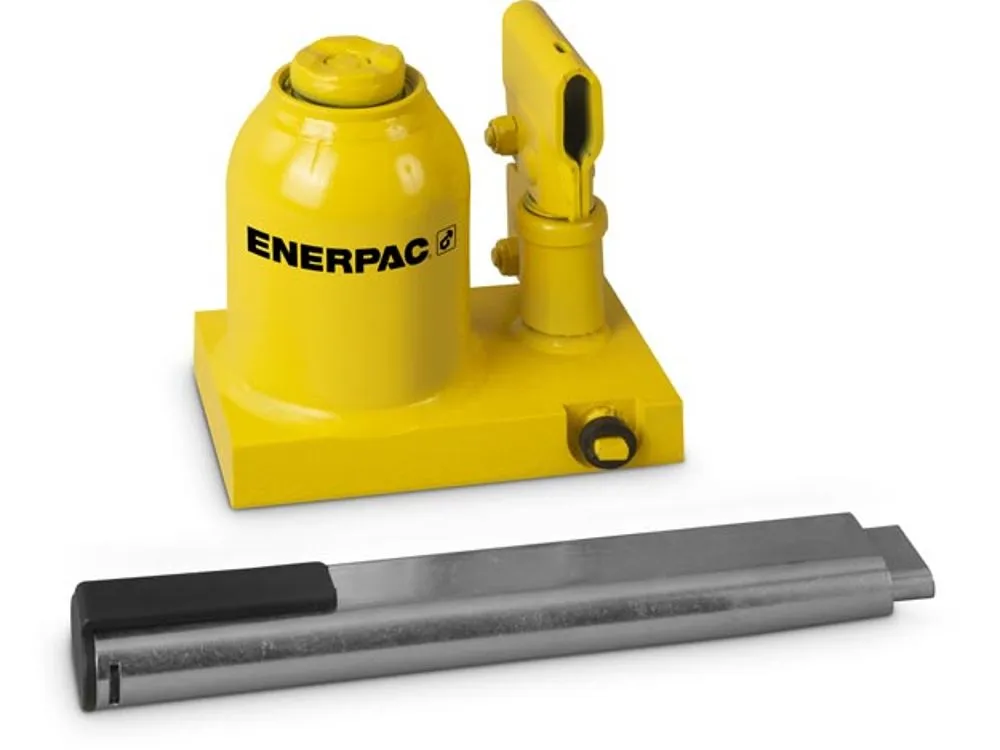

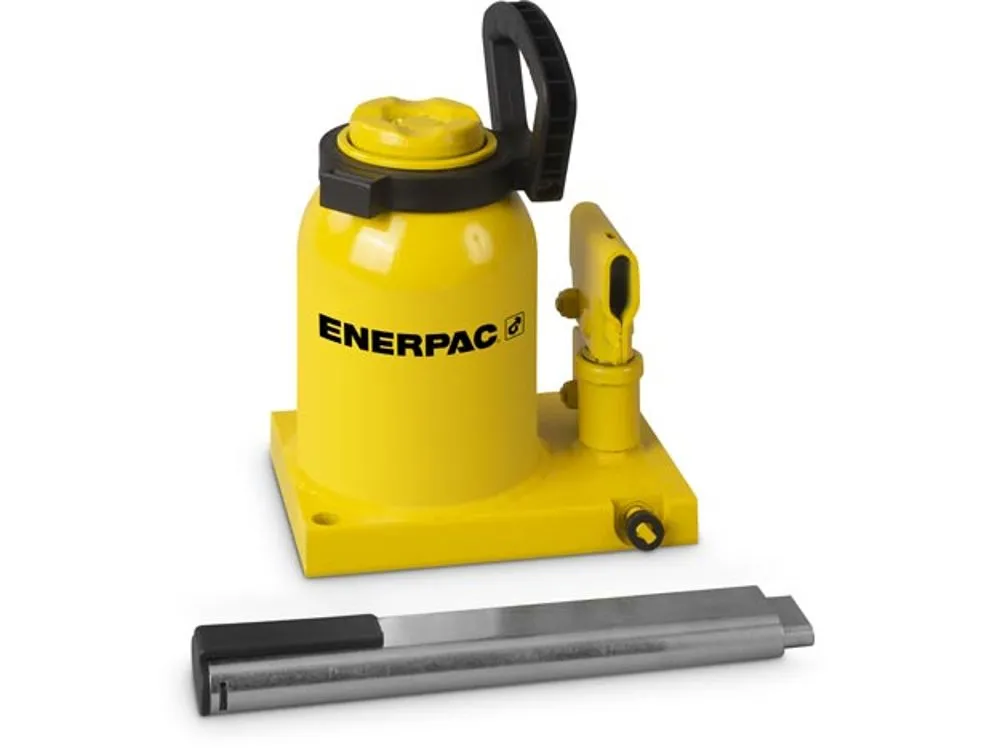

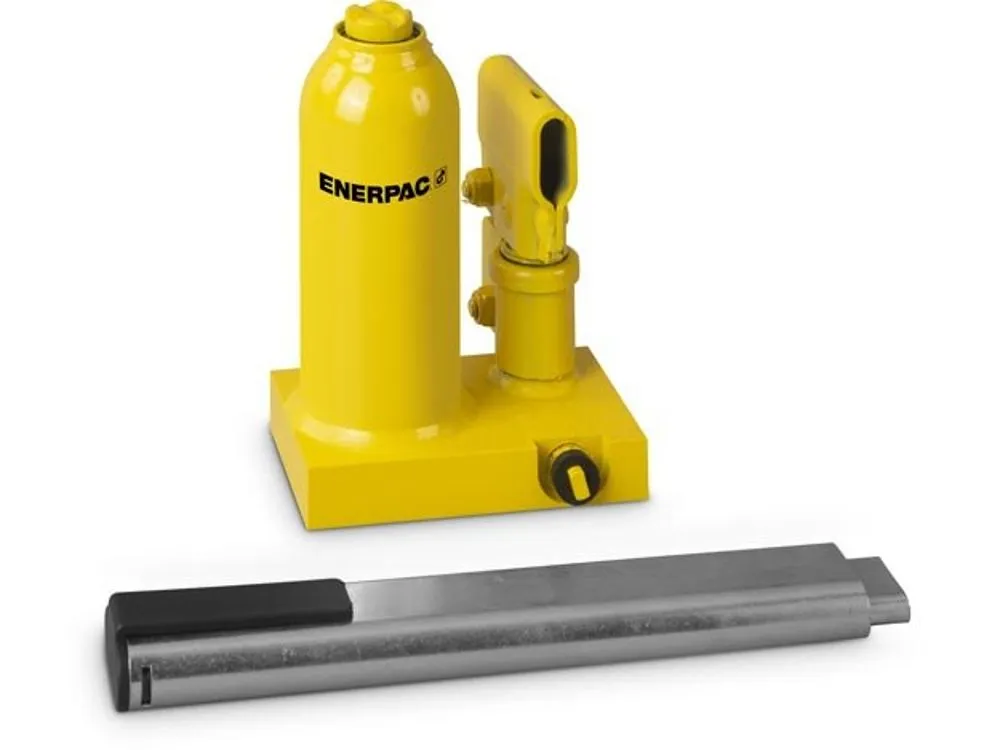

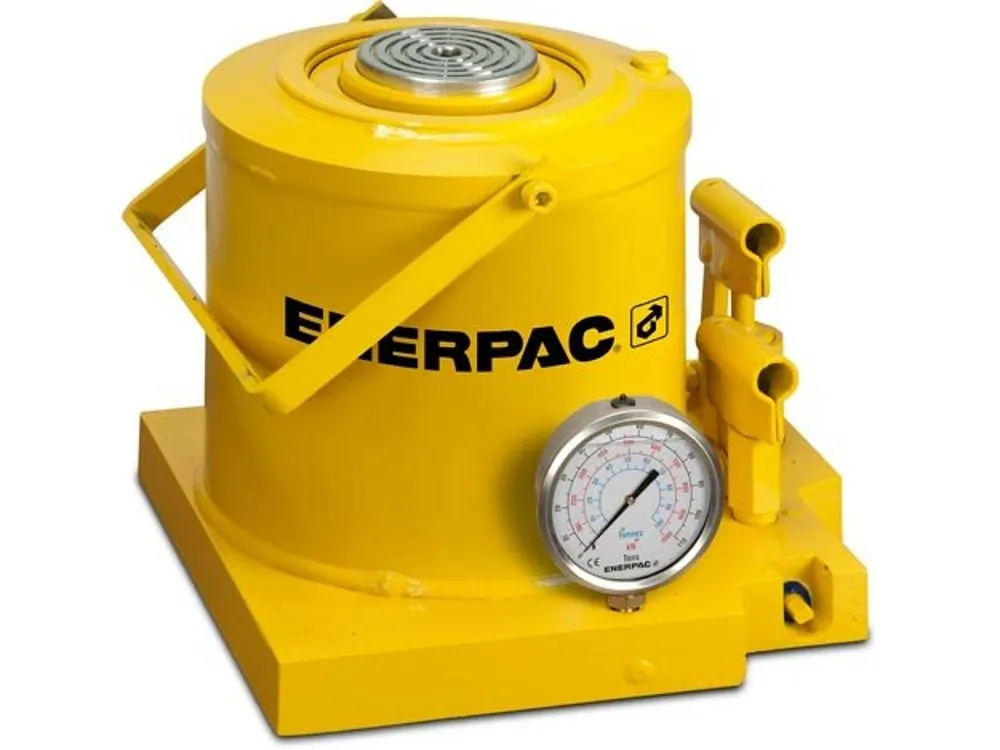

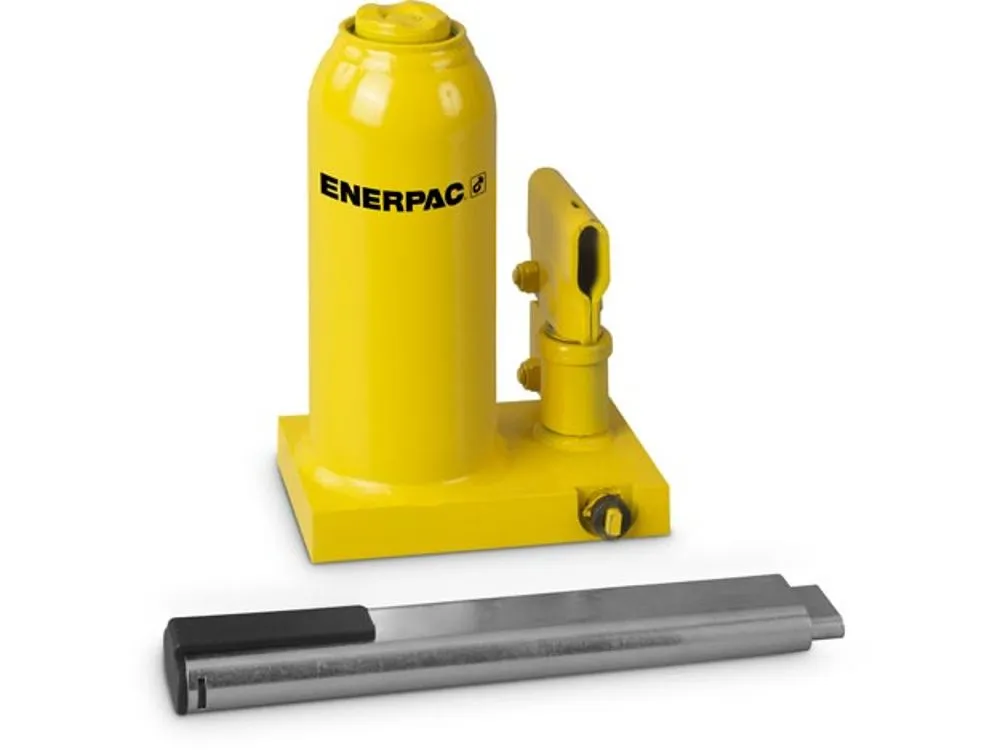

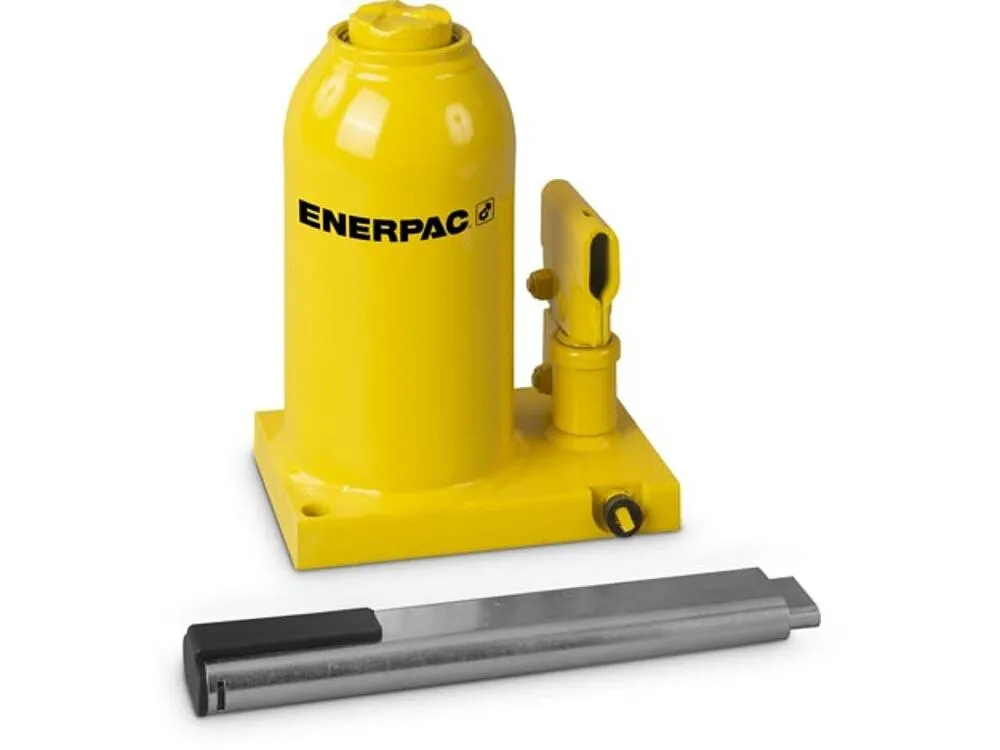

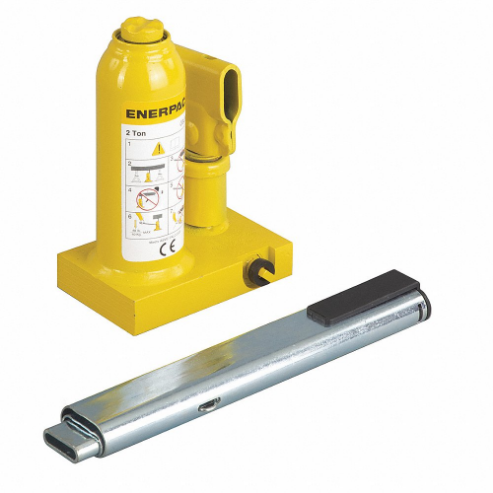

Enerpac offers bottle jacks in steel and aluminium construction. The brand's JHA Serieshydraulic aluminium jacks provide directional flexibility and have an internal relief valve for preventing overloading. They are used to replace wheels in small-scale aircrafts and other vehicles. These bottle jacks have machined flat front & bottom surfaces to allow flush alignment in compact spaces. Enerpac's GBJ Seriesbottle jacks are made of steel and are integrated with a high-strength beam, pump linkage & wiper seal for long service life. They also feature an automatic bypass port for preventing overextension of the plungers. These GBJ Series bottle jacks are available in lifting capacities ranging from 2 to 50 tons.
Bottle jacks or hydraulic jacks are ideal for lifting automobile & machinery for short intervals. They can also be used in cranes, lifting platforms and other material handling equipment in aeronautical, mining and transportation facilities.
Bottle jacks meet or exceed ANSI / ASME PALD standards and are CE- / GS-certified for user safety, superior performance and environmental health.
Raptor Supplies can deliver a wide range of accessories that fit into these bottle jacks. Bottle jack base plates are used to increase the footprint of a jack and increase stability on uneven surfaces. We can also procure jack extensions, jack pads & round axle tube pads for extending the reach of the jack pistons & lifting heavy loads safely without damaging their surfaces.
Bottle jacks mount vertically to lift more weight at higher elevations, as compared to floor jacks. These hydraulic bottle jacks are also cheaper and compact, thereby making them an ideal solution for commercial vehicles. Floor jacks, on the other hand, offer higher stability and lower initial clearance to get under low-lying equipment. Moreover, they do not require any minimum lift height.
Yes, Raptor Supplies offers various types of jacks, namely hydraulic axle jacks, hydraulic crane jacks, service jacks, transmission jacks and plow jacks.
Assuming that the to-be lifted load does not surpass the capacity of the bottle jack, the first thing to check is the oil level in the system. If an inadequate level of oil is found in the system, users should refill it using a compatible hydraulic fluid for maximum performance, self lubrication, and smooth operation. Another thing that may be at fault is either leakage or seal failure. This can be easily solved by replacing the seals on the compression cylinder.
Firstly, the users should note the maximum lift capacity of the bottle jacks and then tally it with their requirements. Next, comes the stroke length of the plunger and minimum & maximum lifting height of the selected bottle jack. Customers should also pay attention to the power source available for operating these bottle jacks.
Yes, customers looking for other jacks can opt for hydraulic crane jacks, hydraulic axle jacks and service jacks.
