Parker Brass Pipe Fittings

PARKER -

Brass MNPT x FNPT Street Elbow, 90 Degrees

A

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	8-8 SE-B	1-1/16"	1.23 x 1.47"	2500 psi	1/2"	€75.81
A	4-4 SE-B	3/4"	0.88 x 1.09"	3000 psi	1/4"	€48.24
A	6-6 SE-B	7/8"	1.02 x 1.22"	2700 psi	3/8"	€71.17

PARKER -

VS211P series, Square Head Plug

A

B

Style	Model	Length	Pipe Size	Price (ex. VAT)
A	VS211P-8	1 5/64"	1/2"	€7.73
A	VS211P-12	1 9/64"	3/4"	€11.71
B	VS211P-4	13/16"	1/4"	€1.98
B	VS211P-2	19/32"	1/8"	€1.15
B	VS211P-6	53/64"	3/8"	€3.79

PARKER -

Hose Barb, Brass

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Barb Size	Connection Type	Hex Size	Max. Pressure	Pipe Size	Shape	Style	Temp. Range	Price (ex. VAT)
A	27-1	0.062"	Barbed	1/4"	-	10-32	Barbed Male Connector	Tube to Pipe	-65 Degrees to 90 Degrees F	€8.52
B	237-5/32-2	0.096"	Barbed	-	-	1/8"	Female Branch Tee	Tube to Female Pipe	-65 Degrees to 90 Degrees F	€20.65
C	28-5/32-2	0.096"	Barbed	7/16"	-	1/8"	Connector	Tube to Pipe	-65 Degrees to 90 Degrees F	€6.08
D	229-5/32-2	0.096"	Barbed x MNPT	-	-	1/8"	90 Deg Elbow	Tube to Pipe	-65 Degrees to 90 Degrees F	€12.44
E	26-5/32-2	0.096"	Barbed	1/2"	-	1/8"	Connector	Tube to Female Pipe	-65 Degrees to 90 Degrees F	€9.30
F	225-5/32	0.096" x 0.096"	Barbed	-	150 psi	-	90 Deg Elbow	Barb	-65 Degrees to 90 Degrees F	€10.33
G	22-5/32	0.096" x 0.096"	Barbed x Barbed	-	150 psi	-	Union	Barb	-65 Degrees to 90 Degrees F	€3.42
H	224-5/32	0.096" x 0.096"	Barbed x Barbed x Barbed	-	150 psi	-	Tee	Barb	-65 Degrees to 90 Degrees F	€7.35
C	28-4-1	0.17"	Barbed	3/8"	-	1/16"	Connector	Tube to Pipe	-65 Degrees to 90 Degrees F	€3.38
I	232-4-2	0.17"	Barbed x Barbed x MNPT	-	-	1/8"	Branch Tee	Tube to Pipe	-65 Degrees to 90 Degrees F	€9.16
E	26-4-2	0.17"	Barbed	1/2"	-	1/8"	Connector	Tube to Female Pipe	-65 Degrees to 90 Degrees F	€7.14
J	233-6-6-4	0.17"	Compression x Compression x Barbed	-	150 psi	-	Tee	Compression to Tube	-65 Degrees to 90 Degrees F	€28.57
J	233-4-4-4	0.17"	Compression x Compression x Barbed	-	150 psi	-	Tee	Compression to Tube	-65 Degrees to 90 Degrees F	€24.71
D	229-4-1	0.17"	Barbed	-	-	1/16"	90 Deg Elbow	Tube to Pipe	-65 Degrees to 90 Degrees F	€6.08
K	238-4-4	0.17"	Barbed x Solder	-	150 psi	-	Connector	Tube to Solder	-65 Degrees to 90 Degrees F	€4.79
B	237-4-2	0.17"	Barbed	-	-	1/8"	Female Branch Tee	Tube to Female Pipe	-65 Degrees to 90 Degrees F	€11.71
C	28-4-10X32	0.17"	Barbed	1/4"	-	10-32	Connector	Tube to Pipe	-65 Degrees to 90 Degrees F	€3.68
C	28-4-4	0.17"	Barbed	9/16"	-	1/4"	Connector	Tube to Pipe	-65 Degrees to 90 Degrees F	€5.04
L	230-4-2	0.17"	Barbed x FNPT	-	-	1/8"	90 Deg Elbow	Tube to Female Pipe	-65 Degrees to 90 Degrees F	€6.48
C	28-4-2	0.17"	Barbed x MNPT	7/16"	-	1/8"	Connector	Tube to Pipe	-65 Degrees to 90 Degrees F	€2.36
D	229-4-4	0.17"	Barbed	-	-	1/4"	90 Deg Elbow	Tube to Pipe	-65 Degrees to 90 Degrees F	€6.41
M	228-4-2	0.17"	Barbed x MNPT x FNPT	-	-	1/8"	Gauge Tee	Tube to Pipe	-65 Degrees to 90 Degrees F	€18.00
I	232-4-1	0.17"	Barbed	-	-	1/16"	Branch Tee	Tube to Pipe	-65 Degrees to 90 Degrees F	€16.02
N	20-4	0.17"	Barbed	-	150 psi	-	Plug	Tube	-65 Degrees to 90 Degrees F	€3.32
O	22CA-4-4	0.17"	Barbed x Compress-Align	7/16"	150 psi	-	Union	Tube to Compression	-65 Degrees to 90 Degrees F	€8.82

PARKER -

Brass Pipe Fitting Kit

A

B

C

D

E

F

G

H

Style	Model	Connection Type	Hex Size	Length	Pipe Size	Shape	Style	Thread Size	Price (ex. VAT)
A	2202P-12-12	-	-	-	-	90 Deg Extruded Elbow	Female Pipe to Male Pipe	3/4"	€25.10
B	2225P-8	-	-	-	-	Street Tee	Female Pipe to Male Pipe	1/2"	€24.82
C	2214P-2-2	-	-	-	-	45 Deg Extruded Elbow	Female Pipe to Male Pipe	1/8"	€3.70
D	209P-8-6	-	-	-	-	Bushing	Male Pipe	1/2"	€4.98
D	209P-8-2	-	-	-	-	Bushing	Male Pipe	1/2"	€5.66
D	209P-16-8	-	-	-	-	Bushing	Male Pipe	1mm	€11.91
D	209P-12-4	-	-	-	-	Bushing	Male Pipe	3/4"	€9.73
E	220P-4	-	-	-	-	Slotted Head Plug	Male Pipe	1/4"	€2.64
A	2202PA-4-4	-	-	-	-	90 Deg SAE Extruded Elbow	Female Pipe to Male Pipe	1/4"	€4.75
F	222P-4-4	-	-	-	-	Adapter	Female Pipe to Male Pipe	1/4"	€3.91
C	2214P-8-8	-	-	-	-	45 Deg Extruded Elbow	Female Pipe to Male Pipe	1/2"	€17.11
B	2225P-6	-	-	-	-	Street Tee	Female Pipe to Male Pipe	3/8"	€14.93
C	2214P-4-4	-	-	-	-	45 Deg Extruded Elbow	Female Pipe to Male Pipe	1/4"	€6.59
C	2214P-6-6	-	-	-	-	45 Deg Extruded Elbow	Female Pipe to Male Pipe	3/8"	€10.04
G	2224P-8	-	-	-	-	Branch Tee	Female Pipe to Male Pipe	1/2"	€23.08
G	2224P-12	-	-	-	-	Branch Tee	Female Pipe to Male Pipe	3/4"	€24.55
A	2202P-4-2	-	-	-	-	90 Deg Extruded Elbow	Female Pipe to Male Pipe	1/4"	€6.42
D	209P-16-12	-	-	-	-	Bushing	Male Pipe	1mm	€13.06
D	209P-8-4	-	-	-	-	Bushing	Male Pipe	1/2"	€5.29
D	209P-6-4	-	-	-	-	Bushing	Male Pipe	3/8"	€2.73
D	209P-6-2	-	-	-	-	Bushing	Male Pipe	3/8"	€3.34
D	209P-12-8	-	-	-	-	Bushing	Male Pipe	3/4"	€7.63
A	2202P-4-6	-	-	-	-	90 Deg Extruded Elbow	Female Pipe to Male Pipe	1/4"	€9.34
H	2200PDE-2	-	-	-	-	Drop Ear 90 Deg Extruded Elbow	Female Pipe to Female Pipe	1/8"	€15.69
B	2225P-2	-	-	-	-	Street Tee	Female Pipe to Male Pipe	1/8"	€5.43

PARKER -

Brass NPT Male Male Hex Nipple
Parker hex nipple, brass pipe fittings are suitable for connecting lubrication / air / chemical systems in oil & gas, refining, petro chemical and power generation facilities. They feature brass construction & rolled male threads for high strength and a leak tight seal. They have both sided threaded ends & hex type fastening surface for ease of installation & maintenance. Choose from a wide range of these nipples, available in 3800 & 5600 psi pressure ratings.

A

Style	Model	Hex Size	Length	Max. Pressure	Outside Dia.	Pipe Size	Price (ex. VAT)
A	12-8 MHN-B	1.125"	1 31/32"	3800 psi	3/4"	3/4" x 1/2"	€44.36
A	2-2 MHN-B	7/16"	1 1/16"	5600 psi	1/8"	1/8" x 1/8"	€16.37

PARKER -

Hex Coupling, Brass

A

Style	Model	Hex Size	Max. Pressure	Pipe Size	Price (ex. VAT)
A	4-4 FHC-B	3/4"	4300 psi	1/4"	€24.50
A	6-6 FHC-B	7/8"	3500 psi	3/8"	€27.92

PARKER -

Male Branch Tee, FNPT x FNPT x MNPT

A

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	8-8-8 MBT-B	1-1/16"	1.23 x 1.47"	2500 psi	1/2"	€110.76
A	4-4-4 MBT-B	3/4"	0.88 x 1.09"	3000 psi	1/4"	€60.14
A	6-6-6 MBT-B	7/8"	1.02 x 1.22"	2700 psi	3/8"	€83.76

PARKER -

Hex Head Plug, Brass

A

B

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	VS218P-12	1-1/16"	1 1/16"	1000 psi	3/4"	€9.55
A	VS218P-8	7/8"	31/32"	1000 psi	1/2"	€4.74
B	8 PH-B	7/8"	0.97"	3900 psi	1/2"	€19.96
B	2 PH-B	7/16"	0.56"	5600 psi	1/8"	€10.02
A	VS218P-2	7/16"	9/16"	1000 psi	1/8"	€1.31
A	VS218P-4	9/16"	3/4"	1000 psi	1/4"	€1.75
B	4 PH-B	9/16"	0.75"	4100 psi	1/4"	€12.42
B	6 PH-B	11/16"	0.78"	4000 psi	3/8"	€15.38
A	VS218P-6	11/16"	25/32"	1000 psi	3/8"	€3.44

PARKER -

VS2224P series, Branch Tee, FNPT x FNPT x MNPT, Brass

A

Style	Model	Length	Pipe Size	Price (ex. VAT)
A	VS2224P-2	1 1/16"	1/8"	€5.97
A	VS2224P-6	1 11/16"	3/8"	€13.09
A	VS2224P-4	1 33/64"	1/4"	€9.56
A	VS2224P-12	2 5/16"	3/4"	€21.08
A	VS2224P-8	2.187"	1/2"	€22.52

PARKER -

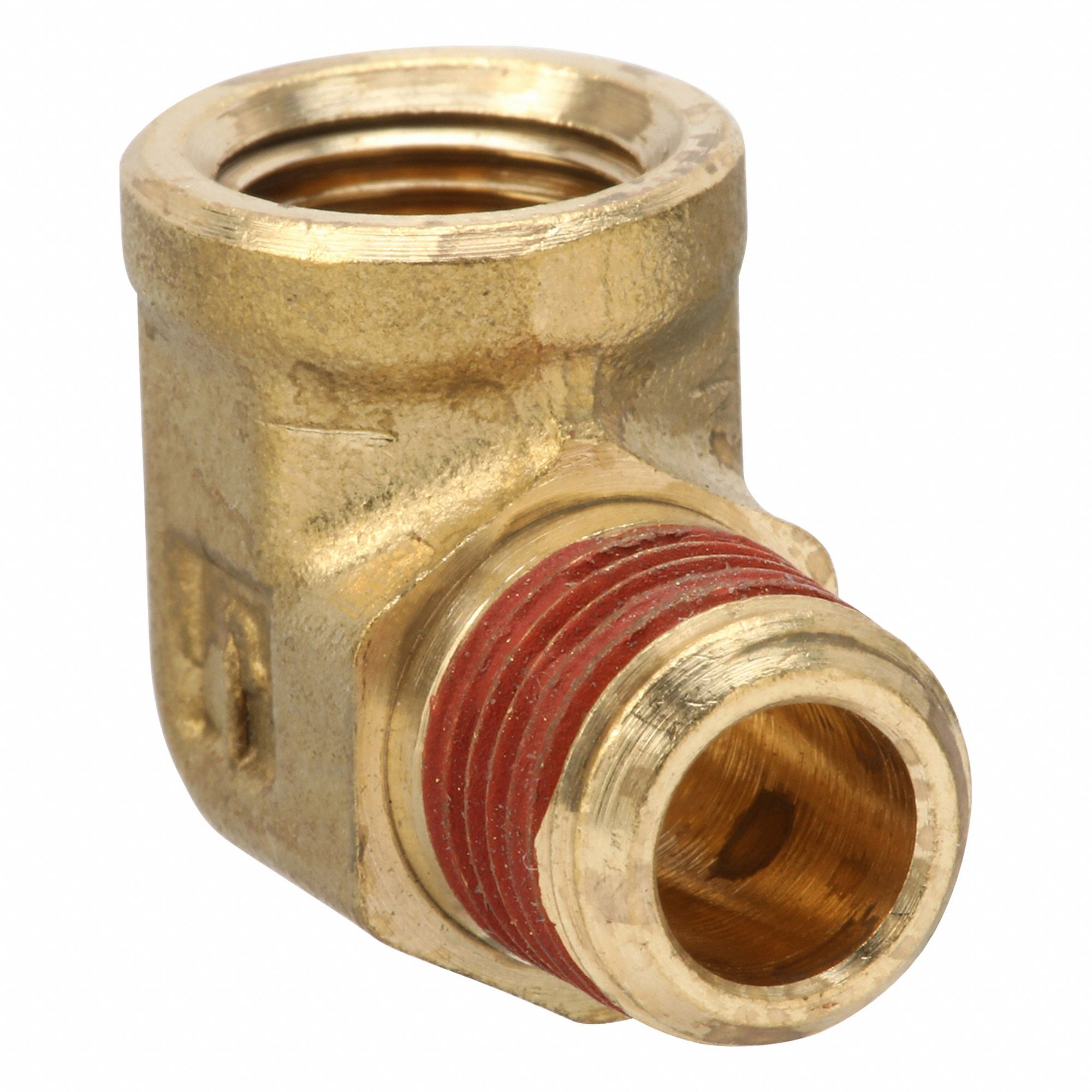

1200P series, Brass FNPT x MNPT Street Elbow, 90 Degrees
Parker 1200P Series street elbows are fittings used in fluid handling systems to change the direction of pipe connections at a 90-degree angle. They feature FNPT x MNPT connections for a secure and leak-free connection. These street elbows can be operated at temperatures ranging from -65 to 250 degrees F and pressures up to 1000 psi. They come in pipe sizes of 1/4 x 1/4, 1/8 x 1/8, 1/2 x 3/8, 3/8 x 1/2 and 3/8 x 3/8 inches.

A

Style	Model	Pipe Size	Price (ex. VAT)
A	VS1202P-8-6	1/2" x 3/8"	€13.44
A	VS1202P-6-8	3/8" x 1/2"	€13.44

PARKER -

Street Tee, Brass

A

B

C

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	VS2225P-2	-	1.187"	1000 psi	1/8"	€4.92
A	VS2225P-4	-	1 43/64"	1000 psi	1/4"	€11.06
A	VS2225P-6	-	1 13/16"	1000 psi	3/8"	€13.98
A	VS2225P-8	-	2 21/64"	1000 psi	1/2"	€21.23
A	VS2225P-12	-	2.5"	1000 psi	3/4"	€39.40
B	L2225P-8	-	2 21/64"	1000 psi	1/2"	€87.72
C	8-8-8 ST-B	1-1/16"	1.23 x 1.47"	2500 psi	1/2"	€104.74
C	4-4-4 ST-B	3/4"	0.88 x 1.09"	3000 psi	1/4"	€58.66
C	6-6-6 ST-B	7/8"	1.02 x 1.22"	2700 psi	3/8"	€81.84

PARKER -

Adapter, Brass

A

B

Style	Model	Hex Size	Length	Max. Pressure	Outside Dia.	Pipe Size	Temp. Range	Price (ex. VAT)
A	4-4 RA-B	3/4"	1 13/32"	4300 psi	1/4"	1/4"	-40 Degrees to 400 Degrees F	€25.14
A	2-2 RA-B	5/8"	1.031"	4000 psi	1/8"	1/8"	-40 Degrees to 400 Degrees F	€17.78
B	VS222P-6-6	7/8"	1.25"	1000 psi	-	3/8"	-65 Degrees to 250 Degrees F	€6.60
B	VS222P-2-2-112	9/16"	1.75"	1000 psi	-	1/8"	-65 Degrees to 250 Degrees F	€7.03
B	VS222P-2-2	9/16"	7/8"	1000 psi	-	1/8"	-65 Degrees to 250 Degrees F	€1.99

PARKER -

VS2202P series, Extruded Street Elbow, 90 Degrees

A

Style	Model	Length	Pipe Size	Price (ex. VAT)
A	VS2202PA-4-4	1 5/64"	1/4"	€5.50
A	VS2202P-8-8	1.75"	1/2"	€12.54
A	VS2202P-12-12	2"	3/4"	€23.52
A	VS2202P-12-8	2"	3/4" x 1/2"	€26.79
A	VS2202PA-2-2	21/32"	1/8"	€5.03
A	VS2202P-4-2	23/32"	1/4" x 1/8"	€6.10
A	VS2202P-4-6	31/32"	1/4" x 3/8"	€9.59
A	VS2202PA-6-6	31/32"	3/8"	€10.49

PARKER -

VS216P series, Reducing Nipple

A

Style	Model	Hex Size	Length	Pipe Size	Price (ex. VAT)
A	VS216P-12-8	1-1/16"	1 13/16"	3/4" x 1/2"	€15.52
A	VS216P-8-4	7/8"	1.625"	1/2" x 1/4"	€9.94
A	VS216P-8-6	7/8"	1.625"	1/2" x 3/8"	€9.09
A	VS216P-4-2	9/16"	1.187"	1/4" x 1/8"	€3.39
A	VS216P-6-4	11/16"	1 13/32"	3/8" x 1/4"	€6.13
A	VS216P-6-2	11/16"	1 7/32"	3/8" x 1/8"	€6.84

PARKER -

VS219P series, Countersink Plug

A

Style	Model	Hex Size	Length	Pipe Size	Price (ex. VAT)
A	VS219P-4	1/4"	15/32"	1/4"	€3.03
A	VS219P-8	3/8"	5/8"	1/2"	€5.65
A	VS219P-2	3/16"	5/16"	1/8"	€1.31
A	VS219P-6	5/16"	15/32"	3/8"	€3.84
A	VS219P-12	9/16"	5/8"	3/4"	€7.08

PARKER -

Male Elbow, 90 Degrees, MNPT, Brass

A

B

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Temp. Range	Price (ex. VAT)
A	VS1204P-8	-	1 13/32"	1000 psi	1/2"	-65 Degrees to 250 Degrees F	€8.82
A	VS1204P-2	-	23/32"	1000 psi	1/8"	-65 Degrees to 250 Degrees F	€5.02
A	VS1204P-4	-	1 3/32"	1000 psi	1/4"	-65 Degrees to 250 Degrees F	€5.69
A	VS1204P-6	-	1 3/32"	1000 psi	3/8"	-65 Degrees to 250 Degrees F	€7.77
B	6-6 ME-B	3/4"	1.22"	4000 psi	3/8"	-	€50.72
B	8-8 ME-B	7/8"	1.47"	3100 psi	1/2"	-	€74.51
B	2-2 ME-B	7/16"	49/64"	5000 psi	1/8"	-40 Degrees to 400 Degrees F	€44.01
B	4-4 ME-B	9/16"	1.09"	4100 psi	1/4"	-	€43.09

PARKER -

Street Elbow, 45 Degrees

A

B

Style	Model	Length	Max. Pressure	Pipe Size	Temp. Range	Price (ex. VAT)
A	VS2214P-12-12	-	1000 psi	3/4"	-65 Degrees to 250 Degrees F	€27.84
B	4-4 SVE-B	1 3/64"	3000 psi	1/4"	-40 Degrees to 400 Degrees F	€34.08
A	VS2214P-6-6	1 11/32"	1000 psi	3/8"	-65 Degrees to 250 Degrees F	€8.42
A	VS2214P-8-8	1 47/64"	1000 psi	1/2"	-65 Degrees to 250 Degrees F	€17.74
A	VS2214P-4-4	1.25"	1000 psi	1/4"	-65 Degrees to 250 Degrees F	€5.91
A	VS2214P-2-2	7/8"	1000 psi	1/8"	-65 Degrees to 250 Degrees F	€3.43

PARKER -

Reducing Adapter, Brass

A

B

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	VS222P-8-4	1"	1 15/32"	1000 psi	1/2" x 1/4"	€10.02
A	VS222P-8-6	1-1/16"	1 15/32"	1000 psi	1/2" x 3/8"	€11.80
A	VS222P-8-8	1-1/16"	1 21/32"	1000 psi	1/2"	€14.70
A	VS222P-12-8	1.375"	1 11/16"	1000 psi	3/4" x 1/2"	€23.74
A	VS222P-12-6	1.375"	1.5"	1000 psi	3/4" x 3/8"	€20.99
A	VS222P-12-12	1.375"	3/4"	1000 psi	3/4"	€21.20
A	VS222P-4-2	3/4"	7/32"	1000 psi	1/4" x 1/8"	€4.20
A	VS222P-4-4	3/4"	1.25"	1000 psi	1/4"	€3.53
B	4-2 RA-B	3/4"	1.2"	4300 psi	1/4" x 1/8"	€20.87
B	6-2 RA-B	7/8"	1.25"	3500 psi	3/8" x 1/8"	€27.36
A	VS222P-6-4	7/8"	5/16"	1000 psi	3/8" x 1/4"	€6.53
B	6-4 RA-B	7/8"	1.44"	3500 psi	3/8" x 1/4"	€26.42

PARKER -

Cap, FNPT, Brass

A

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	6 CP-B	1-1/16"	1.03"	3600 psi	1/2"	€24.08
A	8 CP-B	1-1/16"	1.34"	3600 psi	1/2"	€27.64
A	4 CP-B	3/4"	0.91"	4300 psi	1/4"	€14.54
A	2 CP-B	9/16"	0.75"	4000 psi	1/8"	€12.81

PARKER -

Male Tee

A

Style	Model	Hex Size	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	8-8-8 MT-B	1-1/16"	1.47"	3100 psi	1/2"	€97.90
A	4-4-4 MT-B	3/4"	1.09"	4100 psi	1/4"	€54.15

PARKER -

Hollow Hex Head Plug

A

B

Style	Model	Length	Max. Pressure	Pipe Size	Price (ex. VAT)
A	6 PHH-B	-	-	-	€36.33
B	2 PHH-B	0.3"	5600 psi	1/8"	€10.28
B	4 PHH-B	0.47"	4100 psi	1/4"	€12.88

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

PARKER Brass Pipe Fittings

Capable of meeting the functional requirements of SAE J530 and SAE J531 standards. Have a maximum operating pressure of 5600 psi and are compatible with copper and brass tubes and iron pipes

Brass MNPT x FNPT Street Elbow, 90 Degrees

VS211P series, Square Head Plug

Hose Barb, Brass

Brass Pipe Fitting Kit

Hex Coupling, Brass

Male Branch Tee, FNPT x FNPT x MNPT

Hex Head Plug, Brass

VS2224P series, Branch Tee, FNPT x FNPT x MNPT, Brass

Street Tee, Brass

Adapter, Brass

VS2202P series, Extruded Street Elbow, 90 Degrees

VS216P series, Reducing Nipple

VS219P series, Countersink Plug

Male Elbow, 90 Degrees, MNPT, Brass

Street Elbow, 45 Degrees

Reducing Adapter, Brass

Cap, FNPT, Brass

Male Tee

Hollow Hex Head Plug

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

PARKER Brass Pipe Fittings Capable of meeting the functional requirements of SAE J530 and SAE J531 standards. Have a maximum operating pressure of 5600 psi and are compatible with copper and brass tubes and iron pipes

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

PARKER Brass Pipe Fittings

Capable of meeting the functional requirements of SAE J530 and SAE J531 standards. Have a maximum operating pressure of 5600 psi and are compatible with copper and brass tubes and iron pipes
