Swaged Cartridge Heater, 120 Volt, 10" Leads

Vulcan swaged cartridge heaters are used for providing concentrated heat into drilled holes of dies, platens and metal blocks. These units have a compact design offered both in high and low watt densities (19 - 172 W / sq.in.) to accomplish the intended application. They feature a 304 stainless-steel sheath for excellent thermal conductivity and resisting oxidation reactions & scaling, and an end disc for positive sealing against ingress of moisture & contaminants. These units are integrated with a nickel-chrome resistance wire, wounded around a precision ceramic core, for a proper seating inside the sheath which is further filled with pure magnesium oxide powder. Choose from a wide range of these swaged cartridge heaters available in 3/4 to 1 inch diameter variants on Raptor Supplies.

VULCAN C9770AA
VULCAN TB505AB
StyleModelDiameterLengthMax. Temp. CapabilitySheath MaterialWatt DensityWattsPrice (ex. VAT)
AC9770A1"6.375"900 Degrees FCorrosion Resistant 304 Stainless Steel33W/sq. in.600€77.47
BTB505A1/2"3"1600 Degrees FCorrosion Resistant Alloy64W/sq. in.250€96.78
BTB501A1/2"1.5"1600 Degrees FCorrosion Resistant Alloy96W/sq. in.150€71.37
BTB5065A1/2"4"1600 Degrees FCorrosion Resistant Alloy46W/sq. in.250€73.04
BTB506A1/2"4"1600 Degrees FCorrosion Resistant Alloy100W/sq. in.550€58.34
BTB5013A1/2"2"1600 Degrees FCorrosion Resistant Alloy85W/sq. in.200€65.99
BTB507A1/2"5"1600 Degrees FCorrosion Resistant Alloy71W/sq. in.500€71.52
BTB5046A1/2"2.5"1600 Degrees FCorrosion Resistant Alloy160W/sq. in.500€67.66
AC5180A1/2"2"900 Degrees F304 Stainless Steel42W/sq. in.100€50.64
AC5170A1/2"6"900 Degrees F304 Stainless Steel35W/sq. in.300€48.70
BTB503A1/2"2.25"1600 Degrees FCorrosion Resistant Alloy102W/sq. in.280€69.78
BTB1017A1/4"2"1600 Degrees FCorrosion Resistant Alloy128W/sq. in.150€55.78
AC210A1/4"7.5"900 Degrees F304 Stainless Steel19W/sq. in.100€67.22
AC758A3/4"8"900 Degrees FCorrosion Resistant 304 Stainless Steel28W/sq. in.500€64.24
AC766A3/4"4"900 Degrees FCorrosion Resistant 304 Stainless Steel36W/sq. in.300€59.80
AC3930A3/8"4"900 Degrees F304 Stainless Steel36W/sq. in.150€51.64
BTB381A3/8"1.5"1600 Degrees FCorrosion Resistant Alloy86W/sq. in.100€62.12
BTB380A3/8"1.25"1600 Degrees FCorrosion Resistant Alloy115W/sq. in.100€72.80
BTB3815A3/8"1.25"1600 Degrees FCorrosion Resistant Alloy172W/sq. in.150€66.38
BTB3816A3/8"2"1600 Degrees FCorrosion Resistant Alloy85W/sq. in.150€73.50
BTB3070A3/8"5"1600 Degrees FCorrosion Resistant Alloy95W/sq. in.500€60.73
AC3840A3/8"3"900 Degrees F304 Stainless Steel34W/sq. in.100€55.79
AC3910A3/8"1.5"900 Degrees F304 Stainless Steel42W/sq. in.50€40.10
BTB388A3/8"6"1600 Degrees FCorrosion Resistant Alloy77W/sq. in.500€70.91
AC3830A3/8"2.375"900 Degrees F304 Stainless Steel34W/sq. in.75€41.97
See more
VULCAN -

Swaged Cartridge Heater, 240 Volt, 10" Leads

VULCAN TB507BA
VULCAN C5170BB
StyleModelDiameterLengthMax. Temp. CapabilitySheath MaterialWatt DensityWattsPrice (ex. VAT)
ATB507B1/2"5"1600 Degrees FCorrosion Resistant Alloy71W/sq. in.500€72.97
ATB505B1/2"3"1600 Degrees FCorrosion Resistant Alloy64W/sq. in.250€66.67
BC5170B1/2"6"900 Degrees F304 Stainless Steel35W/sq. in.300€43.09
ATB5015B1/2"3"1600 Degrees FCorrosion Resistant Alloy102W/sq. in.400€61.58
ATB506B1/2"4"1600 Degrees FCorrosion Resistant Alloy100W/sq. in.550€64.43
ATB501B1/2"1.5"1600 Degrees FCorrosion Resistant Alloy96W/sq. in.150€58.79
ATB5055B1/2"3"1600 Degrees FCorrosion Resistant Alloy192W/sq. in.750€94.33
BC758B3/4"8"900 Degrees FCorrosion Resistant 304 Stainless Steel28W/sq. in.500€77.41
ATB703B3/4"6"1600 Degrees FCorrosion Resistant Alloy77W/sq. in.1000€89.34
ATB3815B3/8"1.25"1600 Degrees FCorrosion Resistant Alloy172W/sq. in.150€85.17
BC3830B3/8"2.375"900 Degrees FCorrosion Resistant 304 Stainless Steel34W/sq. in.75€44.80
ATB3070B3/8"5"1600 Degrees FCorrosion Resistant Alloy95W/sq. in.500€74.61
ATB388B3/8"6"1600 Degrees FCorrosion Resistant Alloy77W/sq. in.500€70.76
ATB3816B3/8"2"1600 Degrees FCorrosion Resistant Alloy85W/sq. in.150€74.43
ATB380B3/8"1.25"1600 Degrees FCorrosion Resistant Alloy115W/sq. in.100€67.92
ATB386B3/8"4"1600 Degrees FCorrosion Resistant Alloy73W/sq. in.300€72.87
ATB3035B3/8"2.5"1600 Degrees FCorrosion Resistant Alloy85W/sq. in.200€61.42
ATB3821B3/8"2"1600 Degrees FCorrosion Resistant Alloy114W/sq. in.200€64.22
ATB6214B5/8"4"1600 Degrees FCorrosion Resistant Alloy80W/sq. in.550€49.04
ATB6025B5/8"5"1600 Degrees FCorrosion Resistant Alloy57W/sq. in.500€106.12
BC6360B5/8"2.375"900 Degrees FCorrosion Resistant 304 Stainless Steel41W/sq. in.150€68.28
ATB6031B5/8"6"1600 Degrees FCorrosion Resistant Alloy46W/sq. in.500€82.04
TEMPCO -

Hi-Density Cartridge Heaters

TEMPCO HDC00546A
TEMPCO HDC15004B
StyleModelDiameterLead LengthLengthPrecision Sheath Dia. ToleranceVoltageWatt DensityWattsPrice (ex. VAT)
AHDC005461/2"10"4"+/- 0.002"240136W/sq. in.750€37.68
BHDC150041/2"12"8"+/- 0.002"24085W/sq. in.1000€68.85
AHDC099501/2"12"3"+/- 0.002"12064W/sq. in.250€47.86
AHDC077911/2"12"5"+/- 0.002"24072W/sq. in.500€51.91
BHDC205931/2"12"2.25"+/- 0.002"120102W/sq. in.280€45.06
BHDC206061/2"12"5"+/- 0.002"240106W/sq. in.750€52.64
AHDC062771/2"12"2"+/- 0.002"12086W/sq. in.200€45.08
BHDC206071/2"12"6"+/- 0.002"24058W/sq. in.500€59.70
BHDC205901/2"12"1.5"+/- 0.002"12097W/sq. in.150€43.59
BHDC205991/2"12"4"+/- 0.002"24074W/sq. in.400€48.93
BHDC150031/2"12"6"+/- 0.002"24087W/sq. in.750€58.36
BHDC206081/2"12"8"+/- 0.002"12042W/sq. in.500€68.36
AHDC098901/2"12"10"+/- 0.002"24034W/sq. in.500€81.73
BHDC205921/2"12"2"+/- 0.002"240170W/sq. in.400€46.43
BHDC128841/2"12"10"+/- 0.002"240101W/sq. in.1500€82.74
BHDC206261/2"12"10"+/- 0.002"240134W/sq. in.2000€84.92
AHDC004271/2"10"1"+/- 0.002"120191W/sq. in.150€31.63
AHDC006791/2"10"10"+/- 0.002"240134W/sq. in.2000€72.68
AHDC006031/2"10"6"+/- 0.002"12058W/sq. in.500€45.48
AHDC006041/2"10"6"+/- 0.002"24058W/sq. in.500€46.81
AHDC006421/2"10"8"+/- 0.002"12042W/sq. in.500€56.72
AHDC006131/2"10"6"+/- 0.002"240116W/sq. in.1000€46.25
AHDC005791/2"10"5"+/- 0.002"240106W/sq. in.750€40.64
AHDC005781/2"10"5"+/- 0.002"120106W/sq. in.750€40.65
AHDC005451/2"10"4"+/- 0.002"120136W/sq. in.750€37.05
See more
TEMPCO -

Low Density Cartridge Heaters

TEMPCO LDC00097A
StyleModelDiameterLengthVoltageWatt DensityWattsPrice (ex. VAT)
ALDC000971/2"3"12038W/sq. in.150€30.74
ALDC000961/2"2.5"12040W/sq. in.125€27.58
ALDC001061/2"5"12028W/sq. in.200€40.95
ALDC001071/2"5"24028W/sq. in.200€41.64
ALDC001041/2"4"24033W/sq. in.180€35.26
ALDC001031/2"4"12033W/sq. in.180€35.99
ALDC019491/4"2.5"12029W/sq. in.40€34.98
ALDC000151/4"2"12027W/sq. in.32€27.80
ALDC000251/4"6"12035W/sq. in.150€30.65
ALDC000221/4"4"12036W/sq. in.100€26.42
ALDC019501/4"3"12036W/sq. in.60€26.54
ALDC000613/8"6"12039W/sq. in.250€40.44
ALDC000393/8"3.5"12034W/sq. in.120€31.00
ALDC019513/8"2"12031W/sq. in.60€24.76
ALDC019523/8"2.5"12032W/sq. in.80€27.31
ALDC000513/8"4.5"12032W/sq. in.150€35.16
ALDC000023/16"1.5"12030W/sq. in.20€31.60
ALDC000053/16"3"12029W/sq. in.45€40.67
ALDC001715/8"3"12036W/sq. in.175€33.83
ALDC001835/8"5"12028W/sq. in.250€42.43
TEMPCO -

Cartridge Heaters

TEMPCO LDC00784A
TEMPCO CSH00114B
StyleModelItemPrice (ex. VAT)
ALDC00784Cartridge Heater€248.30
BCSH00114Strip Heater€154.44
VULCAN HART -

Cartridge Heater, 480V, 800V, 2.45 x 10.95 x 2.05 Inch Size

Cartridge Heater, 480V, 800V, 2.45 x 10.95 x 2.05 Inch Size
ModelItemPrice (ex. VAT)
00-857048-00006AP4TNW€347.91
VULCAN HART -

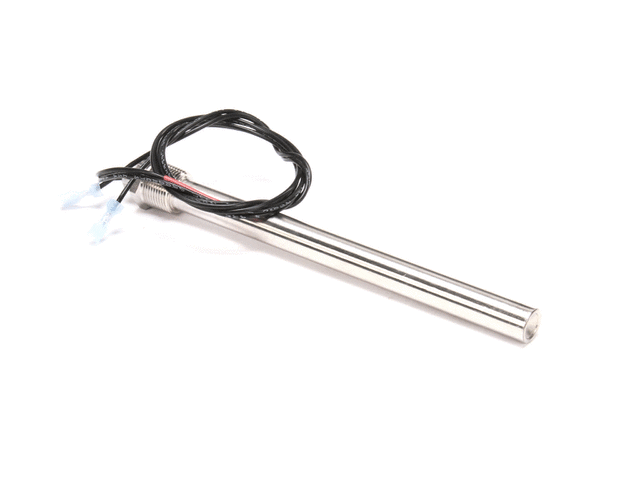

Cartridge Heater, 208/240V Red, 3.45 x 10.75 x 2.3 Inch Size

Cartridge Heater, 208/240V Red, 3.45 x 10.75 x 2.3 Inch Size
ModelItemPrice (ex. VAT)
00-857048-00001AP4TNT€396.76

Cartridge Heaters

Cartridge heaters are designed to transfer heat from one area to the next via thermal conduction. These heaters are ideal for packaging, plastic and rubber moulding, and fluid heating machines. Raptor Supplies offers a variety of high density cartridge heaters from leading manufacturers like Tempco and Vulcan. These industrial cartridge heaters have a swaged construction for higher Watt densities and efficient heat transfer. They are available in 10 and 12-inch lead length variants and have a maximum operating temperature of 1600 degrees Fahrenheit.
