Parker Compression Tube Fittings

PARKER Compression Tube Fittings

Suitable for applications in plumbing and electrical conduit systems to connect two pipes or tubes with hot- and cold-water faucets. Available in different materials and connection types

Filter

PARKER -

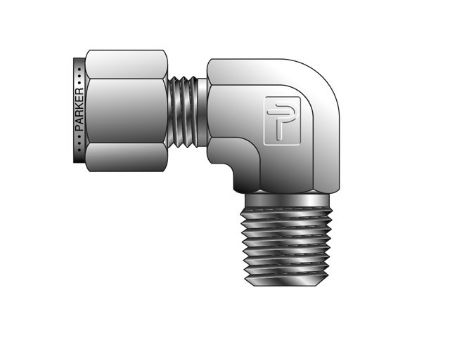

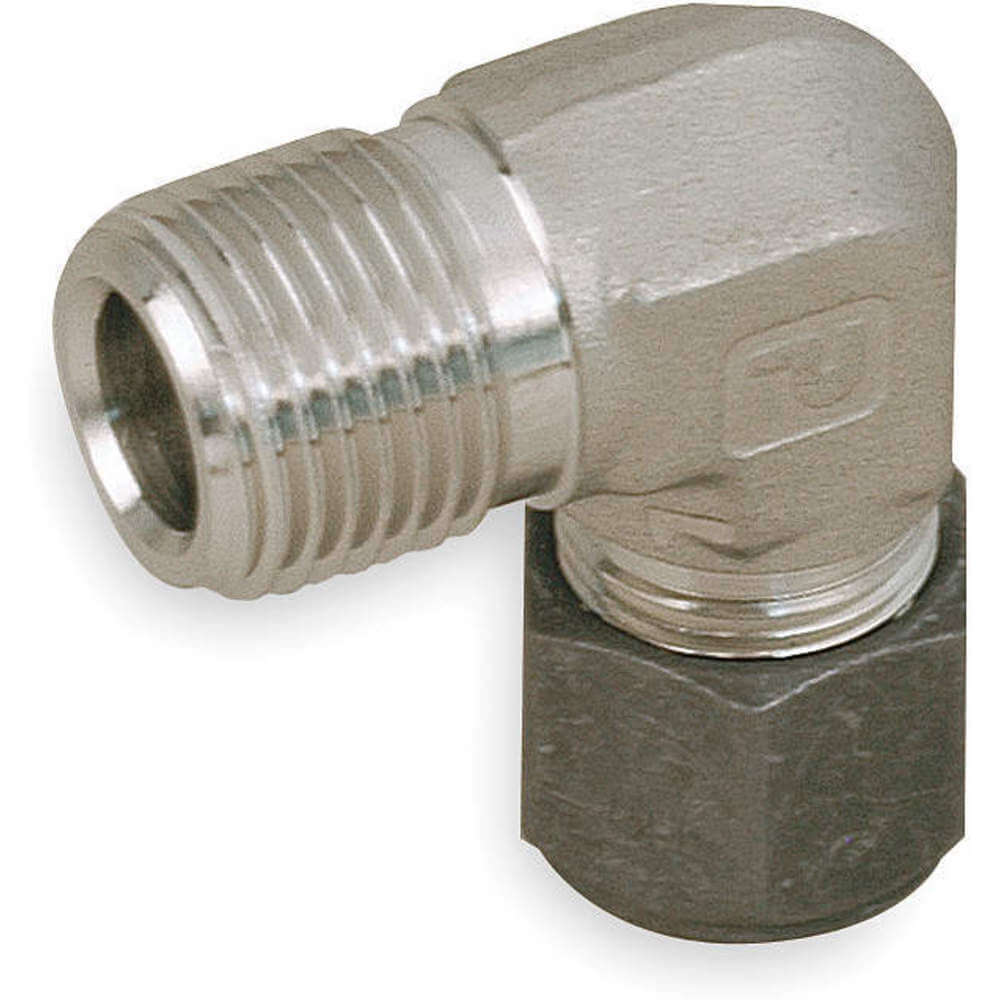

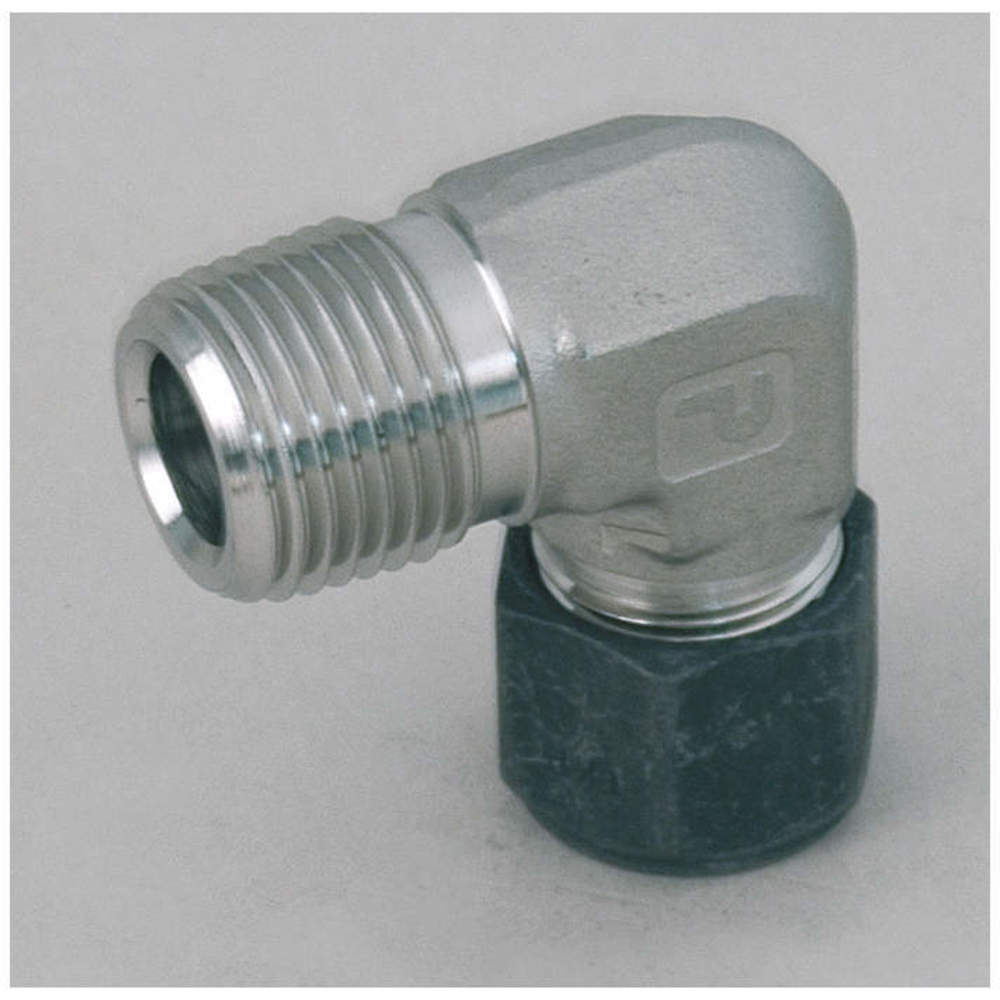

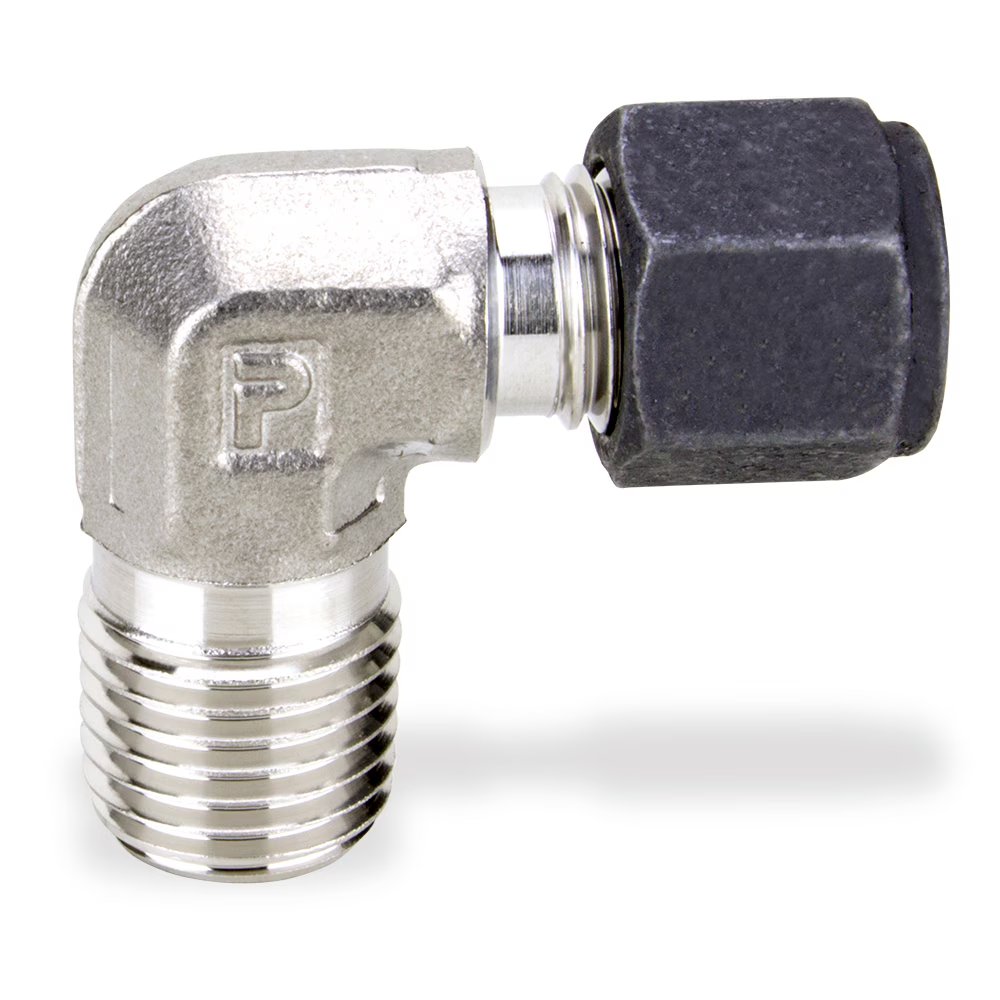

Male Elbow, 90 Degrees, Compression

StyleModelBody MaterialCompression Thread SizeConnection TypeHex SizeItemMax. PressurePipe SizeTemp. RangePrice (ex. VAT)Pkg. Qty.
A4-4 C5BZ-SS-1/4"CPI(TM) x SAE Straight Thread1/2"Straight Thread Elbow10,300 psi1/4"-425 Degrees to 1200 Degrees F€82.211
B12MSEL12N-316-GR316 Stainless Steel-A-LOK(R) x MNPT1-1/16"Male Elbow, 90 Degrees-3/4"-425 Degrees to 1200 Degrees F€125.591
B16MSEL16N-316-GR316 Stainless Steel-A-LOK(R) x MNPT1.375"Male Elbow, 90 Degrees-1"-425 Degrees to 1200 Degrees F€258.851
B6MSEL2N-316-GR316 Stainless Steel-A-LOK(R) x MNPT5/8"Male Elbow, 90 Degrees-1/8"-425 Degrees to 1200 Degrees F€61.451
B8MSEL6N-316-GR316 Stainless Steel-A-LOK(R) x MNPT13/16"Male Elbow, 90 Degrees-3/8"-425 Degrees to 1200 Degrees F€83.521
B6MSEL8N-316-GR316 Stainless Steel-A-LOK(R) x MNPT13/16"Male Elbow, 90 Degrees-1/2"-425 Degrees to 1200 Degrees F€85.781
B8MSEL4N-316-GR316 Stainless Steel-A-LOK(R) x MNPT13/16"Male Elbow, 90 Degrees-1/4"-425 Degrees to 1200 Degrees F€83.931
C169C-10-6Brass13/16-18Compression x MNPT-Male Elbow, 90 Degrees75 to 400 psi3/8"-65 Degrees to 250 Degrees F€240.2910
D16-16 CBZ-BBrass1-5/16-20CPI(TM) x MNPT1.375"Male Elbow, 90 Degrees-1"-40 Degrees to 400 Degrees F€154.621
D8-4 CBZ-BBrass7/16-20CPI(TM) x MNPT13/16"Male Elbow, 90 Degrees-1/4"-40 Degrees to 400 Degrees F€30.871
D12MSEL12N-BBrass1-20A-LOK(R) x MNPT1-1/16"Male Elbow, 90 Degrees-3/4"-40 Degrees to 400 Degrees F€69.231
E4MSEL6N-SCarbon Steel7/16-20A-LOK(R) x MNPT11/16"Male Elbow, 90 Degrees6000 psi3/8"-20 Degrees to 800 Degrees F€41.021
F6EE6-SCarbon Steel-Compression5/8"Elbow, 90 Degrees7600 psi--20 Degrees to 800 Degrees F€44.961
G8EE8-SCarbon Steel-Compression13/16"Elbow, 90 Degrees6200 psi--20 Degrees to 800 Degrees F€53.571
H4EE4-SCarbon Steel-Compression1/2"Male Elbow, 90 Degrees8000 psi--20 Degrees to 800 Degrees F€36.951
IL269CA-6-6Low Lead Brass-Compression x MNPT-Male Elbow, 90 Degrees1000 psi3/8"-65 Degrees to 250 Degrees F€44.611
PARKER -

Female Branch Tee, Compression, Stainless Steel

StyleModelBody MaterialConnection TypeHex SizePipe SizeTube SizePrice (ex. VAT)
A8FBT6N-316-GR316 Stainless SteelCompression x FNPT7/8"3/8"1/2"€178.17
B2FBT2N-316Stainless SteelA-LOK(R) x FNPT1/2"1/8"1/8"€120.01
PARKER -

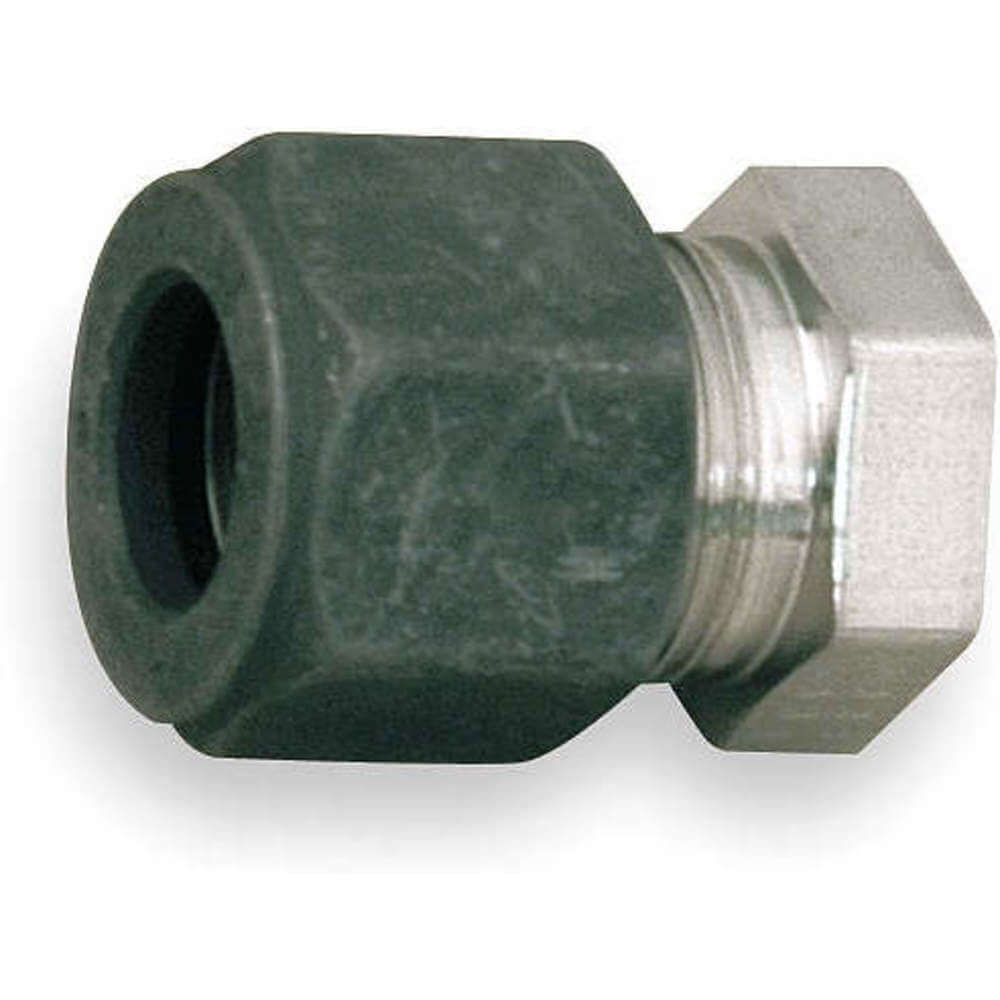

Compression Cap

Parker manufactures compression fitting caps useful for corrosive environments and chemical handling applications. Its Pargrip Series fittings feature an easy-to-assemble design that offers a leak-tight connection and effectively reduces downtime. Pargrip caps require no special tools for their assembly or disassembly. The connection can be simply made by inserting the tubing into the fitting assembly and tightening the nut. Made from virgin fluoropolymer matter, these caps provide high purity and temperature capability. These PFA caps leave fewer surface particulates that result in a much cleaner operation. Parker tube fittings are suitable for use with aggressive liquids operating in highly corrosive environments.

StyleModelMax. PressureTube SizePrice (ex. VAT)
AGCAP-8175 psi1/2"€74.38
AGCAP-4225 psi1/4"€72.55
PARKER -

Tee Connector

StyleModelMax. PressureTube SizePrice (ex. VAT)
AGTC-8175 psi1/2"€190.85
AGTC-4225 psi1/4"€141.13
AGTC-6225 psi3/8"€141.93
AGTC-2225 psi1/8"€113.14
PARKER -

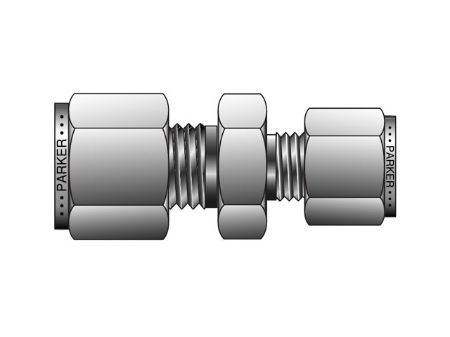

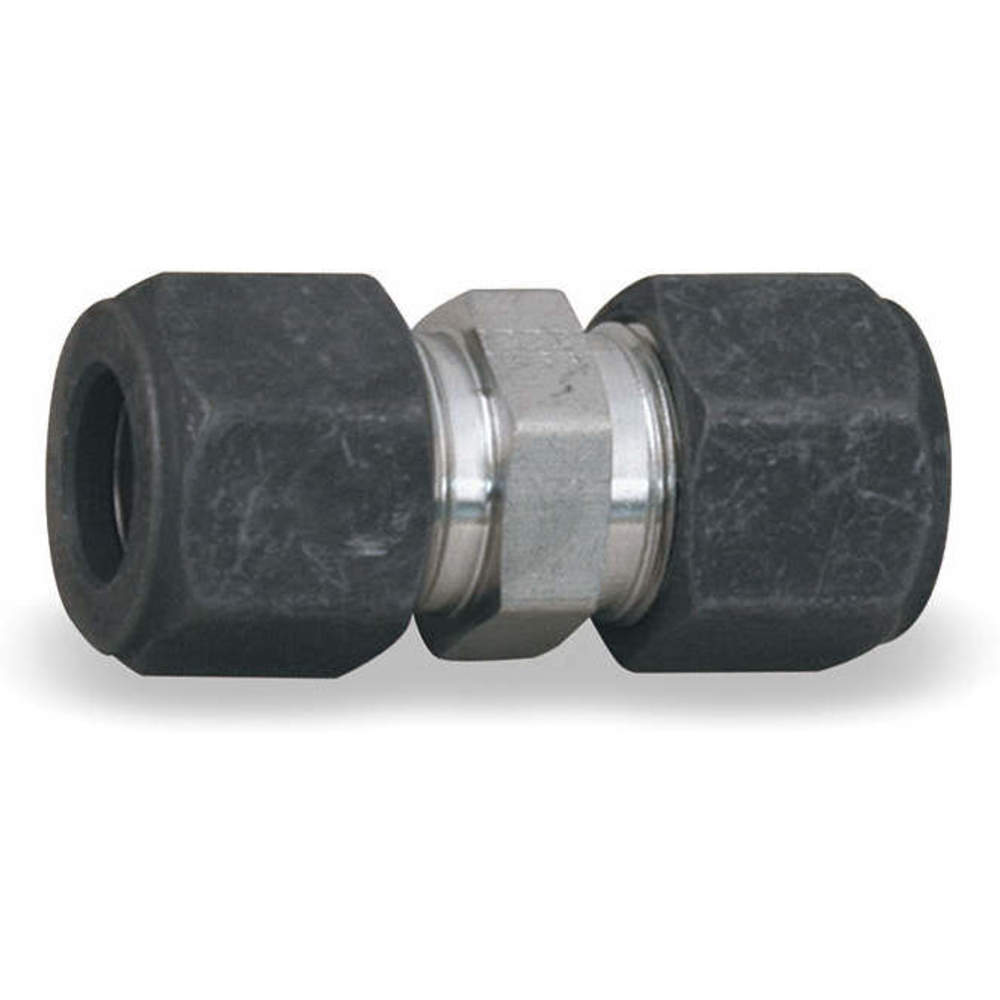

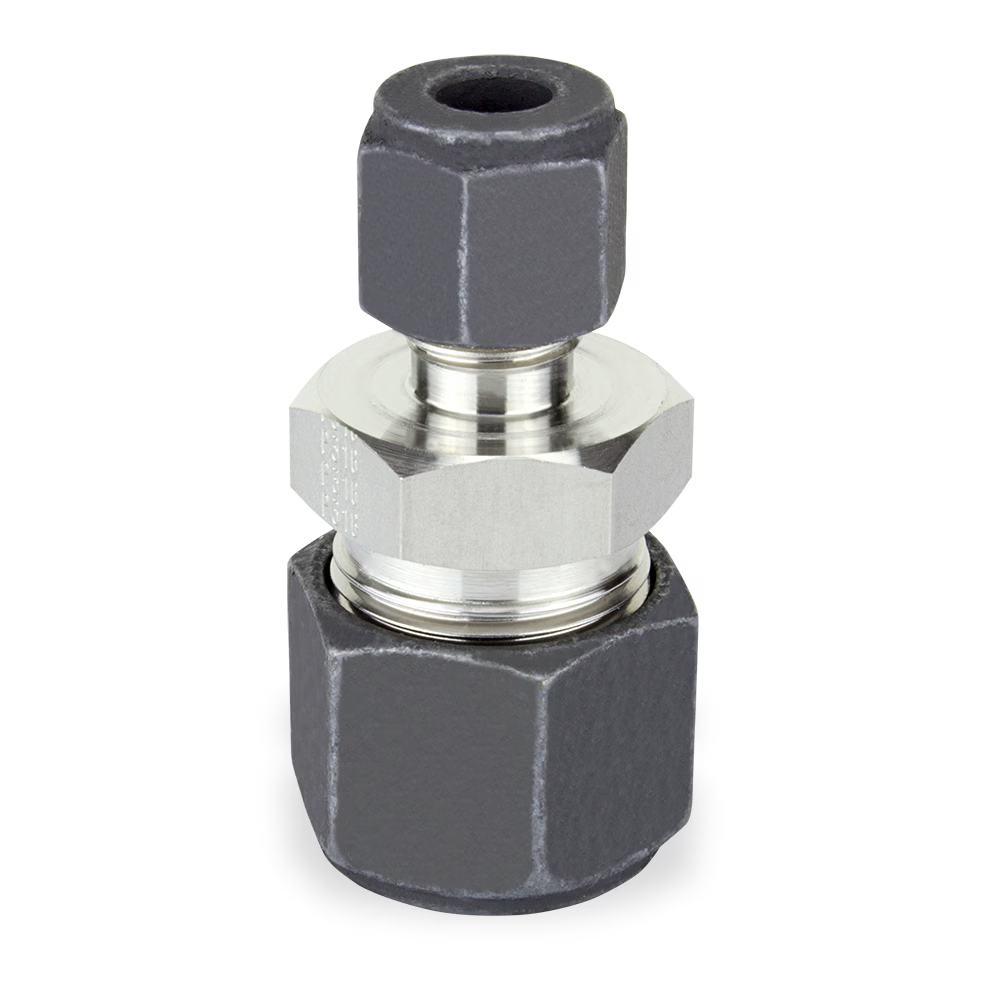

Reducing Unions

StyleModelBasic MaterialBody MaterialCompression Thread SizeConnection TypeHex SizeMax. PressureTemp. RangeTube SizePrice (ex. VAT)
A4RU2-BBrassBrass1/4" x 1/8"A-LOK(R)1/2"3500 psi-40 Degrees to 400 Degrees F1/4" x 1/8"€22.57
B6RU4-316-GRMetal316 Stainless Steel-A-LOK(R) x A-LOK(R)5/8"--425 Degrees to 1200 Degrees F3/8" x 1/4"€54.16
B8RU4-316-GRMetal316 Stainless Steel-A-LOK(R) x A-LOK(R)13/16"--425 Degrees to 1200 Degrees F1/2" x 1/4"€76.10
B8RU6-316-GRMetal316 Stainless Steel-A-LOK(R) x A-LOK(R)13/16"--425 Degrees to 1200 Degrees F1/2" x 3/8"€69.41
B12RU8-316-GRMetal316 Stainless Steel-A-LOK(R) x A-LOK(R)1-1/16"--425 Degrees to 1200 Degrees F3/4" x 1/2"€127.52
A4-2 HBZ-BMetalBrass-CPI(TM) x CPI(TM)1/2"--40 Degrees to 400 Degrees F1/4" x 1/2"€19.20
A6-4 HBZ-BMetalBrass-CPI(TM) x CPI(TM)5/8"--40 Degrees to 400 Degrees F3/8" x 1/4"€23.51
A8-4 HBZ-BMetalBrass-CPI(TM) x CPI(TM)13/16"--40 Degrees to 400 Degrees F1/2" x 1/4"€38.00
A8-6 HBZ-BMetalBrass-CPI(TM) x CPI(TM)13/16"--40 Degrees to 400 Degrees F1/2" x 3/8"€40.60
A6RU4-BMetalBrass-A-LOK(R) x A-LOK(R)5/8"--40 Degrees to 400 Degrees F3/8" x 1/4"€21.76
A8RU4-BMetalBrass-A-LOK(R) x A-LOK(R)13/16"--40 Degrees to 400 Degrees F1/2" x 1/4"€38.69
A8RU6-BMetalBrass-A-LOK(R) x A-LOK(R)13/16"--40 Degrees to 400 Degrees F1/2" x 3/8"€35.09
A10RU8-BMetalBrass-Compression15/16"--40 Degrees to 400 Degrees F5/8" x 1/2"€42.22
C4RU1-316Stainless SteelStainless Steel1/4" x 1/16"A-LOK(R)1/2"10,300 psi-425 Degrees to 1200 Degrees F1/4" x 1/16"€62.75
C5RU4-316Stainless SteelStainless Steel5/16" x 1/4"A-LOK(R)9/16"8100 psi-425 Degrees to 1200 Degrees F5/16" x 1/4"€57.89
StyleModelCompression Thread SizeHex SizePipe SizePrice (ex. VAT)
A2MA4N-3161/4"9/16"1/4"€31.58
A2MA2N-3161/8"7/16"1/8"€26.90
PARKER -

CPI B2HF series, Barb Connectors

Parker barb connectors are designed for connecting hoses to thin / heavy wall metal tubing for process & instrumentation applications. They feature 316 stainless steel construction for leakage free operations & long term durability against high temperatures & pressures. They have hex type fastening stem for ease of installation & replacement. Choose from a wide range of these connectors, available for 1/8, 1/4 & 1/2 inch pipe sizes.

StyleModelHex SizePipe SizeTube SizePrice (ex. VAT)
A4-4 B2HF-SS1/2"1/4"1/4"€32.42
A4-2 B2HF-SS1/2"1/8"1/4"€25.98
B2-2 B2HF-SS3/8"1/8"1/8"€38.42
A6-4 B2HF-SS5/8"1/4"3/8"€36.88
A8-8 B2HF-SS13/16"1/2"1/2"€58.87
PARKER -

CPI ZHBA series, Straight Thread Elbows

Parker straight thread elbows are suitable for connecting fluid / air transfer lines for instrumentation applications. They feature stainless steel construction for resisting damages against harsh industrial conditions. They have flareless design that when tightened, compresses the ferrule against the tube to ensure a leak tight seal & secure installation. Choose from a wide range of these elbows, available in 6600 & 10300 psi pressure ratings.

StyleModelCompression Thread SizeHex SizeMax. PressurePipe SizeTube SizePrice (ex. VAT)
A4-4 ZHBA-SS1/4"1/2"10,300 psi1/4"1/4"€38.73
A6-6 ZHBA-SS3/8"5/8"6600 psi3/8"3/8"€47.13
PARKER -

Tube Support

StyleModelTube SizePrice (ex. VAT)
AL63PT-2-161/8"€0.66
AL63PT-2-231/8"€1.06
AL63PT-5-625/16"€0.89
PARKER -

Tube Fitting Nuts

StyleModelBody MaterialCompression Thread SizeHex SizeMax. PressureTemp. RangeTube SizePrice (ex. VAT)
A6 BL-SS316 Stainless Steel11/16-16---30 Degrees to 250 Degrees F3/8"€38.66
A12 BL-SS316 Stainless Steel13---30 Degrees to 250 Degrees F3/4"€132.44
B12NU12-BBrass-1.125"--40 Degrees to 400 Degrees F3/4"€9.82
C4NU4-SCarbon Steel-9/16"8000 psi-20 Degrees to 800 Degrees F1/4"€2.21
C6NU6-SCarbon Steel-11/16"7600 psi-20 Degrees to 800 Degrees F3/8"€3.54
A16 BL-SZinc Plated Steel13---30 Degrees to 250 Degrees F1"€13.64
A4 BL-SZinc Plated Steel9/16-18---30 Degrees to 250 Degrees F1/4"€2.35
A6 BL-SZinc Plated Steel11/16-16---30 Degrees to 250 Degrees F3/8"€3.02
A8 BL-SZinc Plated Steel13/16-16---30 Degrees to 250 Degrees F1/2"€4.00
PARKER -

Gripper

Parker's Pargrip Series fittings or grippers are designed for corrosion-prone environments and chemical handling applications. These grippers provide a leak-tight connection and can be easily assembled without using any speciality tool. To obtain the connection, simply insert the tubing into the fitting assembly and tightly secure the nut. Parker Pargrip grippers are manufactured from pure PFA material that offers more temperature capability as compared to any conventional thermoplastic material. Parker's compression fitting grippers are suitable for lab and high-purity semiconductor applications.

StyleModelMax. PressureTube SizePrice (ex. VAT)
A1207-0004150 psi3/4"€14.94
A1207-0003175 psi1/2"€13.72
A1207-0023225 psi1/8"€10.81
A1207-0001225 psi1/4"€11.47
A1207-0002225 psi3/8"€12.52
StyleModelMax. PressurePipe SizeTube SizePrice (ex. VAT)
AGAMS-88-P175 psi1/2"1/2"€132.21
AGAMS-66-P225 psi3/8"3/8"€102.20
AGAMS-44-P225 psi1/4"1/4"€109.90
PARKER -

Tube End Reducer

StyleModelConnection TypeHex SizeTube SizePrice (ex. VAT)
A5TUR4-316A-LOK(R) x Tube Stub1/2"5/16" x 1/4"€55.34
A4TUR4-316A-LOK(R) x Tube Stub7/16"1/4"€37.94
A6TUR8-316A-LOK(R) x Tube Stub13/16"3/8" x 1/2"€57.59
B4-2 TRBZ-SSCPI(TM) Tube End x CPI(TM)7/16"1/4" x 1/8"€38.25
PARKER -

Nuts

StyleModelBasic MaterialBody MaterialCompression Thread SizeConnection TypeHex SizeMax. PressureTemp. RangeTube SizePrice (ex. VAT)Pkg. Qty.
A1213-0006-PVDF-Flare-225 psi0 Degrees to 212 Degrees F3/8"€26.111
B61C-5--------€13.0310
C61VL-6--------€43.9110
D61C-8--------€26.0010
B61C-2--------€8.0010
B61C-3--------€9.5110
E16 BL-SS--------€76.521
F14FL-4--------€37.5910
G1213-0212-PFA-Flare-150 psi0 Degrees to 266 Degrees F3/4"€48.641
G1213-0208-PFA-Flare-175 psi0 Degrees to 266 Degrees F1/2"€30.601
A1213-0012-PVDF-Flare-150 psi0 Degrees to 212 Degrees F3/4"€26.651
G1213-0206-PFA-Flare-225 psi0 Degrees to 266 Degrees F3/8"€30.821
A1213-0004-PVDF-Flare-225 psi0 Degrees to 212 Degrees F1/4"€22.511
A1213-0008-PVDF-Flare-175 psi0 Degrees to 212 Degrees F1/2"€26.211
H14FL-6---------10
RFQ
H14FL-10--------€144.7910
H14FL-8--------€98.1310
D61C-10--------€37.3810
D61C-6--------€13.0710
C61VL-4--------€35.2010
B61C-12--------€82.4010
D61C-4--------€9.2610
I2 BZ-BBrassBrass1/8"CPI(TM) Compression3/8"3600 psi-40 Degrees to 400 Degrees F1/8"€3.591
I1 BZ-BBrassBrass1/16"CPI(TM) Compression3/8"5400 psi-40 Degrees to 400 Degrees F1/16"€6.161
J2NU2-BBrassBrass1/8"A-LOK(R)3/8"3600 psi-40 Degrees to 400 Degrees F1/8"€4.061
PARKER -

Male Bulkhead Connectors

StyleModelBasic MaterialBody MaterialConnection TypeMax. PressurePipe SizeTemp. RangePrice (ex. VAT)
A6-6 FH2BZ-BBrassBrassCPI(TM) x MNPT2300 psi3/8"-40 Degrees to 400 Degrees F€20.47
B6MBC4N-316Stainless SteelStainless SteelA-LOK(R) x MNPT6600 psi1/4"-425 Degrees to 1200 Degrees F€57.19
PARKER -

Flare Adapter, 37 Degrees

Parker flare adapters are suitable for connecting hoses / pipes for offshore control panel, sensing line & small bore instrumentation applications. These NORSOK certified adapters feature 37 degree flare and 316 stainless steel construction for withstanding high pressures while resisting damage against abrasive conditions / fluids. Choose from a wide range of these flare adapters, available in 6600, 6700 & 10300 psi pressure ratings.

StyleModelCompression Thread SizeConnection TypeHex SizeMax. PressurePipe SizeTube SizePrice (ex. VAT)
A8-8 XHBZ-SS1/2" x 1/2"CPI(TM) x 37 Degrees Flare13/16"6700 psi-1/2"€83.53
A4XABC4-3161/4"A-LOK(R) x 37 Degrees Flare5/8"10,300 psi-1/4"€70.80
A4-4 XHBZ-SS1/4"CPI(TM) x 37 Degrees Flare1/2"10,300 psi1/4"1/4"€42.28
A6-6 XHBZ-SS3/8"CPI(TM) x 37 Degrees Flare5/8"6600 psi3/8"3/8"€57.06
A6XABC6-3163/8" x 3/8"A-LOK(R) x 37 Degrees Flare3/4"6600 psi-3/8"€125.30
PARKER -

Tube Nuts

Parker tube nuts are single ferrule tube fittings that are designed to provide a leak-free connection between metal objects for process and instrumentation applications. Their brass / 316 stainless steel construction makes them ideal for use in chemical, petrochemical, transportation, power and oil & gas industries. They provide metal to metal connections and are available in A-LOK, compression and CPI connection types on Raptor Supplies.

StyleModelBody MaterialCompression Thread SizeConnection TypeHex SizeTemp. RangeTube SizePrice (ex. VAT)Pkg. Qty.
A61CA-6------€279.18100
A61CA-5------€148.3350
B10 BZ-SS316 Stainless Steel7/8-20CPI(TM)1"-425 Degrees to 1200 Degrees F5/8"€24.061
C10NU10-316316 Stainless Steel7/8-20A-LOK(R)1"-425 Degrees to 1200 Degrees F5/8"€24.391
B12 BZ-SS316 Stainless Steel1-20CPI(TM)1.125"-425 Degrees to 1200 Degrees F3/4"€27.801
D12 BZ-BBrass1-20Compression1.125"-40 Degrees to 400 Degrees F3/4"€9.831
D16 BZ-BBrass1-5/16-20Compression1.5"-40 Degrees to 400 Degrees F1"€26.541
PARKER -

Tube End Female Adapter

StyleModelBody MaterialCompression Thread SizeConnection TypeHex SizePipe SizeTube SizePrice (ex. VAT)
A6-6 T2HG-SS316 Stainless Steel9/16-20CPI(TM) x Tube Stub7/8"3/8"3/8"€84.64
B6FA6N-316316 Stainless Steel9/16-20Tube End x A-LOK(R)7/8"3/8"3/8"€74.03
A4-4 T2HG-SS316 Stainless Steel7/16-20CPI(TM) x FNPT3/4"1/4"1/4"€40.70
B12FA12N-316316 Stainless Steel1-20A-LOK(R) Tube End x FNPT1.25"3/4"3/4"€113.79
A4FA2N-316Stainless Steel-FNPT x A-LOK(R) Tube End9/16"1/8"1/4"€39.18
A4-2 T2HG-SSStainless Steel-CPI(TM) Tube End x FNPT9/16"1/8"1/4"€40.62
A2FA4N-316Stainless Steel1/4"FNPT x A-LOK(R) Tube End3/4"1/4"1/8"€58.51
StyleModelMax. PressureTube SizePrice (ex. VAT)
A1022-0012150 psi3/4"€26.12
A1022-0008175 psi1/2"€19.31
A1022-0002225 psi1/8"€12.52
A1022-0006225 psi3/8"€17.17
A1022-0004225 psi1/4"€15.46
StyleModelMax. PressureTube SizePrice (ex. VAT)
AGECR-84175 psi1/2" x 1/4"€172.06
AGECR-42225 psi1/4" x 1/8"€80.81
AGECR-64225 psi3/8" x 1/4"€130.09
PARKER -

Front Ferrules

StyleModelBasic MaterialBody MaterialCompression Thread SizeConnection TypeMax. PressureTemp. RangeTube SizePrice (ex. VAT)
A12FF12-SCarbon SteelCarbon Steel3/4"A-LOK(R)5100 PSI-20 Degrees to 800 Degrees F3/4"€11.46
A16FF16-SCarbon SteelCarbon Steel1"A-LOK(R)4100 psi-20 Degrees to 800 Degrees F1"€20.58
A10FF10-SCarbon SteelCarbon Steel5/8"A-LOK(R)5400 psi-20 Degrees to 800 Degrees F5/8"€9.66
B16FF16-BMetalBrass-Compression--40 Degrees to 400 Degrees F1"€12.49
C8FF8-BMetalBrass-A-LOK(R)--40 Degrees to 400 Degrees F1/2"€4.81
A10FF10-316Metal316 Stainless Steel-A-LOK(R)--425 Degrees to 1200 Degrees F5/8"€9.58
C6FF6-BMetalBrass-A-LOK(R)--40 Degrees to 400 Degrees F3/8"€2.80
C10FF10-BMetalBrass-A-LOK(R)--40 Degrees to 400 Degrees F5/8"€5.54
B12FF12-BMetalBrass-Compression--40 Degrees to 400 Degrees F3/4"€6.53
D4FF4-SMetalCarbon Steel-Compression8000 psi-20 Degrees to 800 Degrees F1/4"€3.45
D6FF6-SMetalCarbon Steel-Compression7600 psi-20 Degrees to 800 Degrees F3/8"€4.95
A12FF12-316Metal316 Stainless Steel-A-LOK(R)--425 Degrees to 1200 Degrees F3/4"€12.20
A16FF16-316Metal316 Stainless Steel-A-LOK(R)--425 Degrees to 1200 Degrees F1"€20.72
12...56
