Cylinder Mounting Hardware

SPEEDAIRE -

Steel Front/Rear Flange Mounting Kits

A

Style	Model	Bore Dia.	Price (ex. VAT)
A	6X480	4"	€31.06
A	1A016	6"	€47.83

PARKER -

Aluminium Clevis Rod Kits
Parker clevis rod kits are designed for mounting pneumatic cylinders in hydraulic applications. These kits include a pivot pin, rod clevis, two retainer rings and a jam nut for quick assembly. These units have aluminium construction for excellent corrosion resistance, low density and malleability. The rod clevis accepts the pin with the help of retainer rings & the nut to securely hold the assembly, thereby providing great rigidity and reducing the chances of misalignment. Choose from a broad range of these clevis rod kits, available in 0.38, 0.5 and 0.75 inch length variants.

A

Style	Model	Bore Dia.	Fits	Overall Length	Thread Size	Price (ex. VAT)
A	L071300400	1-1/4, 1-1/2	1-1/4"/1-1/2" Bore	0.75"	7/16-20 NPT	€4.94
A	L071300300	1-1/16	1-1/16" Bore	0.5"	5/16-24 NPT	€6.86
A	L071300500	1-3/4, 2, 2-1/2	1-3/4"/2"/2-1/2" Bore	0.75"	1/2-20 NPT	€11.23
A	L071300200	3/4, 7/8	3/4"/7/8" Bore	0.5"	1/4-28 NPT	€7.14
A	L071300100	7/16, 9/16	7/16"/ 9/16" Bore	0.38"	10-32 UNF	€6.17

PARKER -

Foot Brackets

A

Style	Model	Bore Dia.	Fits	Overall Length	Price (ex. VAT)
A	L073790124	2	2" Bore	3.125"	€17.14
A	L073790032	3/4	3/4" Bore	1.625"	€33.94
A	L073790040	3/4, 7/8, 1-1/16	3/4"/7/8"/1-1/16" Bore	1.875"	€5.04
A	L073790028	7/16, 9/16	7/16"/9/16" Bore	1.375"	€9.87

SPEEDAIRE -

Cylinder Mounting Hardwares

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Bore Dia.	Fits	Item	Material	Mount	Mounting Type	Overall Dia.	Overall Length	Price (ex. VAT)
A	BAF-06S	-	-	Band	-	-	-	-	-	€7.68
B	NCM-PE125	-	-	Pivot Bracket	-	-	-	-	-	€7.65
A	BJ2-010S	-	-	Band	-	-	-	-	-	€9.38
C	CJ-F016SUS	-	-	Plate	-	-	-	-	-	€7.45
D	CG-L025SUS	-	-	Foot Bracket	-	-	-	-	-	€13.93
E	D5032	-	-	Clevis	-	-	-	-	-	€35.75
F	CJ-T010SUS	-	-	T-Bracket	-	-	-	-	-	€20.33
G	NY-044	-	-	Clevis	-	-	-	-	-	€6.28
H	Y-G10SUS	-	-	Clevis	-	-	-	-	-	€91.28
G	NY-125	-	-	Clevis	-	-	-	-	-	€8.47
G	NY-106	-	-	Clevis	-	-	-	-	-	€7.60
I	CG-E080SUS	-	-	Pivot Bracket	-	-	-	-	-	€121.25
I	CG-E050SUS	-	-	Pivot Bracket	-	-	-	-	-	€47.00
B	NCM-PE075	-	-	Pivot Bracket	-	-	-	-	-	€5.14
B	NCM-PC075	-	-	Pivot Bracket	-	-	-	-	-	€4.12
J	JM-10	-	-	Nut	-	-	-	-	-	€0.82
A	BM2-032	-	-	Band	-	-	-	-	-	€6.91
J	JM-02	-	-	Jam Nut	-	-	-	-	-	€0.53
J	JM-05	-	-	Jam Nut	-	-	-	-	-	€0.71
K	C76F32B	-	-	Bracket	-	-	-	-	-	€39.06

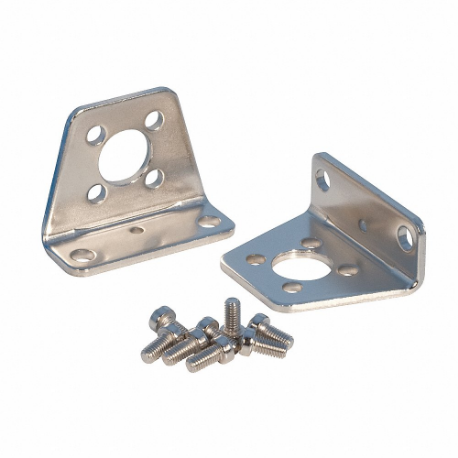

L	NCG-L025	-	-	Foot Bracket	-	-	-	-	-	€5.92
M	NCM-L200	-	-	Foot Bracket	-	-	-	-	-	€13.74
N	CG-F080SUS	-	-	Plate	-	-	-	-	-	€55.21
O	NCG-F050	-	-	Plate	-	-	-	-	-	€13.01
N	CG-F025SUS	-	-	Plate	-	-	-	-	-	€18.35

SPEEDAIRE -

Rod Clevis Kit

A

Style	Model	Bore Dia.	Price (ex. VAT)
A	6X476	1-1/2 - 2-1/2"	€35.37
A	6X482	3-1/4 - 4"	€40.90

SPEEDAIRE -

Flange Bracket

A

B

Style	Model	Bore Dia.	Fits	Overall Length	Price (ex. VAT)
A	5VLY0	1-1/2"	2.5"	2 7/16"	€32.85
B	5VNX8	1-1/2, 2"	1-1/2, 2" Bore	-	€32.58
A	5VLX8	1-1/8"	1.5"	1.75"	€29.19
A	5VLX9	1-1/8"	2"	2 11/16"	€31.81
B	5VNX7	1-1/8"	1-1/8" Bore	-	€27.23
B	5VNX9	2-1/2, 3"	2-1/2, 3" Bore	-	€43.41
B	5VNY0	4"	4" Bore	-	€94.28
A	5VMD2	40mm	40mm	-	€43.53
A	5VMD4	63mm	63mm	-	€57.80
A	5VMD6	100mm	100mm	-	€77.74

PARKER -

Cylinder Mounting Nuts

A

Style	Model	Size	Price (ex. VAT)
A	L073800900	1-1/4", 1-1/2"	€3.26
A	L073801100	1.75mm	€7.81
A	L073801200	2"	€12.25
A	L073801400	2.5"	€11.05
A	L073801500	3"	€11.67
A	L073800600	3/4"	€4.92
A	L073800800	3/4", 7/8", 1-1/16"	€4.66
A	L073800200	5/16"	€5.22
A	L073800400	5/16", 7/16"	€4.78
A	L073800500	7/16", 9/16"	€4.69

SPEEDAIRE -

Air Cylinder Side Lug Mounts
SPEEDAIRE side lug air cylinder mounting kits are used in various commercial and industrial facilities to mount air cylinders in desired mounting style. They are made from durable aluminium and are available in anodised and non-anodised options on Raptor Supplies.

A

B

Style	Model	Bore Dia.	Price (ex. VAT)

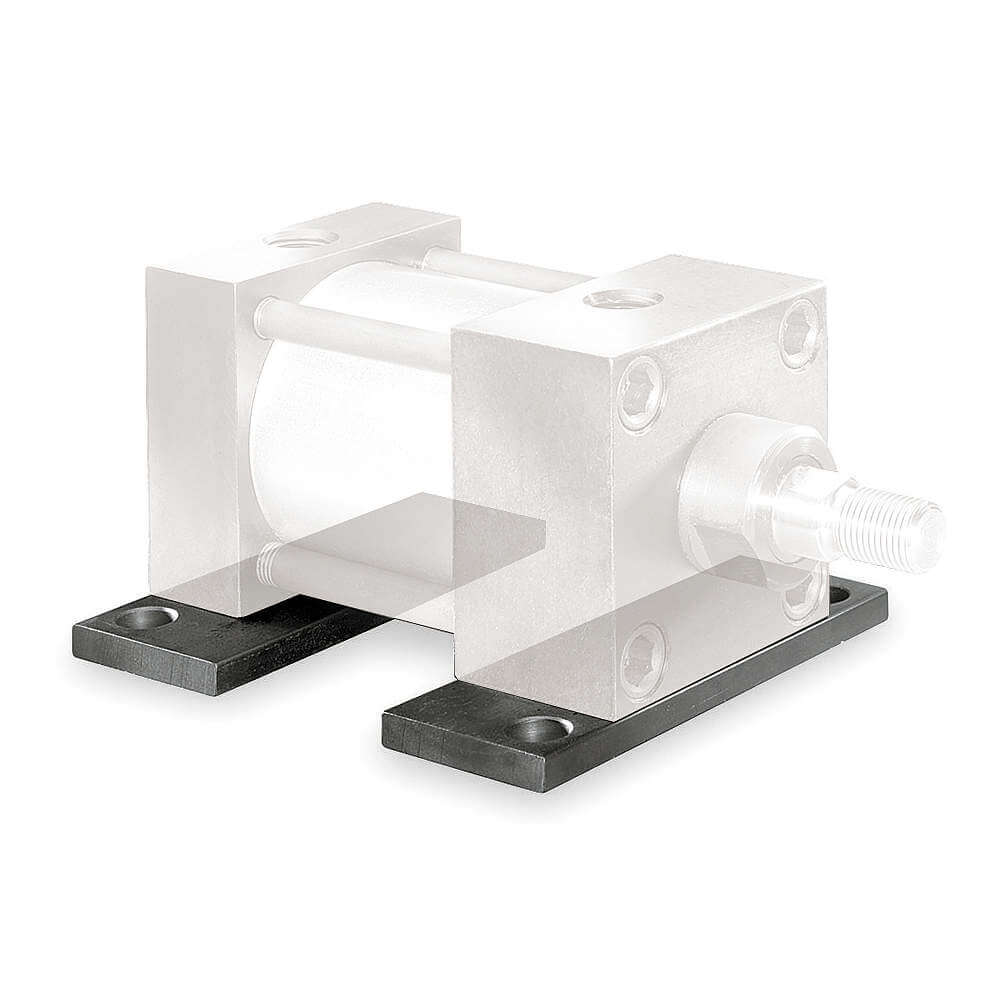

A	1A254	1-1/2"	€18.33
A	1A255	2"	€23.07
A	1A256	2-1/2"	€20.74
A	1A257	3-1/4"	€39.94
B	1A258	4"	€35.99

SPEEDAIRE -

Self Aligning Couplers
SPEEDAIRE self-aligning couplers are air cylinder mounting hardwares, used to simplify cylinder alignment problems by compensating for angular error and lateral misalignment on both extension and retraction strokes. Choose from a wide range of these self aligning couplers, available in 14000, 34000 and 37000 pounds operating force variants on Raptor Supplies.

A

Style	Model	Overall Dia.	Overall Length	Thread Size	Price (ex. VAT)
A	1A313	1-1/4"	2.75"	1/2-20	€45.95
A	1A314	1-3/4"	3.437"	3/4-16	€76.71

SPEEDAIRE -

Rear Eye Bracket

A

Style	Model	Bore Dia.	Fits	Mount	Overall Length	Price (ex. VAT)
A	5VMF7	40mm	40mm	Swivel Eye Bracket	52mm	€65.29
A	5VMF8	50mm	50mm	Swivel Eye Bracket	65mm	€72.61
A	5VMF9	63mm	63mm	Rear Eye Bracket	75mm	€83.00

SPEEDAIRE -

Foot Mounts
SPEEDAIRE foot mounts are ideal for installing air cylinders in different mounting styles. These foot mounts provide stable base and include fastening hardwares. Choose from a wide range of these foot mounts, available in 1 and 2 inch bore diameters on Raptor Supplies.

A

B

Style	Model	Bore Dia.	Price (ex. VAT)
A	3FE44	1"	€38.36
B	3FE47	2"	€42.97

SPEEDAIRE -

Rod Clevis

A

B

Style	Model	Bore Dia.	Fits	Material	Overall Length	Price (ex. VAT)

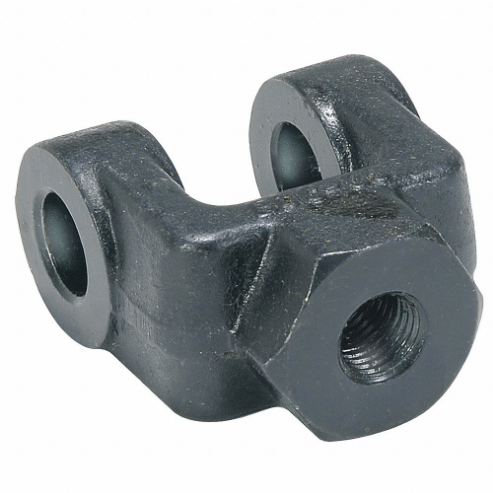

A	5VLX7	4"	3-1/4", 4", 5"	Steel	1.125"	€72.65
B	5VMG5	40mm	40mm	Aluminum	52mm	€53.21
B	5VMG7	80mm	80mm	Aluminum	79mm	€80.39

SPEEDAIRE -

Rear Flange Mounting Kits

A

Style	Model	Bore Dia.	Price (ex. VAT)
A	6X470	1-1/2"	€25.07
A	5YCH9	3-1/4"	€128.99

SPEEDAIRE -

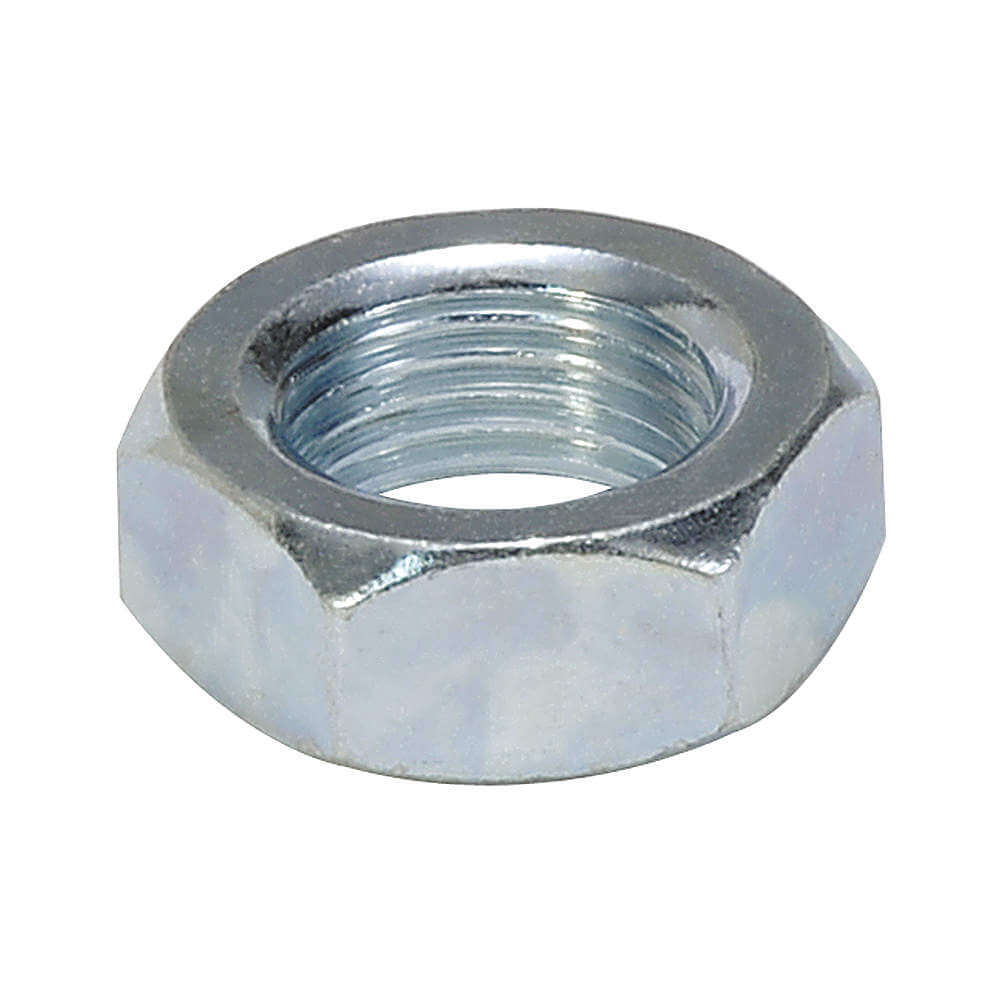

Mounting Nut

A

Style	Model	Bore Dia.	Fits	Price (ex. VAT)
A	5VNX0	1-1/2, 2"	1-1/2, 2" Bore	€7.86
A	5VNX2	4"	4" Bore	€35.87

SPEEDAIRE -

Flange Mount

A

Style	Model	Bore Dia.	Price (ex. VAT)
A	6X472	2"	€19.01
A	6X474	2-1/2"	€29.25
A	6X478	3-1/4"	€30.03

SPEEDAIRE -

Foot Bracket Steel

A

Style	Model	Bore Dia.	Fits	Price (ex. VAT)
A	5VMD7	40mm	40mm	€28.96
A	5VMD8	50mm	50mm	€27.12
A	5VMD9	63mm	63mm	€35.75
A	5VME0	80mm	80mm	€46.96
A	5VME1	100mm	100mm	€46.02

SPEEDAIRE -

Foot Bracket Fits Cylinders

A

B

C

Style	Model	Bore Dia.	Fits	Mount	Overall Length	Price (ex. VAT)
A	5VKV5	2"	2" Bore	Foot Bracket	3.12"	€15.31
A	5VKW5	3/4"	3/4" Bore	Foot Bracket	1.62"	€28.84
B	5VMG8	40mm	40mm	Pivot Bracket	54mm	€46.43
C	5VMG9	50mm	50mm	Pivot Bracket	65mm	€52.45
C	5VMH1	80mm	80mm	Pivot Bracket	88mm	€76.17

SPEEDAIRE -

Foot Bracket Aluminium

A

Style	Model	Bore Dia.	Fits	Price (ex. VAT)

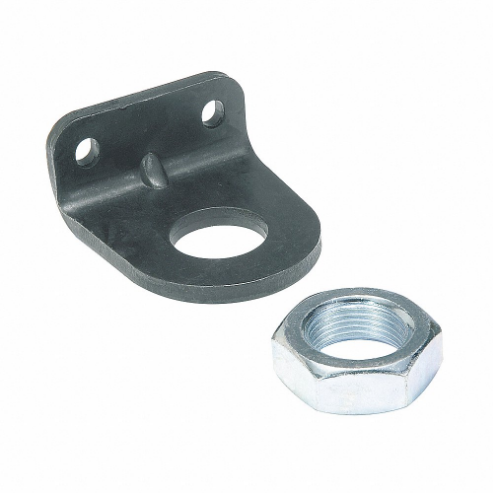

A	5VNX4	1-1/2, 2"	1-1/2, 2" Bore	€42.75
A	5VNX5	2-1/2, 3"	2-1/2, 3" Bore	€60.78
A	5VNX6	4"	4" Bore	€98.49

SPEEDAIRE -

Cylinder Mounting

A

B

C

D

Style	Model	Bore Dia.	Fits	Mount	Overall Length	Thread Size	Price (ex. VAT)

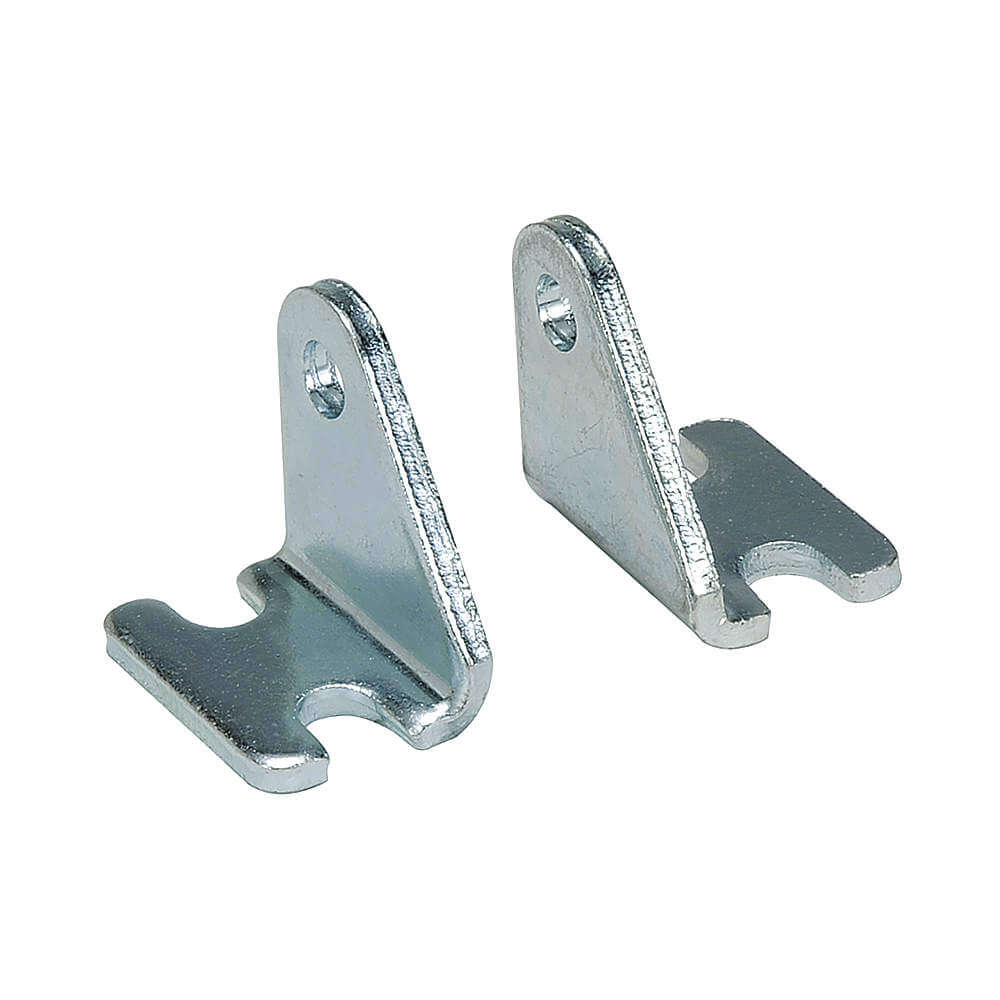

A	5VKW3	1-1/2"	1.5"	Pivot Bracket	1.5	1/4-28 NPT	€9.20
B	5VKW1	1-1/4, 1-1/2"	1-1/4", 1-1/2"	Foot Bracket	4.125"	-	€6.97
C	5VKV7	1-3/4, 2, 2-12"	1-3/4", 2", 2-1/2"	Rod Clevis	2.625"	-	€10.25
D	5VKV6	2, 2-1/2"	2", 2-1/2"	Pivot Bracket	2"	-	€12.98
C	5VKW0	3/4, 7/8"	3/4", 7/8"	Rod Clevis	2.625"	-	€5.88
A	5VKV9	3/4, 7/8, 1-1/16"	3/4", 7/8", 1-1/16"	Pivot Bracket	1.625"	-	€5.18
B	5VKV8	3/4, 7/8, 1-1/16"	3/4", 7/8", 1-1/16"	Foot Bracket	2.625"	-	€4.40
A	5VKW7	7/16"	7/16"	Pivot Bracket	1 5/16"	7/16-20 NPT	€5.62

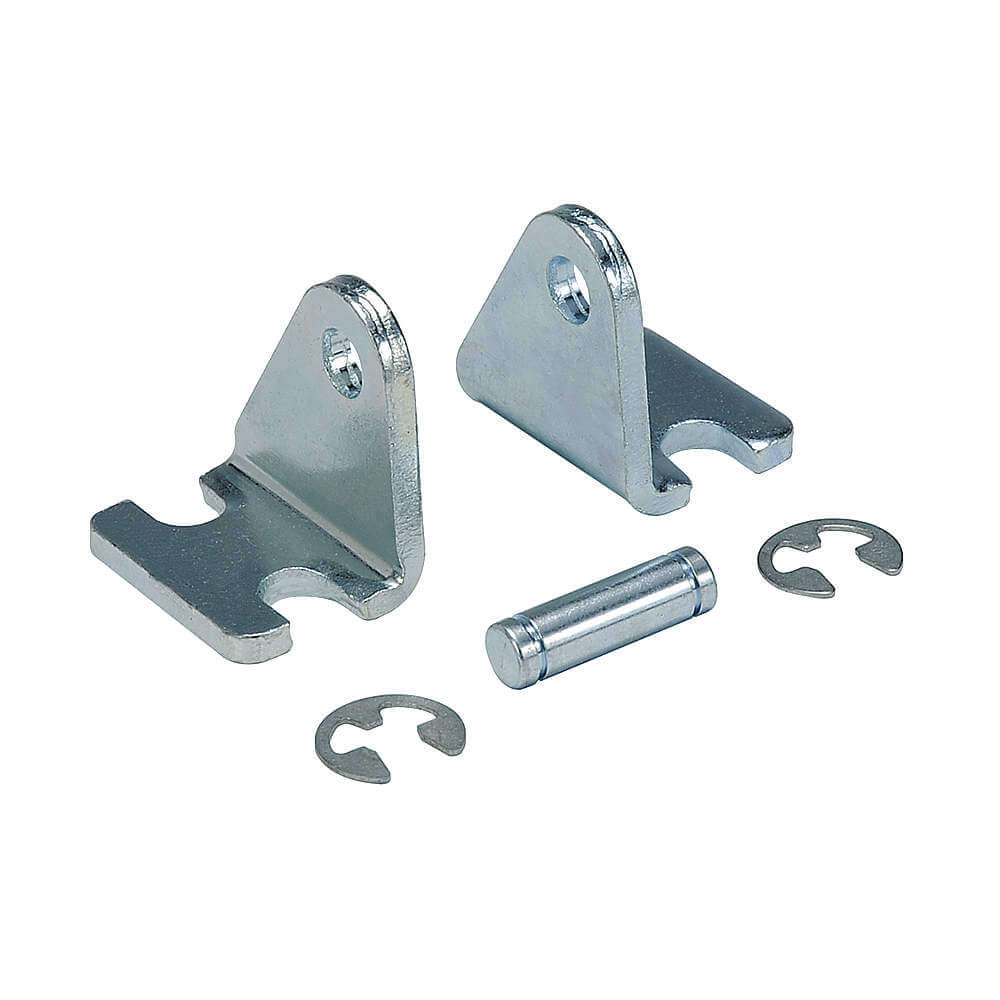

D	5VKW9	7/16, 9/16"	7/16", 9/16"	Pivot Bracket	2.375"	1/2-20 NPT	€6.00
C	5VKW8	7/16, 9/16"	7/16", 9/16"	Rod Clevis	1.75"	-	€5.95
B	5VKW6	7/16, 9/16"	7/16", 9/16"	Foot Bracket	1.38	-	€9.82

SPEEDAIRE -

Clevis Bracket

A

B

C

D

E

F

G

H

Style	Model	Bore Dia.	Fits	Mount	Overall Length	Price (ex. VAT)
A	5VNY3	1-1/2, 2"	1-1/2, 2" Bore	Clevis Bracket	-	€54.98
B	5VLY1	1-1/2, 2, 2-1/2	1 1/2", 2", 2 1/2" bore cylinders	Clevis	3.5" wide x 3.5" long x 2" high	€59.22
A	5VNY2	1-1/8"	1-1/8" Bore	Clevis Bracket	-	€50.72
A	5VNY4	2-1/2, 3"	2-1/2, 3" Bore	Clevis Bracket	-	€59.31
A	5VNY5	4"	4" Bore	Clevis Bracket	-	€119.96
C	5VMG2	40mm	40mm	Clevis Bracket	56mm	€25.43
D	5VME7	40mm	40mm	Clevis Bracket GA	-	€31.86
E	5VME2	40mm	40mm	Clevis Bracket MP2 Type	-	€32.59
F	5VME3	50mm	50mm	Clevis Bracket MP2 Type	-	€50.86
C	5VMG3	50mm	50 mm & 63 mm	Clevis Bracket	74mm	€26.20
G	5VMF3	50mm	50mm	Clevis Bracket	65mm	€37.21
D	5VME8	50mm	50mm	Clevis Bracket GA	-	€50.86
F	5VME4	63mm	63mm	Clevis Bracket MP2 Type	-	€44.05
F	5VME9	63mm	63mm	Clevis Bracket GA	-	€53.50
C	5VMG4	80mm	80 mm & 100 mm	Clevis Bracket	92mm	€77.17
E	5VME5	80mm	80mm	Clevis Bracket MP2 Type	-	€66.27
E	5VME6	100mm	100mm	Clevis Bracket MP2 Type	-	€72.43
D	5VMF1	100mm	100mm	Clevis Bracket GA	115mm	€72.43
H	5VMF6	100mm	100mm	Swivel Eye Bracket	115mm	€72.43

SPEEDAIRE -

Bracket Clevis

A

B

Style	Model	Bore Dia.	Price (ex. VAT)
A	6X471	1-1/2"	€29.82
B	6X473	2"	€37.01
A	6X475	2-1/2"	€28.26
A	6X479	3-1/4"	€51.11
