Parker Flared Tube Fittings

PARKER -

Male Connector, Brass, Flared
Parker flare fittings are best suited for controlling high-pressure liquids and gases in refrigerant and propane lines, compressors, oil burners, adapters and natural gas supply facilities. These fuel line flares feature brass construction for withstanding pressures and temperatures up to 2800 PSI and 250 degrees F and further come equipped with a fluorocarbon O-ring for leakage proof operation. Choose from a wide range of these flare unions available in inverted and 45-degree flare variants on Raptor Supplies.

A

B

Style	Model	Body Material	Connection Type	Flare Thread Size	Flare Type	Hex Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	481FHD-6-6	Brass	Flare x MNPS	5/8-18	Inverted	3/4"	1000 psi	3/8"	3/8"	€78.76	10
B	48F-6-12	Brass	Flare x MNPT	5/8-18	45 Degrees	1-1/16"	450 to 2800 psi	3/4"	3/8"	€159.86	10
A	481FHD-6-4	Brass	Flare x MNPS	5/8-18	Inverted	3/4"	1000 psi	1/4"	3/8"	€71.51	10
A	481FHD-5-4	Brass	Flare x MNPS	1/2-20	Inverted	19/32"	1200 psi	1/4"	5/16"	€51.91	10
A	481FHD-4-2	Brass	Flare x MNPS	7/16-24	Inverted	17/32"	1400 psi	1/8"	1/4"	€27.58	10
B	48F-4-4	Brass	Flare x MNPT	7/16-20	45 Degrees	-	1400 psi	1/4"	1/4"	€24.76	10
B	48F-4-2	Brass	Flare x MNPT	7/16-20	45 Degrees	-	1400 psi	1/8"	1/4"	€16.69	10
A	481FHD-8-6	Brass	Flare x MNPS	3/4-18	Inverted	29/32"	750 psi	3/8"	1/2"	€108.89	10
B	48F-8-8	Brass	Flare x MNPT	3/4-16	45 Degrees	-	750 psi	1/2"	1/2"	€67.15	10
B	48F-8-4	Brass	Flare x MNPT	3/4-16	45 Degrees	3/4"	450 to 2800 psi	1/4"	1/2"	€67.51	10
B	48F-6-2	Brass	Flare x MNPT	5/8-18	45 Degrees	5/8"	450 to 2800 psi	1/8"	3/8"	€44.64	10
B	48F-5-6	Brass	Flare x MNPT	1/2-20	45 Degrees	11/16"	450 to 2800 psi	3/8"	5/16"	€86.02	10
B	48F-10-4	Brass	Flare x MNPT	7/8-14	45 Degrees	7/8"	450 to 2800 psi	1/4"	5/8"	€144.46	10
A	481FHD-3-2	Brass	Flare x MNPS	3/8-24	Inverted	15/32"	1900 psi	1/8"	3/16"	€37.01	10
B	48F-10-8	Brass	Flare x MNPT	7/8-14	45 Degrees	-	650 psi	1/2"	5/8"	€67.15	10
B	48F-8-12	Brass	Flare x MNPT	3/4-16	45 Degrees	1-1/16"	450 to 2800 psi	3/4"	1/2"	€121.60	10
B	48F-5-4	Brass	Flare x MNPT	1/2-20	45 Degrees	9/16"	450 to 2800 psi	1/4"	5/16"	€37.75	10
B	48F-10-12	Brass	Flare x MNPT	7/8-14	45 Degrees	7/8"	450 to 2800 psi	3/4"	5/8"	€130.31	10
B	48F-6-4	Brass	Flare x MNPT	5/8-18	45 Degrees	-	1000 psi	1/4"	3/8"	€31.58	10
B	48F-10-6	Brass	Flare x MNPT	7/8-14	45 Degrees	7/8"	450 to 2800 psi	3/8"	5/8"	€88.93	10
B	48F-12-12	Brass	Flare x MNPT	1-1/16-14	45 Degrees	1-1/16"	450 to 2800 psi	3/4"	3/4"	€150.27	10
B	48F-12-8	Brass	Flare x MNPT	1-1/16-14	45 Degrees	1-1/16"	450 to 2800 psi	1/2"	3/4"	€174.95	10
B	48F-3-2	Brass	Flare x MNPT	3/8-24	45 Degrees	7/16"	450 to 2800 psi	1/8"	3/16"	€25.40	10
B	48F-3-4	Brass	Flare x MNPT	3/8-24	45 Degrees	9/16"	450 to 2800 psi	1/4"	3/16"	€73.69	10
B	48F-4-8	Brass	Flare x MNPT	7/16-20	45 Degrees	7/8"	450 to 2800 psi	1/2"	1/4"	€105.98	10

PARKER -

Seal Bonnet

A

Style	Model	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	3GF-10	650 psi	5/8"	€41.38	10
A	3GF-8	750 psi	1/2"	€22.49	10
A	3GF-6	1000 psi	3/8"	€25.47	10
A	3GF-5	1200 psi	5/16"	€26.23	10
A	3GF-4	1400 psi	1/4"	€16.04	10

PARKER -

Female Flare Connector

A

Style	Model	Flare Thread Size	Hex Size	Pipe Size	Tube Size	Price (ex. VAT)
A	L66PLNF-6-6	5/8-18	13/16"	5/18-18	3/8"	€33.94
A	L66PLNF-4-4	7/16-20	11/16"	7/16-20	1/4"	€18.11
A	L66PLNF-6-4	7/16-20	11/16"	7/16-20	3/8"	€29.76

PARKER -

Union Reducer, Flare, Brass

A

Style	Model	Flare Thread Size	Hex Size	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	42F-8-6	5/8-18	3/4"	3/4-16"	1/2" x 3/8"	€95.46	10
A	42F-6-5	5/8-18 x 1/2-20	5/8"	5/8-18"	3/8" x 5/16"	€90.38	10
A	42F-6-4	5/8-18 x 7/16-20	5/8"	5/8-18"	3/8" x 1/4"	€66.42	10
A	42F-10-8	7/8-14 x 3/4-16	7/8"	7/8-14"	5/8" x 1/2"	€133.57	10
A	42F-8-4	7/16-20	3/4"	3/4-16"	1/2" x 1/4"	€110.34	10

PARKER -

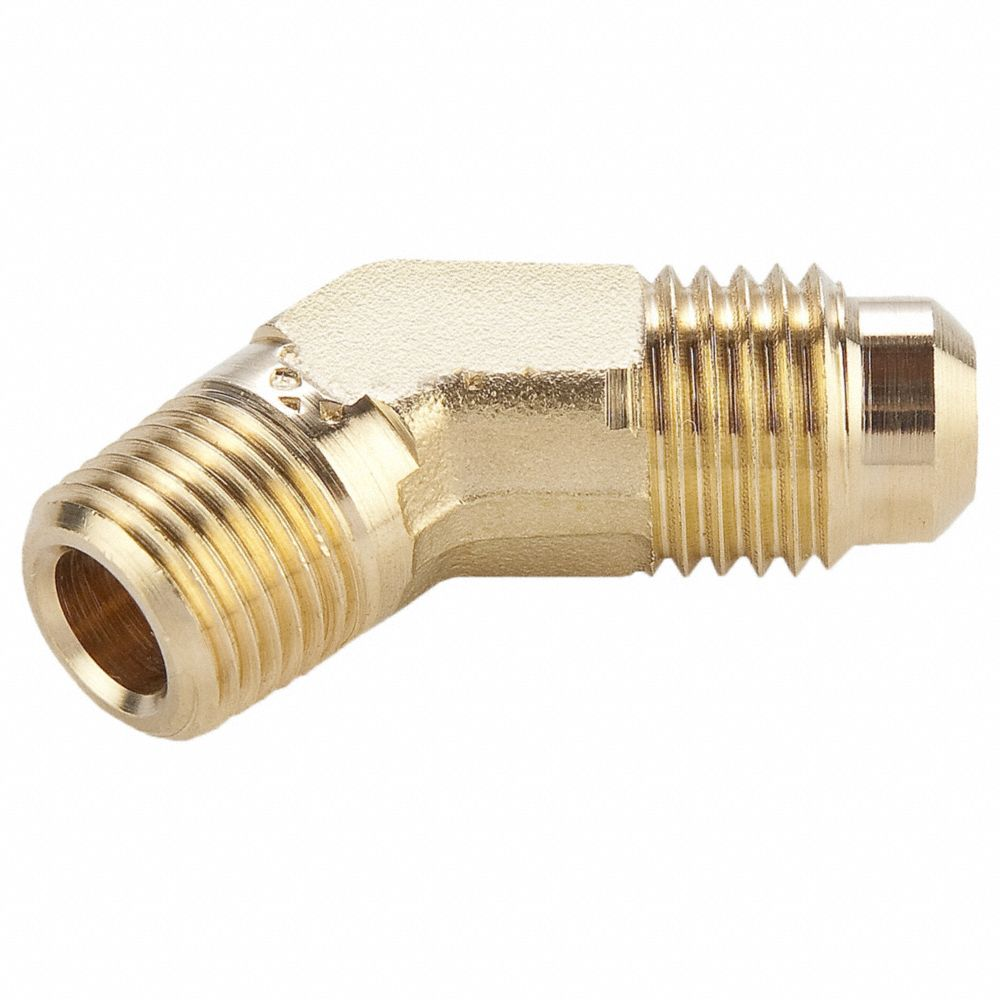

Male Elbow, 45 Degrees, Flare, Brass

A

B

Style	Model	Connection Type	Flare Thread Size	Flare Type	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	159F-8-6	Flare x FNPT	3/4-16	45 Degrees	450 to 2800 psi	3/8"	1/2"	€85.66	10
A	159F-4-4	Flare x FNPT	7/16-20	45 Degrees	450 to 2800 psi	1/4"	1/4"	€161.34	10
A	159F-8-8	Flare x FNPT	3/4-16	45 Degrees	450 to 2800 psi	1/2"	1/2"	€158.62	10
B	2591FHD-3-2	Flare x MNPS	3/8-24	Inverted	1900 psi	1/8"	3/16"	€292.55	10
B	2591FHD-4-2	Flare x MNPS	7/16-24	Inverted	1400 psi	1/8"	1/4"	€235.93	10
B	2591FHD-6-4	Flare x MNPS	5/8-18	Inverted	1000 psi	1/4"	3/8"	€252.26	10
A	159F-10-8	Flare x MNPT	7/8-14	45 Degrees	450 to 2800 psi	1/2"	5/8"	€155.35	10
A	159F-10-6	Flare x MNPT	7/8-14	45 Degrees	650 psi	3/8"	5/8"	€207.62	10

PARKER -

Flare Cap
Parker fitting caps are generally used for protecting the ends of pipes and other fittings. These caps are designed from high quality PFA that provides clean operation and can be disassembled & reassembled repeatedly. Offered in tube sizes of 3/8, 1/2, 3/4 and1/4 inches, these fittings are used with flare brass, copper, aluminium and welded steel hydraulic tubings. Applications of these caps include thin-wall tubing in refrigeration equipment, air compressor systems and machinery.

A

Style	Model	Tube Size	Price (ex. VAT)
A	FCAP-8	1/2"	€31.59
A	FCAP-4	1/4"	€26.21
A	FCAP-12	3/4"	€36.28
A	FCAP-6	3/8"	€28.04

PARKER -

Manual Flaring Tool

A

Style	Model	Tube Size	Price (ex. VAT)
A	MFT-08	1/2"	€345.49
A	MFT-04	1/4"	€285.01
A	MFT-12	3/4"	€395.76
A	MFT-06	3/8"	€320.98

PARKER -

Female Elbow, 90 Degrees, Flare, Brass

A

Style	Model	Flare Thread Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	150F-5-4	1/2-20	450 to 2800 psi	1/4"	5/16"	€158.98	10
A	150F-8-8	3/4-16	750 psi	1/2"	1/2"	€125.58	10
A	150F-8-6	3/4-16	750 psi	3/8"	1/2"	€124.49	10
A	150F-6-4	5/8-18	450 to 2800 psi	1/4"	3/8"	€100.91	10
A	150F-6-8	5/8-18	1000 psi	1/2"	3/8"	€229.03	10
A	150F-6-6	5/8-18	1000 psi	3/8"	3/8"	€113.60	10
A	150F-4-4	7/16-20	1400 psi	1/4"	1/4"	€97.27	10
A	150F-4-2	7/16-20	1400 psi	1/8"	1/4"	€40.65	10

PARKER -

Female Connector, Flare, Brass

A

B

Style	Model	Connection Type	Flare Thread Size	Flare Type	Hex Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	46F-3-2	Flare x FNPT	3/8-24	45 Degrees	9/16"	450 to 2800 psi	1/8"	3/16"	€63.51	10
A	46F-4-2	Flare x FNPT	7/16-20	45 Degrees	-	1400 psi	1/8"	1/4"	€25.04	10
A	46F-6-6	Flare x FNPT	5/8-18	45 Degrees	-	1000 psi	3/8"	3/8"	€66.06	10
A	46F-8-4	Flare x FNPT	3/4-16	45 Degrees	3/4"	450 to 2800 psi	1/4"	1/2"	€90.38	10
A	46F-5-4	Flare x FNPT	1/2-20	45 Degrees	11/16"	450 to 2800 psi	1/4"	5/16"	€74.77	10
A	46F-10-8	Flare x FNPT	7/8-14	45 Degrees	-	650 psi	1/2"	5/8"	€114.85	10
A	46F-6-4	Flare x FNPT	5/8-18	45 Degrees	-	1000 psi	1/4"	3/8"	€49.73	10
A	46F-6-2	Flare x FNPT	5/8-18	45 Degrees	5/8"	450 to 2800 psi	1/8"	3/8"	€82.40	10
A	46F-6-8	Flare x FNPT	5/8-18	45 Degrees	1"	450 to 2800 psi	1/2"	3/8"	€121.60	10
A	46F-5-2	Flare x FNPT	1/2-20	45 Degrees	9/16"	450 to 2800 psi	1/8"	5/16"	€64.60	10
A	46F-4-6	Flare x FNPT	7/16-20	45 Degrees	13/16"	450 to 2800 psi	3/8"	1/4"	€90.02	10
A	46F-4-4	Flare x FNPT	7/16-20	45 Degrees	11/16"	450 to 2800 psi	1/4"	1/4"	€50.82	10
A	46F-8-8	Flare x FNPT	3/4-16	45 Degrees	-	750 psi	1/2"	1/2"	€92.91	10
A	46F-8-6	Flare x FNPT	3/4-16	45 Degrees	-	750 psi	3/8"	1/2"	€70.05	10
A	46F-8-12	Flare x FNPT	3/4-16	45 Degrees	-	750 psi	3/4"	1/2"	€209.43	10
B	461FHD-6-4	Flare x MNPS	5/8-18	Inverted	3/4"	1000 psi	1/4"	3/8"	€143.00	10
B	461FHD-4-2	Flare x MNPS	7/16-24	Inverted	17/32"	1400 psi	1/8"	1/4"	€58.44	10

PARKER -

Brass Inverted Flare Fittings
Parker brass inverted flare fittings provide metal-to-metal seal for tighter tube bends. They feature all-brass construction and meets functional requirements of SAE J512. These fittings are suitable for superior pressure service and provide exceptional resistance to mechanical pull-out. Choose from a range of these flare fittings, available in 3/4, 15/32, 17/32, 19/32 and 29/32 inch hex sizes.

A

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	421FHD-5	1/2-20	19/32"	1200 psi	5/16"	€62.43	10
A	421FHD-8	3/4-18	29/32"	750 psi	1/2"	€203.26	10
A	421FHD-3	3/8-24	15/32"	1900 psi	3/16"	€42.33	10
A	421FHD-6	5/8-18	3/4"	1000 psi	3/8"	€91.11	10
A	421FHD-4	7/16-24	17/32"	1400 psi	1/4"	€43.91	10

PARKER -

Extruded Elbow, 45 Degrees

A

Style	Model	Flare Thread Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	259F-6-4	1/4-18	1000 psi	1/4"	3/8"	€157.69	10
A	259F-4-4	1/4-18	1400 psi	1/4"	1/4"	€151.38	10
A	259F-4-2	1/8-27	1400 psi	1/8"	1/4"	€69.72	10

PARKER -

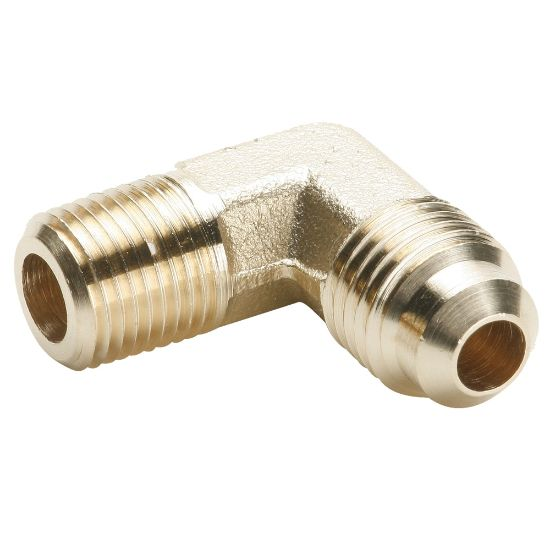

Male Elbow, 90 Degrees, Flare, Brass

A

B

C

Style	Model	Connection Type	Flare Thread Size	Flare Type	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	159F-6-4	Flare x FNPT	5/8-18	45 Degrees	450 to 2800 psi	1/4"	3/8"	€80.94	10
A	159F-6-6	Flare x FNPT	5/8-18	45 Degrees	450 to 2800 psi	3/8"	3/8"	€94.37	10
B	2491FHD-3-2	Flare x MNPS	3/8-24	Inverted	1900 psi	1/8"	3/16"	€53.00	10
B	2491FHD-5-4	Flare x MNPS	1/2-20	Inverted	1200 psi	1/4"	5/16"	€89.65	10
B	2491FHD-6-6	Flare x MNPS	5/8-18	Inverted	1000 psi	3/8"	3/8"	€151.36	10
B	2491FHD-5-2	Flare x MNPS	1/2-20	Inverted	1200 psi	1/8"	5/16"	€95.09	10
B	2491FHD-6-4	Flare x MNPS	5/8-18	Inverted	1000 psi	1/4"	3/8"	€108.89	10
B	2491FHD-10-8	Flare x MNPS	7/8-18	Inverted	650 psi	1/2"	5/8"	€301.26	10
B	2491FHD-4-4	Flare x MNPS	7/16-24	Inverted	1400 psi	1/4"	1/4"	€83.04	10
B	2491FHD-4-2	Flare x MNPS	7/16-24	Inverted	1400 psi	1/8"	1/4"	€60.98	10
C	149F-12-12	Flare x MNPT	11/16-14	45 Degrees	450 to 2800 psi	3/4"	3/4"	€296.18	10
C	149F-5-6	Flare x MNPT	1/2-20	45 Degrees	450 to 2800 psi	3/8"	5/16"	€154.98	10
C	149F-10-12	Flare x MNPT	7/8-14	45 Degrees	450 to 2800 psi	3/4"	5/8"	€182.93	10
C	149F-10-6	Flare x MNPT	7/8-14	45 Degrees	450 to 2800 psi	3/8"	5/8"	€155.35	10
C	149F-8-4	Flare x MNPT	3/4-16	45 Degrees	450 to 2800 psi	1/4"	1/2"	€121.75	10
C	149F-8-12	Flare x MNPT	3/4-16	45 Degrees	450 to 2800 psi	3/4"	1/2"	€170.96	10
C	149F-12-8	Flare x MNPT	11/16-14	45 Degrees	450 to 2800 psi	1/2"	3/4"	€247.91	10

PARKER -

Caps

A

B

C

D

E

F

Style	Model	Price (ex. VAT)	Pkg. Qty.
A	L640F-6	€9.57	1
B	640F-12	€20.74	1
C	1/2 HPC-SS	€77.65	1
C	3/4 HPC-SS	€87.69	1
C	3/8 HPC-SS	€105.39	1
D	12 CP-SS	€122.96	1
C	1/8 HPC-SS	€93.55	1
E	640F-3	€42.47	10
F	16 PNBZ-B-GR	€20.74	1
C	1 HPC-SS	€103.84	1
C	1/4 HPC-SS	€40.30	1

PARKER -

Connector, Brass, Flare

A

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	43F-12-12	1/16-14	1-1/16	550 psi	3/4"	€30.25	1
A	43F-8-8	3/4-16	3/4"	450 to 2800 psi	1/2"	€74.77	10
A	43F-6-6	5/8-18	5/8"	450 to 2800 psi	3/8"	€71.87	10
A	43F-10-10	7/8-14	7/8"	450 to 2800 psi	5/8"	€120.14	10
A	43F-4-4	7/16-20	7/16"	450 to 2800 psi	1/4"	€60.62	10

PARKER -

Flare Cap, Brass, 45 Deg

A

B

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	640F-5	1/2-20	5/8"	450 to 2800 psi	5/16"	€27.49	10
B	640F-8	3/4-16	-	750 psi	1/2"	€42.47	10
B	640F-6	5/8-18	-	1000 psi	3/8"	€24.23	10
B	640F-10	7/8-14	-	650 psi	5/8"	€64.84	10
A	640F-4	7/16-20	9/16"	450 to 2800 psi	1/4"	€14.97	10

PARKER -

Union Elbow, 90 Deg, Brass

A

Style	Model	Flare Thread Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	155F-5	1/2-20	450 to 2800 psi	5/16"	€92.20	10
A	155F-8	3/4-16	750 psi	1/2"	€115.06	10
A	155F-3	3/8-24	1900 psi	3/16"	€18.87	1
A	155F-6	5/8-18	1000 psi	3/8"	€78.76	10
A	155F-10	7/8-14	650 psi	5/8"	€202.89	10
A	155F-4	7/16-20	1400 psi	1/4"	€74.77	10

PARKER -

Union Tee, Flare Thread

A

B

Style	Model	Connection Type	Flare Thread Size	Flare Type	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	144F-12	Flare	1/16-14	45 Degrees	650 psi	3/4"	€50.15	1
B	2441FHD-3	Flare x MNPS	3/8-24	Inverted	1900 psi	3/16"	€122.84	10
B	2441FHD-4	Flare x MNPS	7/16-24	Inverted	1400 psi	1/4"	€170.23	10
B	2441FHD-5	Flare x MNPS	1/2-20	Inverted	1200 psi	5/16"	€200.40	10

PARKER -

Extruded Reducer

A

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	661FHD-8-10	3/4-16	1-1/16"	750 psi	1/2" x 5/8"	€265.94	10
A	661FHD-8-6	3/4-16	13/16"	750 psi	1/2" x 3/8"	€248.69	10
A	661FHD-6-8	5/8-18	15/16"	1000 psi	3/8" x 1/2"	€198.64	10
A	661FHD-10-12	7/8-14	1-5/16"	650 psi	5/8" x 3/4"	€214.02	5

PARKER -

Short Nut, Brass

A

B

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	41FS-12	1-1/16-14	1.25"	450 to 2800 psi	3/4"	€146.64	10
B	41FS-5	1/2-20	5/8"	450 to 2800 psi	5/16"	€31.19	10
B	41FS-8	3/4-16	-	750 psi	1/2"	€52.27	10
B	41FS-3	3/8-24	7/16"	450 to 2800 psi	3/16"	€22.89	10
B	41FS-6	5/8-18	-	1000 psi	3/8"	€34.11	10
B	41FS-2	5/16-24	3/8"	450 to 2800 psi	1/8"	€38.47	10
A	41FS-4	7/16-20	-	1400 psi	1/4"	€18.15	10

PARKER -

Long Nut, Flare, Brass, 45 Deg

A

Style	Model	Flare Thread Size	Hex Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	41FL-5	1/2-20	5/8"	5/16"	€41.74	10
A	41FL-3	3/8-24	7/16"	3/16"	€41.02	10
A	41FL-2	5/16-24	3/8"	1/8"	€40.99	10

PARKER -

Brass Fitting

A

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	42F-12	1-1/16-14	1-1/16"	450 to 2800 psi	3/4"	€243.18	10
A	42F-5	1/2-20	1/2"	450 to 2800 psi	5/16"	€51.91	10
A	42F-8	3/4-16	-	750 psi	1/2"	€68.96	10
A	42F-3	3/8-24	7/16"	450 to 2800 psi	3/16"	€39.20	10
A	42F-6	5/8-18	-	1000 psi	3/8"	€41.74	10
A	42F-10	7/8-14	-	650 psi	5/8"	€92.29	10
A	42F-4	7/16-20	-	1400 psi	1/4"	€20.69	10

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

PARKER Flared Tube Fittings

An extensive line of reliable and leak-proof flared tube fittings, such as caps, nuts, elbows, adapters, unions and connectors, used in various high-pressure hydraulic applications. Available in different connection types and hex sizes to fit a variety of pipes

Seal Bonnet

Female Flare Connector

Union Reducer, Flare, Brass

Male Elbow, 45 Degrees, Flare, Brass

Manual Flaring Tool

Female Elbow, 90 Degrees, Flare, Brass

Female Connector, Flare, Brass

Extruded Elbow, 45 Degrees

Male Elbow, 90 Degrees, Flare, Brass

Caps

Connector, Brass, Flare

Flare Cap, Brass, 45 Deg

Union Elbow, 90 Deg, Brass

Union Tee, Flare Thread

Extruded Reducer

Short Nut, Brass

Long Nut, Flare, Brass, 45 Deg

Brass Fitting

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

PARKER Flared Tube Fittings An extensive line of reliable and leak-proof flared tube fittings, such as caps, nuts, elbows, adapters, unions and connectors, used in various high-pressure hydraulic applications. Available in different connection types and hex sizes to fit a variety of pipes

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

PARKER Flared Tube Fittings

An extensive line of reliable and leak-proof flared tube fittings, such as caps, nuts, elbows, adapters, unions and connectors, used in various high-pressure hydraulic applications. Available in different connection types and hex sizes to fit a variety of pipes
