High Speed Semiconductor Fuses

BUSSMANN -

High Speed Semiconductor Fuses: Series FWH
Bussmann fast-acting fuses are designed to provide short-circuit protection against high-level fault currents. These electronic fuses feature a compact design to fit easily in cramped spaces and bolt-on mounting style for easy mounting. They are CE listed, UL recognised and CSA certified. These fuses are designed to provide low arc voltage & low energy let-through and come with superior cycling capabilities for continuous operation. Choose from a wide range of Bussmann high-speed fuses, available in standard interrupting capacities up to 200 kA at 500 VAC, on Raptor Supplies.

A

Style	Model	Fuse Amps	Interrupt Rating	Length	Price (ex. VAT)
A	FWH-10A14F	10	50kA at Greater Than= 20% pf	1.25"	€66.00
A	FWH-15A14F	15	50kA at Greater Than= 20% pf	1.25"	€50.81
A	FWH-20A14F	20	50kA at Greater Than= 20% pf	2"	€57.25
A	FWH-25A14F	25	20kA at Greater Than= 20% pf	1.25"	€57.25
A	FWH-30A14F	30	20kA at Greater Than= 20% pf	2"	€86.19

BUSSMANN -

170M Series Semiconductor Fuses

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Style	Model	Ac Voltage Rating	Current Rating	Fuse Size / Group	Mounting Style	Termination Type	Voltage (ac)	Price (ex. VAT)
A	170M4847	-	-	-	-	-	-	€4,791.75
B	170M3907	-	350A	-	-	-	-	€235.79
C	170M7028	-	3kA	-	-	-	-	€1,805.38
B	170M7975	-	1.8kA	-	-	-	-	€1,342.82
B	170M7071	-	-	-	-	-	-	€2,022.23
D	170M4170	-	250A	-	-	-	-	€335.89
B	170M7212	-	1.4kA	-	-	-	-	€1,260.61
E	170M6731	-	1.9kA	-	-	-	-	€1,099.64
D	170M6734	-	800A	-	-	-	-	€1,325.55
B	170M7520	-	2.1kA	-	-	-	-	€3,403.81
F	170M7255	-	1.9kA	-	-	-	-	€2,278.30
D	170M6125	-	900A	-	-	-	-	€518.67
G	170M0212	-	32A	-	-	-	-	€74.97
H	170M1813	-	250A	-	-	-	-	€290.95
B	170M6452	-	-	-	-	-	-	€399.29

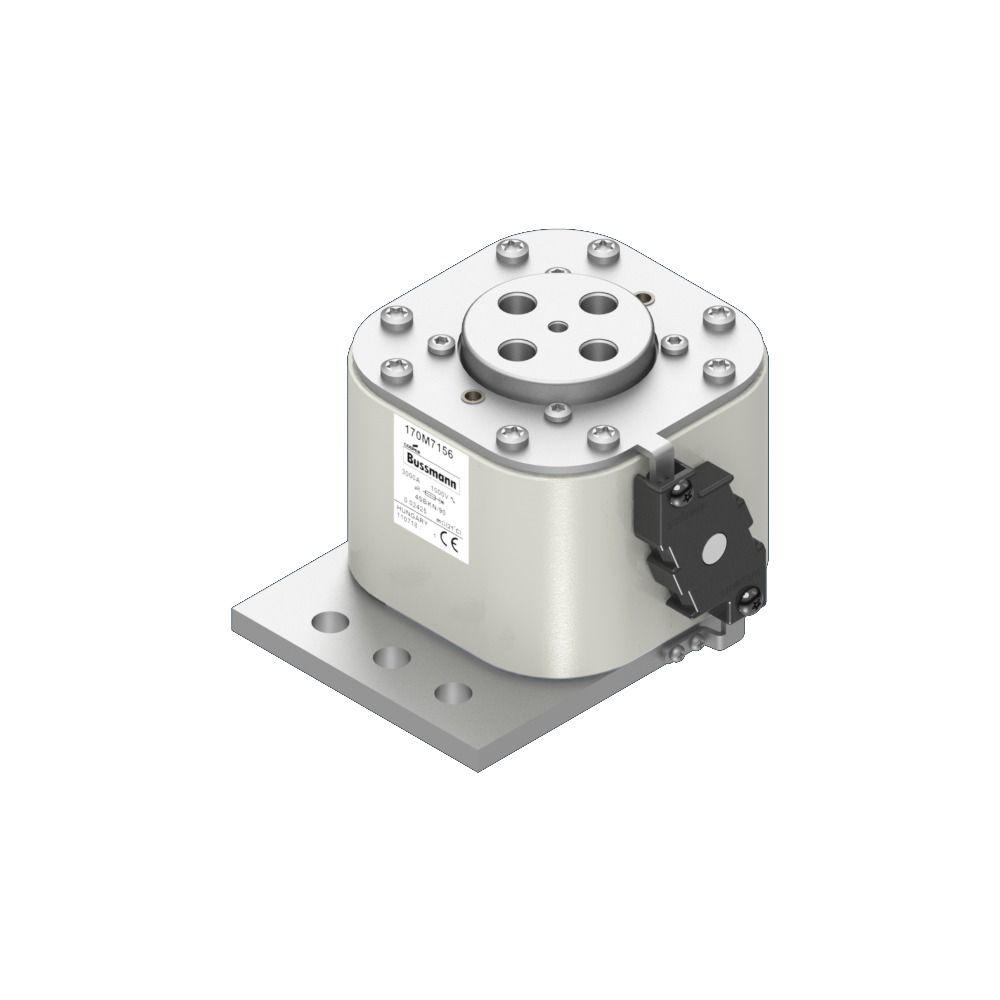

I	170M7156	-	3kA	-	-	-	-	€2,033.70
J	170M6524	-	1.1kA	-	-	-	-	€562.85
K	170M7041	-	1.6kA	-	-	-	-	€1,733.40
L	170M1470	-	200A	-	-	Blade	-	€271.32
D	170M5569	-	1.25kA	-	-	-	-	€925.90
M	170M5806	-	315A	-	-	-	-	€381.89
D	170M0211	-	25A	-	-	-	-	€74.81
B	170M5422	-	250A	-	-	-	-	€348.64	RFQ
N	170M1472	-	315A	-	-	-	-	€117.72
D	170M8550	-	1.6kA	-	-	-	-	€1,790.82

BUSSMANN -

KAB Series Semiconductor Fuses

A

Style	Model	Current Rating	Price (ex. VAT)
A	KAB-1	1A	€35.55
A	KAB-5	5A	€35.55
A	KAB-6	6A	€35.55
A	KAB-8	8A	€90.99
A	KAB-15	15A	€98.88
A	KAB-17-1/2	17.5A	€35.55

BUSSMANN -

FWP-22F Series Semiconductor Fuses
Bussmann FWP-22F Series semiconductor fuses are utilised to protect sensitive electronic components from overcurrent conditions. They safeguard semiconductor devices, such as diodes, transistors & thyristors, from excessive current & short-circuit faults. These fuses are used in power electronics, motor drives and renewable energy systems. They feature a cartridge fuse body style for easy replacement and can be mounted using fuse holders to secure integration into electronic systems. These semiconductor fuses come with a clip termination to secure the method for attaching the fuse within electronic systems. They have fast-blow fuses for swift and precise protection against overcurrent conditions in electronic systems.

A

B

Style	Model	Body Style	Current Rating	Fuse Size / Group	Price (ex. VAT)
A	FWP-20A22F	Cartridge	20A	22 x 58 mm	€57.25
B	FWP-25A22F	Cartridge	25A	22 x 58 mm	€62.50
B	FWP-32A22F	Cartridge Fuses	32A	22 mm x 58 mm	€57.25

BUSSMANN -

170L Series Semiconductor Fuses

A

B

C

D

Style	Model	Current Rating	Price (ex. VAT)
A	170L5714	400A	€383.45
B	170L8281	400A	€1,166.12
A	170L8926	400A	€460.74
C	170L5551	450A	€429.04
A	170L9218	550A	€1,433.01
A	170L9203	630A	€413.87
D	170L8407	630A	€460.17
A	170L9665	700A	€550.64
A	170L7947	800A	€602.84
A	170L9655	800A	€613.99

BUSSMANN -

170E Series Semiconductor Fuses

A

B

C

D

E

F

G

Style	Model	Current Rating	Price (ex. VAT)
A	170F8232	-	€1,738.99

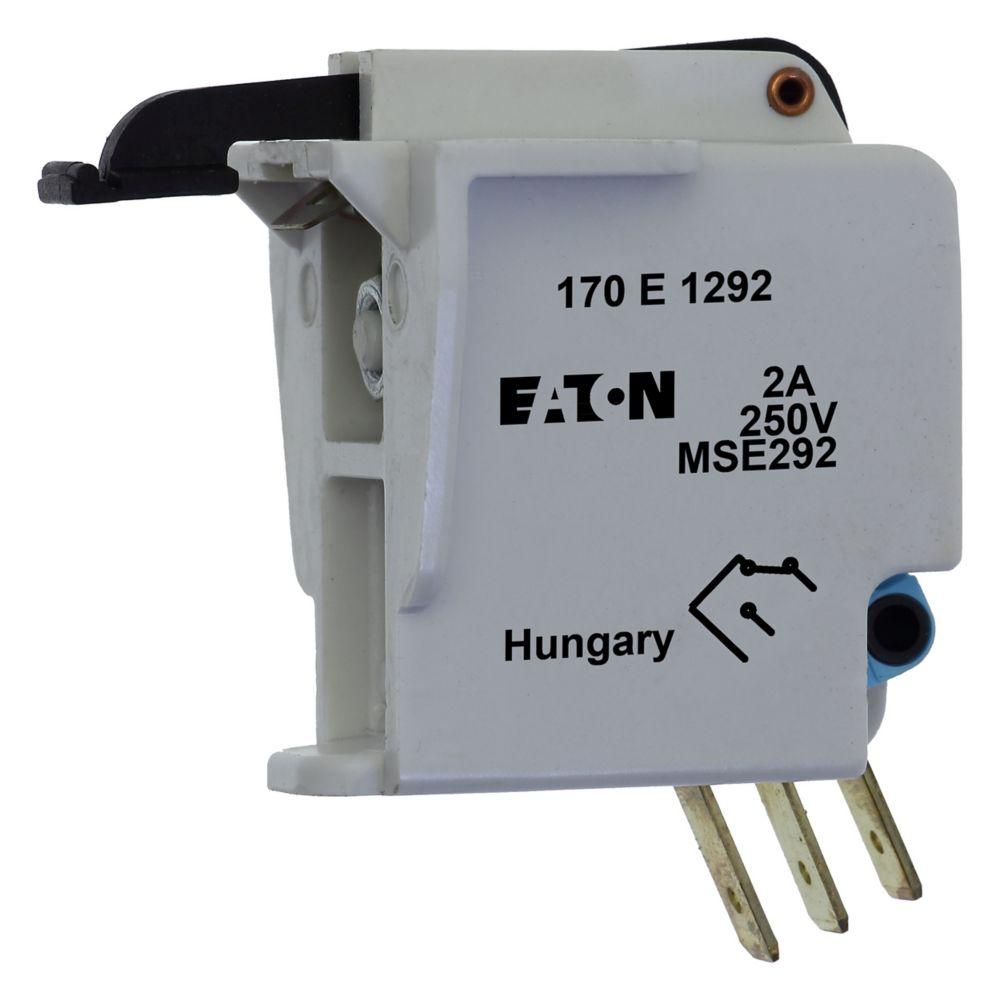

B	170E1292	2A	€514.61
C	170E3844	63A	€228.63
D	170E5448	80A	€653.54
E	170E5449	100A	€703.86
A	170E5451	160A	€822.36
F	170E3582	160A	€682.18
F	170E2095	250A	€335.28
F	170E6139	350A	€459.95
F	170E8347	400A	€1,311.44
G	170E9730	450A	€2,645.16
F	170E7649	630A	€628.38
F	170E7683	800A	€613.68

BUSSMANN -

CT Series Semiconductor Fuses

A

B

C

Style	Model	Current Rating	Price (ex. VAT)
A	2CT	2A	€79.49

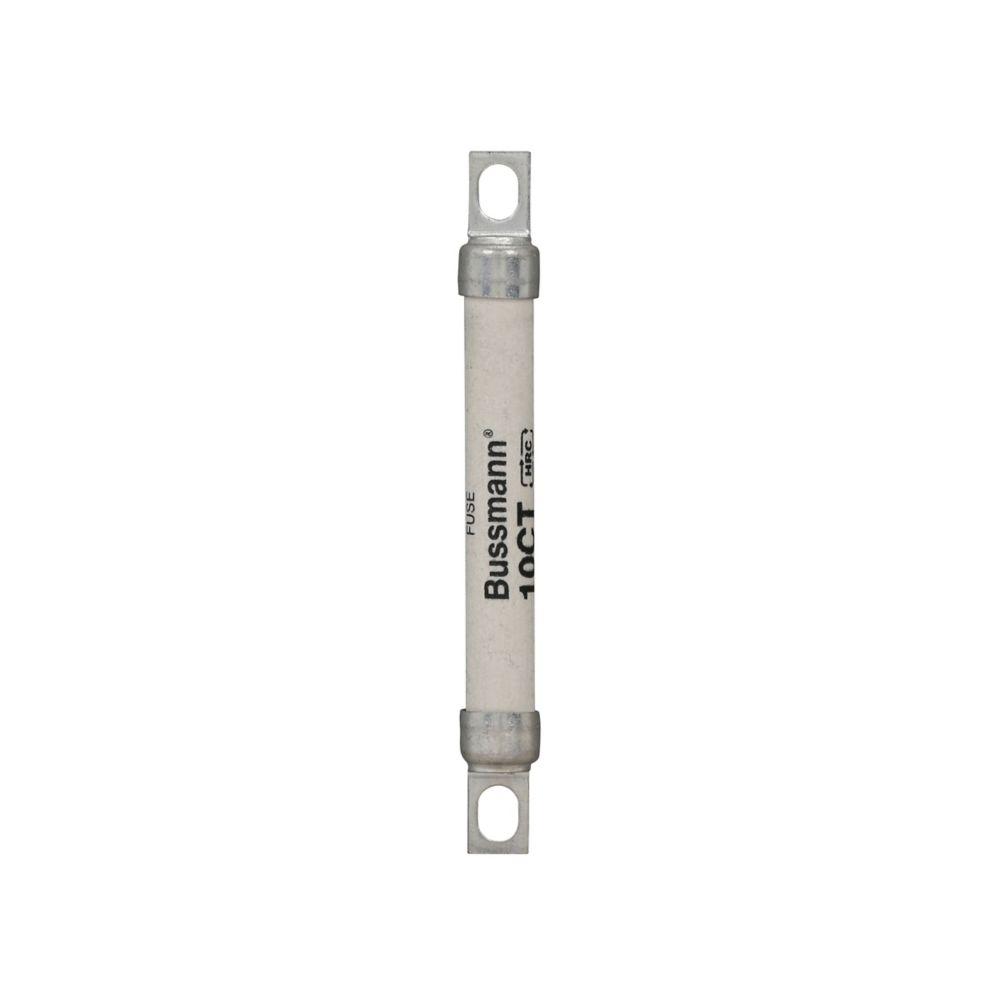

B	10CT	10A	€6.82

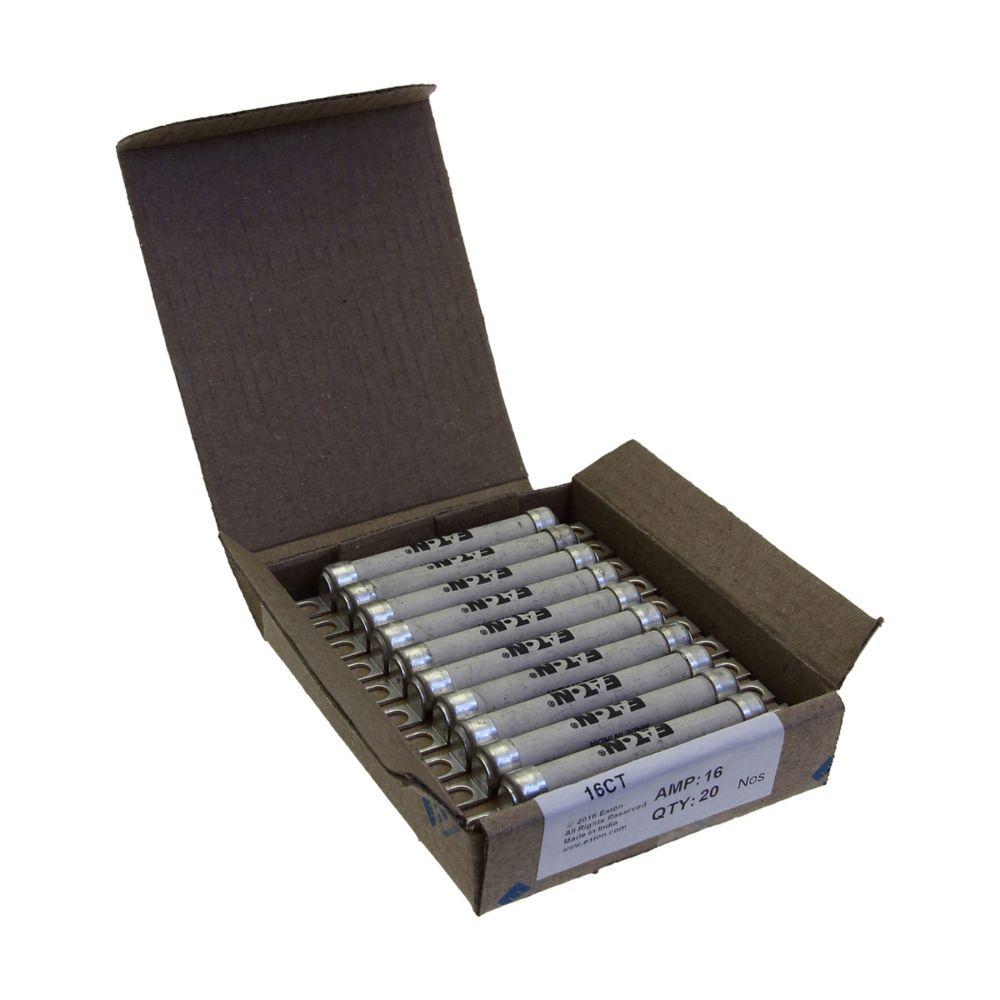

C	16CT	16A	€6.79

BUSSMANN -

170M Type GKN Series Semiconductor Fuses

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Current Rating	Price (ex. VAT)
A	170M7120	1.4kA	€1,651.26

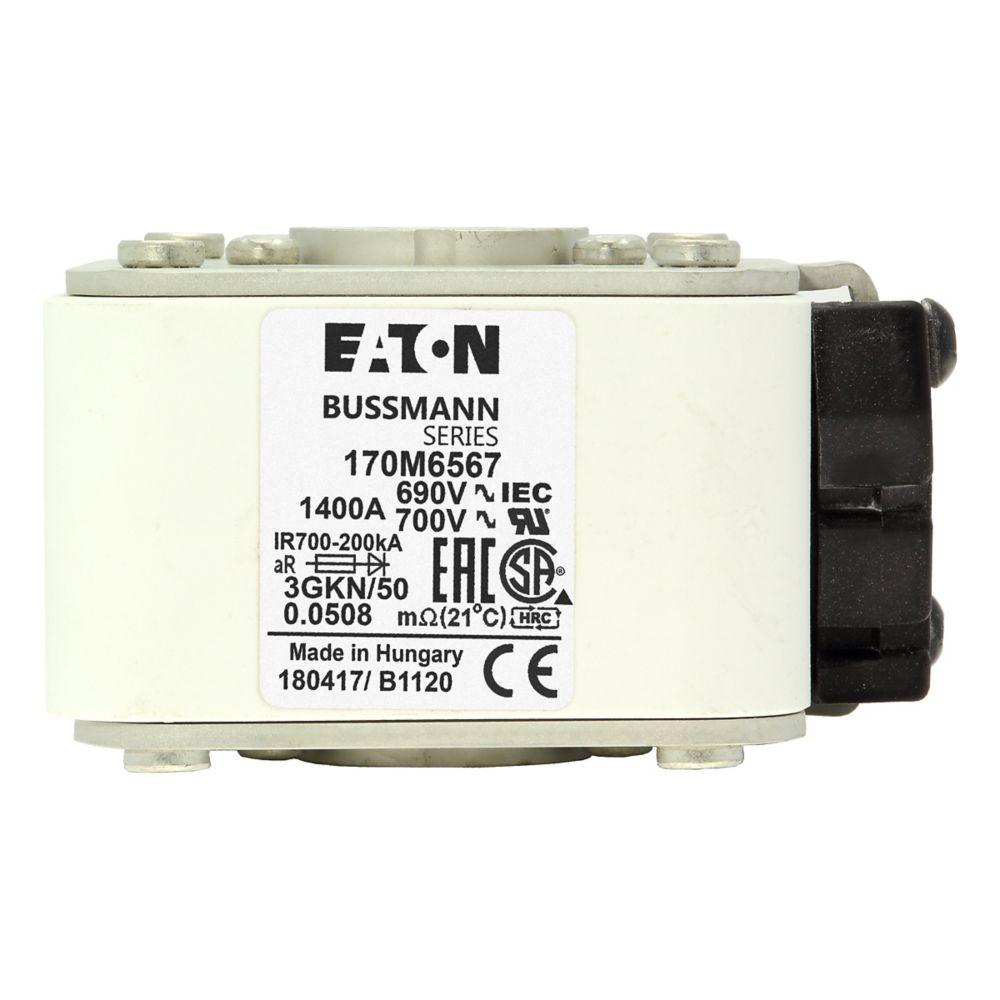

B	170M6567	1.4kA	€576.77
C	170M6517	1.4kA	€542.94
D	170M6518	1.5kA	€695.17
E	170M6569	1.6kA	€729.98
F	170M6516	1.25kA	€542.94

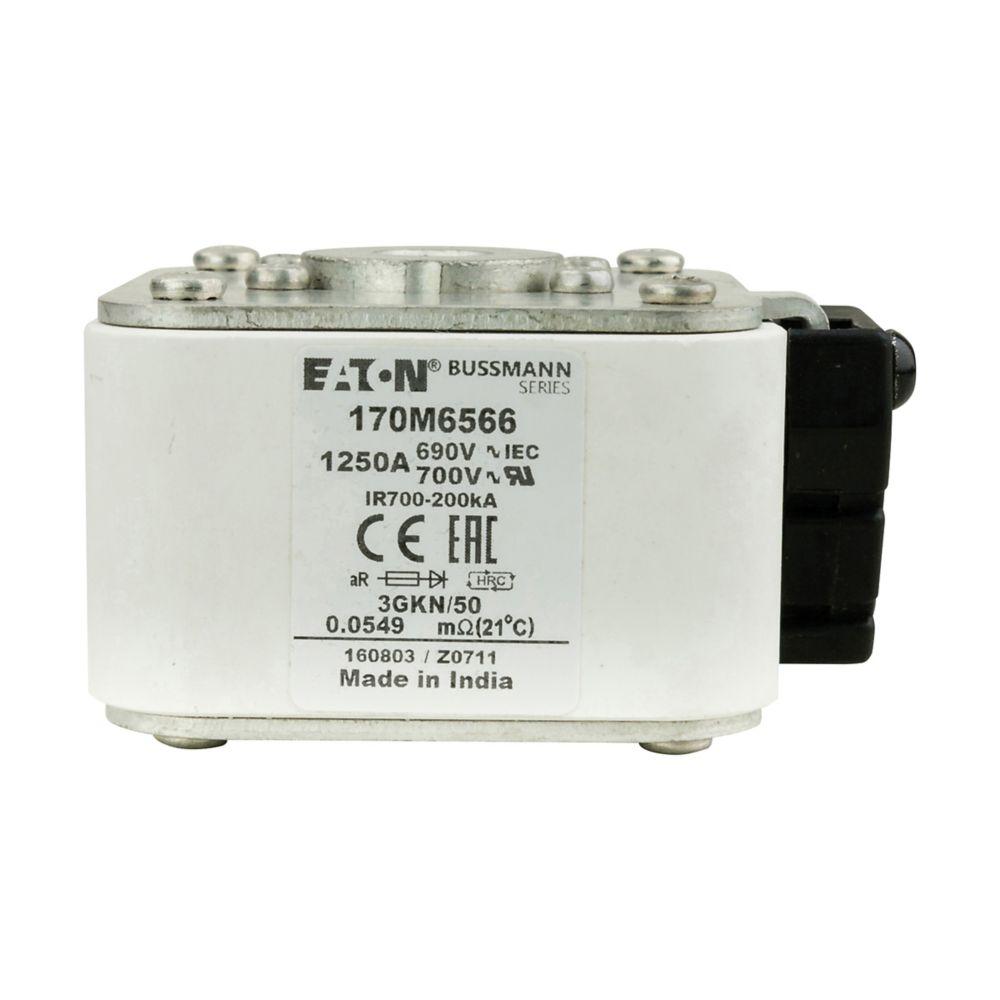

G	170M6566	1.25kA	€576.77
A	170M5568	1.25kA	€857.40

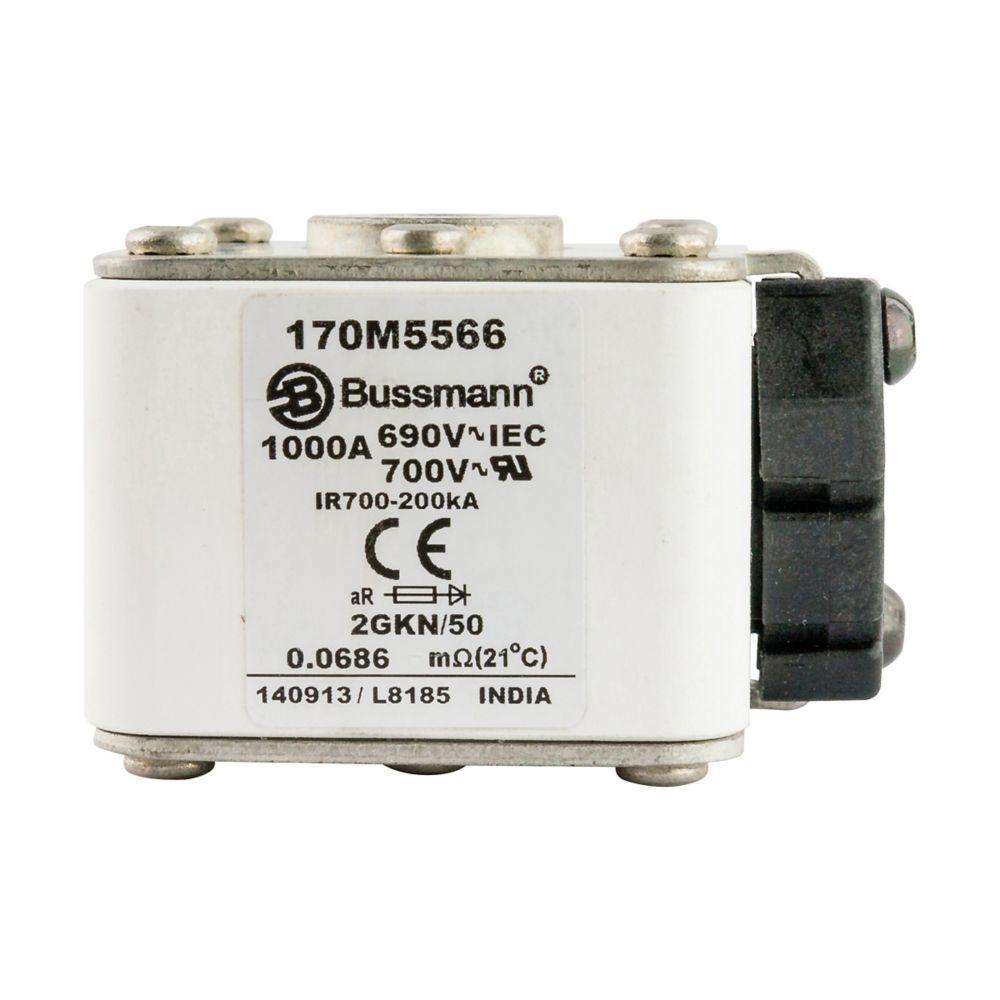

H	170M5566	1kA	€466.05
A	170M7103	2.5kA	€1,811.41
I	170M7123	2.5kA	€1,848.26	RFQ
A	170M7125	3.5kA	€2,079.05
E	170M3559	50A	€237.14
J	170M3488	50A	€329.95

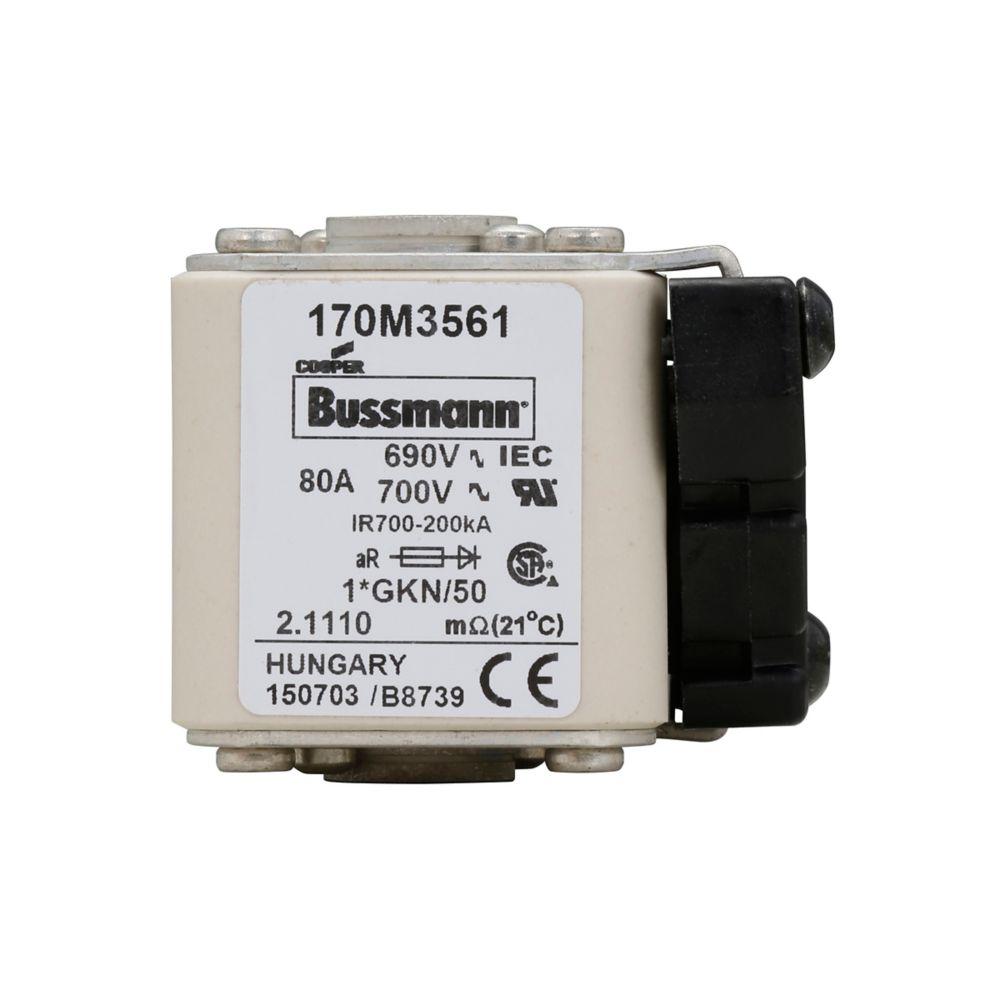

K	170M3561	80A	€237.81
L	170M3441	100A	€377.05
M	170M3565	200A	€237.18
E	170M3444	200A	€377.05

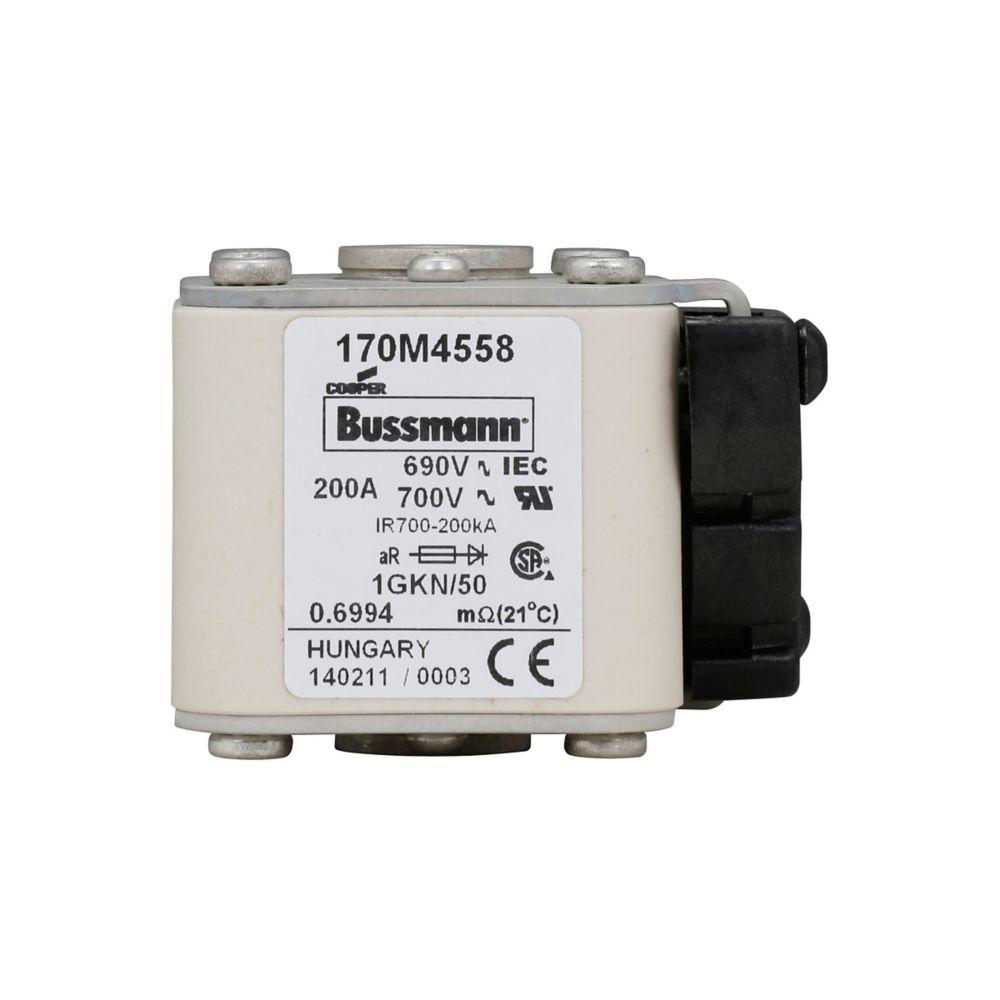

N	170M4558	200A	€301.96
E	170M4490	250A	€396.61
A	170M4509	250A	€273.44
A	170M4510	315A	€273.44
O	170M3497	350A	€351.57
E	170M4511	350A	€273.44
E	170M3447	350A	€411.56

BUSSMANN -

170M Type K Series Semiconductor Fuses

A

B

C

D

E

F

G

Style	Model	Current Rating	Price (ex. VAT)
A	170M6251	1.4kA	€975.90
A	170M3242	125A	€348.61

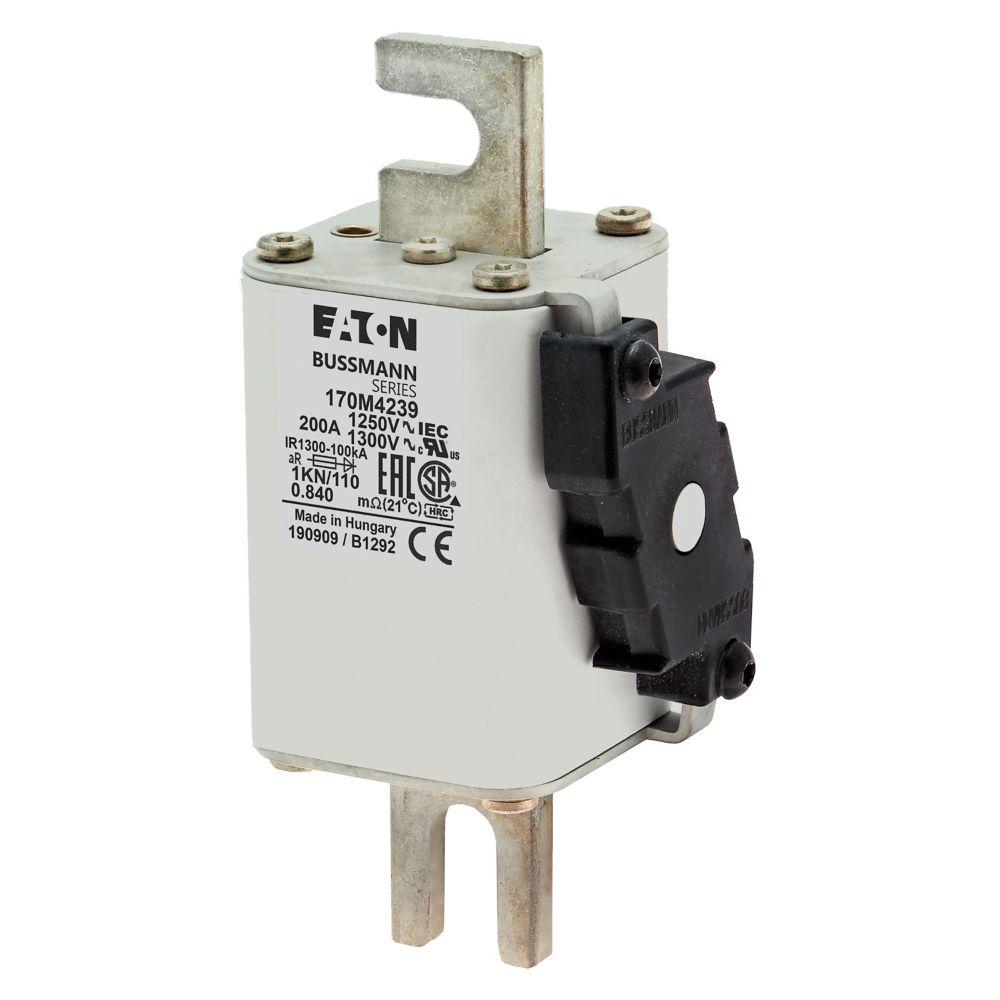

B	170M4239	200A	€414.91

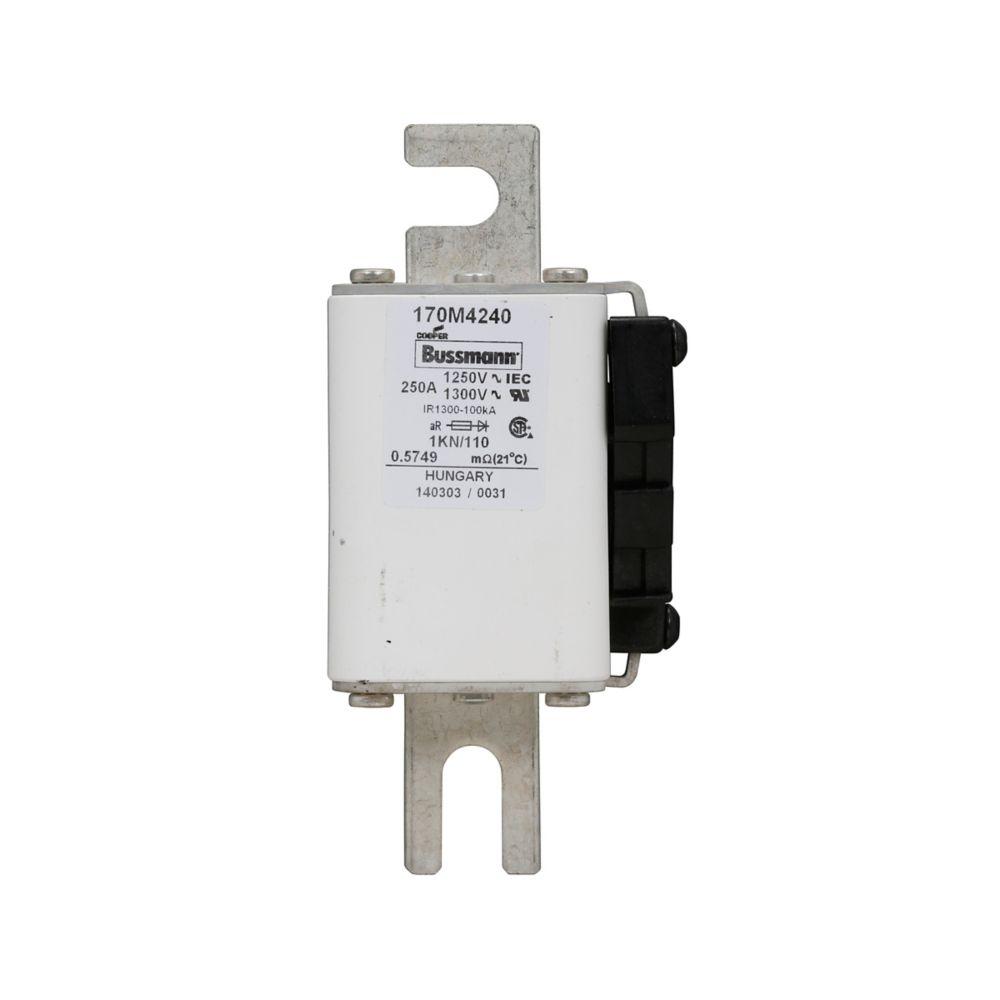

C	170M4240	250A	€1,177.71
A	170M5239	280A	€472.16
A	170M6239	350A	€603.33
A	170M5243	450A	€559.78
A	170M5244	500A	€559.78
D	170M4246	550A	€516.09
D	170M6244	630A	€627.65

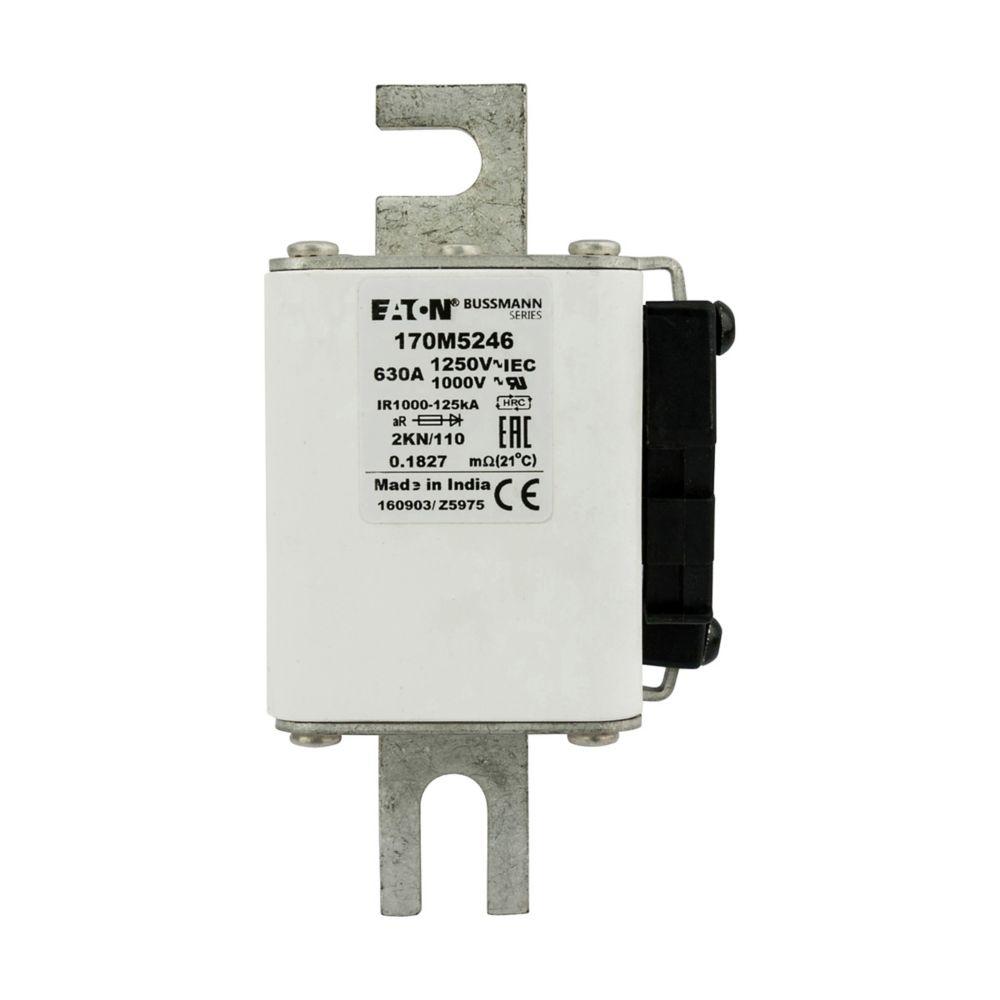

E	170M5246	630A	€559.78
F	170M4247	630A	€516.09
A	170M6245	700A	€495.76

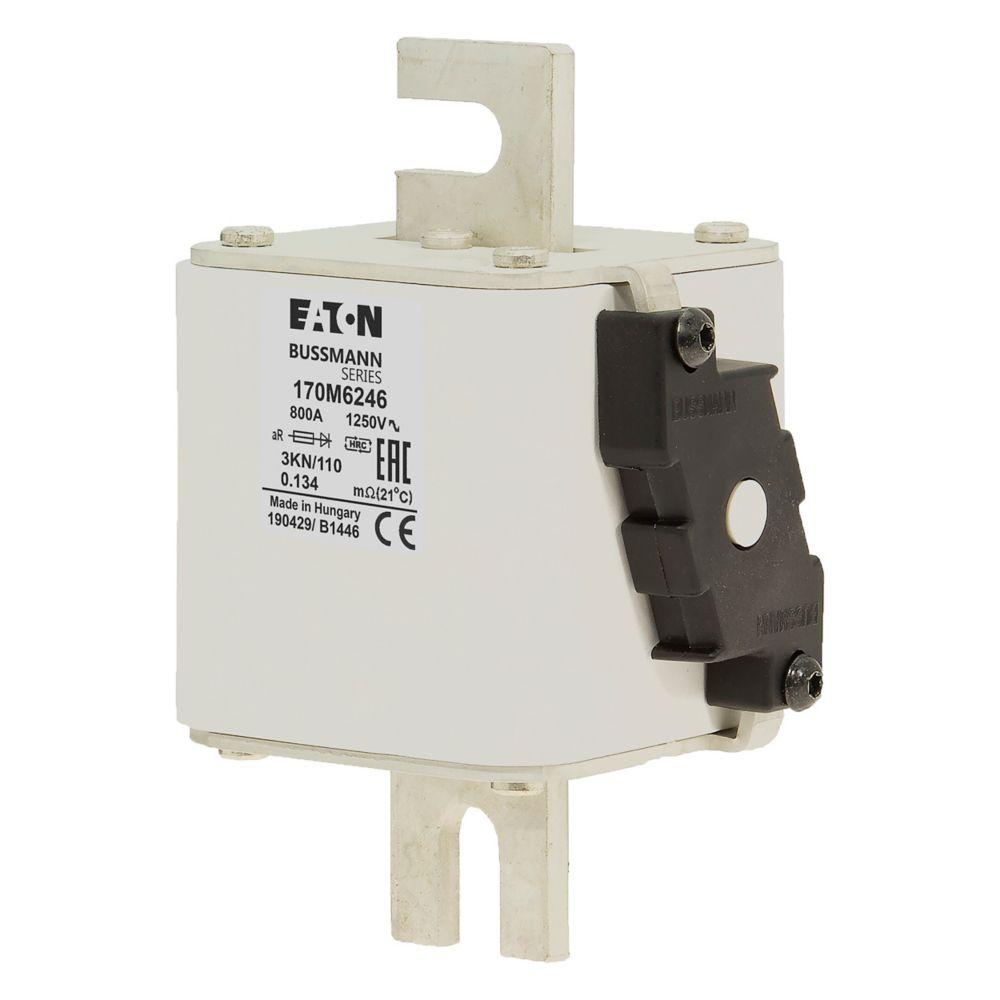

G	170M6246	800A	€922.34
A	170M5248	800A	€756.93
D	170M5249	900A	€719.20
A	170M6247	900A	€971.57

BUSSMANN -

170M KN 110 Series Semiconductor Fuses

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Style	Model	Current Rating	Price (ex. VAT)
A	170M6118	1.5kA	€674.63
A	170M6270	1.8kA	€833.84

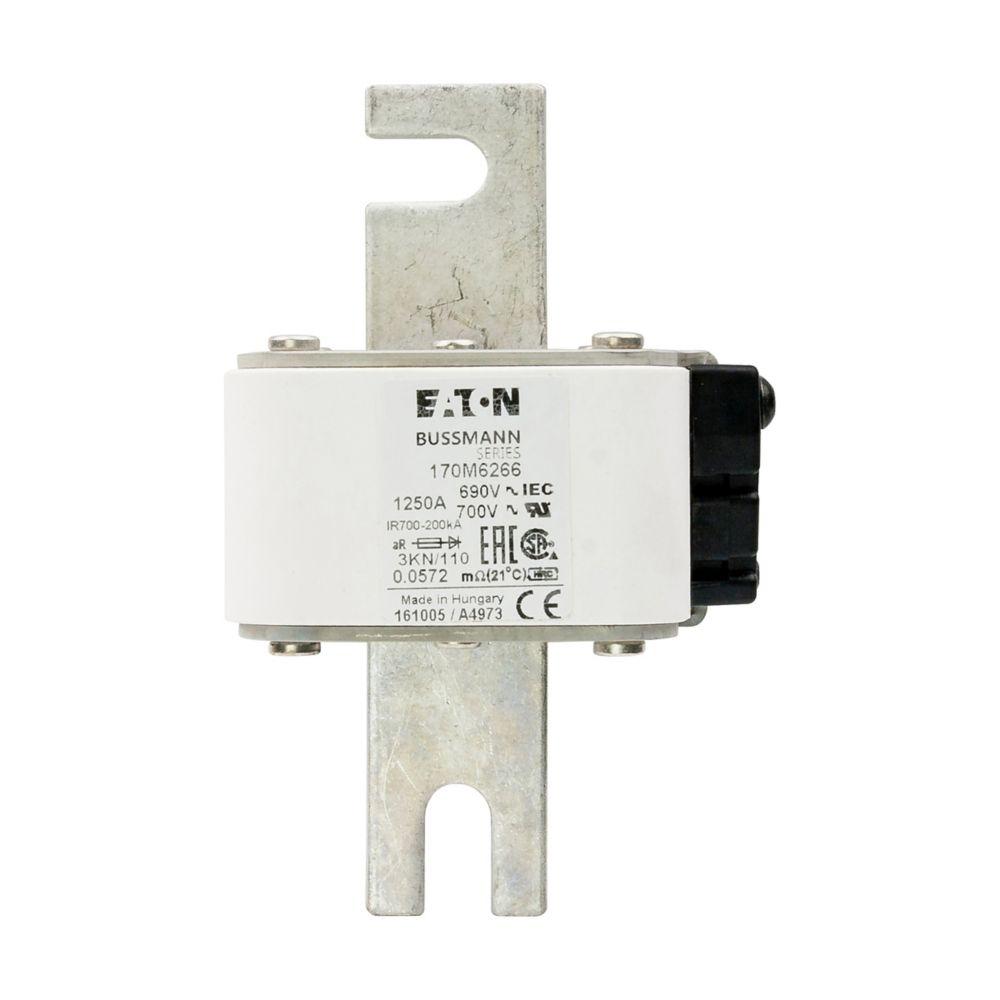

B	170M6266	1.25kA	€635.47
A	170M5266	1kA	€466.93
A	170M6114	1kA	-	RFQ
C	170M6121	2kA	€821.12
D	170M3258	40A	€275.75

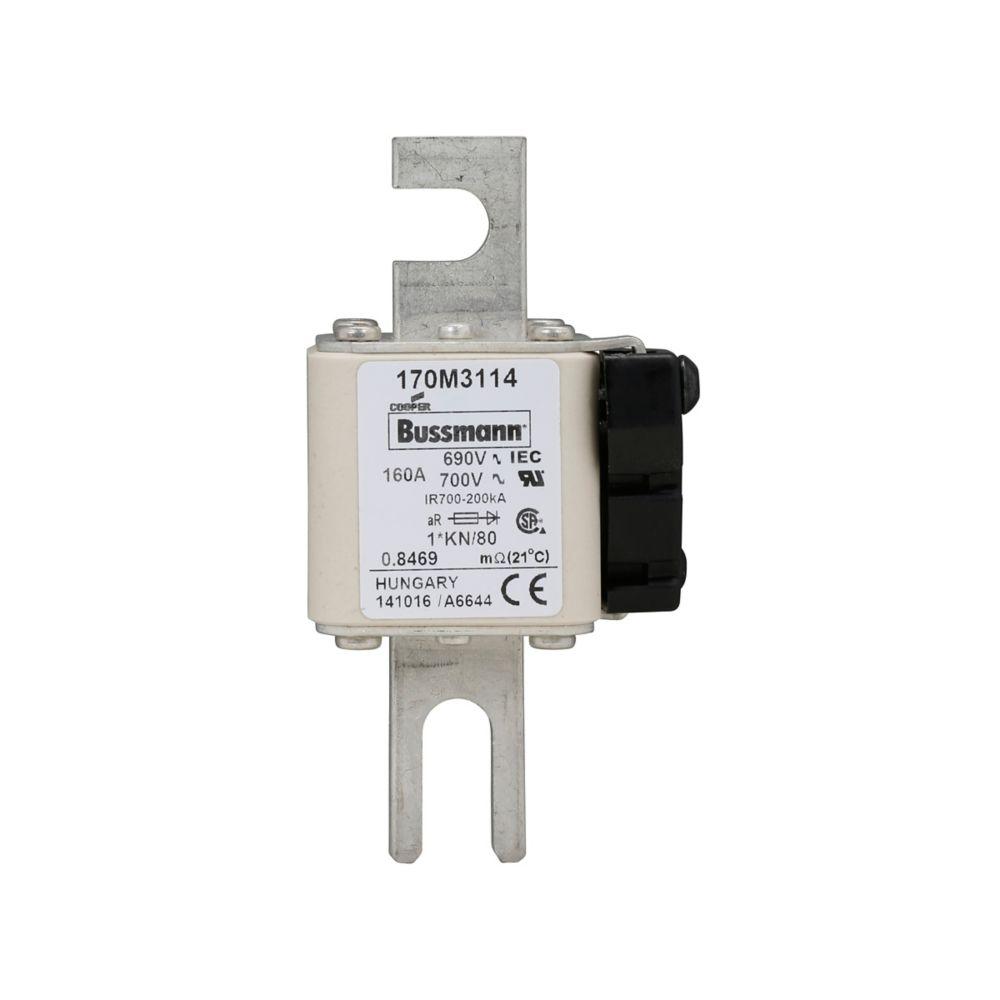

E	170M3114	160A	€597.69
F	170M3264	160A	-	RFQ
A	170M4259	250A	€875.48
A	170M4261	350A	€345.55
G	170M3268	350A	€250.68
A	170M4111	350A	€332.71

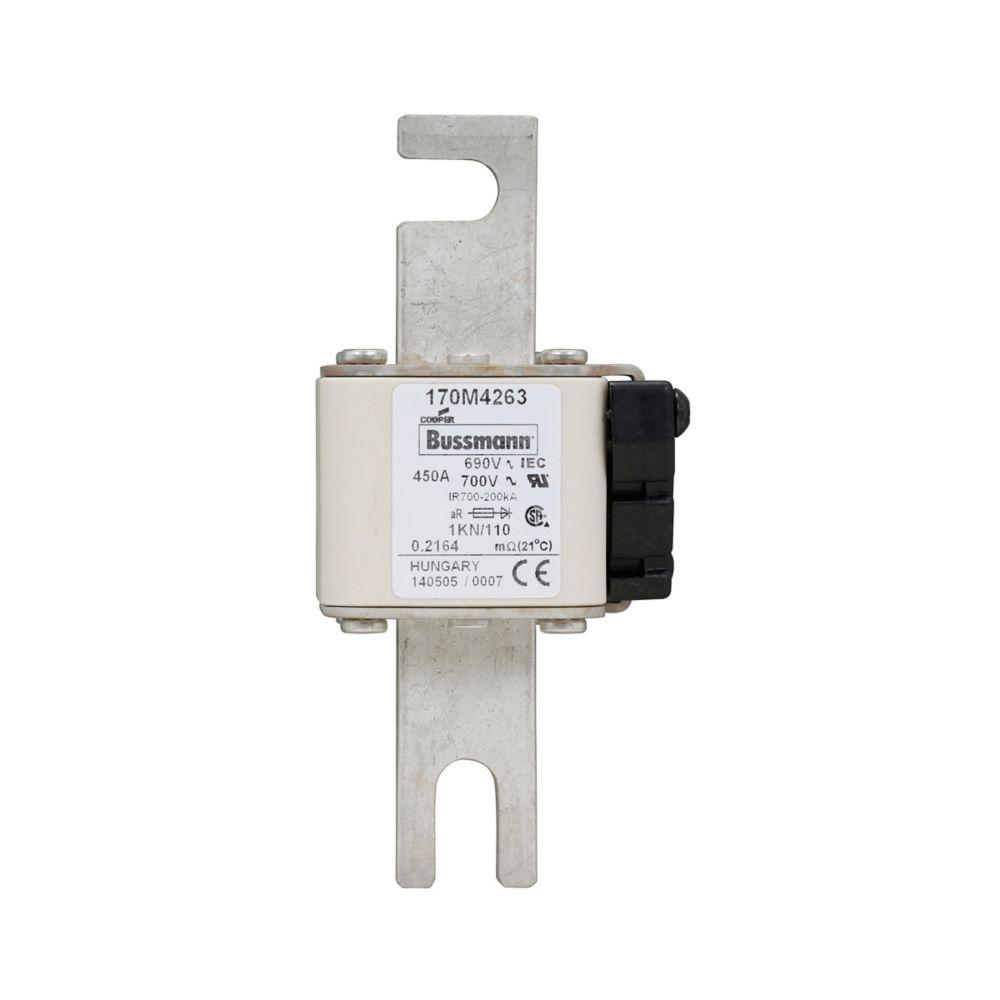

H	170M4263	450A	€327.08
A	170M5109	450A	€417.68

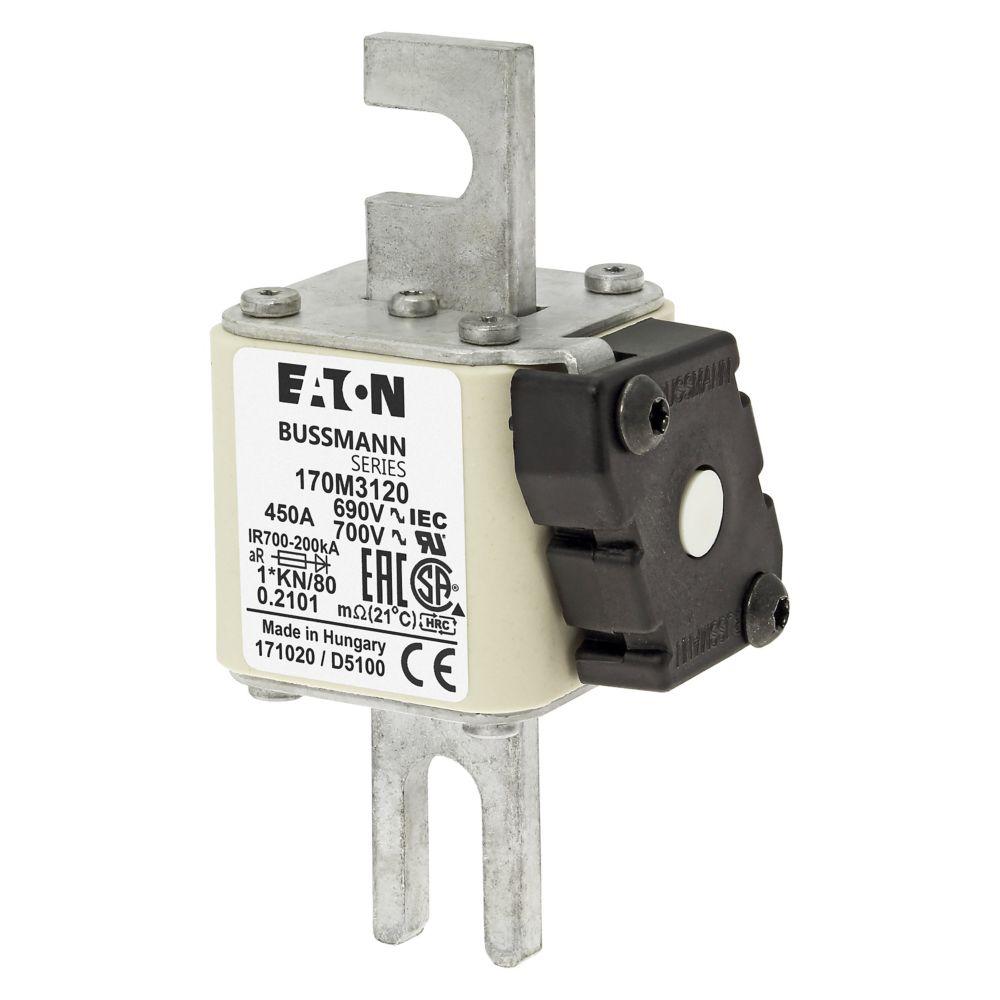

I	170M3120	450A	€260.95

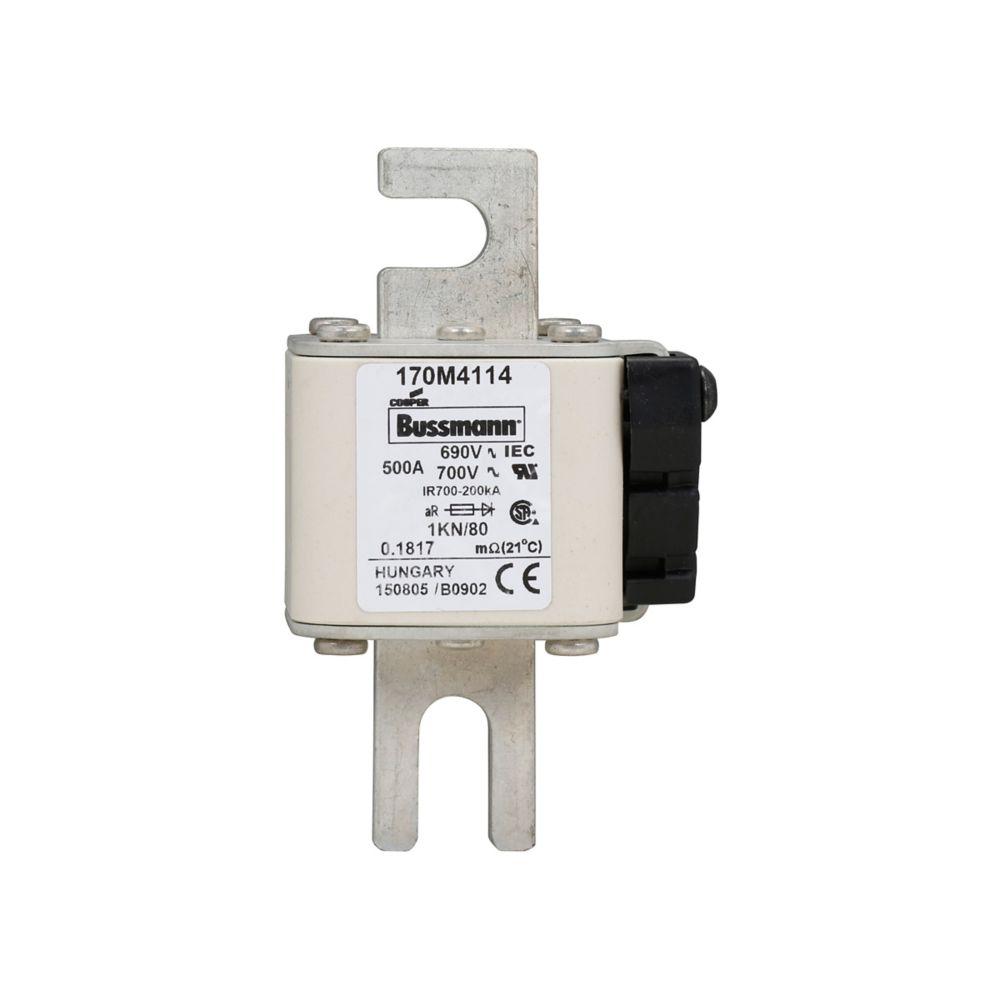

J	170M4114	500A	€376.69
A	170M6108	500A	€501.58
K	170M4264	500A	€327.08
A	170M5261	550A	€436.96
A	170M5262	630A	€436.96
A	170M3123	630A	€750.74

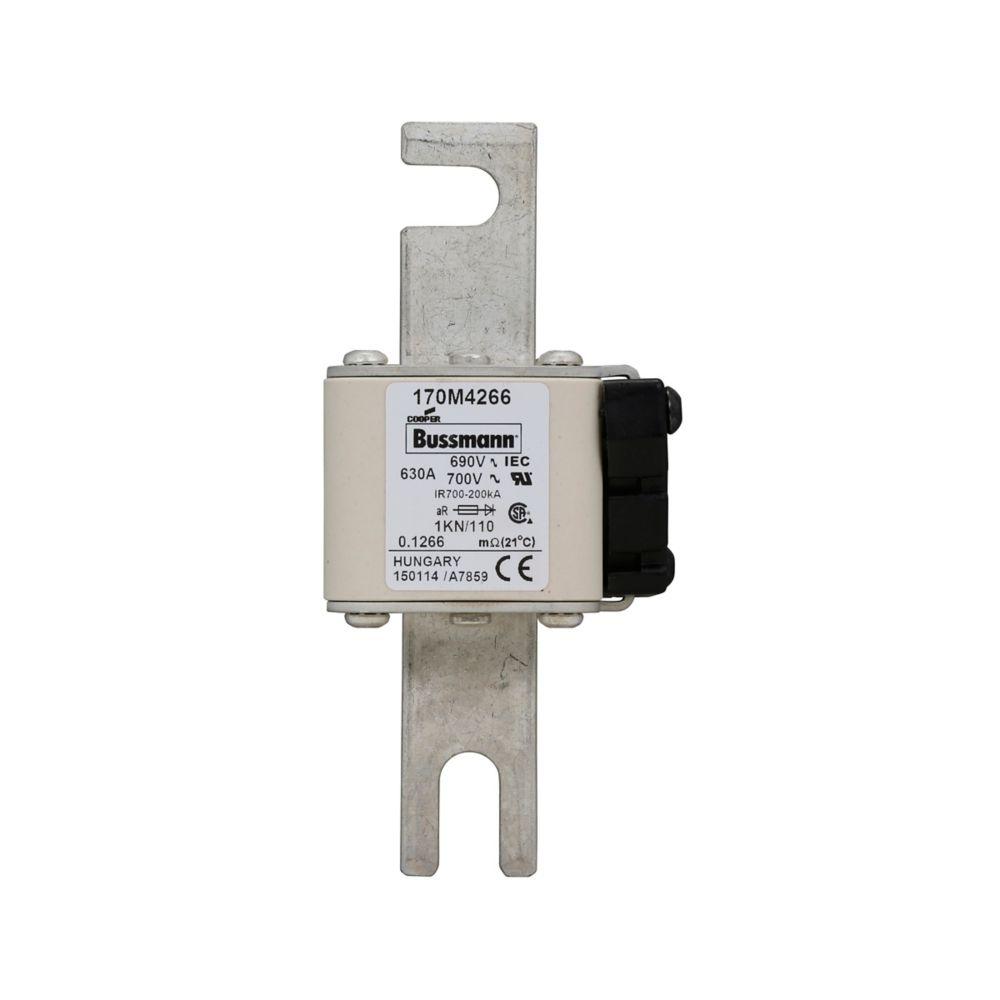

L	170M4266	630A	€828.74
M	170M4116	630A	€376.69
N	170M5264	800A	€369.38

BUSSMANN -

170M Type FU Series Semiconductor Fuses

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Current Rating	Price (ex. VAT)
A	170M3708	-	€230.57
B	170M5690	-	€397.06
C	170M6716	1.25kA	€498.23
D	170M5616	1kA	€393.59
C	170M6721	2kA	€780.24
E	170M3608	40A	€206.53
C	170M3688	50A	€308.84
C	170M3609	50A	€206.53
F	170M3710	63A	€536.30
C	170M3614	160A	€206.53
G	170M4688	160A	€341.37
C	170M4608	200A	€273.24
H	170M3615	200A	€206.53
D	170M3694	200A	€810.96
I	170M3716	250A	€253.84
J	170M3616	250A	€206.53
K	170M4609	250A	€273.24
C	170M3717	315A	€612.50
L	170M4610	315A	€273.24
M	170M3697	350A	€1,050.10
C	170M4711	350A	€284.87
N	170M3718	350A	€253.84
O	170M3619	400A	€209.25
C	170M4694	450A	€450.37
A	170M4613	450A	€301.59

BUSSMANN -

Series FWX, High Speed Semiconductor Fuses

A

B

C

D

E

F

Style	Model	Body Style	Diameter	Fuse Amps	Interrupt Rating	Length	Price (ex. VAT)
A	FWX-175A	Bolt On	1 7/32"	175	200kA at 250VAC, 20kA at 250VDC	3.125"	€155.90
B	FWX-250A	Bolt On	1.5"	250	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€192.00
C	FWX-200A	Bolt On	1 7/32"	200	200kA at 250VAC, 20kA at 250VDC	3.125"	€233.84
C	FWX-100A	Bolt On	1 7/32"	100	200kA at 250VAC, 20kA at 250VDC	3.125"	€93.30
C	FWX-80A	Bolt On	1 7/32"	80	200kA at 250VAC, 20kA at 250VDC	3.125"	€108.35
C	FWX-70A	Bolt On	1 7/32"	70	200kA at 250VAC, 20kA at 250VDC	3.125"	€111.99
D	FWX-40A	Bolt On	13/16"	40	200kA at 250VAC, 20kA at 250VDC	3.187"	€159.13
B	FWX-500A	Bolt On	1.5"	500	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€163.37
B	FWX-350A	Bolt On	1.5"	350	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€198.83
B	FWX-300A	Bolt On	1.5"	300	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€158.19
C	FWX-150A	Bolt On	1 7/32"	150	200kA at 250VAC, 20kA at 250VDC	3.125"	€111.99
D	FWX-60A	Bolt On	13/16"	60	200kA at 250VAC, 20kA at 250VDC	3.187"	€167.44
E	FWX-5A14F	Bolt On	37/64"	5	200kA at 250VAC, 50kA at 250VDC	2"	€48.13
D	FWX-35A	Bolt On	13/16"	35	200kA at 250VAC, 20kA at 250VDC	3.187"	€127.76
B	FWX-225A	Bolt On	1.5"	225	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€158.19
C	FWX-125A	Bolt On	1 7/32"	125	200kA at 250VAC, 20kA at 250VDC	3.125"	€233.84
B	FWX-600A	Bolt On	1.5"	600	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€170.58
B	FWX-400A	Bolt On	1.5"	400	200kA at 250VAC, 20kA at 250VDC	3 27/32"	€158.19
D	FWX-50A	Bolt On	13/16"	50	200kA at 250VAC, 20kA at 250VDC	3.187"	€179.67
E	FWX-10A14F	Cylindrical	37/64"	10	200kA at 250VAC, 50kA at 250VDC	2"	€42.07
F	FWX-30A14F	Cylindrical	9/16"	30	200kA at 250VAC, 50kA at 250VDC	2"	€48.13
E	FWX-15A14F	Cylindrical	9/16"	15	200kA at 250VAC, 50kA at 250VDC	2"	€51.89
E	FWX-20A14F	Cylindrical	9/16"	20	200kA at 250VAC, 50kA at 250VDC	2"	€51.89
E	FWX-25A14F	Cylindrical	9/16"	25	200kA at 250VAC, 50kA at 250VDC	2"	€51.89
E	FWX-12A14F	Cylindrical	37/64"	12	200kA at 250VAC, 50kA at 250VDC	2"	€32.09

BUSSMANN -

170M Type KN Series Semiconductor Fuses

A

B

C

D

E

F

G

H

I

J

K

L

Style	Model	Current Rating	Mounting Style	Termination Type	Price (ex. VAT)
A	170M6500	1.25kA	Screw	Threaded Socket	€995.80
B	170M6348	1kA	Screw	Threaded Socket	€804.31
C	170M6548	1kA	Screw	Threaded Socket	€824.85
D	170M3388	50A	Stud	Bolt Down	€370.77
E	170M3394	200A	Stud	Bolt Down	€939.46
B	170M4439	200A	Screw	Threaded Socket	€451.68
F	170M4389	200A	Screw	Threaded Socket	€445.31
G	170M4440	250A	Screw	Threaded Socket	€451.68
B	170M5388	250A	Screw	Threaded Socket	€1,327.58
B	170M6338	315A	Screw	Threaded Socket	€577.34
H	170M5390	315A	Screw	Threaded Socket	€485.53
B	170M3396	315A	Stud	Bolt Down	€405.05
I	170M4391	315A	Screw	Threaded Socket	€445.31
J	170M3397	350A	Stud	Bolt Down	€405.05
K	170M4392	350A	Screw	Threaded Socket	€459.46
B	170M5391	350A	Screw	Threaded Socket	€485.53
B	170M6340	400A	Screw	Threaded Socket	€577.34
L	170M4443	400A	Screw	Threaded Socket	€465.52
B	170M5393	450A	Screw	Threaded Socket	€519.79
B	170M6342	500A	Screw	Threaded Socket	€577.34
B	170M5394	500A	Screw	Threaded Socket	€519.79
B	170M5395	550A	Screw	Threaded Socket	€1,184.48
B	170M5447	700A	Screw	Threaded Socket	€622.77
B	170M5498	800A	Screw	Threaded Socket	€652.44
B	170M6646	800A	Screw	Threaded Socket	€959.50

BUSSMANN -

170M Type 00BTN Series Semiconductor Fuses

A

B

C

D

E

Style	Model	Current Rating	Price (ex. VAT)
A	170M2758	25A	€176.56
B	170M2709	32A	€166.87
A	170M2710	40A	€172.11
C	170M2763	80A	€197.27
D	170M2770	350A	€245.61
E	170M2771	400A	€253.62

BUSSMANN -

FWK 750V: 5-60A Series Semiconductor Fuses

A

Style	Model	Body Style	Current Rating	Fuse Size / Group	Mounting Style	Product Type	Termination Type	Type	Price (ex. VAT)
A	FWK-25A20F	Cartridge	25A	20 x 127 mm	Holder	High Speed Cartridge Fuse	Clip	High Speed Fuse	€121.36
A	FWK-15A20F	Cartridge	15A	20 x 127 mm	Holder	High Speed Cartridge Fuse	Clip	High Speed Fuse	€121.36
A	FWK-50A25F	Cartridge Blade	50A	25 x 146 mm	Stud	High Speed Semiconductor Fuse	Bolt Down	Traction Fuse Link	€157.90
A	FWK-40A25F	Cartridge Blade	40A	25 x 146 mm	Stud	High Speed Semiconductor Fuse	Bolt Down	Traction Fuse Link	€156.39

BUSSMANN -

F61C Series Semiconductor Fuses

A

Style	Model	Price (ex. VAT)
A	F61C500V8A	€55.21
A	F61C500V15A	€142.28
A	F61C500V20A	€142.28
A	F61C500V6A	€142.28
A	F61C500V5A	€58.80

BUSSMANN -

LCT Series Semiconductor Fuses

A

B

C

Style	Model	Current Rating	Price (ex. VAT)
A	10LCT	10A	€64.65
B	12LCT	12A	€6.12
C	16LCT	16A	€64.65

BUSSMANN -

KAC Series Semiconductor Fuses

A

B

C

D

E

F

G

Style	Model	Body Style	Current Rating	Diameter	Length	Price (ex. VAT)
A	KAC-8	Cartridge Blade	8A	0.56"	2.875"	€52.16
A	KAC-1	Cartridge Blade	1A	0.56"	2.875"	€52.16
B	KAC-450	Cartridge Blade	450A	2.5"	6.25"	€460.85
A	KAC-10	Cartridge Blade	10A	0.56"	2.875"	€52.16
A	KAC-6	Cartridge Blade	6A	0.56"	2.875"	€52.16
B	KAC-225	Cartridge Blade	225A	2"	6.182"	€276.22
C	KAC-45	Cartridge Blade Fuses	45A	0.81"	4.375"	€119.48
A	KAC-15	Cartridge Blade Fuses	15A	0.56"	2.875"	€52.16
A	KAC-3	Cartridge Blade Fuses	3A	0.56"	2.875"	€52.16
D	KAC-17-1/2	Cartridge Blade Fuses	17.5A	0.56"	2.875"	€52.16
E	KAC-110	Cartridge Blade Fuses	110A	0.41"	5.14"	€212.95
B	KAC-350	Cartridge Blade Fuses	350A	2"	6.182"	€283.91
A	KAC-2	Cartridge Blade Fuses	2A	0.56"	2.875"	€52.16
B	KAC-700	Cartridge Blade Fuses	700A	2.5"	6.25"	€477.18
F	KAC-800	Cartridge Blade Fuses	800A	2.5"	6.25"	€471.97
A	KAC-7	Cartridge Blade Fuses	7A	0.56"	2.875"	€52.16
G	KAC-35	Cartridge Blade Fuses	35A	0.81"	4.375"	€107.33

BUSSMANN -

FWA A/B 150V Series Semiconductor Fuses

A

B

C

Style	Model	Body Style	Current Rating	Diameter	Interrupt Rating	Length	Price (ex. VAT)
A	FWA-350B	Cartridge Blade	350A	1"	100kA	2.66"	€143.14
B	FWA-100B(10)	Cartridge Blade	100A	1"	-	2.66"	€52.41
A	FWA-125B	Cartridge Blade Fuses	125A	1"	100kA	2.66"	€122.98
C	FWA-500A	Cartridge Blade Fuses	500A	1.5"	200kA	3.48"	€602.39

BUSSMANN -

LET Series Specialty Fuses

A

B

C

D

E

Style	Model	Current Rating	Interrupt Rating	Voltage (ac)	Price (ex. VAT)
A	16LET	16A	-	240 VAC	€42.62
B	35LET	35A	200kA	240 VAC	€42.13
C	63LET	63A	-	220 VAC	€137.58
D	100LET	100A	3.8kA	240 VAC	€42.62
E	160LET	160A	200kA	240 VAC	€66.00

BUSSMANN -

KAJ Series Semiconductor Fuses

A

B

Style	Model	Current Rating	Price (ex. VAT)
A	KAJ-35	35A	€111.35
B	KAJ-40	40A	€111.35
A	KAJ-45	45A	€111.35

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

High Speed Semiconductor Fuses

170M Series Semiconductor Fuses

KAB Series Semiconductor Fuses

170L Series Semiconductor Fuses

170E Series Semiconductor Fuses

CT Series Semiconductor Fuses

170M Type GKN Series Semiconductor Fuses

170M Type K Series Semiconductor Fuses

170M KN 110 Series Semiconductor Fuses

170M Type FU Series Semiconductor Fuses

Series FWX, High Speed Semiconductor Fuses

170M Type KN Series Semiconductor Fuses

170M Type 00BTN Series Semiconductor Fuses

FWK 750V: 5-60A Series Semiconductor Fuses

F61C Series Semiconductor Fuses

LCT Series Semiconductor Fuses

KAC Series Semiconductor Fuses

FWA A/B 150V Series Semiconductor Fuses

LET Series Specialty Fuses

KAJ Series Semiconductor Fuses

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

High Speed Semiconductor Fuses

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
