High Temperature Lead Wire
We are closed from Monday, Dec 23rd and will reopen on Monday, Jan 6th. Any orders received during this time will be processed in the New Year.
Onboard Raptor as a vendor

High Temperature Lead Wire

Filter

ROWE -

Ignition Wires

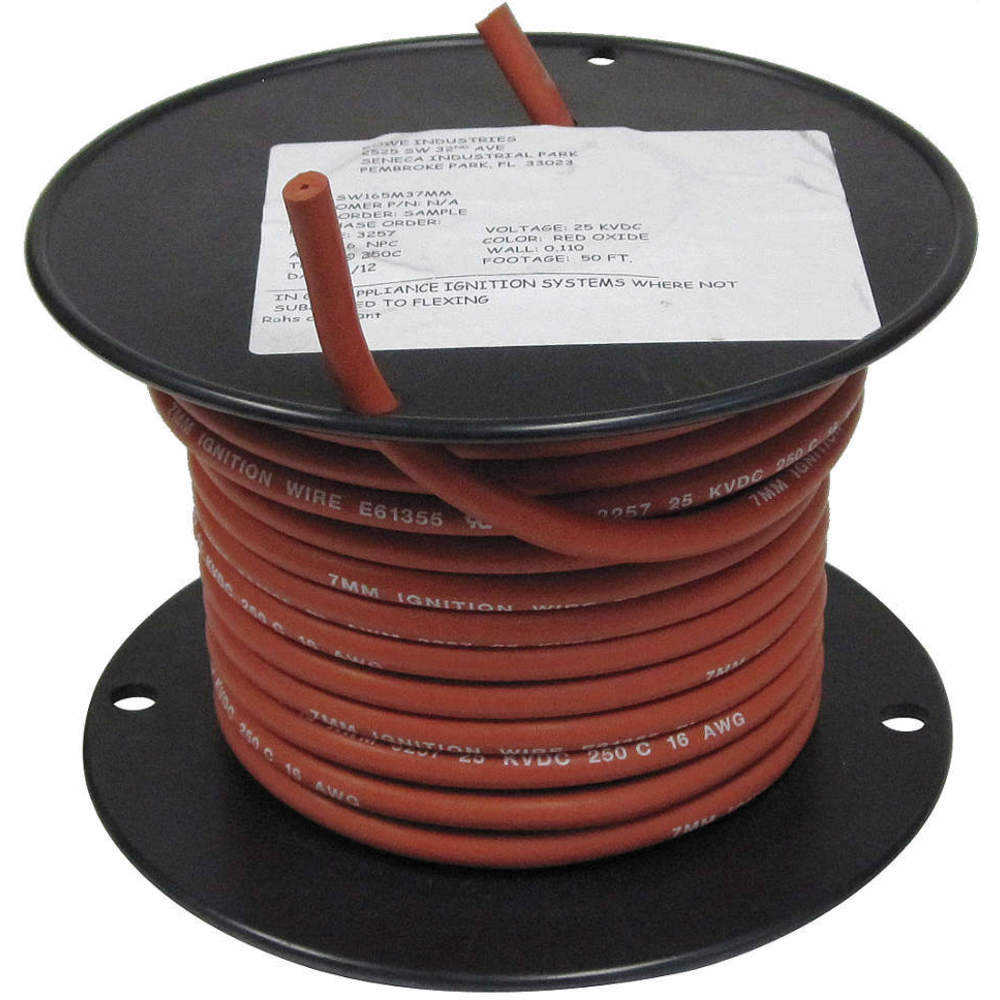

ROWE SW185M3050A
StyleModelNominal Outside Dia.StrandingWire GaugePrice (ex. VAT)
ASW185M30500.207"16/3018 AWG€182.96
ASW168M30500.265"19/2916 AWG€209.86
ROWE -

22 AWG Silicone Lead Wire

ROWE R800-1022-0-50A
StyleModelNominal Outside Dia.VoltagePrice (ex. VAT)
AR800-1022-0-500.112"10 K VDC€112.53
AR800-2522-0-500.175"25 K VDC€137.43
ROWE -

20 AWG Silicone Lead Wire

ROWE R800-0520-0-50A
StyleModelNominal Outside Dia.VoltagePrice (ex. VAT)
AR800-0520-0-500.098"5 K VDC€116.03
AR800-1020-0-500.118"10 K VDC€122.96
AR800-2520-0-500.182"25 K VDC€160.16
ROWE -

18 AWG Silicone Lead Wire

ROWE R800-0518-0-50A
StyleModelNominal Outside Dia.VoltagePrice (ex. VAT)
AR800-0518-0-500.11"5 K VDC€135.97
AR800-1018-0-500.13"10 K VDC€149.12
AR800-2518-0-500.195"25 K VDC€171.27
ROWE -

16 AWG Silicone Lead Wire

ROWE R800-2516-0-50A
StyleModelNominal Outside Dia.VoltagePrice (ex. VAT)
AR800-2516-0-500.2"25 K VDC€187.77
AR800-0516-0-500.116"5 K VDC€151.21
AR800-1016-0-500.136"10 K VDC€163.59
ROWE -

14 AWG Silicone Lead Wire

ROWE R800-0514-0-50A
StyleModelNominal Outside Dia.VoltagePrice (ex. VAT)
AR800-0514-0-500.132"5 K VDC€167.74
AR800-1014-0-500.152"10 K VDC€178.82
AR800-2514-0-500.216"25 K VDC€204.99
TEMPCO -

High Temperature Lead Wires

TEMPCO LDWR-1041A
TEMPCO LDWR-1013B

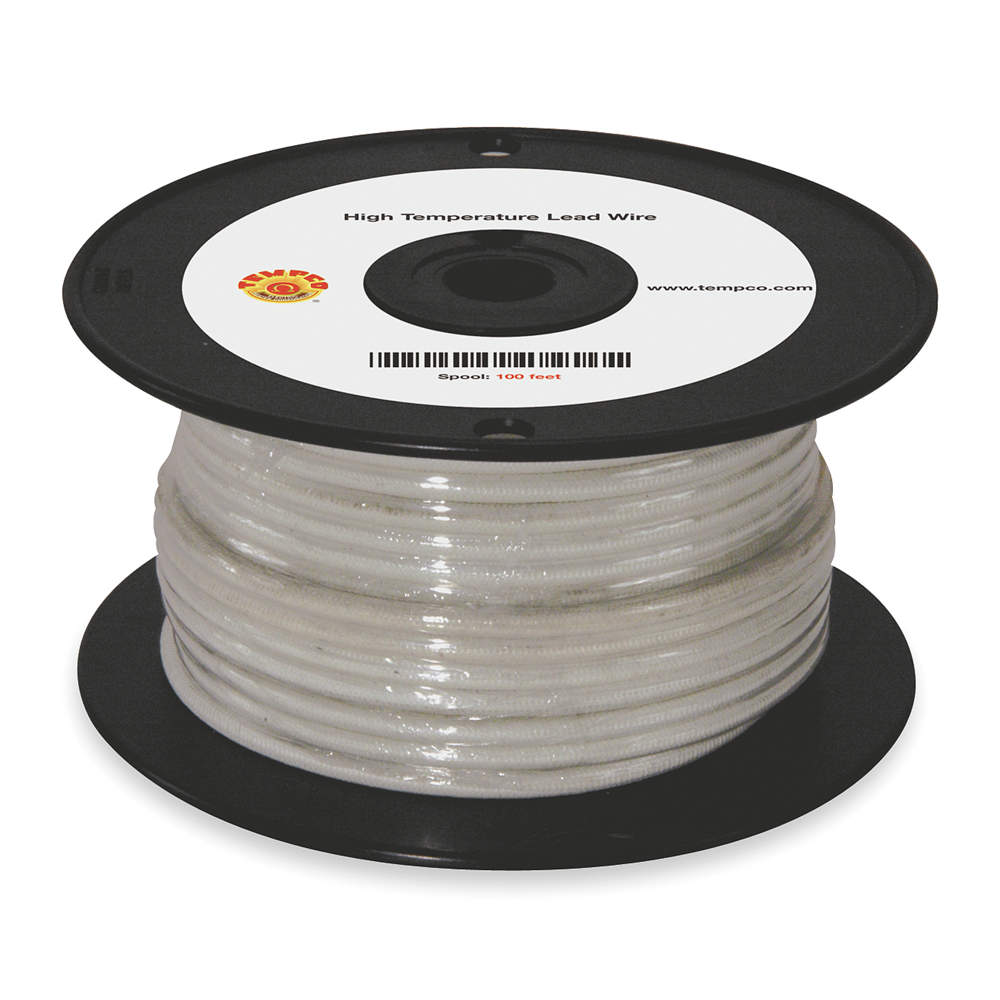

TEMPCO LDWR-1045C
TEMPCO LDWR-1060D
TEMPCO LDWR-1062E
TEMPCO LDWR-1068F
StyleModelCable TypeConductor MaterialInsulationJacket ColorJacket TypeMax. AmpsMax. Temp.Nominal Outside Dia.Price (ex. VAT)
ALDWR-1041MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish23 At Ambient Temp of 104 F/40 C842 F0.115"€382.77
BLDWR-1013MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish56 At Ambient Temp of 104 Degrees F/40 Degrees C842 F0.143"€216.95
CLDWR-1045MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish75 At Ambient Temp of 104 F/40 C842 F0.203"€1,372.63
ALDWR-1011MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish23 At Ambient Temp of 104 Degrees F/40 Degrees C842 F0.115"€179.07
ALDWR-1012MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductor Covered By Fiberglass Over Braid Impregnated With High Temperature Finish30 At Ambient Temp of 104 Degrees F/40 Degrees C842 F0.134"€206.58
BLDWR-1014MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish56 At Ambient Temp of 104 Degrees F/40 Degrees C842 F0.166"€337.08
BLDWR-1044MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish56 At Ambient Temp of 104 F/40 C842 F0.166"€894.05
BLDWR-1043MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish56 At Ambient Temp of 104 F/40 C842 F0.143"€619.31
ALDWR-1042MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish30 At Ambient Temp of 104 F/40 C842 F0.134"€474.21
CLDWR-1015MGNickel Clad CopperMica Insulation with Fiberglass Over-BraidNaturalMica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish75 At Ambient Temp of 104 Degrees F/40 Degrees C842 F0.203"€508.02
DLDWR-1060PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorWhitePTFE Insulation Extruded Over Conductor9.6 At Ambient Temp of 104 F/40 C392 F0.056"€112.87
ELDWR-1062PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorBlackPTFE Insulation Extruded Over Conductor24 At Ambient Temp of 104 F/40 C392 F0.079"€215.69
FLDWR-1068PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorRedPTFE Insulation Extruded Over Conductor18 At Ambient Temp of 104 F/40 C392 F0.073"€414.30
DLDWR-1071PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorWhitePTFE Insulation Extruded Over Conductor36 At Ambient Temp of 104 F/40 C392 F0.093"€621.44
DLDWR-1074PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorWhitePTFE Insulation Extruded Over Conductor14 At Ambient Temp of 104 F/40 C392 F0.064"€337.05
ELDWR-1064PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorBlackPTFE Insulation Extruded Over Conductor14 At Ambient Temp of 104 F/40 C392 F0.064"€132.91
DLDWR-1072PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorWhitePTFE Insulation Extruded Over Conductor24 At Ambient Temp of 104 F/40 C392 F0.079"€488.46
ELDWR-1077PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorBlackPTFE Insulation Extruded Over Conductor24 At Ambient Temp of 104 F/40 C392 F0.079"€488.46
FLDWR-1055PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorRedPTFE Insulation Extruded Over Conductor9.6 At Ambient Temp of 104 F/40 C392 F0.056"€124.87
FLDWR-1052PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorRedPTFE Insulation Extruded Over Conductor24 At Ambient Temp of 104 F/40 C392 F0.079"€213.43
FLDWR-1054PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorRedPTFE Insulation Extruded Over Conductor14 At Ambient Temp of 104 F/40 C392 F0.064"€132.91

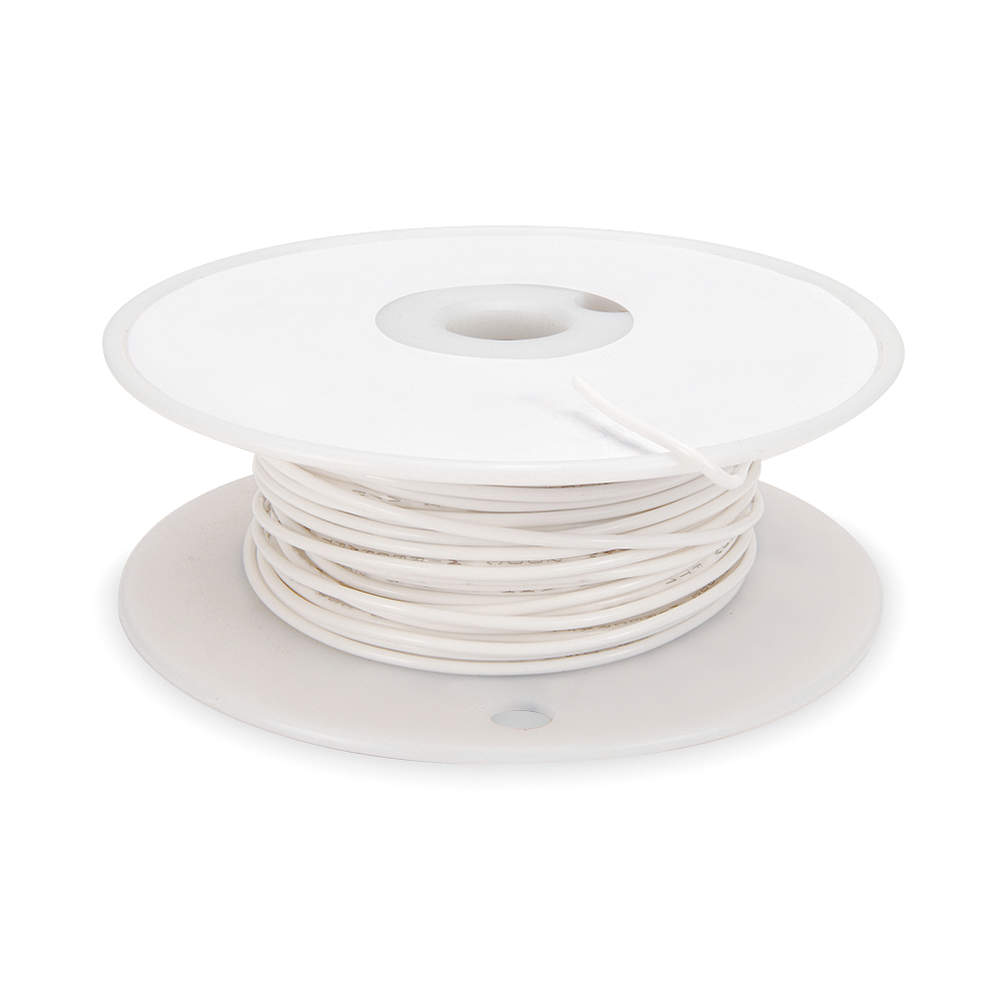

DLDWR-1056PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorWhitePTFE Insulation Extruded Over Conductor36 At Ambient Temp of 104 F/40 C392 F0.093"€272.80
FLDWR-1069PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorRedPTFE Insulation Extruded Over Conductor14 At Ambient Temp of 104 F/40 C392 F0.064"€337.05
DLDWR-1057PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorWhitePTFE Insulation Extruded Over Conductor24 At Ambient Temp of 104 F/40 C392 F0.079"€215.51
FLDWR-1053PTFESilver Plated CopperPTFE Insulation Extruded Over ConductorRedPTFE Insulation Extruded Over Conductor18 At Ambient Temp of 104 F/40 C392 F0.073"€147.11
See more
VULCAN HART -

Ignition Wire, High Vage, Left Hand, 4.65 x 5.4 x 1.35 Inch Size

Ignition Wire, High Vage, Left Hand, 4.65 x 5.4 x 1.35 Inch Size
ModelItemPrice (ex. VAT)
00-423813-00001AP3ZYR€56.28
ROWE -

Silicone Lead Wire Hv 22 Awg 5kvdc 50 Feet

Silicone Lead Wire Hv 22 Awg 5kvdc 50 Feet
ModelItemPrice (ex. VAT)
R800-0522-0-50AC4WZM€98.75
VULCAN HART -

Wire, Spark Ignition

Wire, Spark Ignition
ModelItemPrice (ex. VAT)
00-425472-00001AP4AJL€108.60
See Details
VULCAN HART -

Wire Assembly

Wire Assembly
ModelItemPrice (ex. VAT)
00-428133-000G1AP4BAV-
RFQ

High Temperature Lead Wire

High-temperature lead wires are designed to provide abrasion and heat resistance, high-voltage withstanding capacity and flexibility for applications in TV receivers, heaters, furnaces, lighting fixtures and power supply equipment. Raptor Supplies offers a broad range of these high-temperature lead wires from Tempco and Rowe. These wires feature a highly conductive copper construction, which is further plated with nickel, tin or silver to improve the hardness and ductility. To allow a maximum current flow of 75 amperes at 104 degrees Fahrenheit, these wires come equipped with a mica & glass / Teflon & glass / silica insulation jacket. These UL-listed wires are capable of withstanding temperatures of up to 842 degrees Fahrenheit and are available in different nominal diameters and colours.
