Designed for use with coupling hubs for motion transfer operations in production and machining applications. Feature polyurethane construction for withstanding high impact loads and shocks with added durability

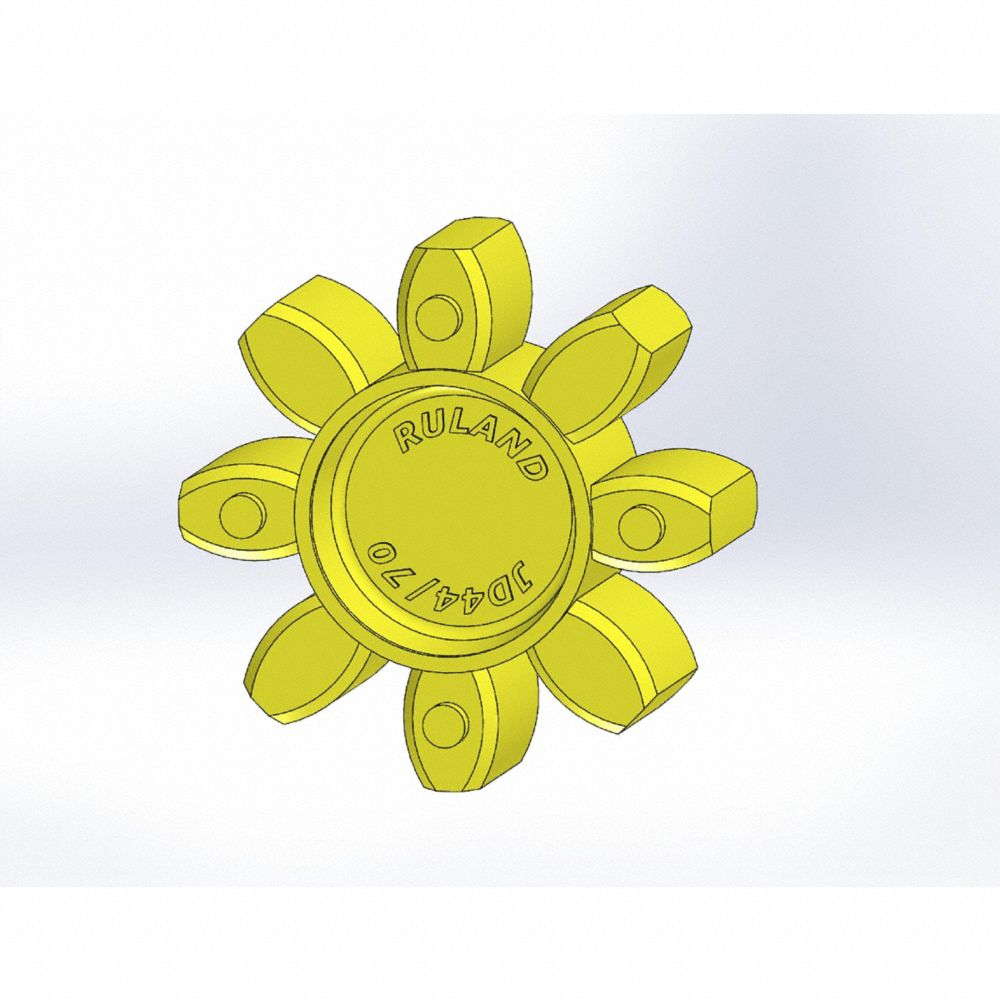

Ruland Manufacturing curved jaw coupling spiders are designed to dampen shocks and accommodate misalignment (angular, parallel & axial) between coupling hubs. The spider couplings fit between two coupling hubs for a secure connection. They are made from polyurethane, do not require lubrication and can hold up against dirt, sand, grease, oil & moisture. These coupling inserts are used with coupling hubs and can handle torque ratings up to 8000 RPM. Choose from a wide range of coupling spiders, available in 4 and 6 arm options on Raptor Supplies.
A
B
C
D
E
F
G
H
I
J| Style | Model | Color | Coupling Size | Item | Max. Angular Misalignment | Max. Axial Misalignment (in.) | Max. Parallel Misalignment (in.) | Max. Torque | Outside Dia. | Price (ex. VAT) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | JD21/33-98R | €28.01 | |||||||||
| B | JD21/33-92Y | €27.60 | |||||||||
| C | JD21/33-85B | €40.10 | |||||||||
| D | JD32/51-92Y | €62.15 | |||||||||
| E | JD32/51-98R | €58.68 | |||||||||
| F | JD10/15-85B | €23.30 | |||||||||
| F | JD16/25-85B | €34.00 | |||||||||
| G | JD16/25-98R | €24.23 | |||||||||
| G | JD12/19-98R | €23.45 | |||||||||
| H | JD26/41-98R | €37.98 | |||||||||
| G | JD10/15-98R | €18.47 | |||||||||
| H | JD36/57-98R | €79.60 | |||||||||
| I | JD12/19-92Y | €22.74 | |||||||||
| J | JD36/57-92Y | €82.09 | |||||||||
| I | JD16/25-92Y | €24.79 | |||||||||
| J | JD26/41-92Y | €37.82 | |||||||||
| I | JD10/15-92Y | €19.02 |
| Model | Item | Price (ex. VAT) | |
|---|---|---|---|
| JD12/19-85B | AC9NNH | €31.11 |
