BUSSMANN Medium Voltage Fuses

Wide range of Class R-rated, E-rated, ABWNA, CAVH, JCL and JCW Series fuses with a maximum 15500 VAC power rating. Come with time-delay and fast-acting designs to handle overcurrent conditions in a cylindrical, bolt-on or hermetically sealed body style. Available in 1 to 450A fuse ratings

Filter

StyleModelCurrent RatingPrice (ex. VAT)
AFL6K66A€40.28
AFL6K1010A€40.28
AFL6K1515A€45.02
AFL6K5050A€46.82
AFL6K6565A€77.15
AFL6K100100A€83.01
BUSSMANN -

L Series Medium Voltage Fuses

StyleModelAc Voltage RatingCurrent RatingFuse Size / GroupVoltage (ac)Price (ex. VAT)
A7.5L1F10E7.500 k VAC10ASize 17.5k VAC€411.48
RFQ
A22L3F122 k VAC1ASize 322k VAC€709.87
A23L1F15E23 k VAC15ASize 123k VAC€411.48
B33L3F333 k VAC3ASize 333k VAC€707.72
RFQ
BUSSMANN -

BFGHA Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A12BFGHA31.531.5A€874.57
B12BFGHA5050A€1,008.30
C12BFGHA5656A€1,029.33
B12BFGHA7171A€1,064.44
B12BFGHA8080A€1,072.69
D12BFGHA9090A€1,119.51
E12BFGH40100100A€1,521.67
F12BFGHA100100A€1,135.02
BUSSMANN -

JDN Series Medium Voltage Fuses

StyleModelCurrent RatingTermination TypePrice (ex. VAT)
AJDN-15E15ANon-Standard Cartridge€2,416.74
AJDN-20E20ACartridge (Non Standard)€2,416.74
BJDN-40E40ANon-Standard Cartridge€2,416.74
AJDN-50E50ANon-Standard Cartridge€2,382.56
AJDN-65E65ACartridge (Non Standard)€2,382.56
CJDN-80E80ANon-Standard Cartridge€3,293.07
DJDN-100E100ANon-Standard Cartridge€3,115.54
EJDN-250E250ANon-Standard Cartridge€5,209.84
BUSSMANN -

JCX Series Medium Voltage Fuses

StyleModelCurrent RatingInterrupt RatingLengthTermination TypePrice (ex. VAT)
AJCX-1E1A60kA9.19mmNon-Standard Cartridge€710.85
AJCX-2E2A60kA9.19mmCartridge (Non Standard)€710.85
BJCX-3E3A60kA9.19mmCartridge (Non Standard)€710.85
AJCX-5E5A60kA9.19mmCartridge (Non Standard)€710.85
BJCX-7E7A60kA9.19mmCartridge (Non Standard)€710.85
CJCX-10E10A60kA9.5mmCartridge (Non Standard)€710.85
DJCX-15E15A80kA9.5mmCartridge (Non Standard)€814.03
CJCX-20E20A80kA9.5mmNon-Standard Cartridge€814.03
CJCX-25E25A80kA9.5mmCartridge (Non Standard)€814.03
DJCX-30E30A80kA9.5mmCartridge (Non Standard)€1,458.83
CJCX-40E40A80kA9.5mmCartridge (Non Standard)€1,458.83
DJCX-50E50A80kA9.5mmCartridge (Non Standard)€1,472.21
CJCX-65E65A80kA9.5mmCartridge (Non Standard)€1,458.83
DJCX-80E80A80kA17.88mmCartridge (Non Standard)€1,458.83
DJCX-100E100A80kA10.81mmCartridge (Non Standard)€1,458.83
DJCX-150E150A80kA10.81mmCartridge (Non Standard)€3,119.61
DJCX-200E200A80kA10.81mmCartridge (Non Standard)€3,119.61
EJCX-300E/325X300A--Non-Standard Cartridge€5,184.67
CJCX-350X350A80kA10.81mmCartridge (Non Standard)€5,104.09
StyleModelDiameterInterrupt RatingLengthVoltage RatingPrice (ex. VAT)
AMV055F1CAX65E2"50kA at 5500 VAC15.75"5500 VAC€864.40
AMV155F1DCX65E3"50kA at 15,500 VAC21.75"15,500 VAC€2,099.94
BUSSMANN -

Fuse 100a Class

StyleModelBody MaterialBody StyleClassElementInterrupt RatingLengthSpeedVoltage RatingPrice (ex. VAT)
AMV155F1DCX100EFiberglassCylindricalE-RatedSingle50kA at 15,500 VAC21.75"Fast Acting15,500 VAC€1,779.16
BJCK-3RFiberglassCylindricalR-RatedDual80kA (Asym.) 50kA (Sym.)11 15/64"Time Delay2540 VAC€1,656.29
CJCH-3RMelamineHermetically Sealed CylindricalR-RatedDual80kA (Asym.) 50kA (Sym.)10 13/16"Time Delay2400 VAC€1,831.78
DJDZ-100EMelamineCylindricalE-RatedDual80kA (Asym.) 50kA (Sym.)15.875"Time Delay8300 VAC€1,323.89
BUSSMANN -

WFNHO Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A7.2WFNHO2525A€1,373.06
A7.2WFNHO5050A€1,466.63
B7.2WFNHO6363A€1,467.65
B7.2WFNHO8080A€1,570.16
C7.2WFNHO125125A€2,022.31
D7.2WFNHO160160A€2,021.37
BUSSMANN -

WKNHO Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A7.2WKNHO200200A€2,084.73
RFQ
B7.2WKNHO224224A€1,759.73
C7.2WKNHO250250A€2,088.58
A7.2WKNHO315315A€3,251.42
RFQ
StyleModelCurrent RatingTermination TypePrice (ex. VAT)
A27.6SDMSJ6.36.3ACartridge (Non Standard)€1,091.60
A27.6SDMSJ1010ACartridge (Non Standard)€1,091.60
A27.6SDMSJ2020ANon-Standard Cartridge€1,149.52
A27.6SDMSJ2525ACartridge (Non Standard)€1,627.66
BUSSMANN -

Fuse 130a Class R-rated

StyleModelBody StyleLengthVoltage RatingPrice (ex. VAT)
AJCK-4RCylindrical11 15/64"2540 VAC€1,656.29
BJCR-A-4RCylindrical with Ampguard Hookeye15 27/32"8300 VAC€2,640.34
BUSSMANN -

OFNH Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A15.52-OFNH3125G3.125kA€4,318.45

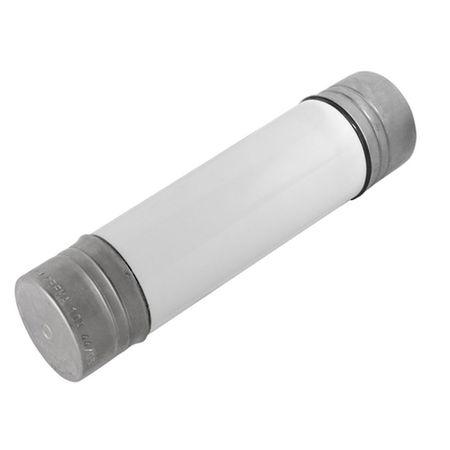

B15.5OFNH365G365A€2,188.36
A15.5OFNH365365A€2,188.36
A15.5OFNH380G380A€2,251.41
BUSSMANN -

MV155 Series Medium Voltage Fuses

StyleModelCurrent RatingFuse Size / GroupLengthTermination TypeWidthPrice (ex. VAT)
AMV155F1CBX7E7A7E18 3/4"Cartridge (Non Standard)2"€611.17
BMV155F1DBS10E10A10E-Non-Standard Cartridge-€1,856.36
BMV155F1CBX15E15A15E1.563ft.Cartridge (Non Standard)2"€672.30
BMV155F1DBX15E15A15E1.563ft.Cartridge (Non Standard)3"€1,803.51
CMV155F1DBS20E20A20E-Cartridge (Non Standard)-€1,856.36
BMV155F1CBX20E20A20E1.563ft.Cartridge (Non Standard)2"€672.30
BMV155F1DBX20E20A20E1.563ft.Non-Standard Cartridge3"€1,803.51
BMV155F1DBX25E25A25E1.563ft.Cartridge (Non Standard)3"€1,803.51
BMV155F1CBX25E25A25E1.563ft.Non-Standard Cartridge2"€1,294.19
BMV155F1DBS25E25A25E-Cartridge (Non Standard)-€1,856.36
CMV155F1DBX30E30A30E1.563ft.Cartridge (Non Standard)3"€1,803.51
BMV155F1DBS30E30A30E-Non-Standard Cartridge-€1,856.36
BMV155F1CBX30E30A30E1.563ft.Cartridge (Non Standard)2"€1,294.19
BMV155F1DBS40E40A40E-Non-Standard Cartridge-€2,070.49
BMV155F1DBX40E40A40E1.563ft.Non-Standard Cartridge3"€2,011.45
BMV155F1DBS50E50A50E-Non-Standard Cartridge-€2,070.49
BMV155F1DBX50E50A50E1.563ft.Cartridge (Non Standard)3"€2,011.45
BMV155F1DBX65E65A65E1.563ft.Cartridge (Non Standard)3"€2,076.33
BMV155F1DCS65E65A65E-Non-Standard Cartridge-€2,356.10
BMV155F1DBX80E80A80E1.563ft.Cartridge (Non Standard)3"€2,288.97
BMV155F1DCS80E80A80E-Cartridge (Non Standard)-€2,356.10
BMV155F1DCX80E80A80E1.813ft.Non-Standard Cartridge3"€2,226.54
BMV155F1DCS100E100A100E-Cartridge (Non Standard)-€2,356.10
BMV155F1DBX100E100A100E1.563ft.Cartridge (Non Standard)3"€2,288.97
BMV155F2DBX125E125A125E1.563ft.Cartridge (Non Standard)3"€3,385.61
BUSSMANN -

WKMSJ Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A7.2WKMSJ200200A€2,092.83
B7.2WKMSJ250250A€2,317.62
C7.2WKMSJ315315A€2,322.01
C7.2WKMSJ355355A€2,738.24
BUSSMANN -

AM Series Medium Voltage Fuses

StyleModelAc Voltage RatingCurrent RatingTermination TypeVoltage (ac)Price (ex. VAT)
A5.5AMWNA4.0E5.500 k VAC4ANon-Standard Cartridge5.5k VAC€332.31
RFQ
B7.2AMWNA1.0E7.200 k VAC1ACartridge (Non Standard)7.2k VAC€311.29
C7.2AMWNA0.5E7.200 k VAC500mANon-Standard Cartridge7.2k VAC€311.29
RFQ
D7.2AMWNA5.0E7.200 k VAC5ANon-Standard Cartridge7.2k VAC€311.29
BUSSMANN -

327-40 Series Medium Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A421501.5A€88.42
RFQ
B422502.5A€88.42
RFQ
C4207575mA€88.42
D42050500mA€88.42
RFQ
BUSSMANN -

WDFH Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
A3.6WDFHO8060A€836.94
B3.6WDFHO6363A€787.61
C3.6WDFHO100100A€870.36
BUSSMANN -

THMEJ Series Medium Voltage Fuses

StyleModelAc Voltage RatingCurrent RatingProduct TypeTermination TypeVoltage (ac)Price (ex. VAT)
A17.5THMEJ10017.500 k VAC100AMedium Voltage DIN Fuse Link Current Limiting Back-UpCartridge (Non Standard)17.5k VAC€1,245.89
A17.5THMEJ8017.500 k VAC80AMedium Voltage DIN Fuse Link Current Limiting Back-UpCartridge (Non Standard)17.5k VAC€1,036.51
B24THMEJ6324 k VAC63AMedium Voltage DIN Dimensioned IEC FuseNon-Standard Cartridge24k VAC€1,272.08
BUSSMANN -

ECL155 Series Medium Voltage Fuses

StyleModelCurrent RatingPrice (ex. VAT)
AECL155-10E10A€2,208.57
BECL155-20E20A€2,208.57
CECL155-30E30A€2,208.57
BUSSMANN -

E-Rated Medium Voltage Fuses

StyleModelAc Voltage RatingCurrent RatingItemVoltage (ac)Price (ex. VAT)
A15CLE-250E--Fuse-€5,460.11
B15CLE-150E-D--Medium Voltage Fuse-€5,856.65
C175GFMSJ65E--Fuse-€3,373.31
D5AHLE-150E--Fuse-€3,025.36
E2NCLPT-2E--Medium Voltage Fuse-€172.29
F5BHLE-50E--Fuse-€1,719.43
GECL055-200E5.500 k VAC200AMedium Voltage Fuse5.5k VAC€2,442.79
HECL055-400E5.500 k VAC400AMedium Voltage Fuse5.5k VAC€4,691.16
IECL055-25E5.500 k VAC25AMedium Voltage Fuse5.5k VAC€1,236.56
HECL055-20E5.500 k VAC20AMedium Voltage Fuse5.5k VAC€1,236.56
DECL055-250E5.500 k VAC250AMedium Voltage Fuse5.5k VAC€4,216.59
DECL055-300E5.500 k VAC300AMedium Voltage Fuse5.5k VAC€4,216.59
HECL055-80E5.500 k VAC80AMedium Voltage Fuse5.5k VAC€1,394.34
JECL055-65E5.500 k VAC65AMedium Voltage Fuse5.5k VAC€1,394.34
IECL055-125E5.500 k VAC125AMedium Voltage Fuse5.5k VAC€2,442.79
DECL155-200E15.500 k VAC200AMedium Voltage Fuse15.5k VAC€4,674.15
HECL155-40E15.500 k VAC40AMedium Voltage Fuse15.5k VAC€2,208.57
KECL155-125E15.500 k VAC125AMedium Voltage Fuse15.5k VAC€4,674.15
LECL155-100E15.500 k VAC100AMedium Voltage Fuse15.5k VAC€2,952.05
HECL155-50E15.500 k VAC50AMedium Voltage Fuse15.5k VAC€2,952.05
JECL155-15E15.500 k VAC15AMedium Voltage Fuse15.5k VAC€2,208.57
HECL155-80E15.500 k VAC80AMedium Voltage Fuse15.5k VAC€2,952.05
MECL155-65E15.500 k VAC65AMedium Voltage Fuse15.5k VAC€2,952.05
HECL155-150E15.500 k VAC150AMedium Voltage Fuse15.5k VAC€4,674.15
BUSSMANN -

BBU Series Medium Voltage Fuses

StyleModelAc Voltage RatingCurrent RatingFuse TypeVoltage (ac)Price (ex. VAT)
ABBU-MFLR----€859.11
ABBU17-200E17 k VAC200AMedium / Normal Blow17k VAC€517.75
BBBU17-30E17 k VAC30ANormal Blow17k VAC€517.75
BBBU17-125E17 k VAC125AMedium / Normal Blow17k VAC€517.75
BBBU27-15SE27 k VAC15ATime Delay / Slow Blow27k VAC€537.94
ABBU27-125SE27 k VAC125ASlow Blow27k VAC€537.94
BBBU27-140K27 k VAC140AFast Blow27k VAC€537.94
ABBU27-65SE27 k VAC65ATime Delay / Slow Blow27k VAC€537.94
BBBU27-100K27 k VAC100AFast Blow27k VAC€537.94
ABBU27-6K27 k VAC6AFast Blow27k VAC€537.94
BBBU27-40SE27 k VAC40ATime Delay / Slow Blow27k VAC€537.94
CBBU27-50E27 k VAC50ANormal Blow27k VAC€537.94
BBBU38-200E38 k VAC200AMedium / Normal Blow38k VAC€589.67
CBBU38-30K38 k VAC30AFast Blow38k VAC€589.67
CBBU38-100K38 k VAC100AFast Blow38k VAC€589.67
ABBU38-65K38 k VAC65AFast Blow38k VAC€589.67
