Milling Inserts

DORMER -

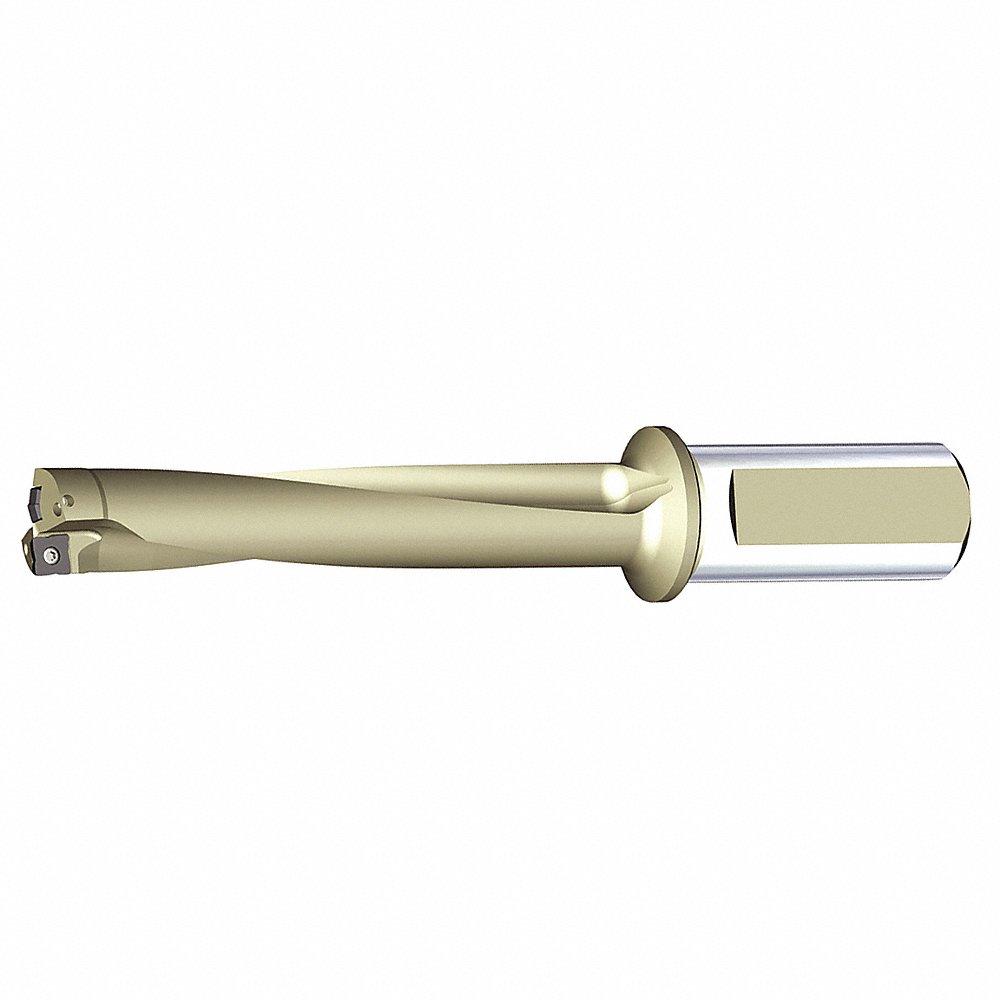

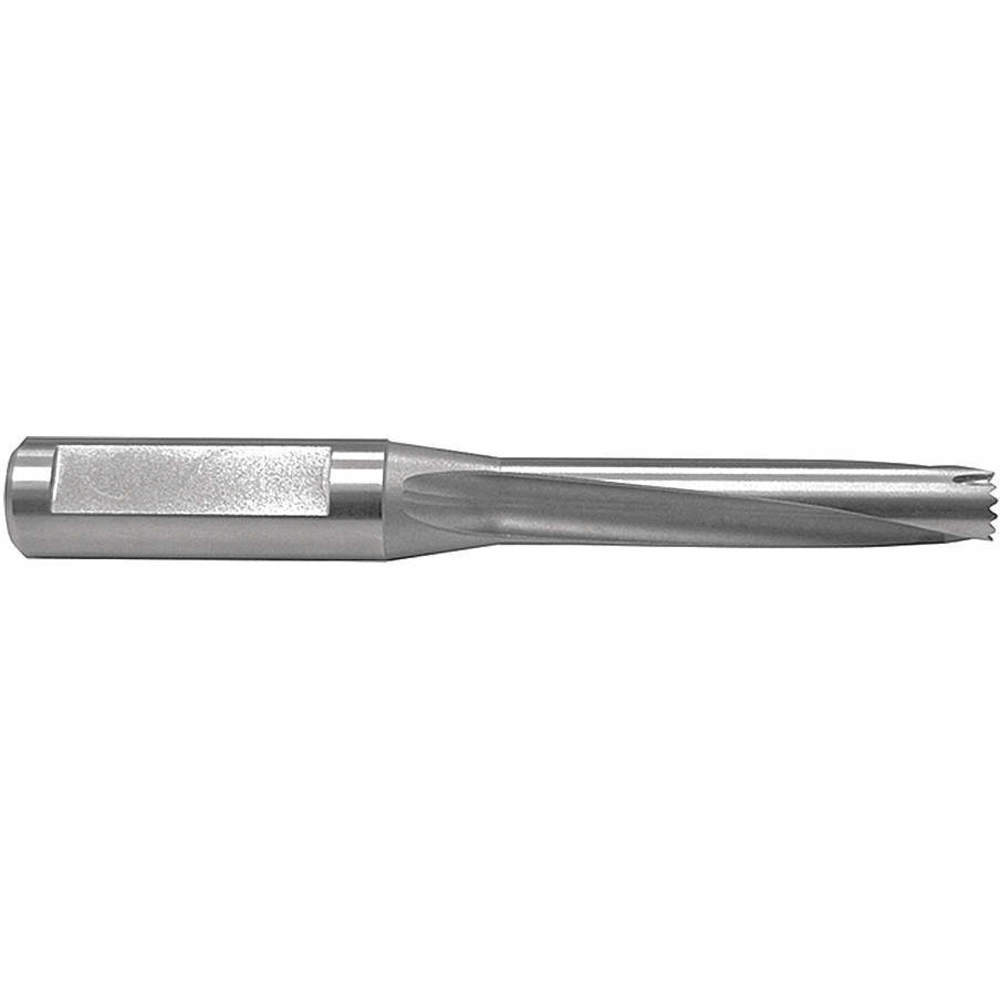

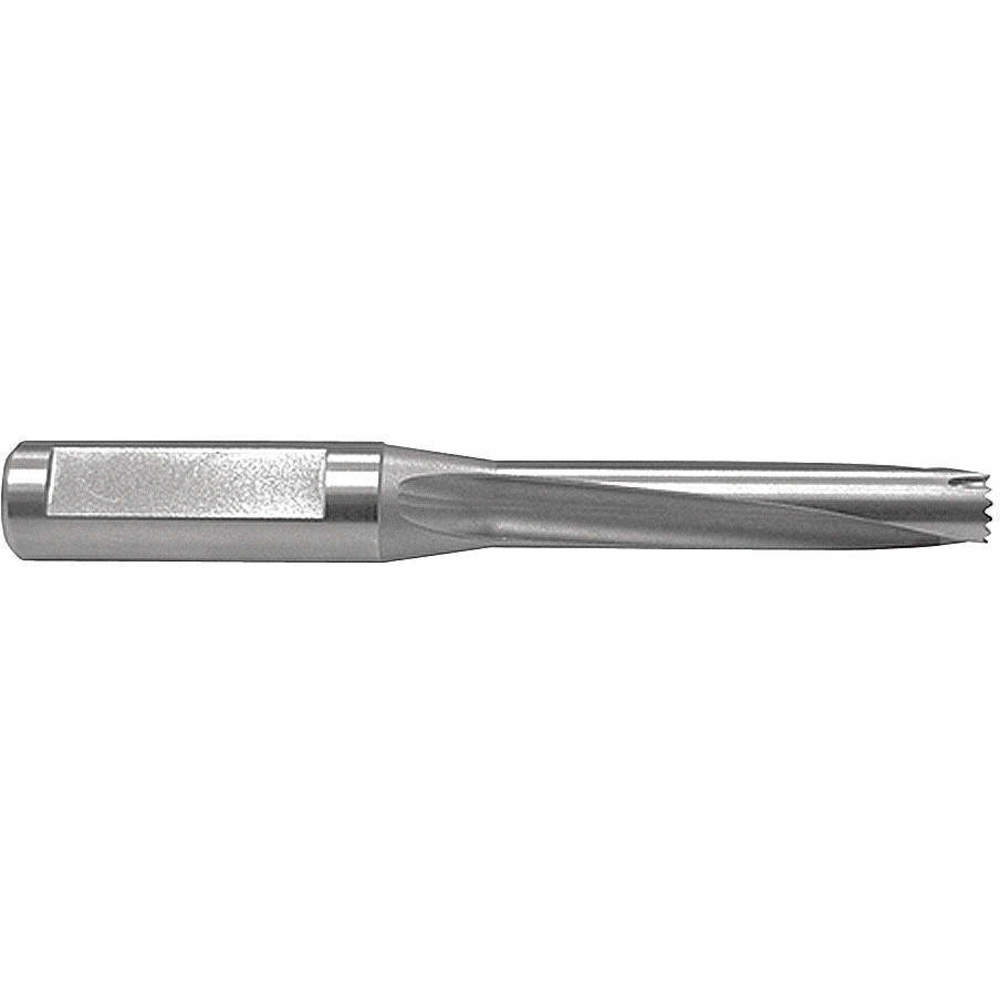

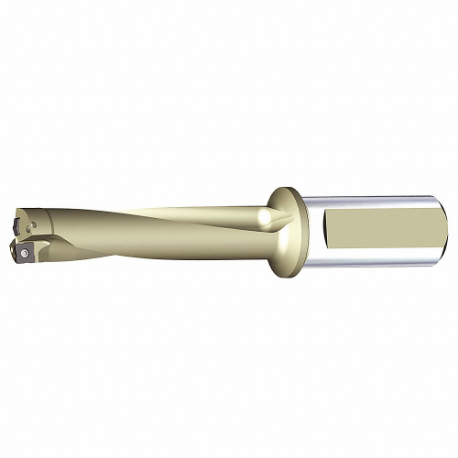

Indexable Insert Drills

A

B

Style	Model	Diameter	Overall Length	Shank Dia.	Shank Length	Shank Type	Price (ex. VAT)
A	H85314.0	14mm	116.5mm	16.00mm	36mm	DIN6535HB	€319.22
A	H85517/32	17/32"	140mm	5/8"	36mm	DIN6535HB	€379.36
A	H85320.0	20mm	156.5mm	25.00mm	56mm	DIN6535HB	€379.36
B	H85822.0	22mm	271.1mm	25.00mm	56mm	DIN6535HE	€601.42
A	H85327/32	27/32"	156.5mm	1"	56mm	DIN6535HB	€388.60

WALTER TOOLS -

LPMT Carbide Milling Insert

A

Style	Model	Ansi Number	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	LPMT070304R-D51 WKP25S	LPMT070304R-D51 WKP25S	WKP25S	0.275"	0.125"	0.016"	Cast Iron, Steel	€22.71
A	LPMT070304R-D51 WKP35S	LPMT070304R-D51 WKP35S	WKP35S	0.275"	0.125"	0.016"	Steel, Cast Iron	€22.10
A	LPMT15T308R-D51 WKP25S	LPMT15T308R-D51 WKP25S	WKP25S	0.591"	0.156"	0.031"	Cast Iron, Steel	€23.05
A	LPMT15T308R-D51 WKP35S	LPMT15T308R-D51 WKP35S	WKP35S	0.591"	0.156"	0.031"	Steel, Cast Iron	€23.71
A	LPMT150412R-D51 WKP25S	LPMT150412R-D51 WKP25S	WKP25S	0.591"	0.156"	0.047"	Cast Iron, Steel	€31.38
A	LPMT150412R-D51 WKP35S	LPMT150412R-D51 WKP35S	WKP35S	0.591"	0.156"	0.047"	Steel, Cast Iron	€33.61

WALTER TOOLS -

ADGT Indexable Insert

A

B

C

D

E

Style	Model	Chip-breaker	Insert Size	Insert Thickness	Nose Radius	Price (ex. VAT)
A	ADGT0803PER-D51	D51	0803	0.132"	0.016"	€34.25
A	ADGT1606PER-D51	D51	1606	0.242"	0.031"	€40.31
A	ADGT1204PER-D51	D51	1204	0.187"	0.031"	€34.96
A	ADGT1807PER-D56	D56	1807	0.276"	0.047"	€44.37
A	ADGT1204PER-D56	D56	1204	0.187"	0.031"	€34.46
A	ADGT1606PER-D56	D56	1606	0.242"	0.031"	€40.90
B	ADGT1606PER-D67	D67	1606	0.242"	0.031"	€42.83
B	ADGT160616R-D67	D67	160616	0.242"	0.063"	€40.31
B	ADGT120416R-D67	D67	120416	0.187"	0.063"	€35.48
B	ADGT10T3PER-D67	D67	10T3	0.15"	0.031"	€36.12
B	ADGT1204PER-D67	D67	1204	0.187"	0.031"	€34.31
C	ADGT10T330R-D67	D67	10T330	0.15"	0.118"	€36.12
D	ADGT160632R-F56	F56	160632	0.242"	0.126"	€39.91
D	ADGT120404R-F56	F56	120404	0.187"	0.016"	€34.46
D	ADGT120430R-F56	F56	120430	0.187"	0.118"	€34.96
D	ADGT160640R-F56	F56	160640	0.242"	0.157"	€40.31
D	ADGT160612R-F56	F56	160612	0.242"	0.047"	€40.31
D	ADGT160616R-F56	F56	160616	0.242"	0.063"	€41.16
D	ADGT160620R-F56	F56	160630	0.242"	0.079"	€40.31
D	ADGT1204PER-F56	F56	1204	0.187"	0.031"	€34.96
D	ADGT120440R-F56	F56	120440	0.187"	0.157"	€34.46
D	ADGT1606PER-F56	F56	1606	0.242"	0.031"	€40.54
D	ADGT0803PER-F56	F56	0803	0.132"	0.016"	€33.90
E	ADGT10T3PER-G77	G77	10T3	0.15"	0.031"	€36.12
E	ADGT1606PER-G77	G77	1606	0.242"	0.031"	€40.31

WALTER TOOLS -

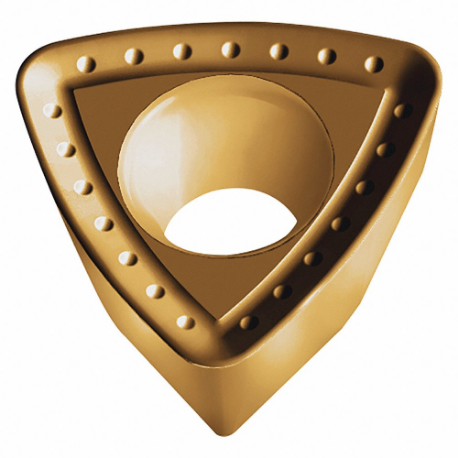

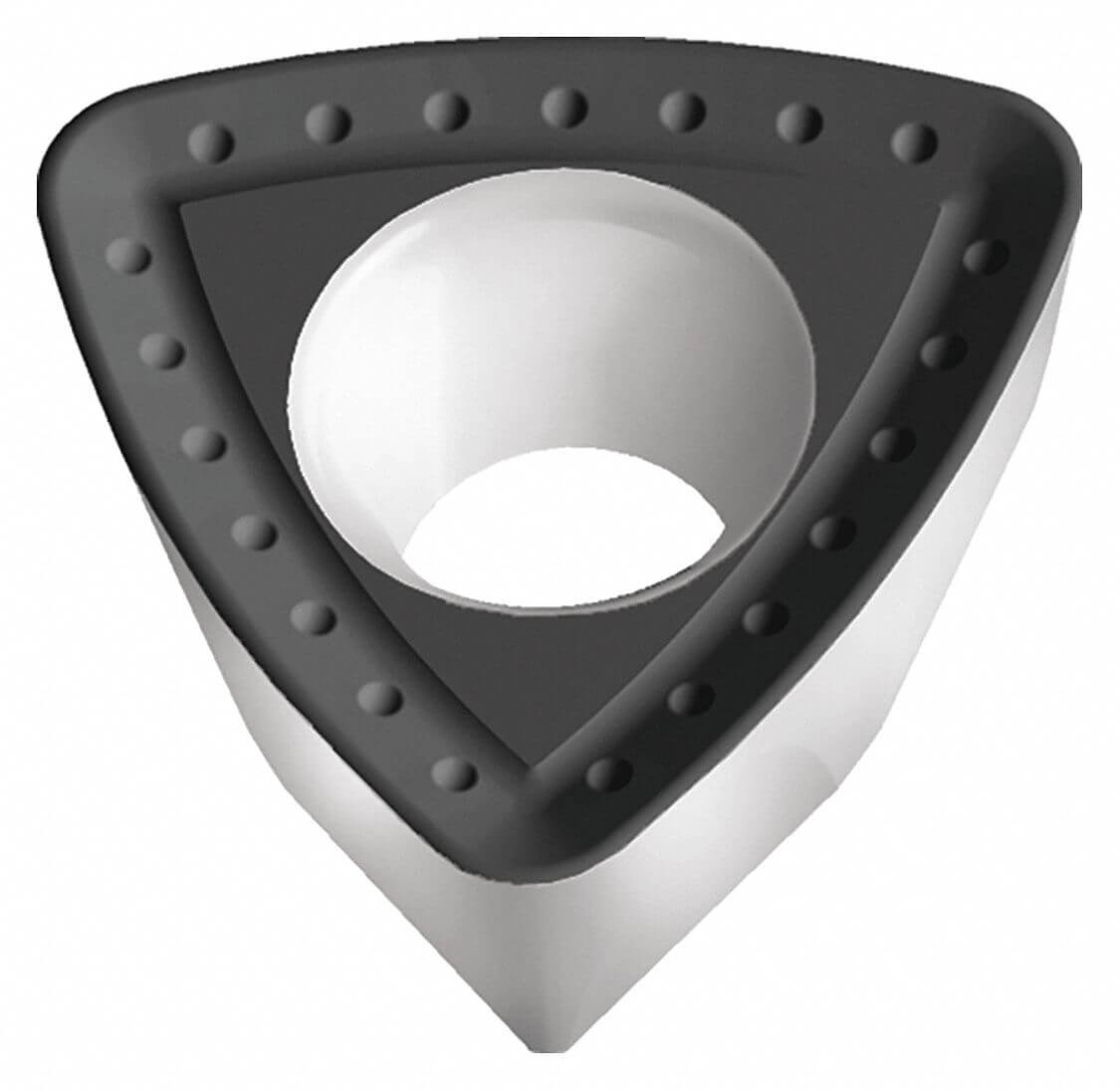

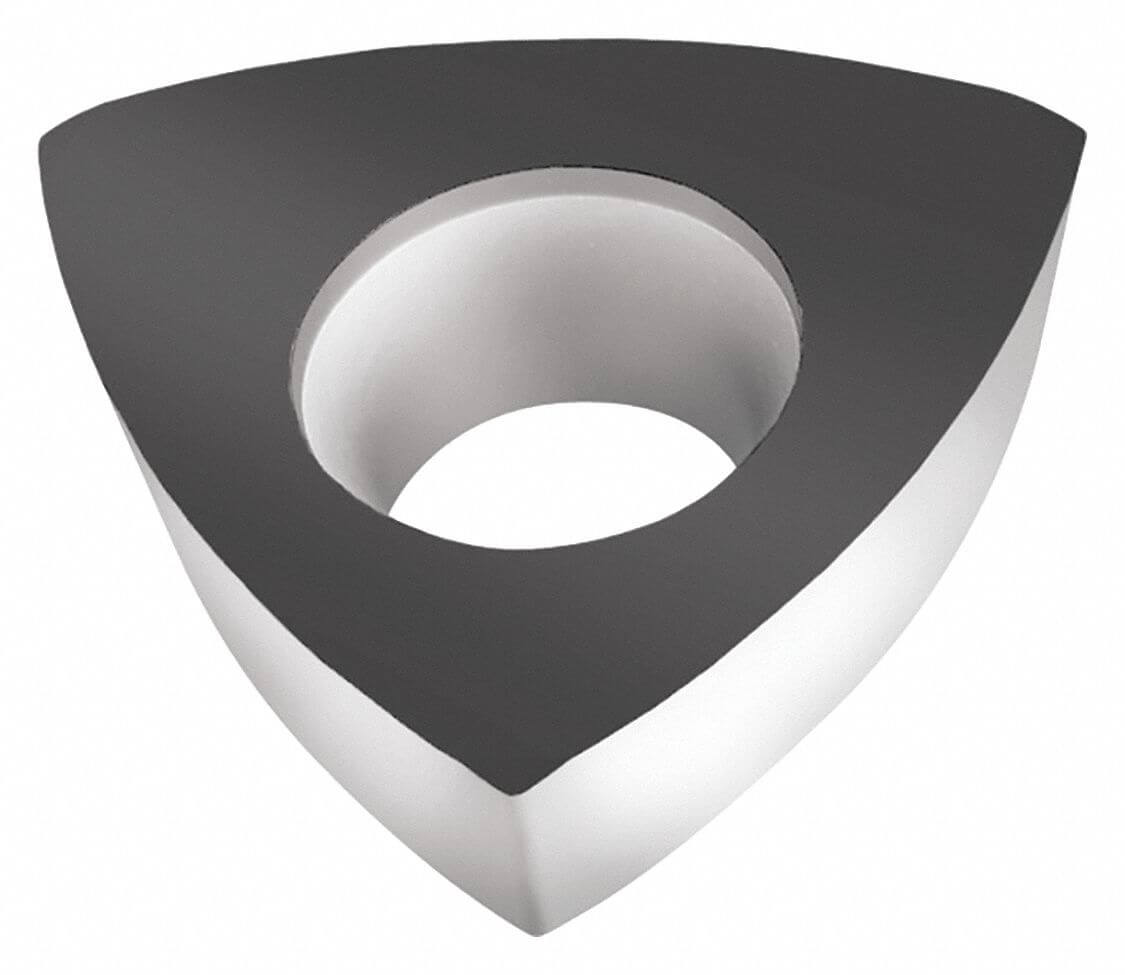

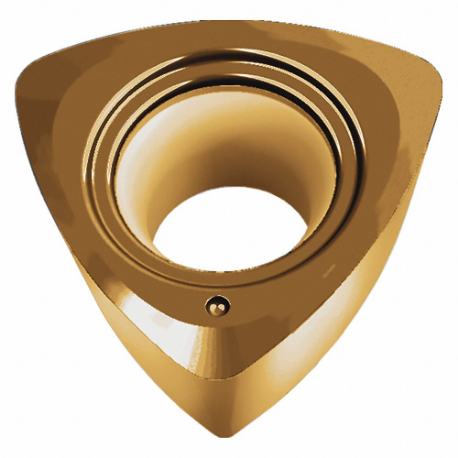

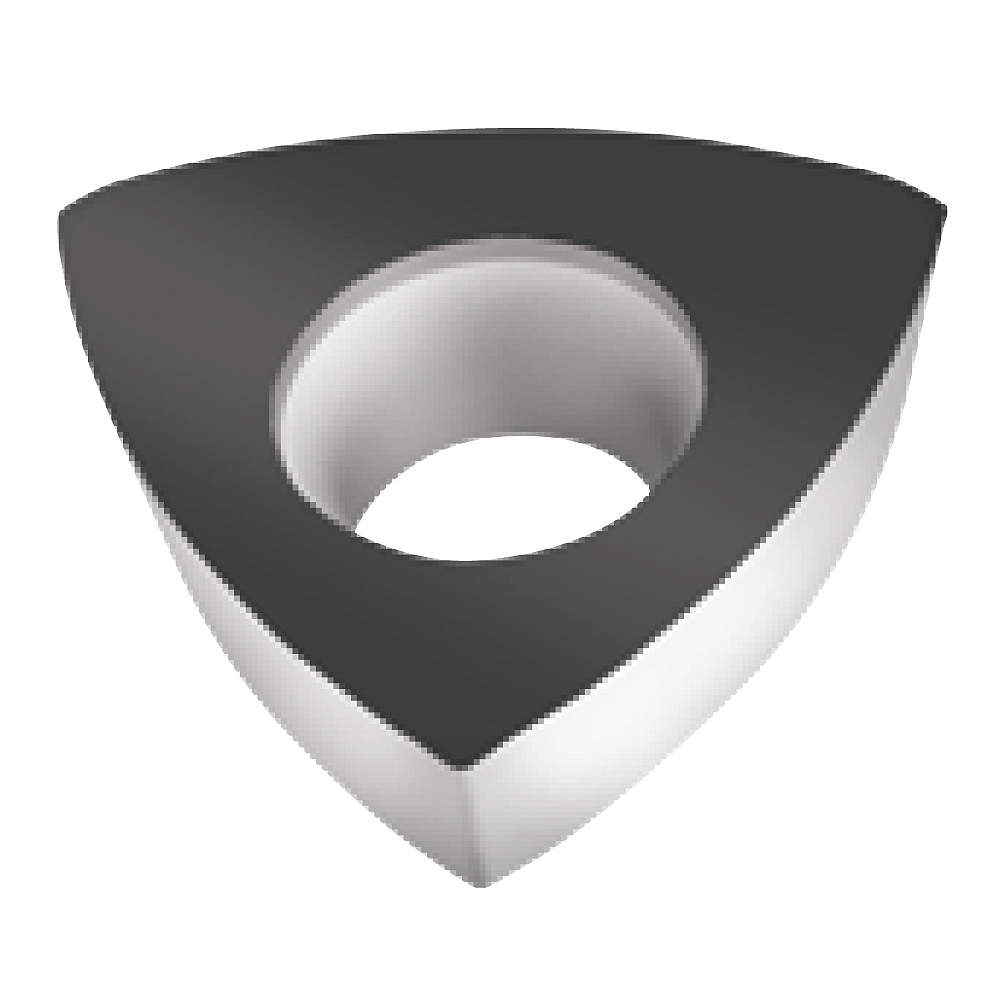

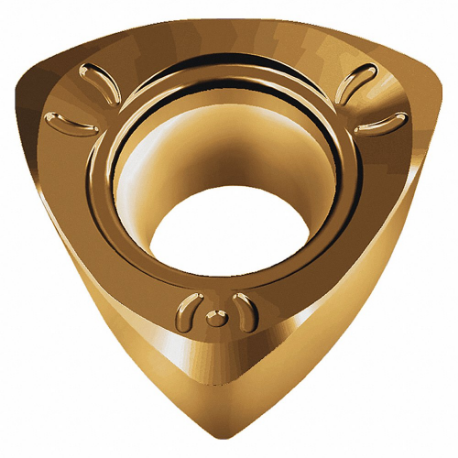

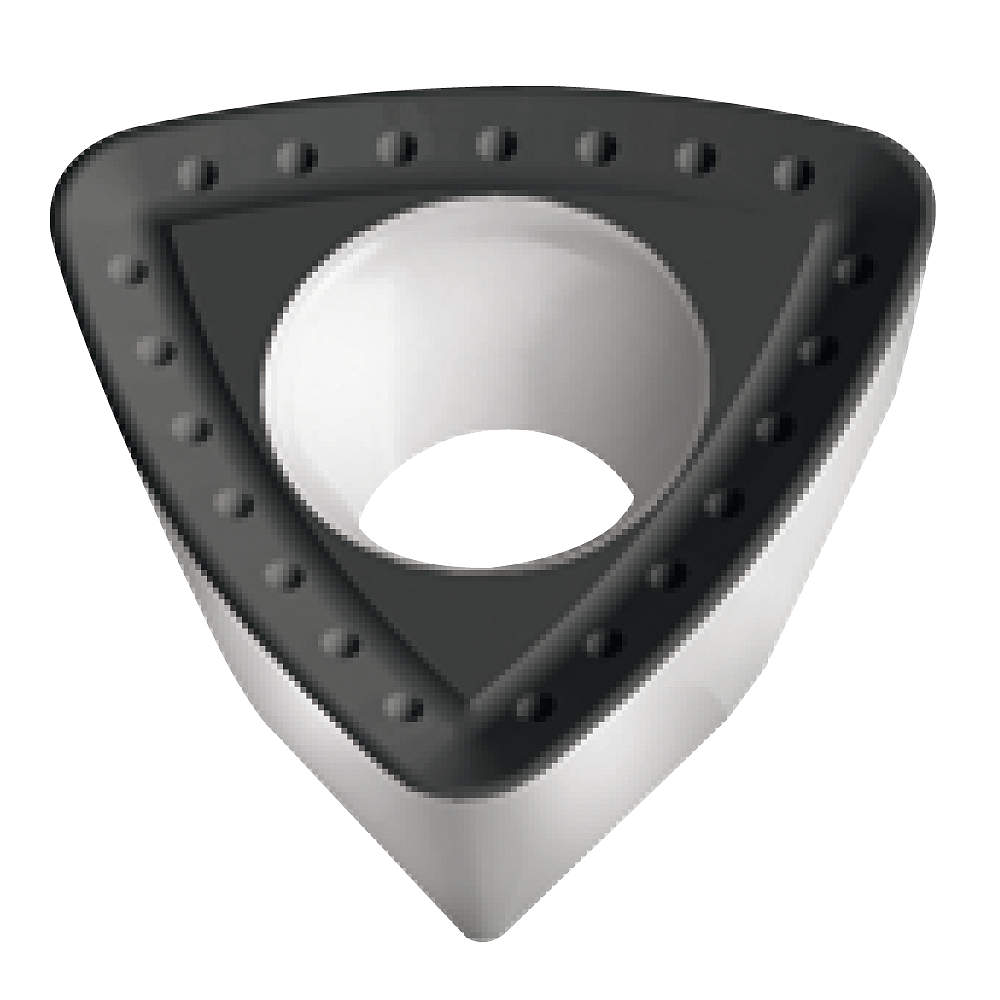

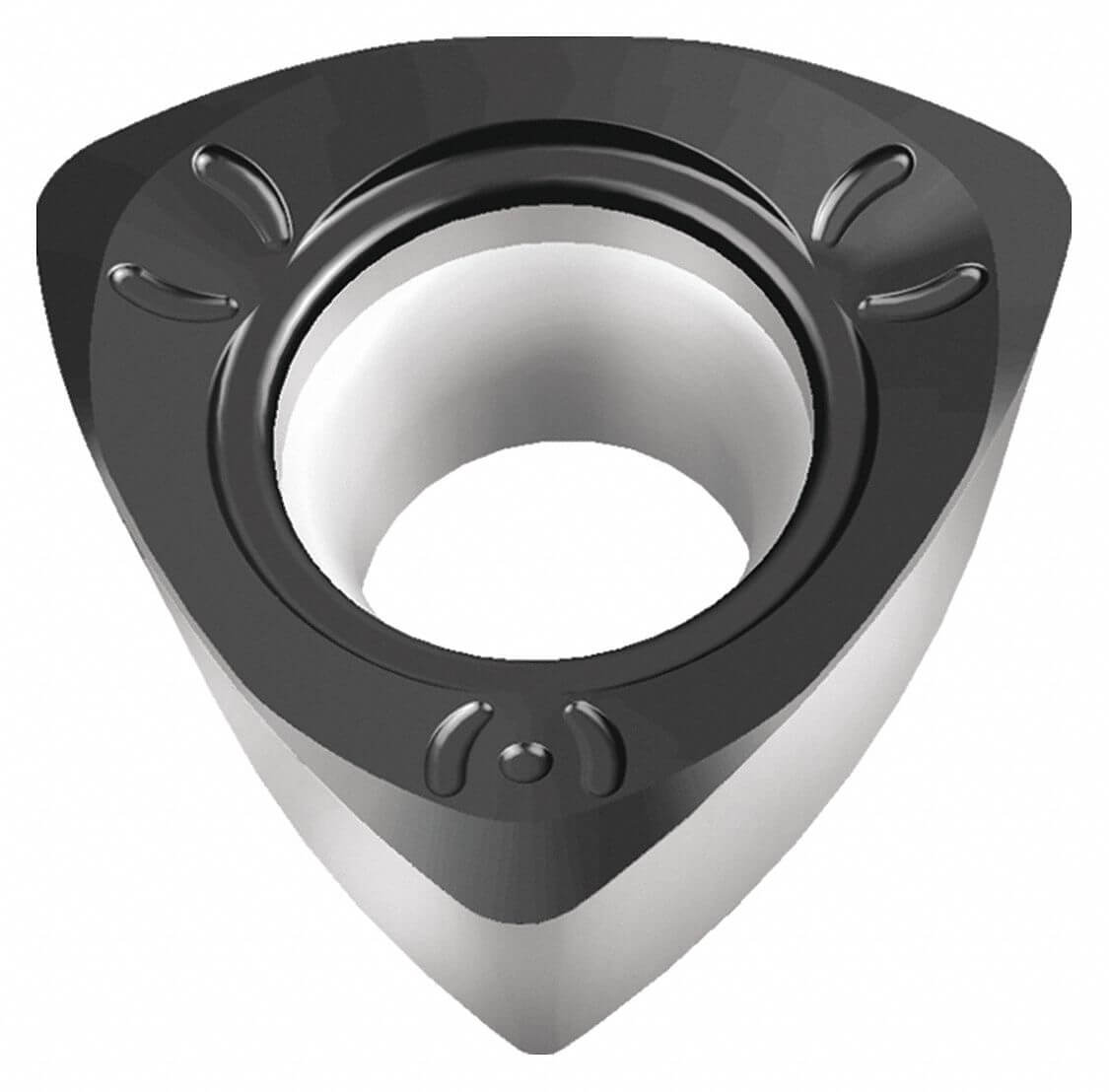

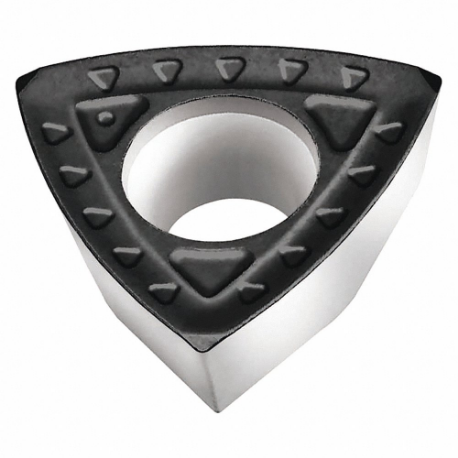

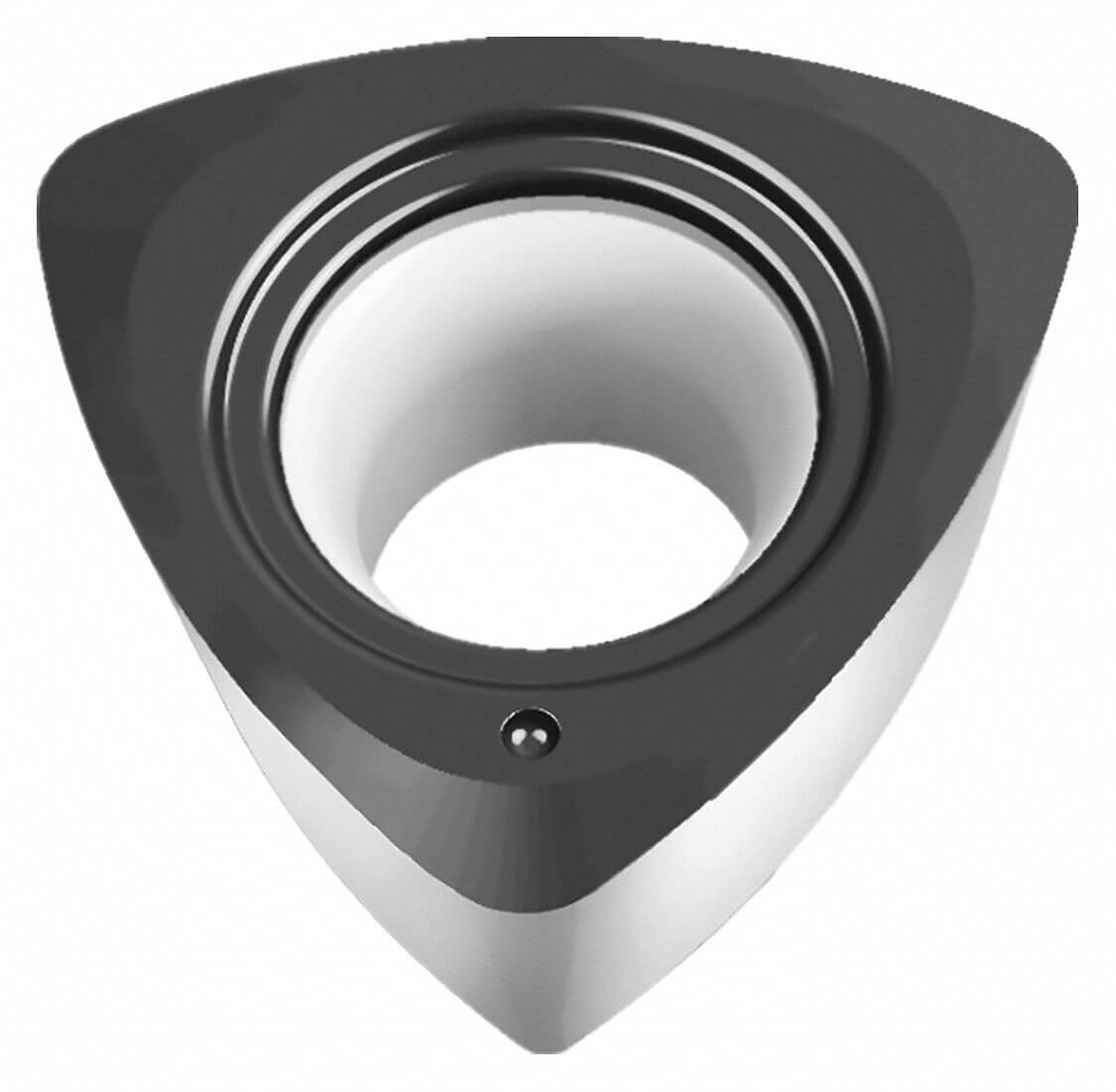

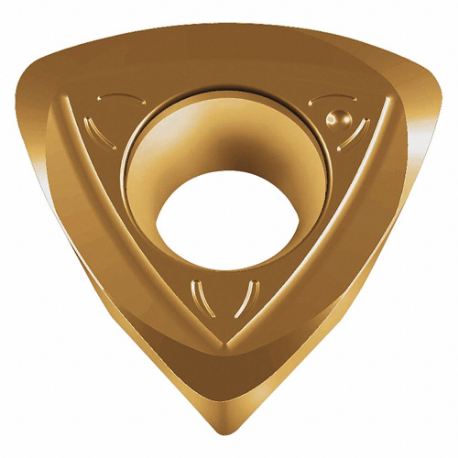

Triangle Milling Insert, Application: Medium

A

B

C

D

Style	Model	Chip-breaker	Insert Size	Insert Thickness	Lead Angle	Nose Radius	Price (ex. VAT)
A	P26339R10	R10	39R10	0.109"	14 Degrees	0.031"	€23.26
B	P26337R10	R10	37R10	0.109"	14 Degrees	0.031"	€24.90
C	P26315R10	R10	15R10	0.109"	14 Degrees	0.394"	€23.40
C	P26315R12	R12	15R12	0.125"	14 Degrees	0.492"	€24.86
D	P26335R14	R14	35R14	0.156"	14 Degrees	0.047"	€25.65
B	P26337R14	R14	37R14	0.156"	14 Degrees	0.047"	€26.34
C	P26315R15	R15	15R15	0.156"	14 Degrees	0.591"	€26.34
C	P26315R16	R16	15R16	0.156"	11 Degrees	0.63"	€26.34
C	P26315R20	R20	15R20	0.187"	11 Degrees	0.787"	€27.81
B	P26337R25	R25	37R25	0.187"	11 Degrees	0.079"	€30.23
C	P26315R25	R25	15R25	0.187"	11 Degrees	0.984"	€29.24
C	P26315R31	R31	15R31	0.187"	11 Degrees	1.24"	€32.22

WALTER TOOLS -

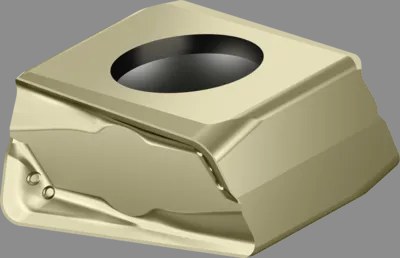

Rectangle Milling Insert, Application: Medium

A

B

C

Style	Model	Chip-breaker	Coating	Grade	Insert Size	Insert Thickness	Lead Angle	No. Of Edges	Nose Radius	Price (ex. VAT)

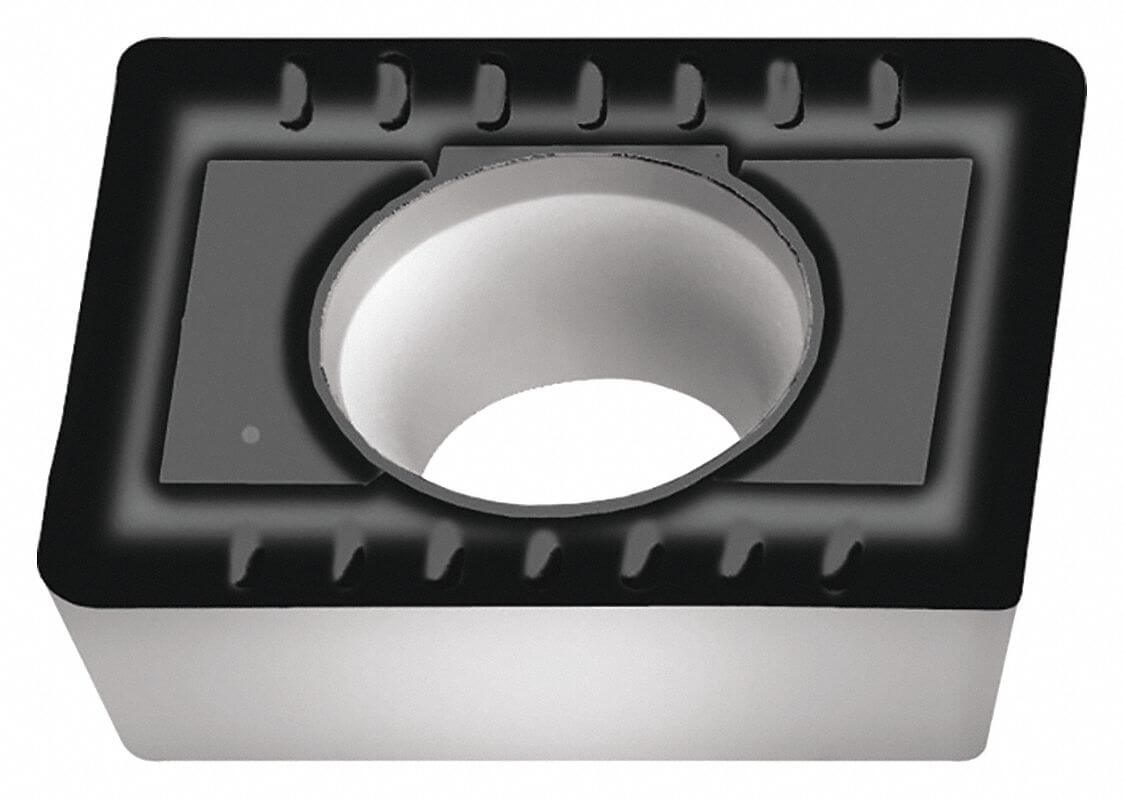

A	LPMT150612R-D51	D51	PVD	WSP45S	150612	0.25"	11 Degrees	2	0.047"	€32.71
B	LNGX130708R-L55	L55	PVD	WSP45S	130708	0.187"	0 Degrees	4	0.031"	€30.34
B	LNGX130712R-L55	L55	PVD	WSP45S	130712	0.312"	0 Degrees	4	0.047"	€37.27
B	LNGX130716R-L55	L55	PVD	WSP45S	130716	0.312"	0 Degrees	4	0.063"	€33.95
B	LNGX130720R-L55	L55	PVD	WSP45S	130720	0.312"	0 Degrees	4	0.079"	€33.95

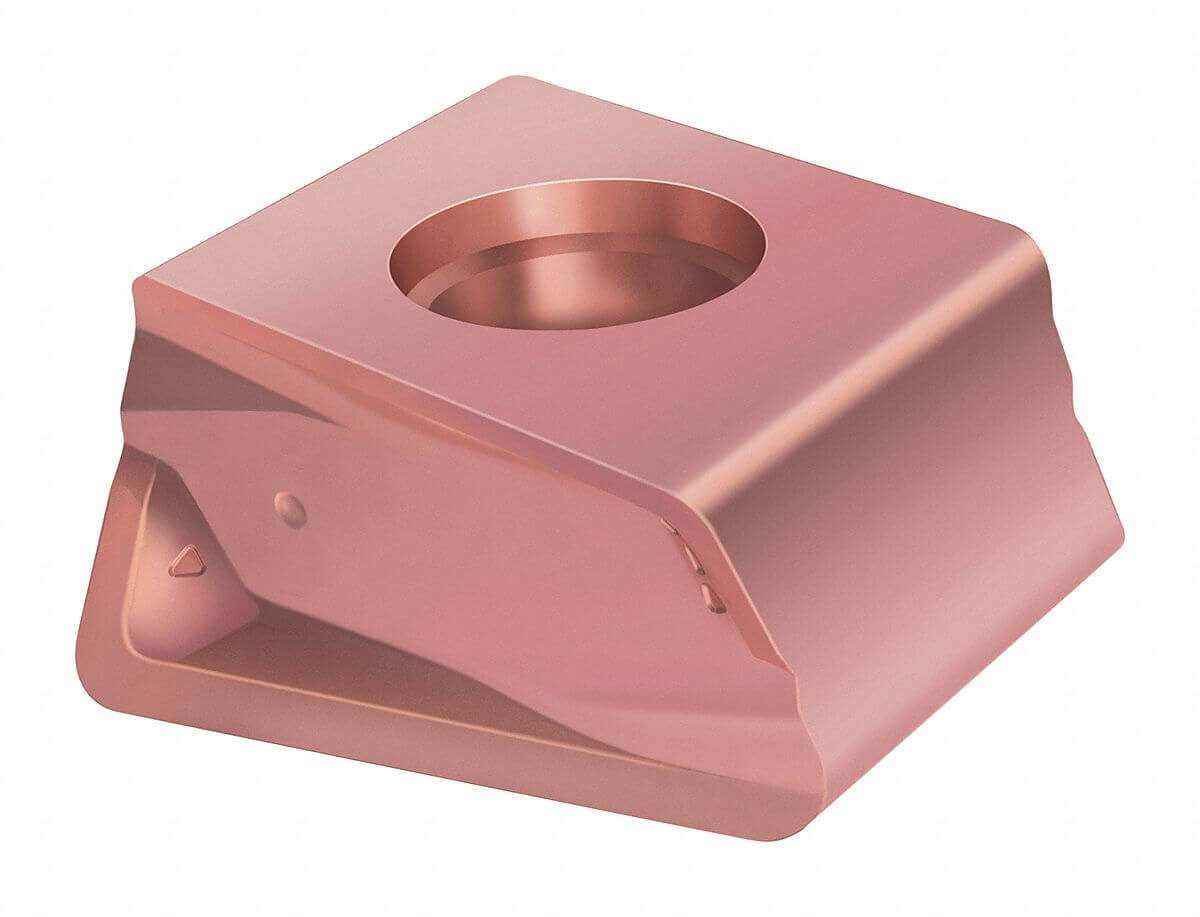

C	LNHU090404R-L85T	L85T	Uncoated	WK10	090404	0.187"	0 Degrees	4	0.016"	€31.14
C	LNHU160708R-L85T	L85T	CVD	WXN15	160708	0.187"	0 Degrees	4	0.031"	€50.75
C	LNHU090404R-L85T	L85T	CVD	WXN15	090404	0.187"	0 Degrees	4	0.016"	€41.39
C	LNHU130608R-L85T	L85T	Uncoated	WK10	130608	0.187"	0 Degrees	4	0.031"	€36.19

WALTER TOOLS -

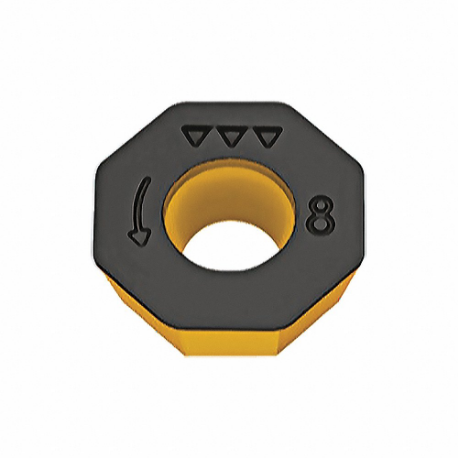

ODHX Carbide Milling Insert

A

Style	Model	Ansi Number	Grade	Inscribed Circle	Insert Thickness	Workpiece Material	Price (ex. VAT)
A	ODHX0504ZZR-A57 WAK15	ODHX0504ZZR-A57 WAK15	WAK15	0.197"	0.187"	Cast Iron	€33.41
A	ODHX0504ZZR-A57 WKP35S	ODHX0504ZZR-A57 WKP35S	WKP35S	0.197"	0.187"	Steel, Cast Iron	€34.88
A	ODHX0605ZZN-A57 WAK15	ODHX0605ZZN-A57 WAK15	WAK15	0.236"	0.219"	Cast Iron	€43.56
A	ODHX0605ZZR-A57 WAK15	ODHX0605ZZR-A57 WAK15	WAK15	0.236"	0.219"	Cast Iron	€43.56

WALTER TOOLS -

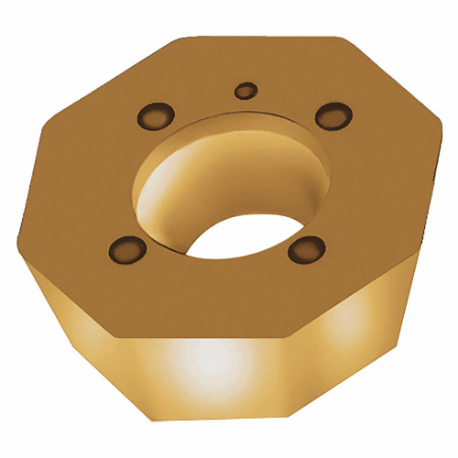

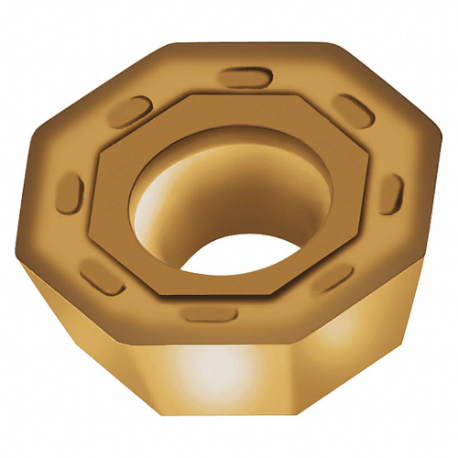

ODMT Carbide Milling Insert

A

Style	Model	Ansi Number	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	ODMT0504ZZN-D57 WKP25S	ODMT0504ZZN-D57 WKP25S	WKP25S	0.197"	0.187"	0.031"	Cast Iron, Steel	€23.77
A	ODMT0504ZZN-D57 WKP35S	ODMT0504ZZN-D57 WKP35S	WKP35S	0.197"	0.187"	0.031"	Steel, Cast Iron	€23.18
A	ODMT050408-D57 WKP35S	ODMT050408-D57 WKP35S	WKP35S	0.197"	0.187"	0.031"	Steel, Cast Iron	€23.77
A	ODMT0605ZZN-D57 WKP25S	ODMT0605ZZN-D57 WKP25S	WKP25S	0.236"	0.219"	0.031"	Cast Iron, Steel	€31.11
A	ODMT0605ZZN-D57 WKP35S	ODMT0605ZZN-D57 WKP35S	WKP35S	0.236"	0.219"	0.031"	Steel, Cast Iron	€30.50
A	ODMT060512-D57 WKP35S	ODMT060512-D57 WKP35S	WKP35S	0.236"	0.219"	0.047"	Steel, Cast Iron	€30.38

WALTER TOOLS -

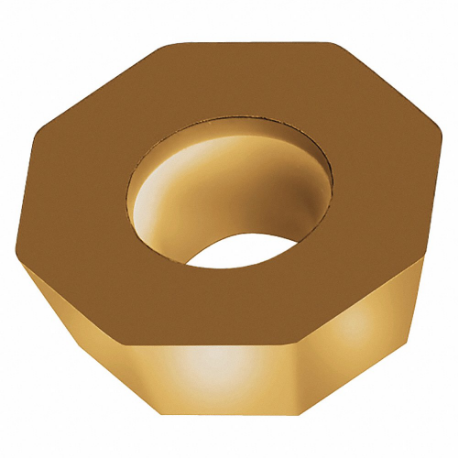

ODHW Carbide Milling Insert

A

Style	Model	Ansi Number	Coating	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	ODHW0504ZZN-A57 WAK15	ODHW0504ZZN-A57 WAK15	CVD	WAK15	0.197"	0.187"	0.031"	Cast Iron	€26.79
A	ODHW0504ZZN-A57 WKP25S	ODHW0504ZZN-A57 WKP25S	CVD	WKP25S	0.197"	0.187"	0.031"	Cast Iron, Steel	€28.75
A	ODHW0504ZZN-A57 WKP35S	ODHW0504ZZN-A57 WKP35S	CVD	WKP35S	0.197"	0.187"	0.031"	Steel, Cast Iron	€28.01
A	ODHW050412-A57 WSN10	ODHW050412-A57 WSN10	Uncoated	WSN10	0.197"	0.187"	0.047"	High-Temp Alloys, Non-Ferrous	€54.62
A	ODHW0605ZZN-A57 WAK15	ODHW0605ZZN-A57 WAK15	CVD	WAK15	0.236"	0.219"	0.031"	Cast Iron	€34.65
A	ODHW0605ZZN-A57 WKP25S	ODHW0605ZZN-A57 WKP25S	CVD	WKP25S	0.236"	0.219"	0.031"	Cast Iron, Steel	€36.26
A	ODHW0605ZZN-A57 WKP35S	ODHW0605ZZN-A57 WKP35S	CVD	WKP35S	0.236"	0.219"	0.031"	Steel, Cast Iron	€37.24
A	ODHW060516-A57 WSN10	ODHW060516-A57 WSN10	Uncoated	WSN10	0.236"	0.219"	0.063"	High-Temp Alloys, Non-Ferrous	€69.65

WALTER TOOLS -

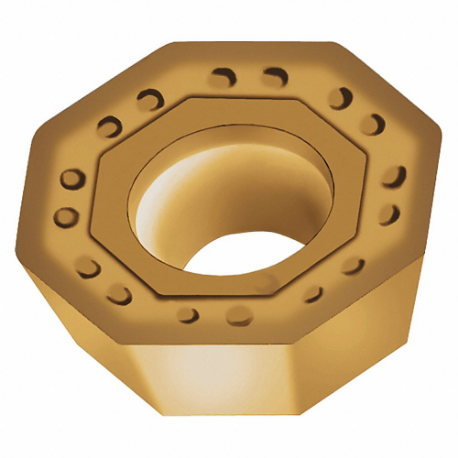

ODHT Positive Octagonal Carbide Milling Insert

A

Style	Model	Ansi Number	Chip-breaker	Coating	Cutting Direction	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Price (ex. VAT)
A	ODHT0504ZZN-F57 WKP35S	ODHT0504ZZN-F57 WKP35S	F57	CVD	Right	WKP35S	0.197"	0.187"	0.031"	€29.31
A	ODHT0504ZZN-G88 WK10	ODHT0504ZZN-G88 WK10	G88	Uncoated	Right	WK10	0.197"	0.187"	0.031"	€22.95
A	ODHT0504ZZN-G88 WXN15	ODHT0504ZZN-G88 WXN15	G88	PVD	Right	WXN15	0.197"	0.187"	0.031"	€30.25
A	ODHT050408-F57 WKP35S	ODHT050408-F57 WKP35S	F57	CVD	Right	WKP35S	0.197"	0.187"	0.031"	€30.71
A	ODHT0605ZZN-F57 WKP35S	ODHT0605ZZN-F57 WKP35S	F57	CVD	Right	WKP35S	0.236"	0.219"	0.031"	€38.31
A	ODHT0605ZZN-G88 WK10	ODHT0605ZZN-G88 WK10	G88	Uncoated	Right	WK10	0.236"	0.219"	0.031"	€29.84
A	ODHT0605ZZN-G88 WXN15	ODHT0605ZZN-G88 WXN15	G88	PVD	Neutral	WXN15	0.236"	0.219"	0.031"	€38.31
A	ODHT060512-F57 WKP35S	ODHT060512-F57 WKP35S	F57	CVD	Right	WKP35S	0.236"	0.219"	0.047"	€40.10

WALTER TOOLS -

SNGX Carbide Milling Insert

A

Style	Model	Ansi Number	Chip-breaker	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	SNGX1205ANN-F27 WKP25S	SNGX1205ANN-F27 WKP25S	F27	WKP25S	0.5"	0.252"	0.059"	Cast Iron, Steel	€38.70
A	SNGX1205ANN-F27 WKP35S	SNGX1205ANN-F27 WKP35S	F27	WKP35S	0.5"	0.252"	0.059"	Steel, Cast Iron	€38.70
A	SNGX1205ANN-F57 WKP25S	SNGX1205ANN-F57 WKP25S	F57	WKP25S	0.5"	0.252"	0.059"	Cast Iron, Steel	€36.76
A	SNGX1205ANN-F57 WKP35S	SNGX1205ANN-F57 WKP35S	F57	WKP35S	0.5"	0.252"	0.059"	Steel, Cast Iron	€38.70
A	SNGX1205ANN-F67 WAK15	SNGX1205ANN-F67 WAK15	F67	WAK15	0.5"	0.252"	0.059"	Cast Iron	€36.76
A	SNGX1205ANN-F67 WKP25S	SNGX1205ANN-F67 WKP25S	F67	WKP25S	0.5"	0.252"	0.059"	Cast Iron, Steel	€38.70
A	SNGX1205ANN-F67 WKP35S	SNGX1205ANN-F67 WKP35S	F67	WKP35S	0.5"	0.252"	0.059"	Steel, Cast Iron	€38.60
A	SNGX1205ENN-F27 WKP25S	SNGX1205ENN-F27 WKP25S	F27	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€38.70
A	SNGX1205ENN-F27 WKP35S	SNGX1205ENN-F27 WKP35S	F27	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€38.70
A	SNGX1205ENN-F57 WKP25S	SNGX1205ENN-F57 WKP25S	F57	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€36.83
A	SNGX1205ENN-F57 WKP35S	SNGX1205ENN-F57 WKP35S	F57	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€36.76
A	SNGX1205ENN-F67 WAK15	SNGX1205ENN-F67 WAK15	F67	WAK15	0.5"	0.252"	0.047"	Cast Iron	€36.76
A	SNGX1205ENN-F67 WKP25S	SNGX1205ENN-F67 WKP25S	F67	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€38.70
A	SNGX1205ENN-F67 WKP35S	SNGX1205ENN-F67 WKP35S	F67	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€38.70
A	SNGX1205ZNN-F27 WKP25S	SNGX1205ZNN-F27 WKP25S	F27	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€38.70
A	SNGX1205ZNN-F27 WKP35S	SNGX1205ZNN-F27 WKP35S	F27	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€38.70
A	SNGX1205ZNN-F57 WKP25S	SNGX1205ZNN-F57 WKP25S	F57	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€38.70
A	SNGX1205ZNN-F57 WKP35S	SNGX1205ZNN-F57 WKP35S	F57	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€38.70
A	SNGX1205ZNN-F67 WAK15	SNGX1205ZNN-F67 WAK15	F67	WAK15	0.5"	0.252"	0.047"	Cast Iron	€36.76
A	SNGX1205ZNN-F67 WKP25S	SNGX1205ZNN-F67 WKP25S	F67	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€38.70
A	SNGX1205ZNN-F67 WKP35S	SNGX1205ZNN-F67 WKP35S	F67	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€38.70

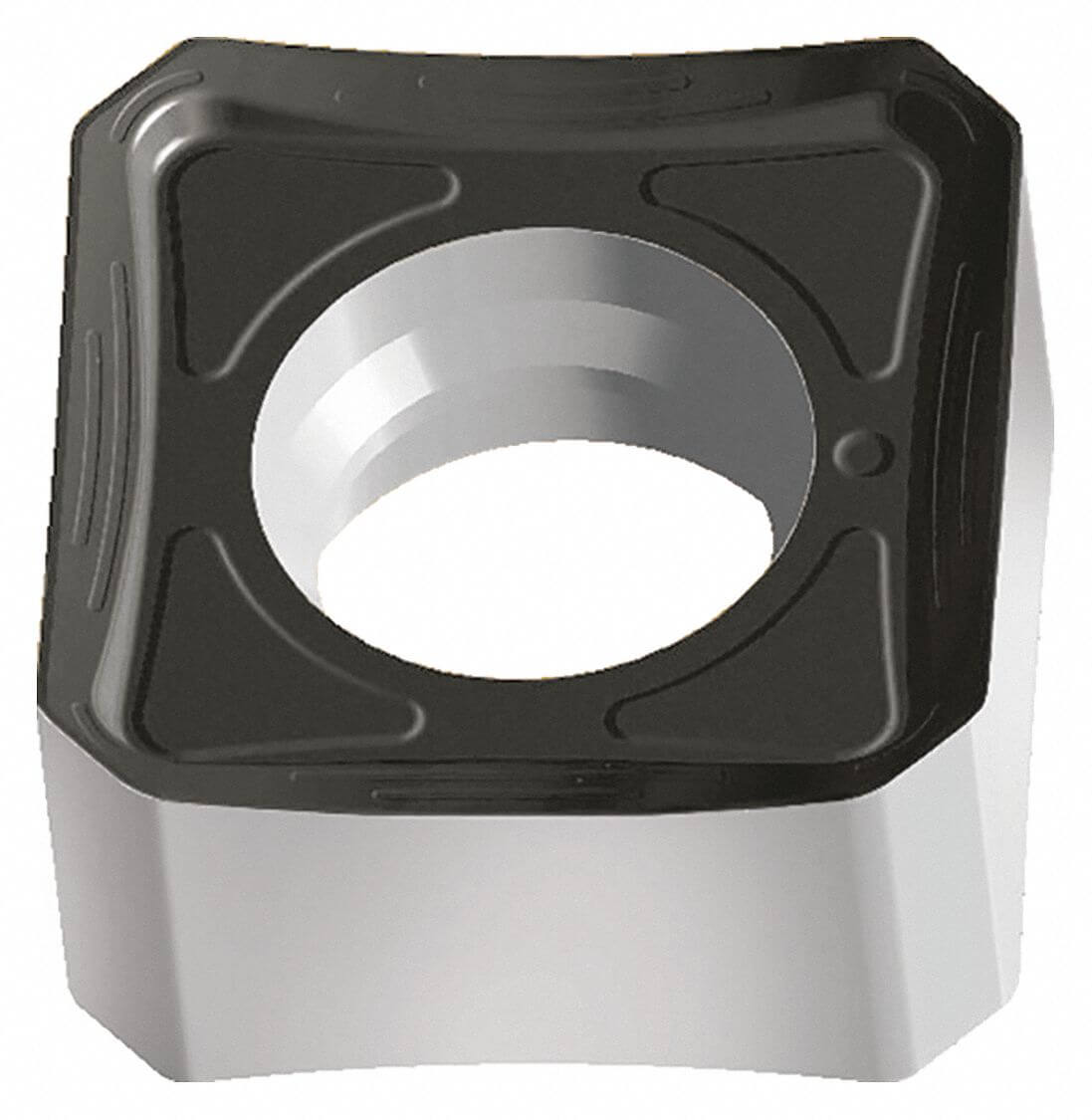

A	SNGX1606ANN-F57 WKP35S	SNGX1606ANN-F57 WKP35S	F57	WKP35S	0.25"	0.307"	0.059"	Steel, Cast Iron	€45.43
A	SNGX120512-F57 WKP25S	SNGX120512-F57 WKP25S	F57	WKP25S	0.5"	0.252"	0.047"	Cast Iron, Steel	€38.70
A	SNGX120512-F57 WKP35S	SNGX120512-F57 WKP35S	F57	WKP35S	0.5"	0.252"	0.047"	Steel, Cast Iron	€38.70

WALTER TOOLS -

ZDGT Carbide Milling Insert

A

Style	Model	Ansi Number	Coating	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	ZDGT150416R-K85 WK10	ZDGT150416R-K85 WK10	Uncoated	WK10	0.591"	0.187"	0.063"	Cast Iron	€36.35
A	ZDGT150416R-K85 WXN15	ZDGT150416R-K85 WXN15	PVD	WXN15	0.591"	0.187"	0.063"	Non-Ferrous Materials	€47.03
A	ZDGT150420R-K85 WK10	ZDGT150420R-K85 WK10	Uncoated	WK10	0.591"	0.187"	0.079"	Cast Iron	€34.93
A	ZDGT150420R-K85 WXN15	ZDGT150420R-K85 WXN15	PVD	WXN15	0.591"	0.187"	0.079"	Non-Ferrous Materials	€47.03
A	ZDGT150425R-K85 WK10	ZDGT150425R-K85 WK10	Uncoated	WK10	0.591"	0.187"	0.098"	Cast Iron	€33.86
A	ZDGT150425R-K85 WXN15	ZDGT150425R-K85 WXN15	PVD	WXN15	0.591"	0.187"	0.098"	Non-Ferrous Materials	€45.98
A	ZDGT150430R-K85 WK10	ZDGT150430R-K85 WK10	Uncoated	WK10	0.591"	0.187"	0.118"	Cast Iron	€34.93
A	ZDGT150430R-K85 WXN15	ZDGT150430R-K85 WXN15	PVD	WXN15	0.591"	0.187"	0.118"	Non-Ferrous Materials	€47.03
A	ZDGT150440R-K85 WK10	ZDGT150440R-K85 WK10	Uncoated	WK10	0.591"	0.187"	0.157"	Cast Iron	€34.93
A	ZDGT150440R-K85 WXN15	ZDGT150440R-K85 WXN15	PVD	WXN15	0.591"	0.187"	0.157"	Non-Ferrous Materials	€47.03
A	ZDGT200508R-K85 WK10	ZDGT200508R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.031"	Cast Iron	€52.14
A	ZDGT200512R-K85 WK10	ZDGT200512R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.047"	Cast Iron	€51.73
A	ZDGT200516R-K85 WK10	ZDGT200516R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.063"	Cast Iron	€51.73
A	ZDGT200520R-K85 WK10	ZDGT200520R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.079"	Cast Iron	€51.73
A	ZDGT200530R-K85 WK10	ZDGT200530R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.118"	Cast Iron	€51.73
A	ZDGT200540R-K85 WK10	ZDGT200540R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.157"	Cast Iron	€51.73
A	ZDGT200550R-K85 WK10	ZDGT200550R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.197"	Cast Iron	€51.73
A	ZDGT200560R-K85 WK10	ZDGT200560R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.236"	Cast Iron	€51.73
A	ZDGT200564R-K85 WK10	ZDGT200564R-K85 WK10	Uncoated	WK10	0.787"	0.219"	0.252"	Cast Iron	€51.73

WALTER TOOLS -

XDMT Carbide Milling Insert

A

Style	Model	Ansi Number	Coating	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	XDMT16T3095R-F55 WKP25S	XDMT16T3095R-F55 WKP25S	CVD	WKP25S	0.63"	0.147"	0.375"	Cast Iron, Steel	€29.16
A	XDMT16T3095R-F55 WKP35S	XDMT16T3095R-F55 WKP35S	CVD	WKP35S	0.63"	0.147"	0.375"	Steel, Cast Iron	€31.06
A	XDMT2004125R-F55 WSM35	XDMT2004125R-F55 WSM35	PVD	WSM35	0.787"	0.184"	0.492"	Stainless Steel, High-Temp Alloys	€37.10
A	XDMT2004127R-F55 WKP25S	XDMT2004127R-F55 WKP25S	CVD	WKP25S	0.787"	0.184"	0.5"	Cast Iron, Steel	€38.00
A	XDMT2004127R-F55 WKP35S	XDMT2004127R-F55 WKP35S	CVD	WKP35S	0.787"	0.184"	0.5"	Steel, Cast Iron	€35.99
A	XDMT2405150R-F55 WKP25S	XDMT2405150R-F55 WKP25S	CVD	WKP25S	0.945"	0.221"	0.591"	Cast Iron, Steel	€50.35
A	XDMT2405150R-F55 WKP35S	XDMT2405150R-F55 WKP35S	CVD	WKP35S	0.945"	0.221"	0.591"	Steel, Cast Iron	€50.35
A	XDMT2405150R-F55 WSM35	XDMT2405150R-F55 WSM35	PVD	WSM35	0.945"	0.221"	0.591"	Stainless Steel, High-Temp Alloys	€52.11
A	XDMT2506159R-F55 WKP25S	XDMT2506159R-F55 WKP25S	CVD	WKP25S	0.984"	0.236"	0.625"	Cast Iron, Steel	€51.29
A	XDMT2506159R-F55 WKP35S	XDMT2506159R-F55 WKP35S	CVD	WKP35S	0.984"	0.236"	0.625"	Steel, Cast Iron	€52.03
A	XDMT2506160R-F55 WKP25S	XDMT2506160R-F55 WKP25S	CVD	WKP25S	0.984"	0.236"	0.63"	Cast Iron, Steel	€55.01
A	XDMT2506160R-F55 WKP35S	XDMT2506160R-F55 WKP35S	CVD	WKP35S	0.984"	0.236"	0.63"	Steel, Cast Iron	€55.01
A	XDMT2506160R-F55 WSM35	XDMT2506160R-F55 WSM35	PVD	WSM35	0.984"	0.236"	0.63"	Stainless Steel, High-Temp Alloys	€53.88
A	XDMT3207191R-F55 WKP25S	XDMT3207191R-F55 WKP25S	CVD	WKP25S	1.26"	0.394"	0.75"	Cast Iron, Steel	€67.21
A	XDMT3207191R-F55 WKP35S	XDMT3207191R-F55 WKP35S	CVD	WKP35S	1.26"	0.394"	0.75"	Steel, Cast Iron	€72.48
A	XDMT4009254R-F55 WKP25S	XDMT4009254R-F55 WKP25S	CVD	WKP25S	1.575"	0.492"	1"	Cast Iron, Steel	€94.94
A	XDMT4009254R-F55 WKP35S	XDMT4009254R-F55 WKP35S	CVD	WKP35S	1.575"	0.492"	1"	Steel, Cast Iron	€96.13

WALTER TOOLS -

LPGT Carbide Milling Insert

A

Style	Model	Ansi Number	Inscribed Circle	Insert Thickness	Nose Radius	Price (ex. VAT)
A	LPGT070304R-F55 WKP35S	LPGT070304R-F55 WKP35S	0.275"	0.125"	0.016"	€28.71
A	LPGT15T308R-F55 WKP35S	LPGT15T308R-F55 WKP35S	0.591"	0.156"	0.031"	€30.06
A	LPGT150412R-F55 WKP35S	LPGT150412R-F55 WKP35S	0.591"	0.156"	0.047"	€41.20

WALTER TOOLS -

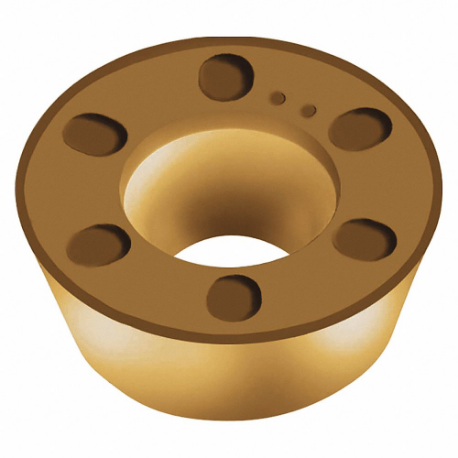

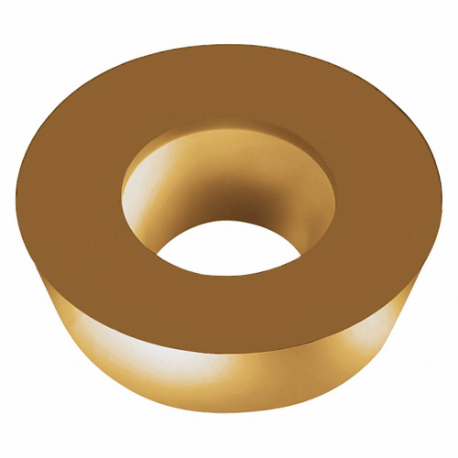

RDMX Carbide Milling Insert

A

Style	Model	Ansi Number	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	RDMX12T3M0T-A27 WKP25S	RDMX12T3M0T-A27 WKP25S	WKP25S	0.331"	0.156"	0.236"	Cast Iron, Steel	€17.45
A	RDMX12T3M0T-A27 WKP35S	RDMX12T3M0T-A27 WKP35S	WKP35S	0.331"	0.156"	0.236"	Steel, Cast Iron	€17.45
A	RDMX1003M0T-A27 WKP25S	RDMX1003M0T-A27 WKP25S	WKP25S	0.285"	0.125"	0.197"	Cast Iron, Steel	€14.95
A	RDMX1003M0T-A27 WKP35S	RDMX1003M0T-A27 WKP35S	WKP35S	0.285"	0.125"	0.197"	Steel, Cast Iron	€14.95
A	RDMX1604M0T-A27 WKP25S	RDMX1604M0T-A27 WKP25S	WKP25S	0.425"	0.187"	0.315"	Cast Iron, Steel	€26.23
A	RDMX1604M0T-A27 WKP35S	RDMX1604M0T-A27 WKP35S	WKP35S	0.425"	0.187"	0.315"	Steel, Cast Iron	€26.23

WALTER TOOLS -

SPHT Carbide Milling Insert

A

Style	Model	Ansi Number	Coating	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	SPHT060304-G88 WK10	SPHT060304-G88 WK10	Uncoated	WK10	0.25"	0.125"	0.016"	Cast Iron	€22.63
A	SPHT060304-G88 WXN15	SPHT060304-G88 WXN15	PVD	WXN15	0.25"	0.125"	0.016"	Non-Ferrous Materials	€28.18
A	SPHT09T308-G88 WK10	SPHT09T308-G88 WK10	Uncoated	WK10	0.375"	0.156"	0.031"	Cast Iron	€28.18
A	SPHT09T308-G88 WXN15	SPHT09T308-G88 WXN15	PVD	WXN15	0.375"	0.156"	0.031"	Non-Ferrous Materials	€34.04
A	SPHT120408-G88 WK10	SPHT120408-G88 WK10	Uncoated	WK10	0.5"	0.187"	0.031"	Cast Iron	€32.14
A	SPHT120408-G88 WXN15	SPHT120408-G88 WXN15	PVD	WXN15	0.5"	0.187"	0.031"	Non-Ferrous Materials	€40.45

WALTER TOOLS -

Tiger Tec Silver, Carbide Mill Insert

A

Style	Model	Ansi Number	Chip-breaker	Coating	Cutting Direction	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Price (ex. VAT)
A	ADGT0803PER-D51 WKP25S	ADGT0803PER-D51 WKP25S	D51	CVD	Right	WKP25S	0.266"	0.132"	0.016"	€33.83
A	ADGT0803PER-D51 WKP35S	ADGT0803PER-D51 WKP35S	D51	CVD	Right	WKP35S	0.266"	0.132"	0.016"	€33.83
A	ADGT10T3PER-D67 WKP35S	ADGT10T3PER-D67 WKP35S	D67	CVD	Right	WKP35S	0.285"	0.15"	0.031"	€35.64
A	ADGT1204PER-D51 WKP25S	ADGT1204PER-D51 WKP25S	D51	CVD	Right	WKP25S	0.331"	0.187"	0.031"	€36.39
A	ADGT1204PER-D51 WKP35S	ADGT1204PER-D51 WKP35S	D51	CVD	Right	WKP35S	0.331"	0.187"	0.031"	€36.39
A	ADGT1204PER-D56 WKP25S	ADGT1204PER-D56 WKP25S	D56	CVD	Right	WKP25S	0.331"	0.187"	0.031"	€36.39
A	ADGT1204PER-D56 WKP35S	ADGT1204PER-D56 WKP35S	D56	CVD	Right	WKP35S	0.331"	0.187"	0.031"	€35.54
A	ADGT1204PER-D67 WKP35S	ADGT1204PER-D67 WKP35S	D67	CVD	Right	WKP35S	0.331"	0.187"	0.031"	€36.39
A	ADGT1606PER-D51 WKP25S	ADGT1606PER-D51 WKP25S	D51	CVD	Right	WKP25S	0.425"	0.242"	0.031"	€41.93
A	ADGT1606PER-D51 WKP35S	ADGT1606PER-D51 WKP35S	D51	CVD	Right	WKP35S	0.425"	0.242"	0.031"	€41.93
A	ADGT1606PER-D56 WKP25S	ADGT1606PER-D56 WKP25S	D56	CVD	Right	WKP25S	0.425"	0.242"	0.031"	€42.28
A	ADGT1606PER-D56 WKP35S	ADGT1606PER-D56 WKP35S	D56	CVD	Right	WKP35S	0.425"	0.242"	0.031"	€41.93
A	ADGT1606PER-D67 WKP35S	ADGT1606PER-D67 WKP35S	D67	CVD	Right	WKP35S	0.425"	0.242"	0.031"	€41.93
A	ADGT1807PER-D51 WKP35S	ADGT1807PER-D51 WKP35S	D51	CVD	Right	WKP35S	0.571"	0.276"	0.047"	€40.29
A	ADGT1807PER-D56 WKP35S	ADGT1807PER-D56 WKP35S	D56	CVD	Right	WKP35S	0.571"	0.276"	0.047"	€43.13
A	ADHT0803PEL-G88 WXN15	ADHT0803PEL-G88 WXN15	G88	PVD	Left	WXN15	0.266"	0.132"	0.016"	€31.90
A	ADHT0803PER-G88 WK10	ADHT0803PER-G88 WK10	G88	Uncoated	Right	WK10	0.266"	0.132"	0.016"	€25.84
A	ADHT0803PER-G88 WXN15	ADHT0803PER-G88 WXN15	G88	PVD	Right	WXN15	0.266"	0.132"	0.016"	€31.90
A	ADHT10T3PER-G88 WK10	ADHT10T3PER-G88 WK10	G88	Uncoated	Right	WK10	0.285"	0.15"	0.031"	€27.04
A	ADHT10T3PER-G88 WXN15	ADHT10T3PER-G88 WXN15	G88	PVD	Right	WXN15	0.285"	0.15"	0.031"	€33.60
A	ADHT1204PEL-G88 WXN15	ADHT1204PEL-G88 WXN15	G88	PVD	Left	WXN15	0.331"	0.187"	0.031"	€34.47
A	ADHT1204PER-G88 WK10	ADHT1204PER-G88 WK10	G88	Uncoated	Right	WK10	0.331"	0.187"	0.031"	€27.78
A	ADHT1204PER-G88 WXN15	ADHT1204PER-G88 WXN15	G88	PVD	Right	WXN15	0.331"	0.187"	0.031"	€34.54
A	ADHT1606PEL-G88 WXN15	ADHT1606PEL-G88 WXN15	G88	PVD	Left	WXN15	0.425"	0.242"	0.031"	€39.78
A	ADHT1606PER-G88 WK10	ADHT1606PER-G88 WK10	G88	Uncoated	Right	WK10	0.425"	0.242"	0.031"	€32.32

WALTER TOOLS -

Round Milling Insert, Application: Medium

A

B

Style	Model	Insert Size	Insert Thickness	Lead Angle	Style	Price (ex. VAT)
A	ROMX10T3M0-D57	10T3M0	0.15"	11 Degrees	ROMX	€16.85
B	ROHX2006M0-D57	2006M0	0.236"	15 Degrees	ROHX	€48.93

WALTER TOOLS -

Square Milling Insert, Application: Medium

A

B

C

D

E

Style	Model	Chip-breaker	Insert Size	Insert Thickness	Lead Angle	No. Of Edges	Nose Radius	Rake	Style	Price (ex. VAT)
A	SPMT120606-D51	D51	120606	0.25"	11 Degrees	4	0.024"	Positive	SPMT	€25.26
B	SPMT120606-D57	D57	120606	0.25"	11 Degrees	4	0.024"	Positive	SPMT	€25.26
C	SPGT120606-F57	F57	120606	0.25"	11 Degrees	4	0.024"	Positive	SPGT	€31.50
D	SNMX160620-F57	F57	160620	0.242"	0 Degrees	8	0.079"	Negative	SNMX	€33.70
E	SNGX1606ANN-F57	F57	1606	0.242"	0 Degrees	8	Chamfer	Negative	SNGX	€42.77
D	SNMX120512-F57	F57	120512	0.252"	0 Degrees	8	0.047"	Negative	SNMX	€26.30
D	SNMX160640-F57	F57	160640	0.242"	0 Degrees	8	0.157"	Negative	SNMX	€33.70

WALTER TOOLS -

SPMT Carbide Milling Insert

A

Style	Model	Ansi Number	Chip-breaker	Coating	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	SPMT060304-D51 WKP25S	SPMT060304-D51 WKP25S	D51	CVD	WKP25S	0.25"	0.125"	0.016"	Cast Iron, Steel	€15.44
A	SPMT060304-D51 WKP35S	SPMT060304-D51 WKP35S	D51	CVD	WKP35S	0.25"	0.125"	0.016"	Steel, Cast Iron	€15.44
A	SPMT060304-F55 WAK15	SPMT060304-F55 WAK15	F55	CVD	WAK15	0.25"	0.125"	0.016"	Cast Iron	€14.71
A	SPMT060304-F55 WKP35S	SPMT060304-F55 WKP35S	F55	CVD	WKP35S	0.25"	0.125"	0.016"	Steel, Cast Iron	€14.71
A	SPMT060304-F55 WSM35	SPMT060304-F55 WSM35	F55	PVD	WSM35	0.25"	0.125"	0.016"	Stainless Steel, High-Temp Alloys	€13.11
A	SPMT09T308-D51 WKP25S	SPMT09T308-D51 WKP25S	D51	CVD	WKP25S	0.375"	0.156"	0.031"	Cast Iron, Steel	€17.85
A	SPMT09T308-D51 WKP35S	SPMT09T308-D51 WKP35S	D51	CVD	WKP35S	0.375"	0.156"	0.031"	Steel, Cast Iron	€17.85
A	SPMT09T308-F55 WAK15	SPMT09T308-F55 WAK15	F55	CVD	WAK15	0.375"	0.156"	0.031"	Cast Iron	€17.75
A	SPMT09T308-F55 WKP35S	SPMT09T308-F55 WKP35S	F55	CVD	WKP35S	0.375"	0.156"	0.031"	Steel, Cast Iron	€18.79
A	SPMT09T308-F55 WSM35	SPMT09T308-F55 WSM35	F55	PVD	WSM35	0.375"	0.156"	0.031"	Stainless Steel, High-Temp Alloys	€16.02
A	SPMT120408-D51 WKP25S	SPMT120408-D51 WKP25S	D51	CVD	WKP25S	0.5"	0.187"	0.031"	Cast Iron, Steel	€22.49
A	SPMT120408-D51 WKP35S	SPMT120408-D51 WKP35S	D51	CVD	WKP35S	0.5"	0.187"	0.031"	Steel, Cast Iron	€21.47
A	SPMT120408-F55 WAK15	SPMT120408-F55 WAK15	F55	CVD	WAK15	0.5"	0.187"	0.031"	Cast Iron	€21.34
A	SPMT120408-F55 WKP35S	SPMT120408-F55 WKP35S	F55	CVD	WKP35S	0.5"	0.187"	0.031"	Steel, Cast Iron	€22.55

WALTER TOOLS -

RDMW Carbide Milling Insert

A

Style	Model	Ansi Number	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	RDMW0803M0T-A27 WKP35S	RDMW0803M0T-A27 WKP35S	WKP35S	0.315"	0.125"	0.157"	Steel, Cast Iron	€14.95
A	RDMW10T3M0T-A27 WKP25S	RDMW10T3M0T-A27 WKP25S	WKP25S	0.285"	0.156"	0.197"	Cast Iron, Steel	€14.95
A	RDMW10T3M0T-A27 WKP35s	RDMW10T3M0T-A27 WKP35s	WKP35S	0.285"	0.156"	0.197"	Steel, Cast Iron	€14.95
A	RDMW1204M0T-A27 WKP25S	RDMW1204M0T-A27 WKP25S	WKP25S	0.331"	0.187"	0.236"	Cast Iron, Steel	€17.45
A	RDMW1204M0T-A27 WKP35S	RDMW1204M0T-A27 WKP35S	WKP35S	0.331"	0.187"	0.236"	Steel, Cast Iron	€17.45
A	RDMW1605M0T-A27 WKP25S	RDMW1605M0T-A27 WKP25S	WKP25S	0.425"	0.219"	0.315"	Cast Iron, Steel	€26.23
A	RDMW1605M0T-A27 WKP35S	RDMW1605M0T-A27 WKP35S	WKP35S	0.425"	0.219"	0.315"	Steel, Cast Iron	€26.78
A	RDMW2006M0T-A27 WKP25S	RDMW2006M0T-A27 WKP25S	WKP25S	0.787"	0.25"	0.394"	Cast Iron, Steel	€30.09
A	RDMW2006M0T-A27 WKP35S	RDMW2006M0T-A27 WKP35S	WKP35S	0.787"	0.25"	0.394"	Steel, Cast Iron	€30.78

WALTER TOOLS -

RDMT Carbide Milling Insert

A

Style	Model	Ansi Number	Grade	Inscribed Circle	Insert Thickness	Nose Radius	Workpiece Material	Price (ex. VAT)
A	RDMT0803M0-D57 WKP35S	RDMT0803M0-D57 WKP35S	WKP35S	0.315"	0.125"	0.157"	Steel, Cast Iron	€16.05
A	RDMT10T3M0-D57 WKP25S	RDMT10T3M0-D57 WKP25S	WKP25S	0.285"	0.156"	0.197"	Cast Iron, Steel	€17.38
A	RDMT10T3M0-D57 WKP35S	RDMT10T3M0-D57 WKP35S	WKP35S	0.285"	0.156"	0.197"	Steel, Cast Iron	€17.74
A	RDMT1204M0-D57 WKP25S	RDMT1204M0-D57 WKP25S	WKP25S	0.331"	0.187"	0.236"	Cast Iron, Steel	€20.07
A	RDMT1204M0-D57 WKP35S	RDMT1204M0-D57 WKP35S	WKP35S	0.331"	0.187"	0.236"	Steel, Cast Iron	€21.21
A	RDMT1605M0-D57 WKP25S	RDMT1605M0-D57 WKP25S	WKP25S	0.425"	0.219"	0.315"	Cast Iron, Steel	€27.95
A	RDMT1605M0-D57 WKP35S	RDMT1605M0-D57 WKP35S	WKP35S	0.425"	0.219"	0.315"	Steel, Cast Iron	€28.51
A	RDMT2006M0-D57 WKP25S	RDMT2006M0-D57 WKP25S	WKP25S	0.787"	0.25"	0.394"	Cast Iron, Steel	€35.30
A	RDMT2006M0-D57 WKP35S	RDMT2006M0-D57 WKP35S	WKP35S	0.787"	0.25"	0.394"	Steel, Cast Iron	€37.87

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Milling Inserts

Indexable Insert Drills

LPMT Carbide Milling Insert

ADGT Indexable Insert

Triangle Milling Insert, Application: Medium

Rectangle Milling Insert, Application: Medium

ODHX Carbide Milling Insert

ODMT Carbide Milling Insert

ODHW Carbide Milling Insert

ODHT Positive Octagonal Carbide Milling Insert

SNGX Carbide Milling Insert

ZDGT Carbide Milling Insert

XDMT Carbide Milling Insert

LPGT Carbide Milling Insert

RDMX Carbide Milling Insert

SPHT Carbide Milling Insert

Tiger Tec Silver, Carbide Mill Insert

Round Milling Insert, Application: Medium

Square Milling Insert, Application: Medium

SPMT Carbide Milling Insert

RDMW Carbide Milling Insert

RDMT Carbide Milling Insert

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Milling Inserts

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
