Can a pressure switch be calibrated?

Yes, pressure switches, like many other instruments, can be calibrated. Users must calibrate them to ensure accuracy and reliability.

How is a pressure switch different than a sensor?

Pressure switches protect the machine and its operators, whereas sensors relay a pressure readout to a remote location.

What influences the response time of these miniature pressure switches?

The response time of a miniature pressure switch can vary depending on the design, construction and operating conditions.

Miniature Pressure Switches

ASHCROFT -

A Series Explosion Proof Pressure Switches, Watertight 316SS Body

A

B

Style	Model	Burst Pressure	Process Connection	Range	Wetted Materials	Price (ex. VAT)
A	APAN41H00MHS02100#-NSR	1000 psi	1/4" MNPT	10 to 100 psi	316 Stainless Steel Welded Diaphragm	€290.96
A	APAN41H00MHB021000#-NSR	8000 psi	1/4" MNPT	100 to 1000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€288.56
B	APAN41H00MHB052000#-NSR	8000 psi	7/16-20 SAE Male	200 to 2000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€312.81
B	APAN41H00MHB051000#-NSR	8000 psi	7/16-20 SAE Male	100 to 1000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€312.81

ASHCROFT -

A Series Explosion Proof Pressure Switches, 316SS Body

A

B

Style	Model	Burst Pressure	Electrical Connection	Item	Process Connection	Range	Wetted Materials	Price (ex. VAT)
A	APAN71H012CB057500#-NSR	15,000 psi	1/2" MNPT with 3-18 AWG 12" Wire Lead Connector	Pressure Switch	7/16-20 SAE	750 to 7500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€511.64
A	APAN71H012CB055000#-NSR	15,000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	7/16-20 SAE	500 to 5000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€511.64
B	APAN71H012CS02-15/15#-NSR	1000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	-15 to 15 psi	316 Stainless Steel Welded Diaphragm	€487.35
B	APAN71H012CS02100#-NSR	1000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	10 to 100 psi	316 Stainless Steel Welded Diaphragm	€465.52
B	APAN71H012CS0230#-NSR	1000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	6 to 30 psi	316 Stainless Steel Welded Diaphragm	€465.52

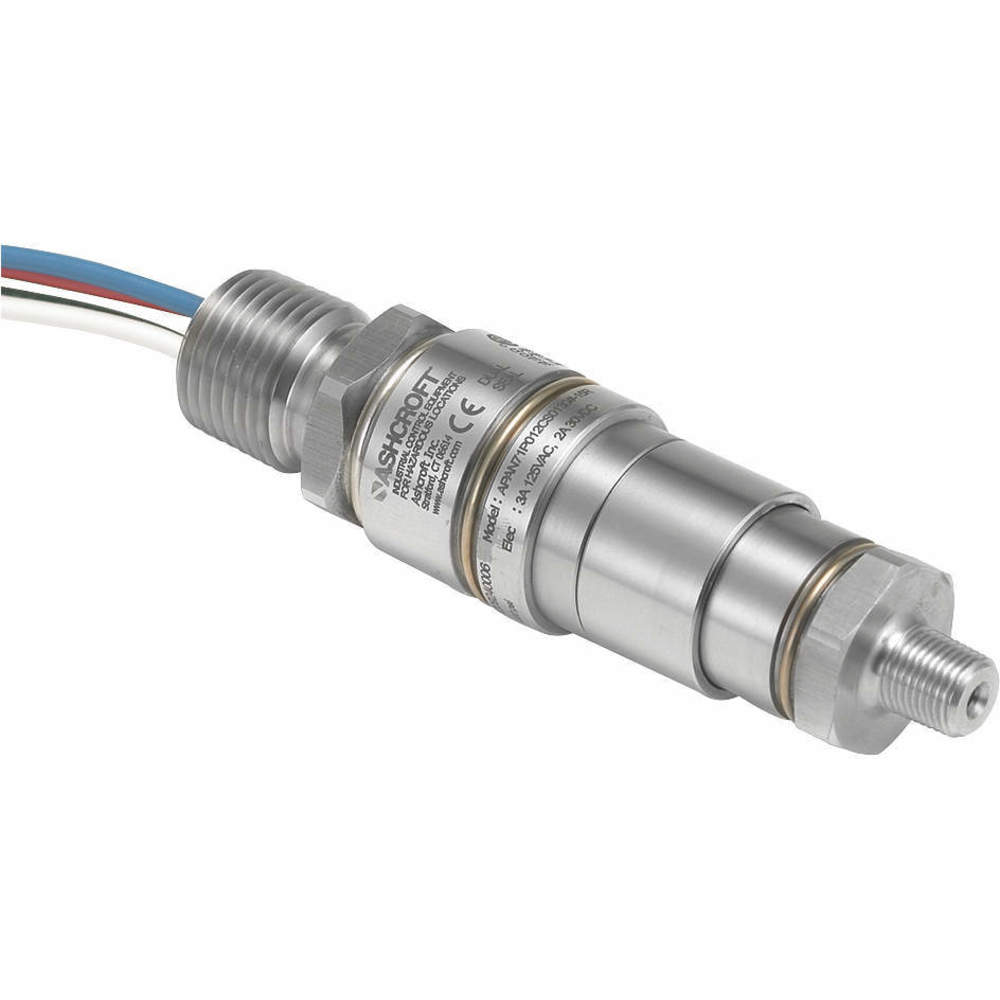

B	APAN71H012CS0260#-NSR	1000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	8 to 60 psi	316 Stainless Steel Welded Diaphragm	€465.52
B	APAN71H012CB02200#-NSR	2500 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	20 to 200 psi	316 Stainless Steel Piston and Buna-N O-Ring	€465.52
B	APAN71H012CB027500#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	750 to 7500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€489.80
A	APAN71H012CB052000#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	7/16-20 SAE	200 to 2000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€489.80
B	APAN71H012CB02500#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	50 to 500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€465.52
B	APAN71H012CB025000#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	500 to 5000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€487.35
B	APAN71H012CB022000#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	200 to 2000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€463.12
A	APAN71H012CB051000#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	7/16-20 SAE	100 to 1000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€489.80
B	APAN71H012CB021000#-NSR	8000 psi	1/2" MNPT Conduit Connector with 3-18 AWG 12" Wire Leads	Explosion Proof Pressure Switch	1/4" MNPT	100 to 1000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€465.52

ASHCROFT -

A Series Explosion Proof Pressure Switches

A

Style	Model	Range	Price (ex. VAT)
A	APAN41H012LS02-15/15#-NSR	-15 to 15 psi	€273.99
A	APAN41H012LS0230#-NSR	6 to 30 psi	€249.71
A	APAN41H012LS0260#-NSR	8 to 60 psi	€249.71

IFM -

Miniature Pressure Switches

A

B

C

Style	Model	Price (ex. VAT)
A	PK6224	€286.24
B	PK6222	€274.84
C	PK6220	€274.84

ASHCROFT -

Pressure Switch, 7/16-20 SAE Male

A

B

Style	Model	Burst Pressure	Electrical Connection	Range	Price (ex. VAT)
A	APAN41H012LB055000#-NSR	15,000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	500 to 5000 psi	€295.83
B	APAN41H00MHB055000#-NSR	15,000 psi	Micro DIN Connector	500 to 5000 psi	€334.63
A	APAN41H012LB057500#-NSR	15,000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	750 to 7500 psi	€295.83
B	APAN41H00MHB057500#-NSR	15,000 psi	Micro DIN Connector	750 to 7500 psi	€334.63
A	APAN41H012LB051000#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	100 to 1000 psi	€273.99
A	APAN41H012LB052000#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	200 to 2000 psi	€273.99

ASHCROFT -

Pressure Switch, 1/4" MNPT

A

B

Style	Model	Burst Pressure	Electrical Connection	Range	Wetted Materials	Price (ex. VAT)
A	APAN41H00MHS02-15/15#-NSR	1000 psi	Micro DIN Connector	-15 to 15 psi	316 Stainless Steel Welded Diaphragm	€303.10
A	APAN41H00MHS0230#-NSR	1000 psi	Micro DIN Connector	6 to 30 psi	316 Stainless Steel Welded Diaphragm	€303.10
A	APAN41H00MHS0260#-NSR	1000 psi	Micro DIN Connector	8 to 60 psi	316 Stainless Steel Welded Diaphragm	€290.97
B	APAN41H012LS02100#-NSR	1000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	10 to 100 psi	316 Stainless Steel Welded Diaphragm	€261.85
B	APAN41H012LB02200#-NSR	2500 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	20 to 200 psi	316 Stainless Steel Piston and Buna-N O-Ring	€261.85
A	APAN41H00MHB02200#-NSR	2500 psi	Micro DIN Connector	20 to 200 psi	316 Stainless Steel Piston and Buna-N O-Ring	€288.56
B	APAN41H012LB027500#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	750 to 7500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€273.99
B	APAN41H012LB022000#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	200 to 2000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€249.71
A	APAN41H00MHB027500#-NSR	8000 psi	Micro DIN Connector	750 to 7500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€312.82
A	APAN41H00MHB025000#-NSR	8000 psi	Micro DIN Connector	500 to 5000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€312.81
A	APAN41H00MHB022000#-NSR	8000 psi	Micro DIN Connector	200 to 2000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€290.96
A	APAN41H00MHB02500#-NSR	8000 psi	Micro DIN Connector	50 to 500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€303.10
B	APAN41H012LB025000#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	500 to 5000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€273.99
B	APAN41H012LB02500#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	50 to 500 psi	316 Stainless Steel Piston and Buna-N O-Ring	€249.71
B	APAN41H012LB021000#-NSR	8000 psi	3-18 AWG PVC Insulated 12" Base Wire Leads	100 to 1000 psi	316 Stainless Steel Piston and Buna-N O-Ring	€249.71

HYDRO VACUUM -

Pressure Switches

A

B

Style	Model	Price (ex. VAT)
A	LCA	€93.83	RFQ
B	LCS	€94.90	RFQ

SUPCO -

High Pressure Switches

A

B

C

Style	Model	Price (ex. VAT)
A	SMR610	€16.78
B	SHP275195	€10.73
C	SHP600475	€10.73
