Pin and Sleeve Device Accessories

APPLETON ELECTRIC -

Replacement Interior

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Amps	Item	Number Of Poles	Number Of Wires	Phase	Price (ex. VAT)
A	ARI-3033	30	Receptacle Interior	3	3	3	€236.17
B	API-3044	30	Accessory	4	4	3	€297.31
C	ARI-3044	30	Receptacle Interior	4	4	3	€285.16
D	ARI-3022	30	Receptacle Interior	2	2	1	€215.81
E	API-3033	30	Accessory	3	3	3	€248.47
F	API-3022	30	Accessory	2	2	1	€221.57
G	API-6033	60	Accessory	3	3	3	€320.37
H	ARI-6033	60	Receptacle Interior	3	3	3	€350.54
I	API-6044	60	Accessory	4	4	3	€372.08
D	ARI-6022	60	Receptacle Interior	2	2	1	€265.77
J	ARI-6044	60	Receptacle Interior	4	4	3	€446.88
K	API-6022	60	Accessory	2	2	1	€270.82
D	ARI-1022	100 and 150	Receptacle Interior	2	2	1	€331.12
L	API-1044	100 and 150	Accessory	4	4	3	€535.64
K	API-1022	100 and 150	Accessory	2	2	1	€439.04
M	API-1033	100 and 150	Accessory	3	3	3	€437.07
N	ARI-1033	100 and 150	Receptacle Interior	3	3	3	€384.03
O	ARI-1044	100 and 150	Receptacle Interior	4	4	3	€510.09

APPLETON ELECTRIC -

Bushing Bags and Crown Bushings

A

B

C

D

Style	Model	Amps	Price (ex. VAT)
A	PTGB30	30	€42.83
B	PTGB60	60	€38.08
C	PTGBCD	100 and 150	€57.89
D	PTGBDE	150	€131.95

APPLETON ELECTRIC -

Aluminium Mounting Box

A

B

C

Style	Model	Amps	Box Type	Length	Type	Width	Price (ex. VAT)
A	AERH23	30	Dead End	5.25"	Dead-End	3.38"	€113.53
B	AERA33	30	Dead End	7.25"	Dead-End	3.38"	€163.81
A	AERH33	30	Dead End	4.375"	Dead-End	3.38"	€118.04
C	AERC13	30	Feed Though	5.25"	Feed-Thru	3.38"	€111.24
B	AERA13	30	Dead End	5.25"	Dead-End	3.38"	€140.89
B	AERA23	30	Dead End	5.25"	Dead-End	3.38"	€133.13
A	AERH13	30	Dead End	7"	Dead-End	3.38"	€95.54
B	AERA36	60/100	Dead End	6.5"	Dead-End	4.25"	€203.93
A	AERH46	60/100	Dead End	6"	Dead-End	4.25"	€170.35
A	AERH36	60/100	Dead End	7"	Dead-End	4.25"	€161.54
B	AERA46	60/100	Dead End	8.5"	Dead-End	4.25"	€201.55
B	AERA56	60/100	Dead End	6.5"	Dead-End	4.25"	€233.62
C	AERC36	60/100	Feed Though	6.5"	Feed-Thru	4.25"	€173.35
C	AERC46	60/100	Feed Though	6.5"	Feed-Thru	4.25"	€189.17
A	AERH56	60/100	Dead End	6.5"	Dead-End	4.25"	€177.94

APPLETON ELECTRIC -

Receptacle Spring Cover

A

B

C

D

E

Style	Model	Amps	Number Of Poles	Price (ex. VAT)
A	PTSC30	30	2, 3 and 4	€88.93
B	PTSC60A	60	2 and 3	€83.59
C	PTSC60B	60	4	€84.29
D	PTSC100A	100	2 and 3	€90.14
E	PTSC100B	100 and 150	4	€92.20

HUBBELL WIRING DEVICE-KELLEMS -

Replacement Interiors

A

B

C

D

E

F

G

Style	Model	Current Rating	Material	Number Of Poles	Number Of Wires	Voltage Rating	Wire Size	Price (ex. VAT)
A	IN16281	-	-	-	-	-	-	€464.80
B	IN16280	-	-	-	-	-	-	€546.94
C	CR16277	-	-	-	-	-	-	€187.40
D	HBL303INT	-	-	-	-	-	-	€92.90
E	CR16279	-	-	-	-	-	-	€193.49
F	IN320AM	20 A	Thermoplastic	2	3	125 VAC	#14 - #10 AWG	€169.69
G	IN420CF	20 A	Thermoset	3	4	125 V, 250 VAC	-	€176.30
F	IN420CM	20 A	Thermoplastic	3	4	125 V, 250 VAC	#14 - #10 AWG	€176.30
G	IN320AF	20 A	Thermoset	2	3	125 VAC	-	€169.69
F	IN430CM	30 A	Thermoplastic	3	4	125/250 VAC	#12 - #10 AWG	€259.99
G	IN330BF	30 A	Thermoset	2	3	220 - 240 VAC	-	€231.99
G	IN430CF	30 A	Thermoset	3	4	125/250 VAC	-	€259.99
F	IN5100EM	100 A	Thermoplastic	4	5	347/600 VAC	#3 - #1/0 AWG	€532.00

HUBBELL WIRING DEVICE-KELLEMS -

Plug Interiors

A

HUBBELL WIRING DEVICE-KELLEMS HBL27W47IN

B

HUBBELL WIRING DEVICE-KELLEMS HBL15W47IN

C

HUBBELL WIRING DEVICE-KELLEMS HBL29W75IN

D

Style	Model	Current Rating	Nema Rating	Number Of Poles	Number Of Wires	Voltage Rating	Price (ex. VAT)
A	HBL14W47IN	15 A	5-15P	2	3-Wire	125 V	€29.90
B	HBL27W47IN	15 A	L5-20R	2	3-Wire	125 V	€84.90
C	HBL15W47IN	15 A	5-15R	2	3-Wire	125 V	€43.81
D	HBL29W75IN	30 A	L15-30R	3	4-Wire	3 Phase 250 VAC	€123.10

WOODHEAD -

130201 Series Closure Cap

A

B

C

D

Style	Model	Coupling Type	Type
A	1302011126	-	-	RFQ
A	1302010115	-	-	RFQ
A	1302010740	-	-	RFQ
A	1302010116	-	-	RFQ
A	1302010741	-	-	RFQ
B	1302011119	External Thread	Male	RFQ
C	1302011109	External Thread	Male	RFQ
B	1302011115	External Thread	Male	RFQ
C	1302011110	External Thread	Male	RFQ
D	1302011112	Internal Thread	Female	RFQ
D	1302011117	Internal Thread	Female	RFQ
D	1302011121	Internal Thread	Female	RFQ
D	1302011111	Internal Thread	Female	RFQ

HUBBELL WIRING DEVICE-KELLEMS -

Replacement Cover Assemblies
Hubbell Wiring Device-Kellems offers replacement cover assemblies for use with watertight connector bodies and receptacles. These IEC approved assemblies maintain proper water ingress protection. They contain covers, arm assemblies and installation tools.

A

Style	Model	Amps	Number Of Wires	Price (ex. VAT)
A	CA420MI	20	4	€72.51
A	CA3430MI	30	3 and 4	€80.09
A	CA60MI	60	All	€112.10
A	CA100MI	100	All	€115.09

PASS AND SEYMOUR -

Pin And Sleeve Adapter Plates

A

Style	Model
A	PSAP320-CA	RFQ
A	PSAP420-HBL	RFQ
A	PSAP4520-CA	RFQ
A	PSAP52030-HBL	RFQ

PASS AND SEYMOUR -

Pin And Sleeve Closure Caps

A

B

C

D

E

Style	Model	Number Of Wires	Voltage

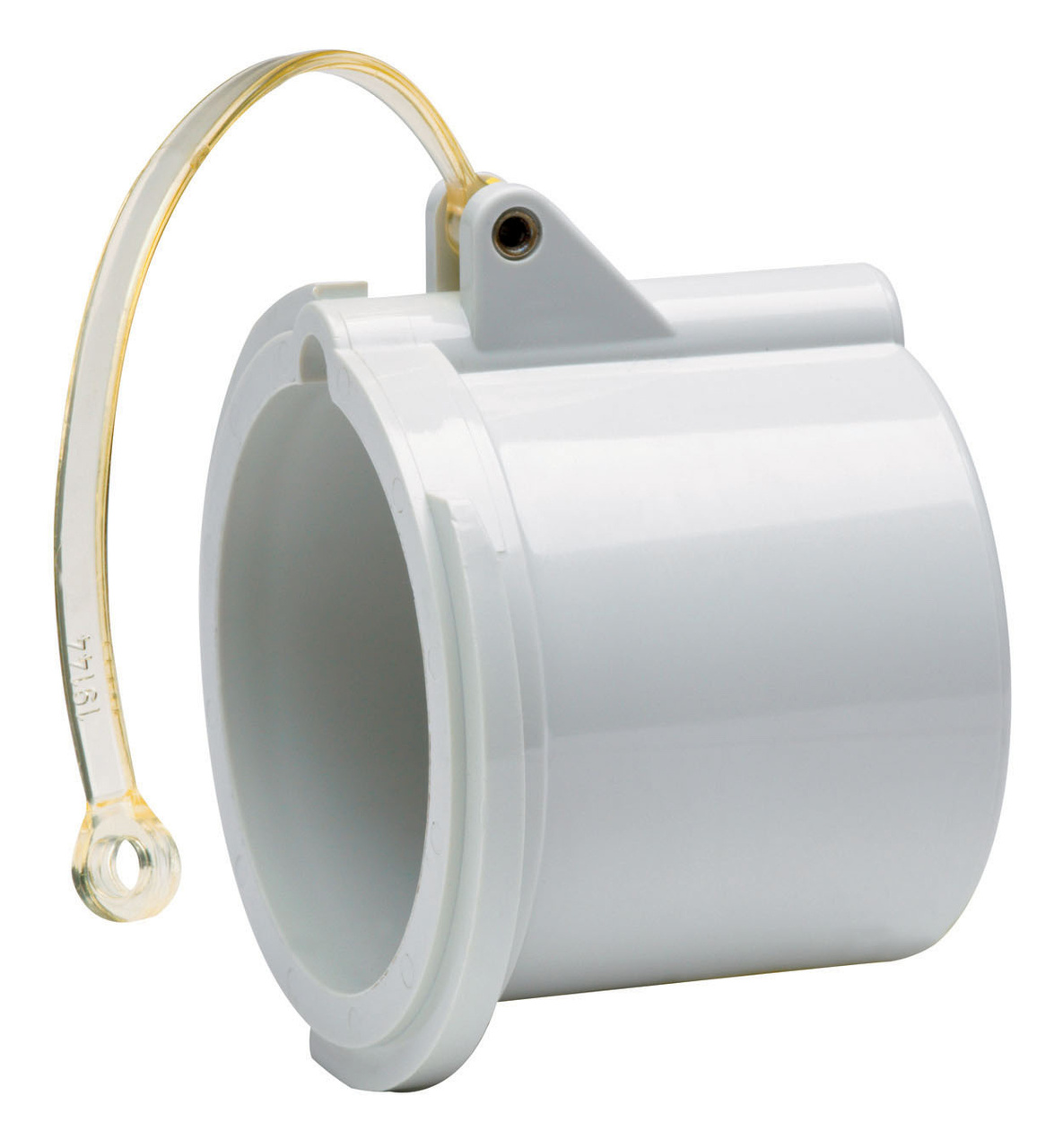

A	PSCP60	-	-	RFQ
B	PSCP100	-	-	RFQ
C	PS360C4-WL	3	125V	RFQ
D	PS320R7-WL	3	480V	RFQ
C	PS330C7-WL	3	480V	RFQ
D	PS360R7-WL	3	480V	RFQ
D	PS320R4-WL	3	125V	RFQ

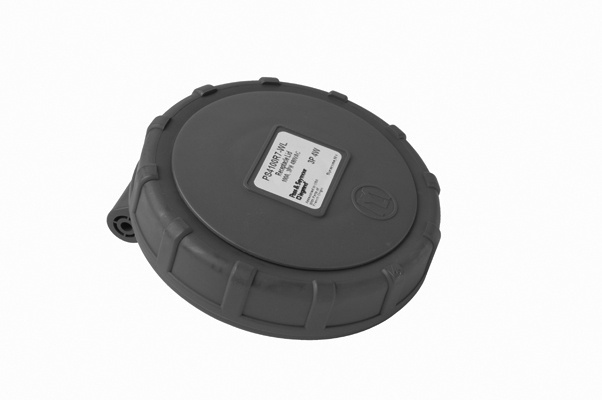

D	PS320R5-WL	3	277V	RFQ
D	PS320R6-WL	3	250V	RFQ
D	PS3100R4-WL	3	250V	RFQ
C	PS3100C4-WL	3	125V	RFQ
D	PS3100R6-WL	3	480V	RFQ
D	PS3100R7-WL	3	480V	RFQ
C	PS3100C7-WL	3	480V	RFQ
C	PS3100C6-WL	3	250V	RFQ
C	PS330C4-WL	3	125V	RFQ
C	PS330C6-WL	3	250V	RFQ
E	PS5100C7-WL	4	277V	RFQ
B	PSCP3430	4	-	RFQ
E	PS5100C5-WL	4	347V	RFQ
B	PSCP420	4	-	RFQ
C	PS430C5-WL	4	600V	RFQ
D	PS420R12-WL	4	125V	RFQ
C	PS4100C5-WL	4	600V	RFQ
D	PS560R5-WL	5	347V	RFQ

WOODHEAD -

130151 Series Receptacle Adapter

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Style	Model
A	1301510025	RFQ
B	1301510026	RFQ
C	1301510024	RFQ
D	1301510022	RFQ
E	1301510023	RFQ
F	1301510019	RFQ
G	1301510017	RFQ

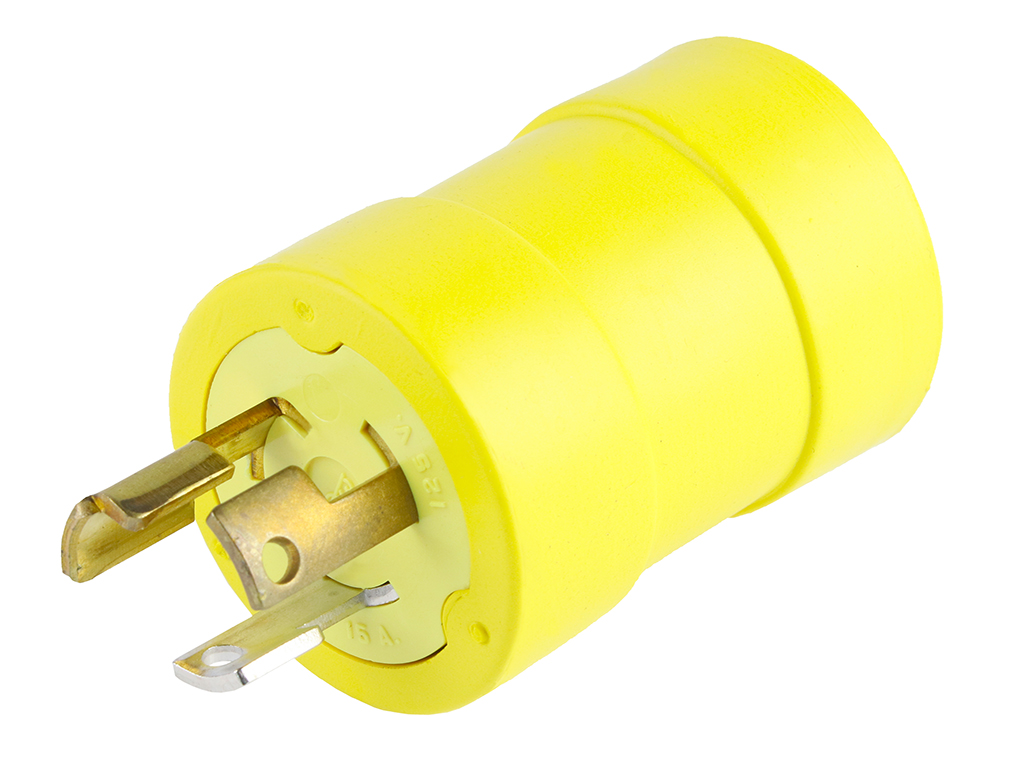

H	1301510014	RFQ

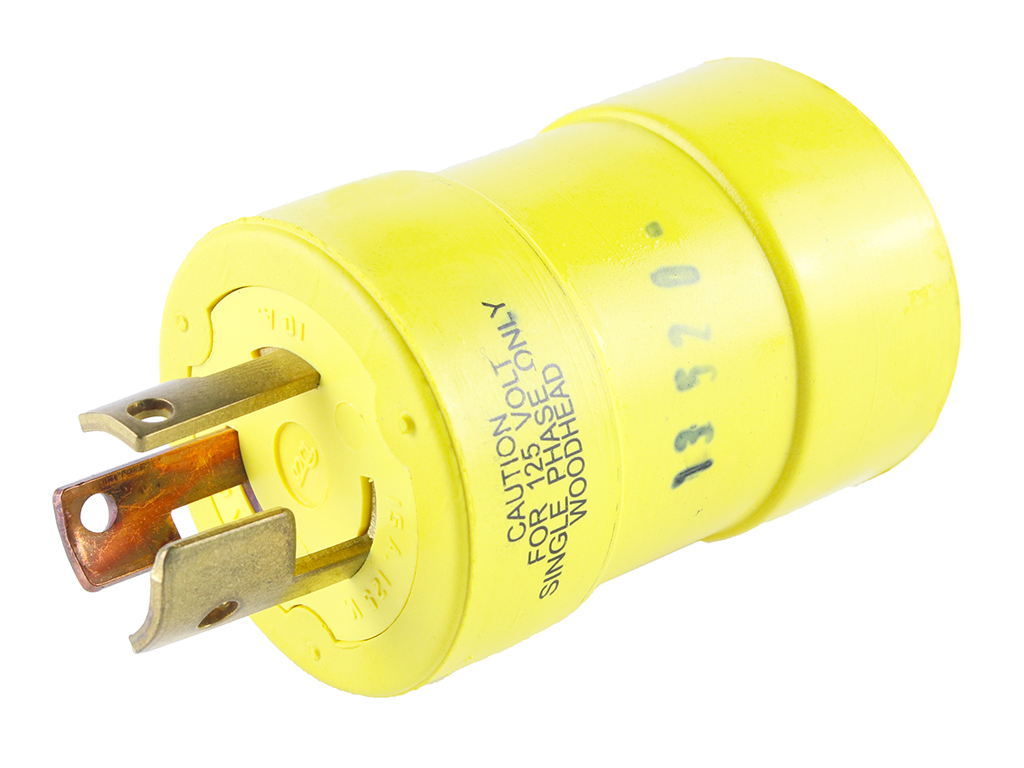

I	1301510013	RFQ
J	1301510021	RFQ
K	1301510020	RFQ
L	1301510018	RFQ
M	1301510016	RFQ
N	1301510012	RFQ

HUBBELL WIRING DEVICE-KELLEMS -

Conduit Liquidtight Adapter
Hubbell Wiring Device-Kellems watertight adapters are used to connect flexible metallic liquid tight conduits to the fixtures, junction boxes, equipment and electrical enclosures. They feature aluminium construction for protection from harmful UV radiations and are capable of withstanding dielectric voltages up to 3000VAC. These UL listed adapters can be operated at maximum temperature of 75 degrees C, available in 1-1/4 & 1-1/2 inch NPT sizes on Raptor Supplies.

A

Style	Model	Price (ex. VAT)
A	SAD125	€126.20
A	SAD150	€186.30

PASS AND SEYMOUR -

Pin And Sleeve Watertight Plugs

A

B

Style	Model	Number Of Wires	Voltage
A	PS3100P7-W	3	480V	RFQ
A	PS3100P6-W	3	250V	RFQ
A	PS3100P4-W	3	125V	RFQ
A	PS4100P5-W	4	600V	RFQ
A	PS4100P12-W	4	125V	RFQ
A	PS4100P7-W	4	480V	RFQ
B	PS5100P5-W	5	347V	RFQ
B	PS5100P7-W	5	277V	RFQ
B	PS5100P9-W	5	120V	RFQ
B	PS530P5-WR	5	347V	RFQ
B	PS530P7-WR	5	277V	RFQ

WOODHEAD -

130058 Series Closure Cap

A

B

C

D

Style	Model	Coupling Type	Type
A	1300580034	External Thread	Male	RFQ
B	1300580036	External Thread	Male	RFQ
C	1300580033	Internal Thread	Female	RFQ
D	1300580035	Internal Thread	Female	RFQ

PASS AND SEYMOUR -

Pin And Sleeve Connector Bodies

A

B

Style	Model	Number Of Wires	Voltage
A	PS320C4-WR	3	125V	RFQ
A	PS360C6-WR	3	250V	RFQ
A	PS320C7-WR	3	480V	RFQ
A	PS360C7-WR	3	480V	RFQ
A	PS320C5-WR	3	277V	RFQ
A	PS320C6-WR	3	250V	RFQ
A	PS3100C7-WR	3	480V	RFQ
A	PS3100C6-WR	3	250V	RFQ
A	PS3100C4-WR	3	125V	RFQ
A	PS360C4-WR	3	125V	RFQ
A	PS430C3-WR	4	600V	RFQ
A	PS460C12-WR	4	125V	RFQ
A	PS4100C5-WR	4	600V	RFQ
A	PS420C12-WR	4	125V	RFQ
B	PS5100C5-WR	4	347V	RFQ
B	PS5100C9-WR	4	120V	RFQ
B	PS460C9-WR	4	250V	RFQ
A	PS4100C9-WR	4	250V	RFQ
A	PS430C12-WR	4	125V	RFQ
B	PS530C5-WR	5	347V	RFQ
B	PS530C7-WR	5	277V	RFQ
A	PS520C5-WR	5	347V	RFQ
A	PS520C9-WR	5	120V	RFQ
A	PS520C7-WR	5	277V	RFQ
A	PS560C7-WR	5	277V	RFQ

GRAINGER -

Pin And Sleeve Receptacles

A

B

C

D

E

F

G

H

I

Style	Model	Price (ex. VAT)
A	BRY5100R9W	€534.84
B	BRY4100R7W	€473.66
C	BRY420R7W	€181.76
D	BRY560R9W	€443.15
E	BRY460R7W	€489.35
F	BRY4100R9W	€476.11
G	BRY320R6W	€130.99
H	BRY430R7W	€336.19
I	BRY460R9W	€375.14
