Pressure And Vacuum Switches

Filter

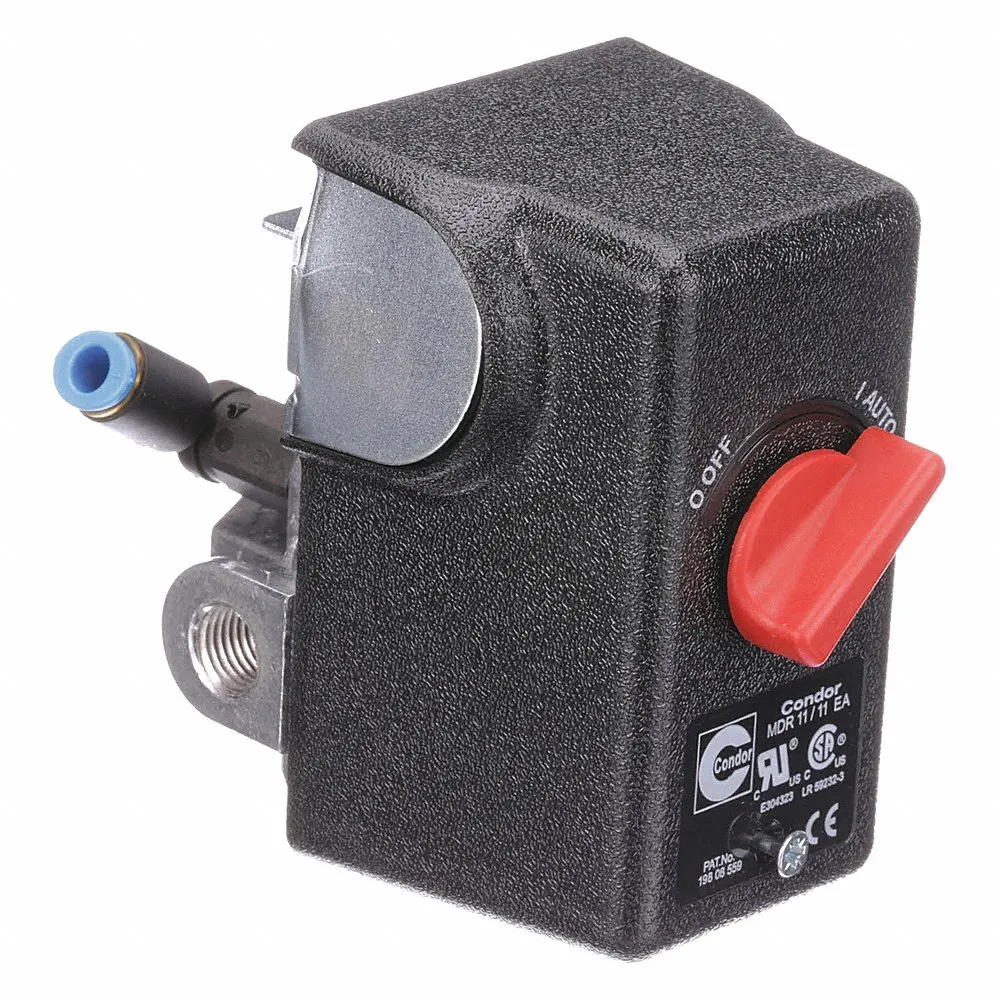

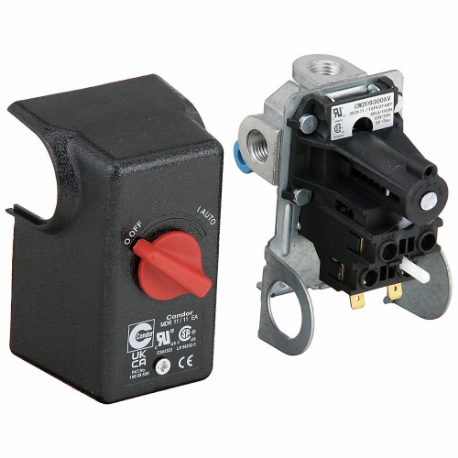

CONDOR -

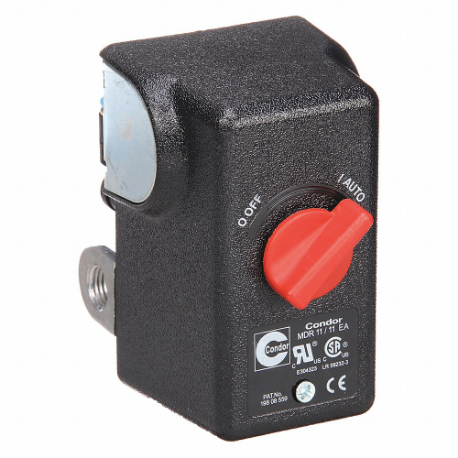

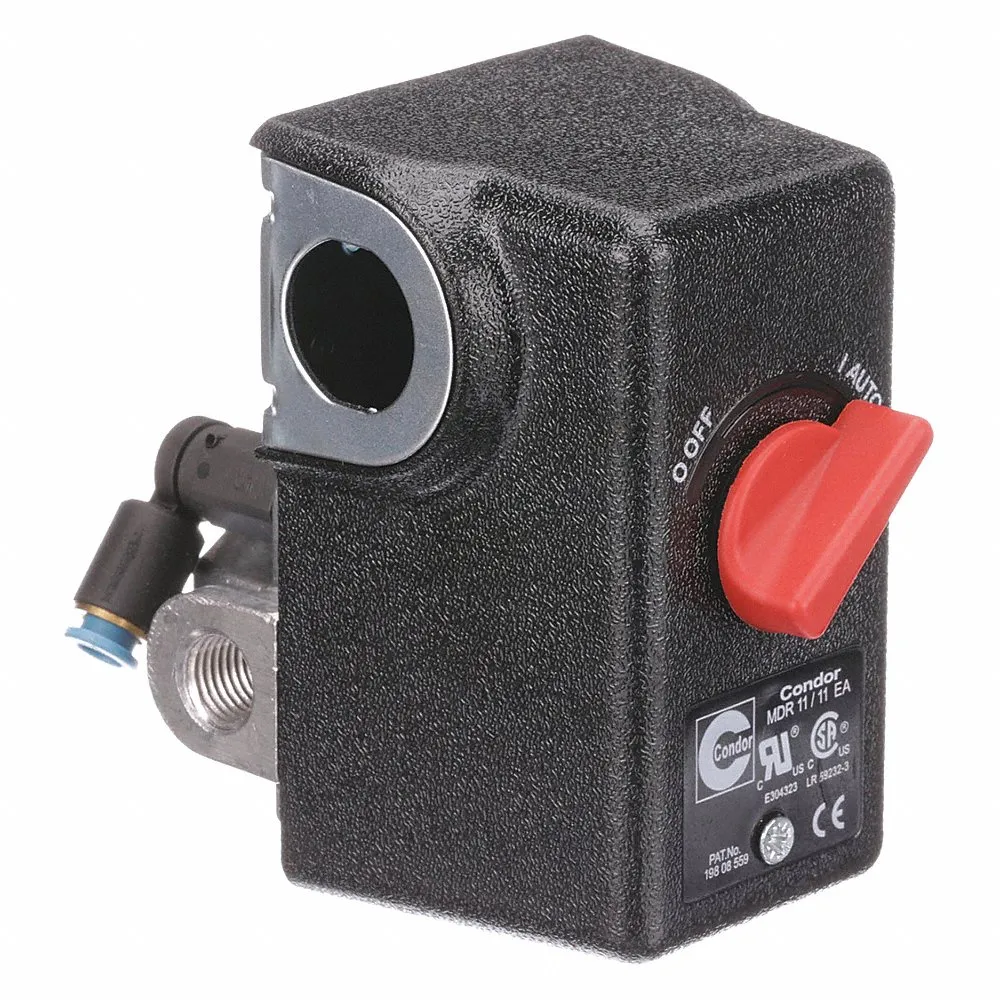

Single, Pressure Switch
Condor pressure switches are designed for use with air compressors and are used to pressure, monitor and control oils, liquids & gaseous media in tanks & pipeline systems. These pressure switches come equipped with an actuation type diaphragm which allows precise opening & closing of the valves and die-cast aluminium flanges provide increased strength in high-pressure applications. They also feature a clear enclosure for protection against harsh environments and a visible pressure scale for accurate pressure measurement. These GL and UL approved pressure control switches can withstand pressures up to 250 bar and are ideal for air pressure, shipping, vacuum & heating systems. Choose from a wide range of pressure control switches, available in standard and standard/reverse action variants on Raptor Supplies.

Style	Model	Ac Contact Rating	Action	Actuation Type	Burst Pressure	Contact Form	Dc Contact Rating	Differential	Factory On/off Setting	Price (ex. VAT)
A	MDR-F 4H-S UL	10A @ 230V	Standard/Reverse	Diaphragm	580	SPDT	6A @ 12V	2.2 to 54 psi	15/40 psi	€160.93
A	MDR-F 8H-S UL	10A @ 230V	Standard/Reverse	Diaphragm	580	SPDT	6A @ 12V	4.4 to 112 psi	30/60 psi	€163.49
A	MDR-F 16H-S UL	10A @ 230V	Standard/Reverse	Diaphragm	696	SPDT	6A @ 12V	8.7 to 225 psi	80/160 psi	€176.70
B	MDR-F 250HH-S UL	10A @ 230V	Standard/Reverse	Piston	7250	SPDT	6A @ 12V Pilot Duty	174 to 3450 psi	1450/1900 psi	€301.22
A	MDR-F 2H-S UL	10A @ 230V	Standard/Reverse	Diaphragm	580	SPDT	6A @ 12V Pilot Duty	1 to 28 psi	8/20 psi	€158.14
B	MDR-F 120HH-S UL	10A @ 230V	Standard/Reverse	Piston	3480	SPDT	6A @ 12V	116 to 1610 psi	580/1160 psi	€261.91
A	MDR-F 10H-S UL	10A @ 230V	Standard/Reverse	Diaphragm	580	SPDT	6A @ 12V	5.8 to 138 psi	60/75 psi	€164.76
A	MDR-F 32H-S UL	10A @ 230V	Standard/Reverse	Diaphragm	928	SPDT	6A @ 12V	17.4 to 450 psi	145/290 psi	€195.48
B	MDR-F 60HH-S UL	10A @ 230V	Standard/Reverse	Piston	1740	SPDT	6A @ 12V	58 to 810 psi	290/580 psi	€231.82
C	11NAXX	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	105/135 psi	€21.51
D	11EAXE	26A	Standard	Diaphragm	500 psi	DPST	-	20 to 45 psi	80/100 psi	€24.82
E	11WC2E	26A	Standard	Diaphragm	500 psi	DPST	-	40 to 65 psi	160/200 psi	€28.51
F	11GAXE	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	100/125 psi	€24.82
G	11NCXE	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	105/135 psi	€27.04
H	11WC2X	26A	Standard	Diaphragm	500 psi	DPST	-	40 to 65 psi	160/200 psi	€25.15
H	11KC2X	26A	Standard	Diaphragm	500 psi	DPST	-	30 to 65 psi	140/175 psi	€25.15
C	11GAXX	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	100/125 psi	€21.51
I	11GA2X	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	100/125 psi	€22.93
E	11KC2E	26A	Standard	Diaphragm	500 psi	DPST	-	30 to 65 psi	140/175 psi	€28.51
F	11SAXE	26A	Standard	Diaphragm	500 psi	DPST	-	20 to 45 psi	60/80 psi	€24.82
C	11KAXX	26A	Standard	Diaphragm	500 psi	DPST	-	30 to 65 psi	140/175 psi	€22.10
J	11ECXE	26A	Standard	Diaphragm	500 psi	DPST	-	20 to 45 psi	80/100 psi	€27.04
K	11LA2E	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	120/150 psi	€26.24
I	11NA2X	26A	Standard	Diaphragm	500 psi	DPST	-	25 to 65 psi	105/135 psi	€22.43
C	11WAXX	26A	Standard	Diaphragm	500 psi	DPST	-	40 to 65 psi	160/200 psi	€21.51

DWYER INSTRUMENTS -

DA Series Bourdon Tube Pressure Switches, Weather-proof

Style	Model	Pressure Range	Price (ex. VAT)
A	DAW-7033-153-3A	0.125 psi to 20 psi	€1,401.78
A	DAW-7033-153-5	2 psi to 60 psi	€1,401.78
A	DAW-7033-153-7	5 psi to 150 psi	€1,401.78

ASHCROFT -

Style	Model	Ac Contact Rating	Burst Pressure	Dc Contact Rating	Differential	Ip Rating	Nema Rating	Port Type	Range	Price (ex. VAT)
A	LPAN4HV25XCYLM200	10A @ 125/250V	1000 psi	0.5A @ 125V, 0.25A @ 250V	18 to 180 psi	66	4, 4X	1-Port 1/4" FNPT	20 to 200 psi	€478.80
A	LPAN4HV25XCYLM15	10A @ 125/250V	500 psi	0.5A @ 125V, 0.25A @ 250V	2.5 to 13 psi	66	4, 4X	1-Port 1/4" FNPT	1.5 to 15 psi	€477.26
A	LPAN4HV25XCYLM30	10A @ 125/250V	500 psi	0.5A @ 125V, 0.25A @ 250V	3.0 to 27 psi	66	4, 4X	1-Port 1/4" FNPT	3 to 30 psi	€478.80
A	LPAN4HV25XCYLM60	10A @ 125/250V	500 psi	0.5A @ 125V, 0.25A @ 250V	5.0 to 54 psi	66	4, 4X	1-Port 1/4" FNPT	6 to 60 psi	€478.80
A	LPAN4HV25XCYLM100	10A @ 125/250V	1000 psi	0.5A @ 125V, 0.25A @ 250V	10 to 90 psi	66	4, 4X	1-Port 1/4" FNPT	10 to 100 psi	€478.80
A	LPAN4HV25XCYLM400	10A @ 125/250V	1000 psi	0.5A @ 125V, 0.25A @ 250V	45 to 360 psi	66	4, 4X	1-Port 1/4" FNPT	40 to 400 psi	€478.80
A	LPDN4GGV25XCYLM200	15A @ 125/250/480V	1000 psi	0.5A @ 125V, 0.25A @ 250V	10 to 23 psi	66	4, 4X	1-Port 1/4" FNPT	20 to 200 psi	€534.12
B	B424VXCYLM400	15A @ 125/250/480V	1000 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	5 to 24 psi	66	3, 4, 4X, 13	1-Port 1/4" FNPT	40 to 400 psi	€294.97
C	B424VXCYLM200	15A @ 125/250/480V	1000 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	5 to 13 psi	66	3, 4, 4X, 13	1-Port 1/4" FNPT	20 to 200 psi	€294.97
D	B424VXCYLM100	15A @ 125/250/480V	1000 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	1.5 to 5.0 psi	66	3, 4, 4X, 13	1-Port 1/4" FNPT	10 to 100 psi	€294.97
B	B424VXCYLM600	15A @ 125/250/480V	3000 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	9 to 30 psi	54	3, 4, 4X, 13	1-Port 1/4" FPT	60 to 600 psi	€294.97
A	LPDN4GGV25XCYLM400	15A @ 125/250/480V	1000 psi	0.5A @ 125V, 0.25A @ 250V	22 to 42 psi	66	4, 4X	1-Port 1/4" FNPT	40 to 400 psi	€478.80
B	B424BXCYLM3000	15A @ 125/250/480V	18,000 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	80 to 235 psi	54	3, 4, 4X, 13	1-Port 1/4" FPT	300 to 3000 psi	€356.43
A	LPDN4GGV25XCYLM15	15A @ 125/250/480V	500 psi	0.5A @ 125V, 0.25A @ 250V	1.4 to 2.1 psi	66	4, 4X	1-Port 1/4" FNPT	1.5 to 15 psi	€478.80
E	B424VXCYLM15	15A @ 125/250/480V	500 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	0.5 to 1.5 psi	66	3, 4, 4X, 13	1-Port 1/4" FNPT	1.5 to 15 psi	€294.97
B	B424VXCYLM60	15A @ 125/250/480V	500 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	1.0 to 3.5 psi	66	3, 4, 4X, 13	1-Port 1/4" FNPT	6 to 60 psi	€294.97
B	B424VXCYLM30	15A @ 125/250/480V	500 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	0.5 to 1.5 psi	66	3, 4, 4X, 13	1-Port 1/4" FNPT	3 to 30 psi	€326.17
B	B424BXCYLM1000	15A @ 125/250/480V	18,000 psi	0.5A @ 125V, 0.25A @ 250V, 6A @ 30V	30 to 110 psi	54	3, 4, 4X, 13	1-Port 1/4" FPT	100 to 1000 psi	€356.43
A	LPDN4GGV25XCYLM100	15A @ 125/250/480V	1000 psi	0.5A @ 125V, 0.25A @ 250V	7 to 12 psi	66	4, 4X	1-Port 1/4" FNPT	10 to 100 psi	€513.64
A	LPDN4GGV25XCYLM30	15A @ 125/250/480V	500 psi	0.5A @ 125V, 0.25A @ 250V	1.4 to 5 psi	66	4, 4X	1-Port 1/4" FNPT	3 to 30 psi	€526.31
A	LPDN4GGV25XCYLM60	15A @ 125/250/480V	500 psi	0.5A @ 125V, 0.25A @ 250V	3 to 7 psi	66	4, 4X	1-Port 1/4" FNPT	6 to 60 psi	€478.83

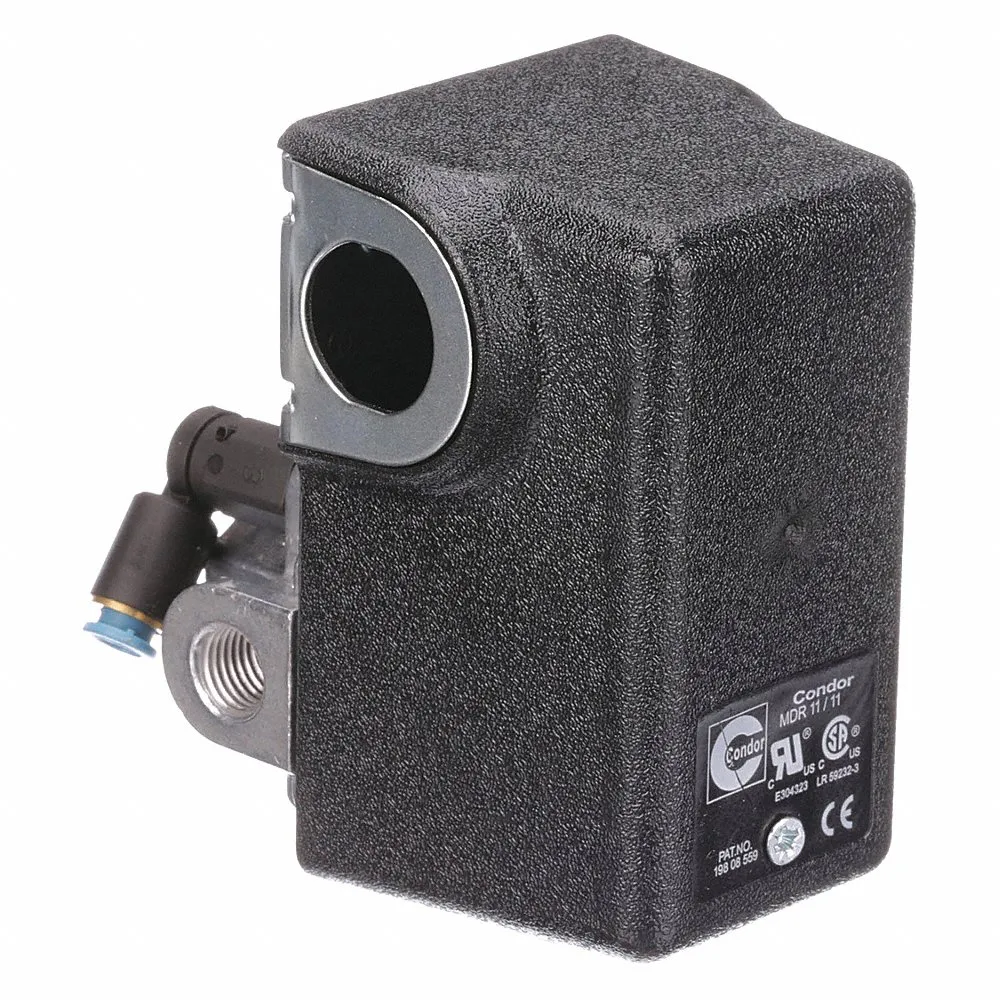

Single/Three Phase Pressure Switch
Condor pressure switches are designed for application in air compressors. These pressure switches are made in compliance with CSA and UL standards. They feature an auto-off disconnect lever to cut off the compressor and an unloader valve to avoid compressors from starting under load. These switches have operating temperatures ranging between -22 degrees Fahrenheit and 257 degrees Fahrenheit, and can withstand 35 bar maximum cut-out pressure. They have switching capacity of up to 7.5 kW and can work in single- and three-phase power supply.

Style	Model	Burst Pressure	Differential	Factory On/off Setting	Hp @ 1 Phase - 120v	Hp @ 1 Phase - 230v	Hp @ 1 Phase - 240v	Hp @ 3 Phase - 230v	Hp @ 3 Phase - 240v	Price (ex. VAT)
A	31GGXXXX	580 psi	15 to 70 psi	100/125 psi	2	5	5	7.5	7.5	€80.10
B	31KG3EXX	580 psi	30 to 110 psi	140/175 psi	2	5	5	7.5	7.5	€116.24
B	31WG3EGX	580 psi	30 to 110 psi	160/200 psi	1	2	2	5	5	€161.05
B	31GG3ENX	580 psi	15 to 70 psi	100/125 psi	1/8	1/3	1/3	1	1	€148.21
B	31EG3EEX	580 psi	15 to 70 psi	80/100 psi	1/2	1.5	1.5	3	3	€161.05
B	31EG3EDX	580 psi	15 to 70 psi	80/100 psi	1/4	1/2	1/2	1.5	1.5	€161.05
B	31WG3EXX	580 psi	30 to 110 psi	160/200 psi	2	5	5	7.5	7.5	€98.97
C	31WEXXXX	580 psi	30 to 110 psi	160/200 psi	2	5	5	7.5	7.5	€77.63
D	31KEXEXX	580 psi	30 to 110 psi	140/175 psi	2	5	5	7.5	7.5	€84.35
B	31EG3EXX	580 psi	15 to 70 psi	80/100 psi	2	5	5	7.5	7.5	€112.84
C	31QEXXXX	580 psi	15 to 70 psi	120/150 psi	2	5	5	7.5	7.5	€77.63
A	31EGXXXX	580 psi	15 to 70 psi	80/100 psi	2	5	5	7.5	7.5	€80.10
B	31KG3EEX	580 psi	30 to 110 psi	140/175 psi	1/2	1.5	1.5	3	3	€161.05
B	31QG3ELX	580 psi	15 to 70 psi	120/150 psi	2	-	-	7.5	7.5	€148.21
B	31GG3EXX	580 psi	15 to 70 psi	100/125 psi	2	5	5	7.5	7.5	€94.32
C	31NEXAXX	580 psi	10 to 80 psi	30/40 psi	2	5	5	7.5	7.5	€85.18
E	31EGXEXX	580 psi	15 to 70 psi	80/100 psi	2	5	5	7.5	7.5	€87.18
C	31GEXXXX	580 psi	15 to 70 psi	100/125 psi	2	5	5	7.5	7.5	€77.63
B	31WG3EEX	580 psi	30 to 110 psi	160/200 psi	1/2	1.5	1.5	3	3	€161.05
B	31QG3EGX	580 psi	15 to 70 psi	120/150 psi	1	2	2	5	5	€171.04
E	31SGXEXX	580 psi	15 to 70 psi	60/80 psi	2	5	5	7.5	7.5	€86.82
F	31SE3EXX	580 psi	15 to 70 psi	60/80 psi	2	5	5	7.5	7.5	€96.50
B	31QG3EEX	580 psi	15 to 70 psi	120/150 psi	1/2	1.5	1.5	3	3	€148.21
B	31SG3EXX	580 psi	15 to 70 psi	60/80 psi	2	5	5	7.5	7.5	€98.97
B	31KG3EDX	580 psi	30 to 110 psi	140/175 psi	1/4	1/2	1/2	1.5	1.5	€161.05

DAYTON -

Water Pump Pressure Switches
Dayton water pump pressure switches are used for direct control of electrically driven pumps. These switches feature diaphragm actuation for fail-safe operation and DPST contacts for controlling two circuits at the same time (either both circuits are OFF or both are ON). They are capable of handling burst pressures and temperatures up to 290 psi and 250 degrees F, respectively.

Style	Model	Factory On/off Setting	Manual Switch Action	Price (ex. VAT)
A	12T081	20/40 psi	None	€37.41
B	12T084	20/40 psi	Auto/Off/Reset	€44.48
B	12T087	20/40 psi	Auto/Off	€42.95
B	12T085	30/50 psi	Auto/Off/Reset	€49.30
B	12T088	30/50 psi	Auto/Off	€44.43
A	12T082	30/50 psi	None	€36.90
A	12T083	40/60 psi	None	€37.41
B	12T086	40/60 psi	Auto/Off/Reset	€23.51
B	12T089	40/60 psi	Auto/Off	€44.43

HONEYWELL -

Pressure Switch
Honeywell pressure switches are used to provide electrical feedback in response to a chamber either rising or falling to a pre determined pressure level. These units feature a glass-reinforced polyester enclosure with a screw terminal connection capable of field adjustments and a Kapton diaphragm compatible for use with a wide variety of fluids. They are further designed to work in conjunction with different terminations (Metri-Pack connector) which forms a tight seal when connected. Choose from a broad range of these pressure switches available in 750 PSI and 1250 psi burst pressure variants on Raptor Supplies.

Style	Model	Action	Burst Pressure	Contact Form	Factory On/off Setting	Nema Rating	Range	Price (ex. VAT)
A	76051-B00000020-01	Reverse	750 psi	SPST-NO	2 psi	1	1.1 to 3 psi ( +/-0.5)	€96.33
A	76575-B00000040-01	Reverse	750 psi	SPST-NO	4 psi	1	3.1 to 7 psi ( +/-1)	€104.20
A	76576-B00000100-01	Reverse	750 psi	SPST-NO	10 psi	1	8 to 13 psi ( +/-2)	€98.28
A	76052-B00000150-01	Reverse	750 psi	SPST-NO	15 psi	1	14 to 24 psi ( +/-3)	€103.16
A	76053-B00000300-01	Reverse	1250 psi	SPST-NO	35 psi	1	25 to 50 psi ( +/-5)	€104.91
B	76054-B00000600-01	Reverse	1250 psi	SPST-NO	60 psi	1	51 to 90 psi ( +/-7)	€107.29
A	76055-B00001000-01	Reverse	1250 psi	SPST-NO	100 psi	1	91 to 150 psi ( +/-10)	€99.63
A	76577-B00000040-01	Standard	750 psi	SPST-NC	4 psi	4, 4X, 13	3.1 to 7 psi ( +/-1)	€115.19
B	76061-B00000020-01	Standard	750 psi	SPST-NC	2 psi	1	1.1 to 3 psi ( +/-0.5)	€113.26
B	76064-B00000600-01	Standard	1250 psi	SPST-NC	60 psi	1	51 to 90 psi ( +/-7)	€131.02
A	76072-B00000150-01	Standard/Reverse	750 psi	SPDT-NO/NC	15 psi	4, 4X, 13	14 to 24 psi ( +/-3)	€136.67
A	76074-B00000600-01	Standard/Reverse	1250 psi	SPDT-NO/NC	60 psi	1	51 to 90 psi ( +/-7)	€125.43
A	76580-B00000100-01	Standard/Reverse	750 psi	SPDT-NO/NC	10 psi	1	8 to 13 psi ( +/-2)	€118.98

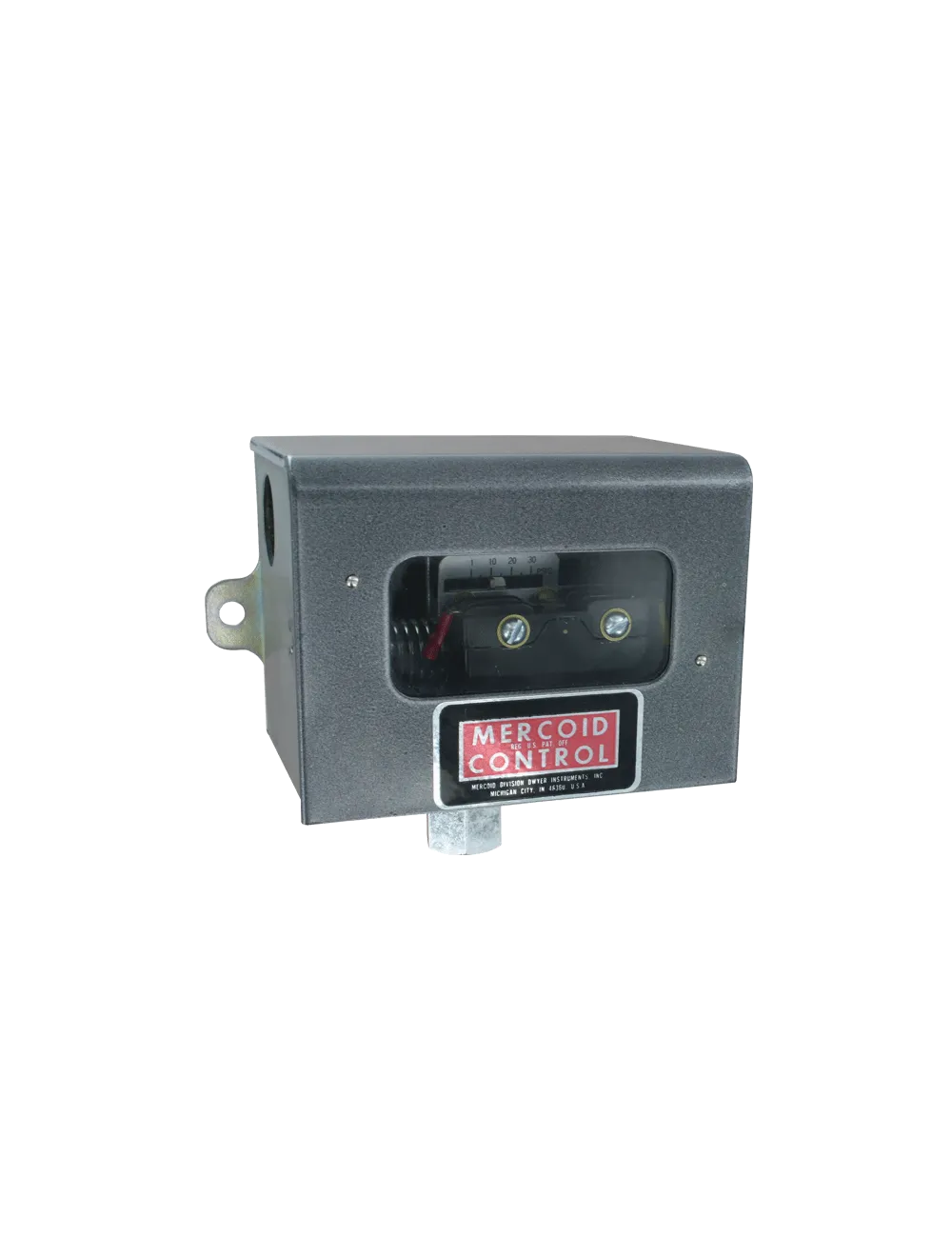

MERCOID -

Style	Model	Differential	Port Type	Range	Price (ex. VAT)
A	SA1111E-A4-K1	4 to 7.5 psi	1-Port 1/4" FNPT	10 to 150 psi	€968.52
A	SA1111E-S5-K2	4 to 7.5 psi	1-Port 1/2" FNPT	10 to 150 psi	€1,071.17
A	SA1112E-A4-K1	5 to 12.5 psi	1-Port 1/4" FNPT	20 to 250 psi	€968.52
A	SA1112E-S5-K2	5 to 12.5 psi	1-Port 1/2" FNPT	20 to 250 psi	€1,043.97
A	SA1113E-S5-K2	12 to 45 psi	1-Port 1/2" FNPT	30 to 500 psi	€1,071.17
A	SA1113E-A4-K1	12 to 45 psi	1-Port 1/4" FNPT	30 to 500 psi	€968.52

A3000 Series Photohelic Pressure Switch/Gages

Style	Model	Accuracy	Item	Pressure Range	Price (ex. VAT)
A	A3030	-	Gauge	-	€725.57
B	A3304	-	Gauge	-	€794.49
C	A3008	-	Gauge	-	€803.69
D	A3010AV	-/+ 2%	Pressure Gauge	0 to 10" wc	€809.84
D	A3002AV	-/+ 2%	Pressure Gauge	0 to 2" wc	€809.84
D	A3001AV	-/+ 2%	Pressure Gauge	0 to 1" wc	€759.12
D	A3215	-/+ 2%	Pressure Gauge	0 to 15 psi	€1,076.37
D	A3210	-/+ 2%	Pressure Gauge	0 to 10 psi	€1,076.37
D	A3301	-/+ 2%	Pressure Gauge	0.5 to 0 to 0.5" wc	€935.43
D	A3100	-/+ 2%	Pressure Gauge	0 to 100" wc	€772.26
D	A3050	-/+ 2%	Pressure Gauge	0 to 50" wc	€772.26
D	A3025	-/+ 2%	Pressure Gauge	0 to 25" wc	€772.26
D	A3010	-/+ 2%	Pressure Gauge	0 to 10" wc	€731.62
D	A3005	-/+ 2%	Pressure Gauge	0 to 5" wc	€772.26
D	A3003	-/+ 2%	Pressure Gauge	0 to 3" wc	€772.26
D	A3002	-/+ 2%	Pressure Gauge	0 to 2" wc	€731.62
D	A3001	-/+ 2%	Pressure Gauge	0 to 1" wc	€731.62
D	A3006	-/+ 2%	Pressure Gauge	0 to 6" wc	€799.02
D	A3300-0	-/+ 3%	Pressure Gauge	0.25 to 0 to 0.25" wc	€862.91
D	A3000-0	-/+ 3%	Pressure Gauge	0 to 0.5" wc	€772.26
D	A3000-00	-/+ 4%	Pressure Gauge	0 to 0.25" wc	€817.50

DWYER INSTRUMENTS -

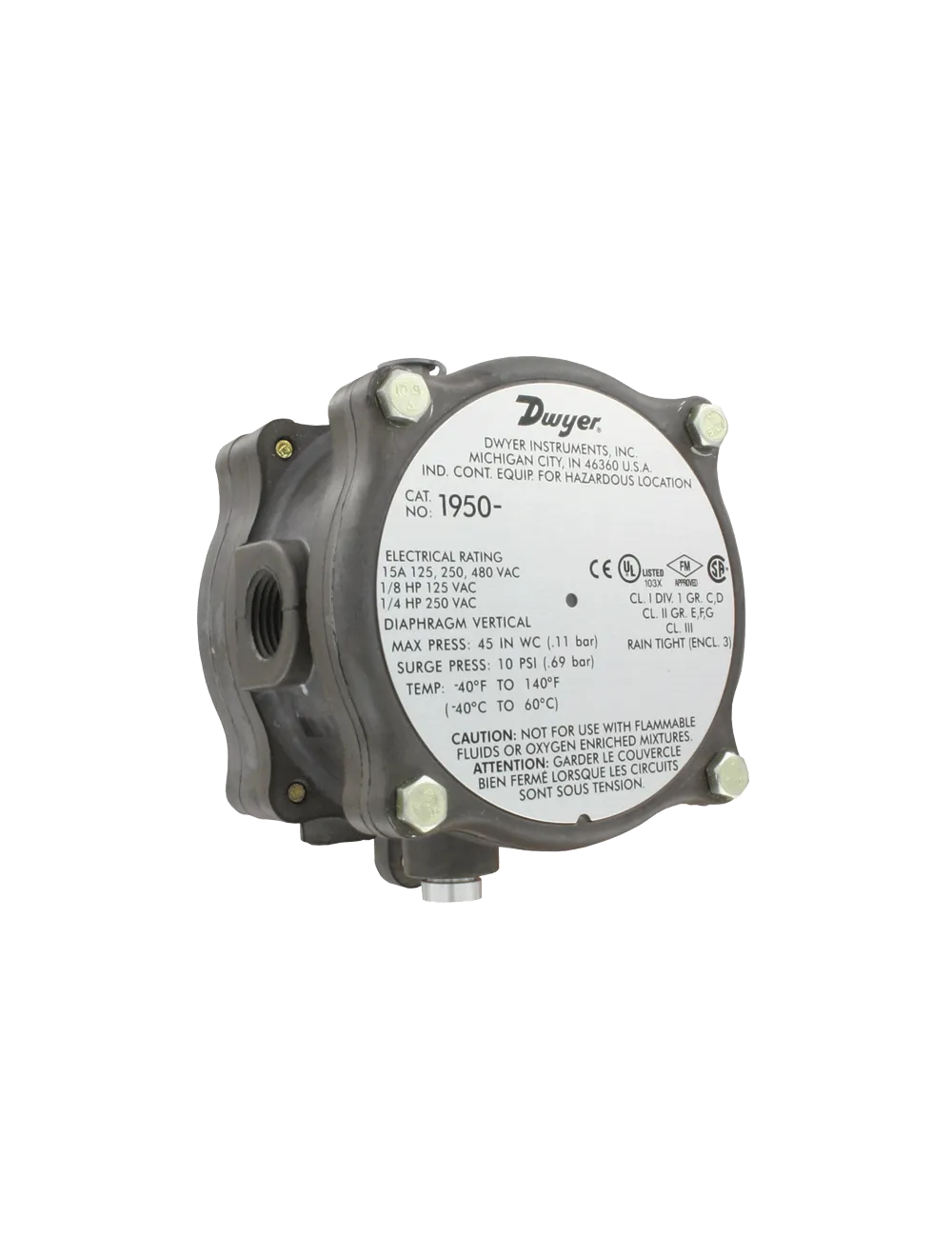

1950 Series Explosion-Proof Differential Pressure Switches

Style	Model	Approx Deadband Max. Set Point	Approx Deadband Min. Set Point	Connection Type	Continious Pressure	Item	Pressure Range	Surge Pressure	Price (ex. VAT)
A	1950-00-2F	-	-	-	-	Pressure Switch	0.07 in. wc to 0.15 in. wc	-	€402.18
B	1950-20-2F	-	-	-	-	Vacuum Switch	4 in. wc to 20 in. wc	-	€402.18
B	1950P-15-2F	-	-	-	-	Gauge	-	-	€468.35
C	1950P-2-2F	0.3	0.3	Npt	2.41 bar	Differential Pressure Switch	-	3.45 bar	€445.21
D	1950-5-2F	0.4	0.3	Npt	0.11 bar	Differential Pressure Switch	-	0.69 bar	€381.01
D	1950-10-2F	0.5	0.4	Npt	0.11 bar	Differential Pressure Switch	-	0.69 bar	€377.39
C	1950-0-2F	0.15	0.1	Fnpt	-	Pressure Switch	0.15 in. wc to 0.5 in. wc	-	€377.39

DWYER INSTRUMENTS -

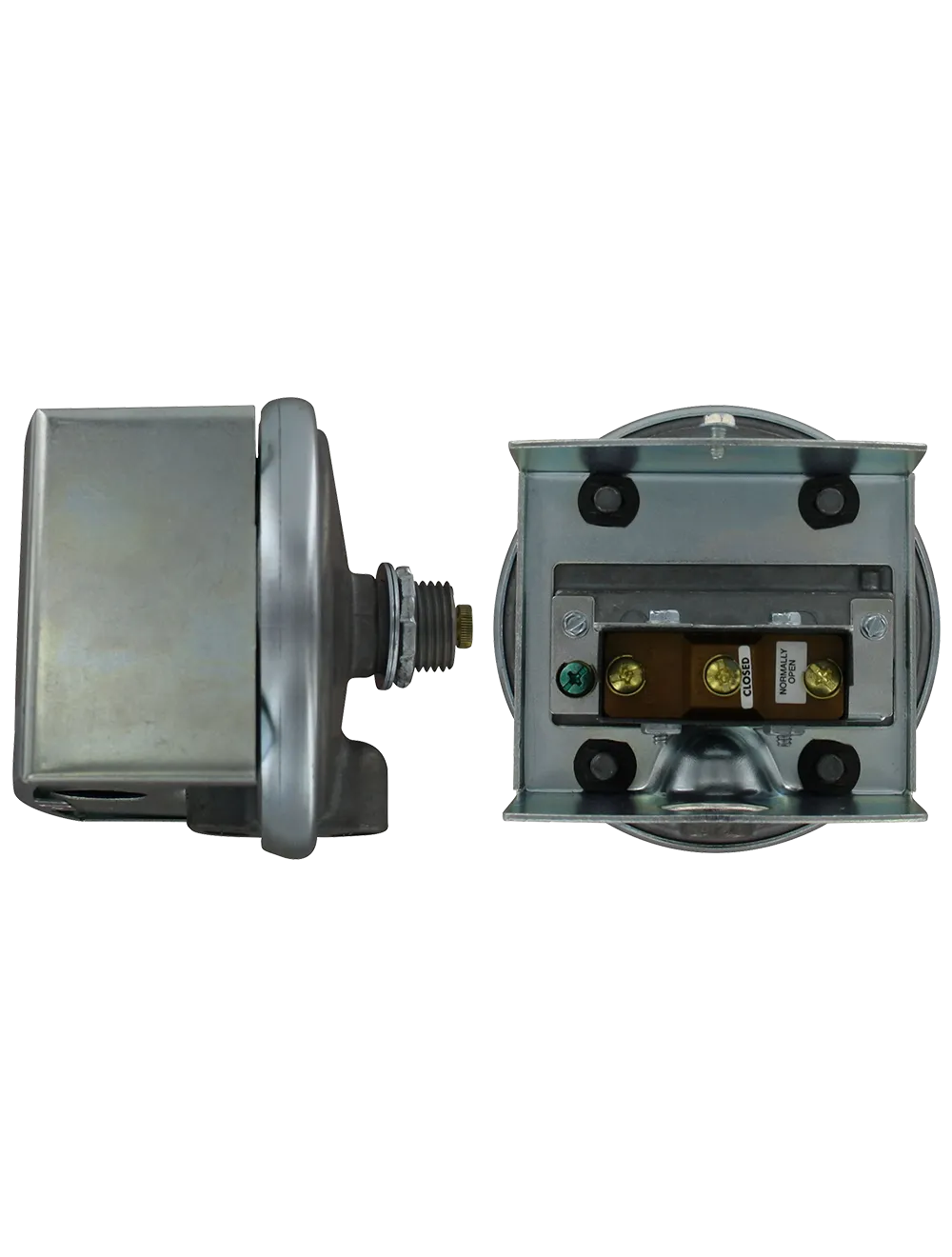

1800 Series Low Differential Pressure Switches

Style	Model	Item	Pressure Range	Price (ex. VAT)
A	1823-10	Differential Pressure Switch	2 in. wc to 10 in. wc	€128.25
B	1823-80	Gauge	9 in. wc to 85 in. wc	€131.97
C	1823-5	Gauge	1.5 in. wc to 5 in. wc	€130.18
D	1823-00	Gauge	0.07 in. wc to 0.22 in. wc	€138.94
B	1823-40	Pressure Switch	5 in. wc to 44 in. wc	€140.52
E	1823-1	Pressure Switch	0.3 in. wc to 1 in. wc	€140.52
E	1823-0	Switch	0.15 in. wc to 0.5 in. wc	€140.52

DWYER INSTRUMENTS -

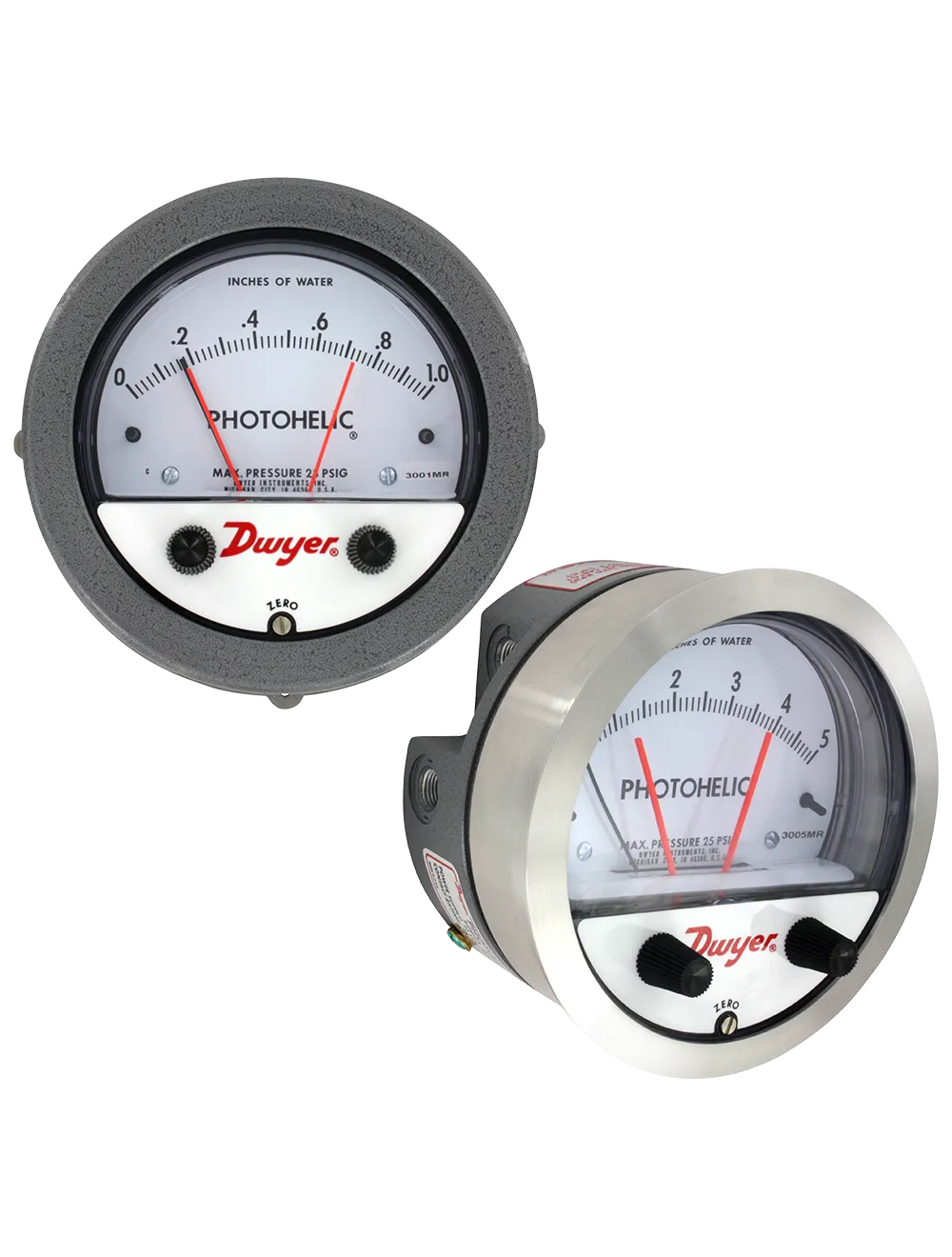

3000MR Series Photohelic Switches/Gages

Style	Model	Item	Pressure Range	Price (ex. VAT)
A	3000MR-0	Differential Guage	0 in. wc to 0.5 in. wc	€739.63
B	3001MR	Pressure Switch	0 in. wc to 1 in. wc	€765.02
A	3003MR	Pressure Switch	0 in. wc to 3 in. wc	€765.02
C	3010MR	Pressure Switch	0 in. wc to 10 in. wc	€728.01
B	3002MR	Switch	0 in. wc to 2 in. wc	€765.02

SQUARE D -

Style	Model	Item	Price (ex. VAT)
A	9013GHG5J57X	Pressure Switch	€174.65
A	9013GSG2J21X	Pressure Switch	€164.39
B	9013GHG5S2J62	Pressure Switch	€135.38
A	9013GSR2J21	Pressure Switch	€645.43
A	9013GHG2S6J26	Pressure Switch	€116.72
C	9013GSG2J23PRZ	Pressure Switch	€145.28
D	9013GHG2J31	Pressure Switch	€123.12
D	9013GHG2J56	Pressure Switch	€150.63
E	9013GHW2J63	Pressure Switch	€698.28
F	9013GHW2J63XZ	Pressure Switch	€788.76
D	9013GHG2J26	Pressure Switch	€165.83
G	9013GHG2S31J21	Pressure Switch	€127.41
H	9013GHG5S2J65	Pressure Switch	€127.93
I	9012GCW22	Pressure Switch 480Vac 10Amp G +Options	€1,043.82
J	9012GAW26	Pressure Switch 480Vac 10Amp G +Options	€519.61
K	9012GPG1	Pressure Switch 480Vac 10Amp G +Options	€468.51
L	9012GEW2	Pressure Switch 480Vac 10Amp G +Options	€776.97
M	9012GAW22	Pressure Switch 480Vac 10Amp G +Options	€567.53
L	9012GBW21	Pressure Switch 480Vac 10Amp G +Options	€769.93
A	9012GGW21	Pressure Switch 480Vac 10Amp G +Options	€998.33
N	9012GGW1	Pressure Switch 480Vac 10Amp G +Options	€1,031.74
O	9012GHW1	Pressure Switch 480Vac 10Amp G +Options	€1,308.38
P	9013FHG59J52M1X	Pressure Switch 575Vac 1Hp F +Options	€77.90
Q	9013FHG19J52M1X	Pressure Switch 575Vac 1Hp F +Options	€56.44
R	9013FHG2J27M1XZ22	Pressure Switch 575Vac 1Hp F +Options	€59.98

DA Series Bourdon Tube Pressure Switches

Style	Model	Connection Type	Min. Deadband	Pressure Range	Switch Type	Price (ex. VAT)
A	DA-31-153-9	SPDT	12 psig	10 psi to 300 psi	Mercury	€1,273.46
B	DA-7031-153-6	SPDT	13.5 psig	5 psi to 100 psi	Snap Action	€1,062.90
C	DA-7031-153-9	SPDT	37.5 psig	10 psi to 300 psi	Snap Action	€1,157.00
D	DA-31-153-7	SPDT	6 psig	5 psi to 150 psi	Mercury	€1,113.88
C	DA-7031-153-8	SPDT	24 psig	10 psi to 200 psi	Snap Action	€1,252.03
E	DA-7031-153-7	SPDT	24 psig	5 psi to 150 psi	Mercury	€1,051.07
A	DA-31-2-7	SPST	6 psig	5 psi to 150 psi	Mercury	€1,140.30
A	DA-31-2-9	SPST	12 psig	10 psi to 300 psi	Mercury	€1,225.10

DEVILBISS -

Style	Model	Price (ex. VAT)
A	Z-AC-0746	€199.84
A	Z-AC-0745	€53.57
A	5140110-49	€98.94
A	A17370	€168.72

2-5000 Series Minihelic II Differential Pressure Gages

Style	Model	Connection Type	Item	Pressure Range	Price (ex. VAT)
A	2-5210	Barbed	Differential Pressure Gauge	0 psi to 10 psi	€89.64
A	2-5003	Barbed	Gauge	0 in. wc to 3 in. wc	€89.75
A	2-5005	Barbed	Gauge	0 in. wc to 5 in. wc	€89.75
A	2-5002	Barbed	Gauge	0 in. wc to 2 in. wc	€89.75
A	2-5010	Barbed	Gauge	0 in. wc to 10 in. wc	€89.75
A	2-5020	Barbed	Gauge	0 in. wc to 20 in. wc	€89.75
A	2-5000-0	Barbed	Gauge	0 in. wc to 0.5 in. wc	€89.75
A	2-5001	Barbed	Pressure Gauge	0 in. wc to 1 in. wc	€89.75
A	2-5003-NPT	Npt	Gage	0 in. wc to 3 in. wc	€89.75

DWYER INSTRUMENTS -

APS Series Adjustable Pressure Switches

Style	Model	Item	Price (ex. VAT)
A	APS-450	Pressure Switch	€298.91
A	APS-150	Switch Set	€297.17

HONEYWELL -

Style	Model	Price (ex. VAT)
A	C6097A3004	€249.71
B	L4079B1033	€312.04
C	C6097A3012	€281.28
D	76055-00001000-01	€199.90

Style	Model	Range	Price (ex. VAT)
A	AK620E	5 to 65 psi	€399.37
B	AF564C	80 to 100 psi	€201.73

Style	Model	Price (ex. VAT)
A	SWT050T-16A-CP	€826.94	RFQ
A	SWT050T-25A-PP	€541.32	RFQ
A	SWT050T-25A-PV	€531.34	RFQ
A	SWT050T-3A-CP	€965.39	RFQ
A	SWT050T-25A-PF	€829.44	RFQ
A	SWT050T-3A-PP	€727.16	RFQ
A	SWT050T-3A-PV	€719.68	RFQ
A	SWT050T-16A-PP	€627.38	RFQ
A	SWT050T-3A-PF	€1,103.84	RFQ
A	SWT050T-16A-PV	€617.40	RFQ
A	SWT050T-25A-CP	€707.20	RFQ
A	SWT050T-16A-PF	€966.64	RFQ

Style	Model	Price (ex. VAT)
A	CHWPS4060D	€73.30
B	3BPS2000RTST	-	RFQ
C	CHWPS3050D	€76.52
D	CHWPS2040DP	€47.71
E	CHWPS3050DL	€58.47
F	CHWPS2040D	€76.52
G	CHWPS2040DL	€58.47

Hubbel 69J Series Heavy Duty Pressure Switches, Air

Style	Model	Price (ex. VAT)
A	69JF6L	€63.59	RFQ
B	69JG7Y	€74.60	RFQ
C	69JG6L	€71.95	RFQ
D	69JG6LY	€77.05	RFQ
E	69JG6Y	€74.60	RFQ
F	69JG7	€66.03	RFQ
G	69JG7LY	€77.05	RFQ
H	69JG7LY2C	€86.83	RFQ
I	69JG8	€66.03	RFQ
J	69JF9Y	€67.50	RFQ
K	69JG8LY	€77.05	RFQ
L	69JG8LY2C	€86.83	RFQ
M	69JG8Y	€74.60	RFQ
N	69JG9	€66.03	RFQ
O	69JG9LY	€77.05	RFQ
P	69JG9LY2C	€86.83	RFQ
Q	69JG9Y	€74.60	RFQ
R	69JG6	€66.03	RFQ
S	69JF9LY2C	€78.28	RFQ
T	69JF6LY	€68.80	RFQ
U	69JF7LY2C	€78.28	RFQ
V	69JF6LY2C	€78.28	RFQ
W	69JF6Y	€67.50	RFQ
X	69JF7	€57.68	RFQ
Y	69JF7L	€63.59	RFQ

12 3

Pressure And Vacuum Switches

We provide a wide variety of pressure and vacuum switches designed to keep track of pressure levels and for monitoring vacuum conditions in fluid, hydraulic or pneumatic systems. These switches come with a diaphragm or piston actuator and have a maximum burst pressure of 18000 psi.
We offer a wide range of differential, diaphragm, dual stage and single- / three-phase pressure switches from Ashcroft, Condor, Dayton, Dwyer Instruments, Gast, Honeywell, Mercoid, Plast-O-Matic and Square D. The differential pressure switches can measure pressures ranging between 0 and 5600 psi, and are suitable for use in petrochemical, chemical processing and oil & gas industries, as well as nuclear power plants and water management systems. We also provide high-quality vacuum switches featuring SPDT, DPDT or DPST contact form to detect any change in the vacuum level. These switches can operate at temperatures ranging from -10 degrees Fahrenheit to 185 degrees Fahrenheit.
Choose from a broad range of these high-quality vacuum switches and other pressure switches, based on different AC / DC contact ratings, contact forms and hp ratings, on Raptor Supplies.

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Pressure And Vacuum Switches

DA Series Bourdon Tube Pressure Switches, Weather-proof

Diaphragm Pressure Switch

Pressure Switch

A3000 Series Photohelic Pressure Switch/Gages

1950 Series Explosion-Proof Differential Pressure Switches

1800 Series Low Differential Pressure Switches

3000MR Series Photohelic Switches/Gages

Pressure and Vacuum Switches

DA Series Bourdon Tube Pressure Switches

Pressure Switches

2-5000 Series Minihelic II Differential Pressure Gages

APS Series Adjustable Pressure Switches

Pressure Switches

Pressure Switches

SWT Series Pressure Switches

CH Series Pressure Switches

Hubbel 69J Series Heavy Duty Pressure Switches, Air

Pressure And Vacuum Switches

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Pressure And Vacuum Switches

Pressure And Vacuum Switches

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
