What are the key factors to consider while selecting steam or hot water solenoid valve applications?

Operating pressure and temperatureType of fluid being handled Flow ratesSize of the valve needed

How do steam or hot water solenoid valves work?

Steam or hot water solenoid valves work by using an electromagnetic coil to create a magnetic field that pulls a plunger or piston to open the valve. When the coil is de-energised, a spring returns the plunger or piston to its original position, closing the valve.

Steam and Hot Water Solenoid Valves

ASCO VALVES -

Hot Water Solenoid Valve

A

B

C

Style	Model	Center Line Pipe Center Size	Coefficient Of Volume	Min. Operating Pressure Differential	Orifice Dia.	Overall Height	Overall Length	Overall Width	Pipe Size	Price (ex. VAT)
A	8210G002HW	2-13/16"	4	5 psi	5/8"	3.375"	2.75"	2 9/32"	1/2"	€206.20
B	8210G001HW	2-13/16"	3	5 psi	5/8"	3.375"	2.75"	2 9/32"	3/8"	€212.71
C	8221G005HW	3-9/16"	5.5	5 psi	3/4"	4-5/16"	2 23/32"	3 29/64"	3/4"	€461.77
B	8210G093HW	3-9/32"	3	0 psi	5/8"	3 27/32"	2.75"	2 16/64"	3/8"	€267.84
A	8210G094HW	3-9/32"	4	0 psi	5/8"	3 27/32"	2.75"	2 16/64"	1/2"	€236.77
A	8210G095HW	3.437"	5	0 psi	3/4"	4 3/32"	2 13/16"	2 9/32"	3/4"	€259.23

ASCO VALVES -

Steam Solenoid Valve

A

B

C

D

E

Style	Model	Center Line Pipe Center Size	Coefficient Of Volume	Coil Insulation Class	Hz	Min. Operating Pressure Differential	Orifice Dia.	Overall Height	Overall Length	Price (ex. VAT)
A	8222G093	3-9/32"	3	F	50/60	0 psi	5/8"	3 27/32"	2.75"	€476.31
B	8222G094	3-9/32"	4	F	50/60	0 psi	5/8"	3 27/32"	2.75"	€412.59
C	8267G015	3-21/64"	4.5	H	60	0 psi	3/8"	4-5/16"	3 27/64"	€508.02
C	8267G007	3-21/64"	4.5	H	60	0 psi	3/8"	4-5/16"	3.437"	€538.71
C	8267G011	3-21/64"	5.1	H	60	0 psi	3/8"	4-5/16"	3 27/64"	€508.02
C	8267G019	3-39/64"	9.7	H	60	0 psi	1/2"	4 59/64"	3 27/64"	€683.38
C	8267G023	3-39/64"	9.7	H	60	0 psi	1/2"	4 59/64"	3 27/64"	€683.38
B	8222G095	3.437"	5	F	50/60	0 psi	3/4"	4 9/64"	2 13/16"	€398.33
D	8222G066	3.625"	2.5	F	50/60	1 psi	3/8"	4 11/64"	2 9/32"	€312.30
D	8222G074	3.625"	2.5	H	50/60	1 psi	3/8"	4 11/64"	2 9/32"	€327.98
D	8222G076	3.625"	2.5	H	50/60	1 psi	3/8"	4 11/64"	2 9/32"	€382.69
D	8222G070	3.625"	1.2	H	50/60	1 psi	3/8"	4 11/64"	2 9/32"	€336.41
D	8222G047	4-1/64"	3.6	H	50/60	2 psi	1/2"	4 13/16"	2.75"	€420.75
D	8222G005	4-1/64"	4.6	H	50/60	5 psi	1/2"	4 13/16"	2.75"	€528.36
D	8222G049	4-1/64"	4.6	H	50/60	2 psi	1/2"	4 13/16"	2.75"	€477.98
E	8222G002	4-3/32"	4	H	50/60	0 psi	5/8"	4 43/63"	2.75"	€701.36
E	8222G003	4-9/32"	5	H	50/60	0 psi	3/4"	4 31/32"	2 13/16"	€794.21

ASCO VALVES -

Steam and Hot Water Solenoid Valve

A

B

C

D

E

F

G

H

I

J

Style	Model	Ambient Temp. Range	Center Line Pipe Center Size	Coefficient Of Volume	Coil Enclosure	Coil Insulation Class	Electrical Connections	Hz	Min. Operating Pressure Differential	Price (ex. VAT)
A	8220G095	125 Degrees F	4.5"	5	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	60	5 psi	€647.67
B	8220G402	125 Degrees F	3-17/32"	4.4	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	-	0 psi	€423.23
C	8220G031	125 Degrees F	4.75"	43	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€1,677.60
D	8220G410	125 Degrees F	4.187"	11.5	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€577.50
C	8220G013	125 Degrees F	4.75"	43	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€1,434.43
B	8220G408	125 Degrees F	3.5"	8.8	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	-	0 psi	€457.88

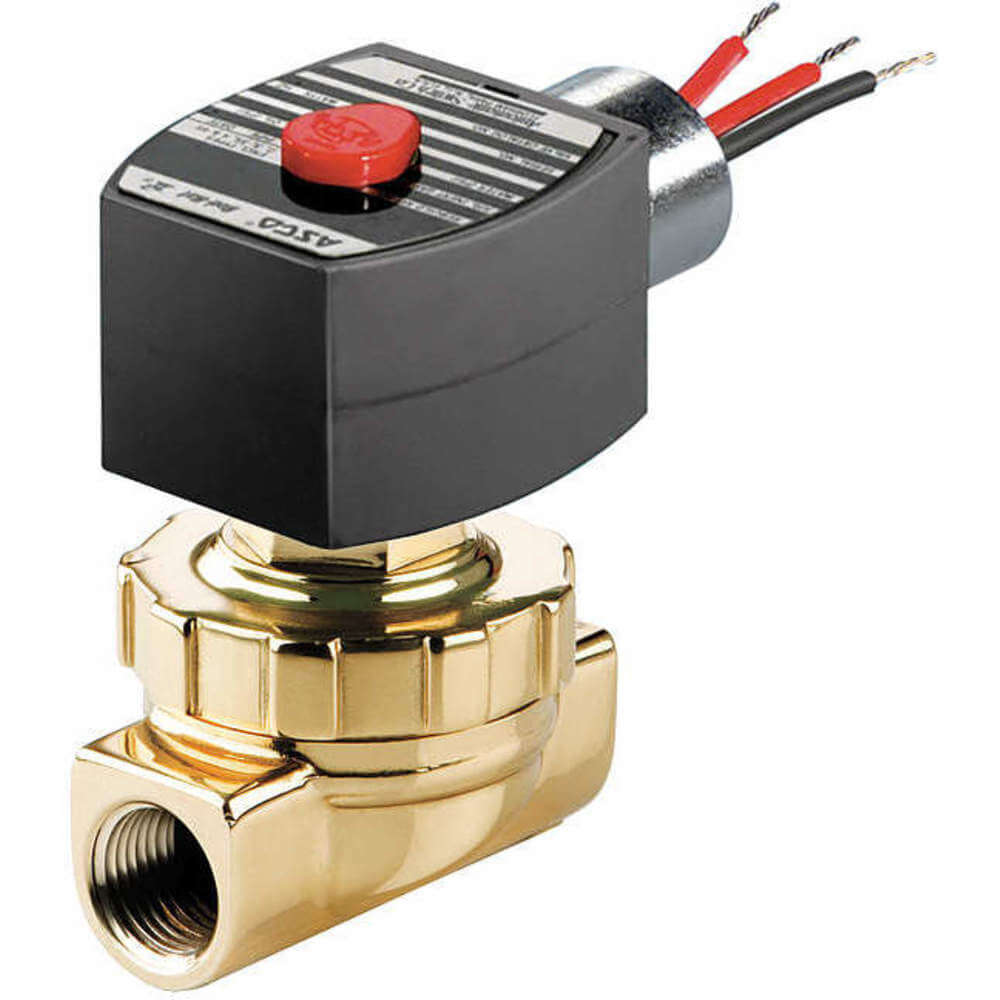

E	EF8220G406120/60	125 Degrees F	3-17/32"	4.7	Explosionproof & Watertight	H	1/2" Conduit w/18" Leads	50/60	5 psi	€476.56
C	8220G029	125 Degrees F	4-11/32"	22.5	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€1,288.54
C	8220G027	125 Degrees F	4-3/32"	15	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€994.41
C	8220G011	125 Degrees F	4-11/32"	22.5	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€834.92

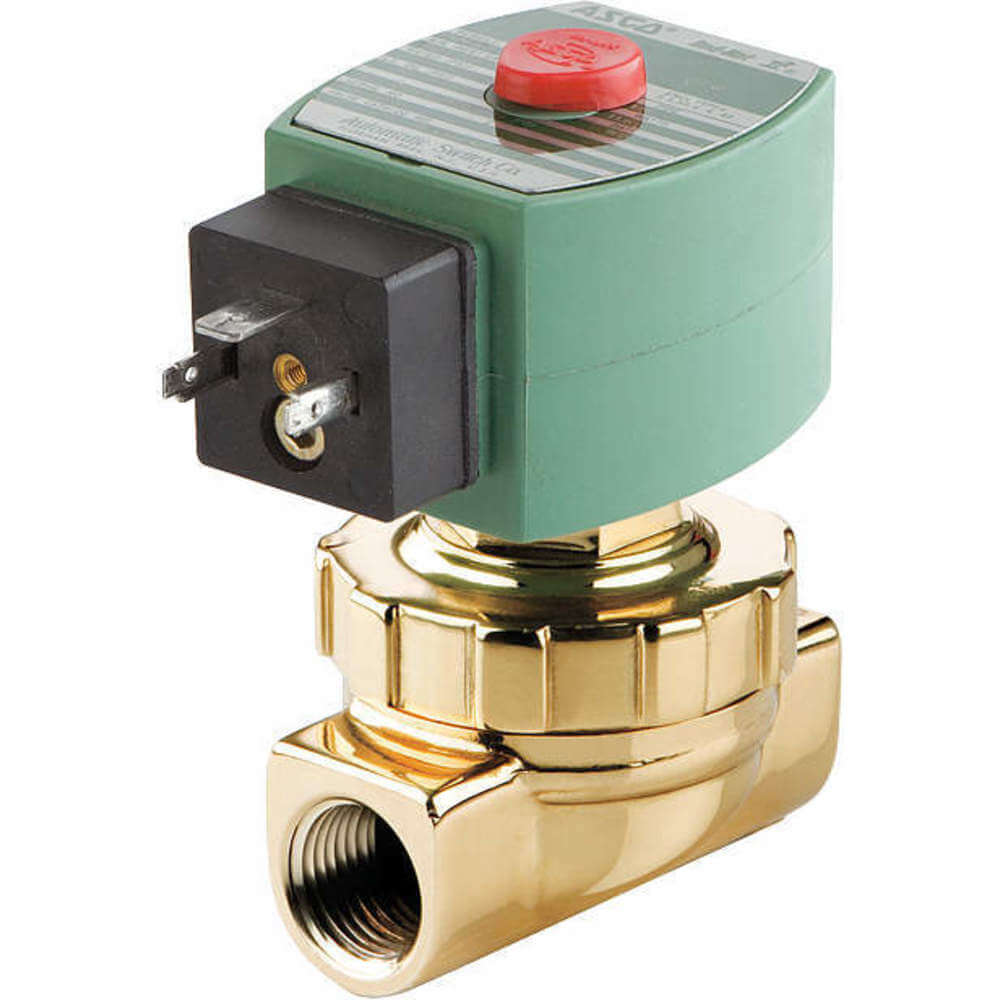

F	SU8220G406	125 Degrees F	3-17/32"	4.7	Watertight No Junction Box	H	DIN	50/60	5 psi	€429.98
B	8220G404	125 Degrees F	3-13/32"	4.7	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€258.77
B	8220G401	125 Degrees F	3-13/32"	4.4	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€248.90
G	EF8220G025	125 Degrees F	4.187"	13.5	Explosionproof & Watertight	H	1/2" Conduit w/18" Leads	50/60	5 psi	€1,011.40
H	8220G409	125 Degrees F	3.5"	8.8	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€439.99
C	8220G009	125 Degrees F	4-3/32"	15	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€633.96
B	8220G407	125 Degrees F	3-17/32"	8.8	Watertight No Junction Box	F	1/2" Conduit w/18" Leads	50/60	5 psi	€261.69
B	8220G405	125 Degrees F	3-17/32"	4.7	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	-	0 psi	€423.23

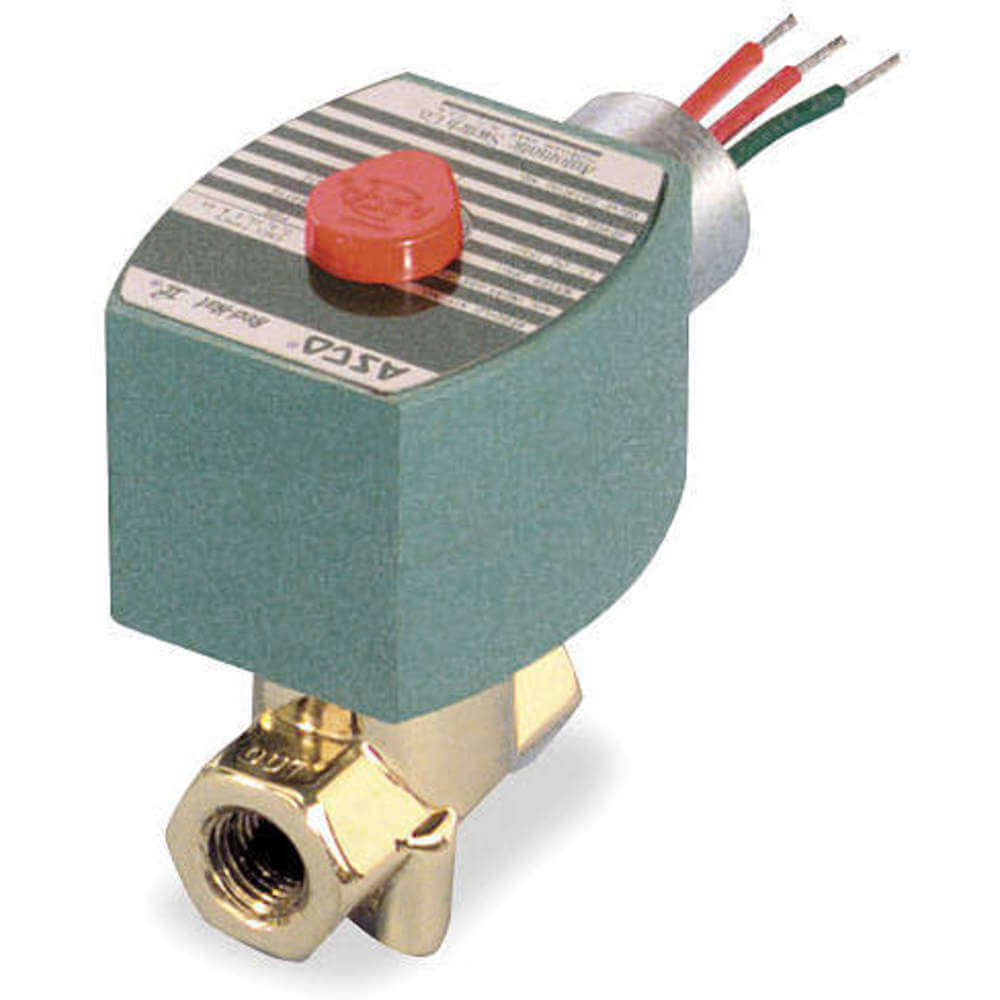

I	8263H300	131 Degrees F	2.593	0.52	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	0 psi	€246.73

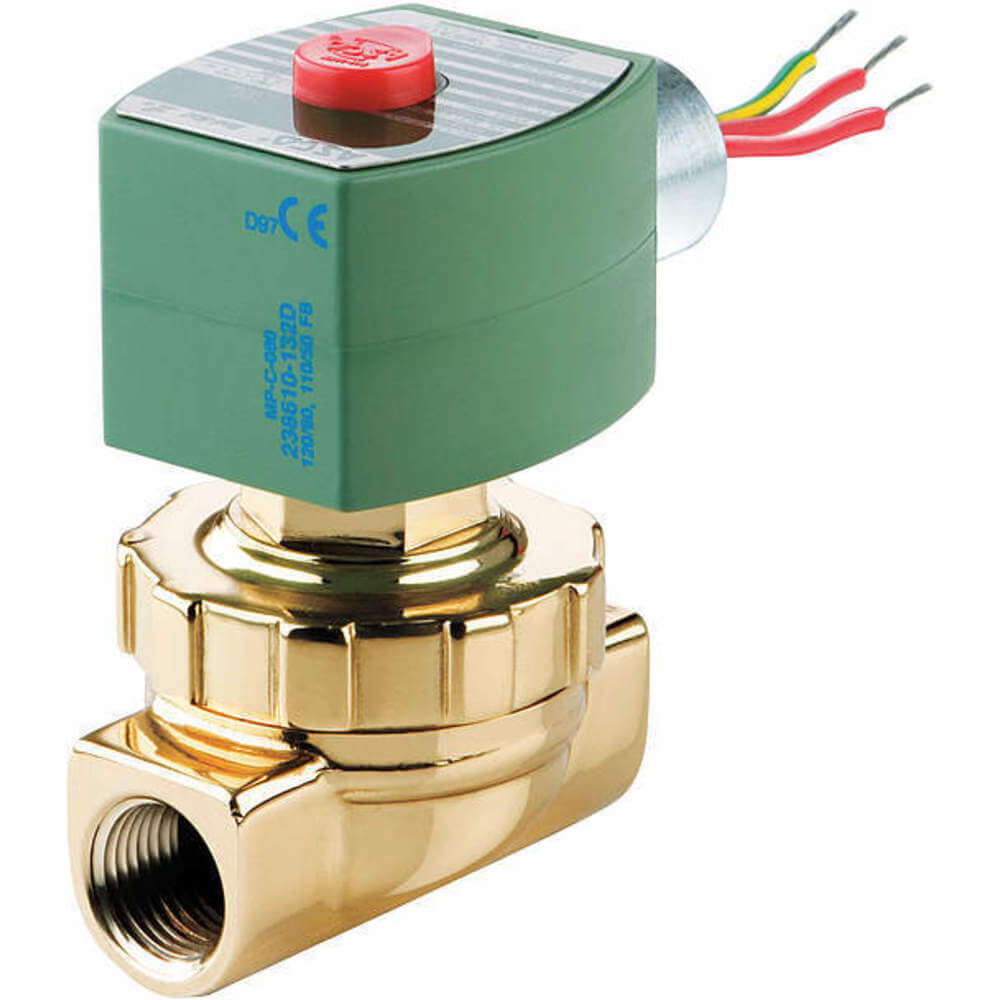

J	8263H305	131 Degrees F	2-9/16"	0.52	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	0 psi	€253.44
B	8220G403	140 Degrees F	3-17/32"	4.4	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€331.49
B	8220G409	140 Degrees F	3.5"	8.8	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€462.66
B	8220G406	140 Degrees F	3-17/32"	4.7	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€369.28

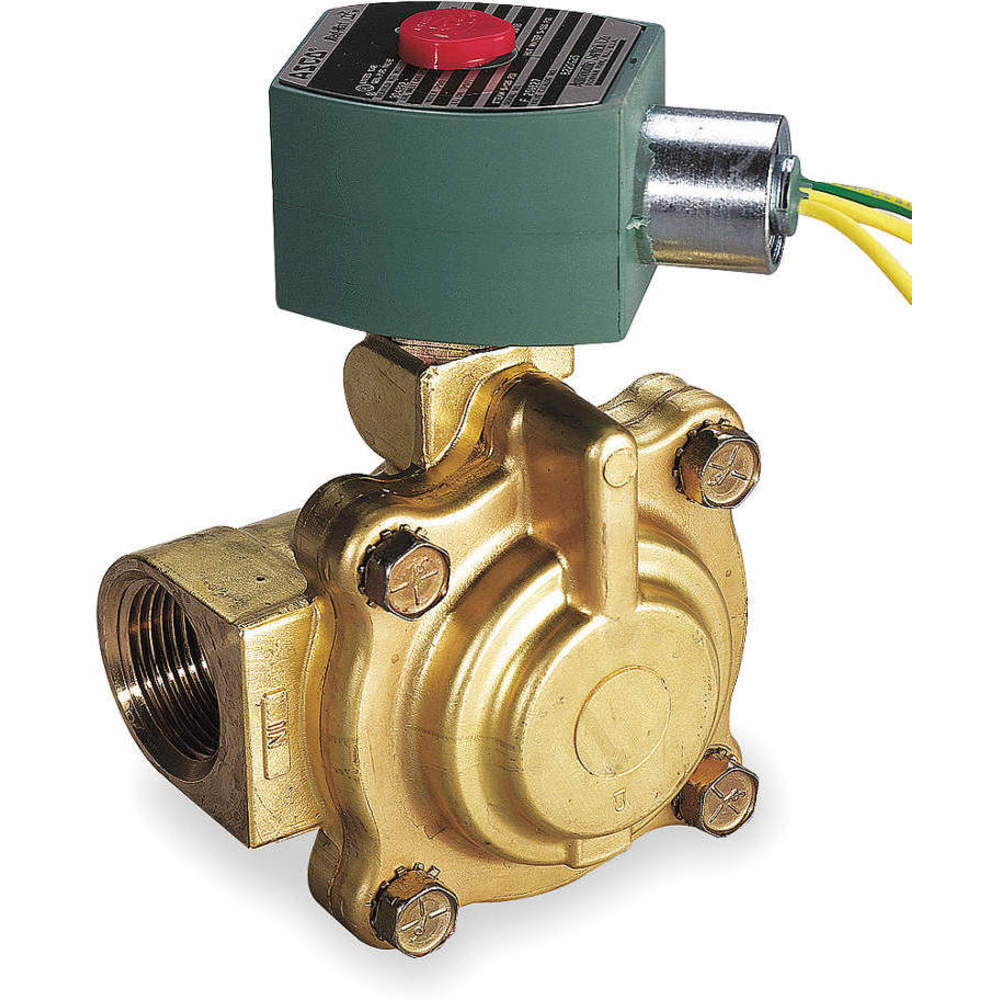

D	8220G411	140 Degrees F	4.187"	11.5	Watertight No Junction Box	H	1/2" Conduit w/18" Leads	50/60	5 psi	€1,009.61

ASCO VALVES -

Slow Close HW Solenoid 1/2 inch NC Brass

Model	Item	Price (ex. VAT)
8221G003HW	AD7HRE	€424.45

ASCO VALVES -

Slow Close HW Solenoid 1 inch NC Brass

Model	Item	Price (ex. VAT)
8221G007HW	AE4MKR	€938.36
