Timed Electric Auto Drain Valves

SPEEDAIRE -

Timed Electric Auto Drain Valve
Speedaire auto drain valves are designed for draining the oil and condensed water from moisture separators, filters, aftercoolers, dryers and air receiver tanks. These Speedaire auto drain valves come equipped with an adjustable electronic timer for automatic opening & closing of valves. Speedaire auto drain valves feature filter ball valves for controlling the high-pressure flow rates and reducing the frictional losses. Models from 38X Series of these Speedaire auto drain valves, such as 38XT33 and 38XR59 can handle temperatures ranging from 35 to 95 degrees F and models from the 13X Series, such as 13X524, 13X525, 13X526 and 13X528 have an operating temperature range between 14 and 140 degrees F.

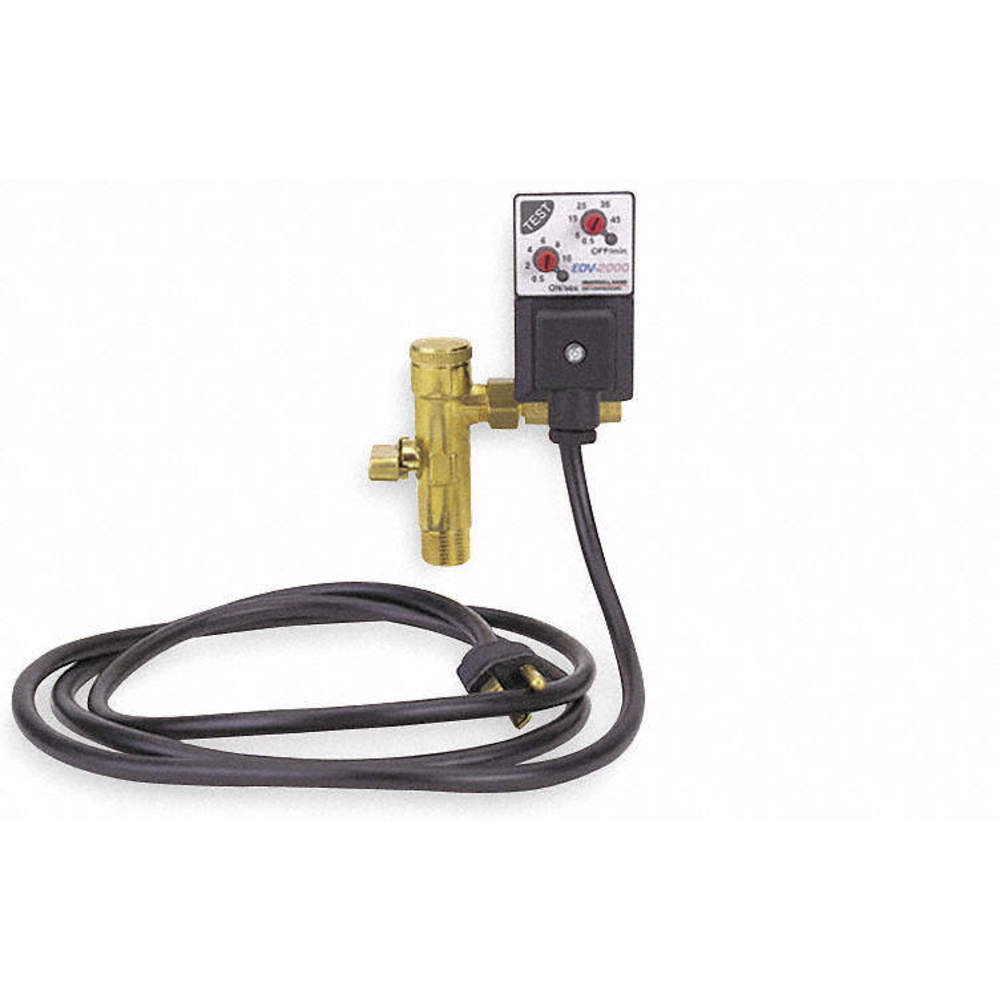

A

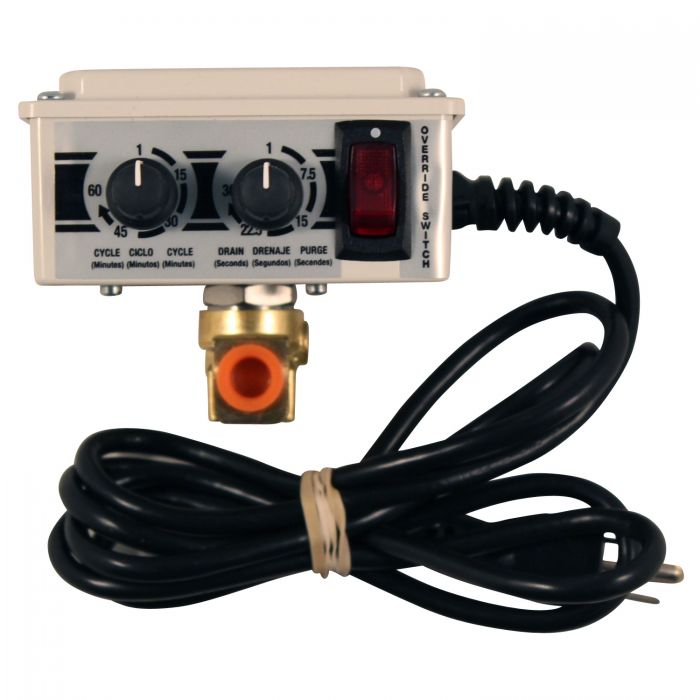

B

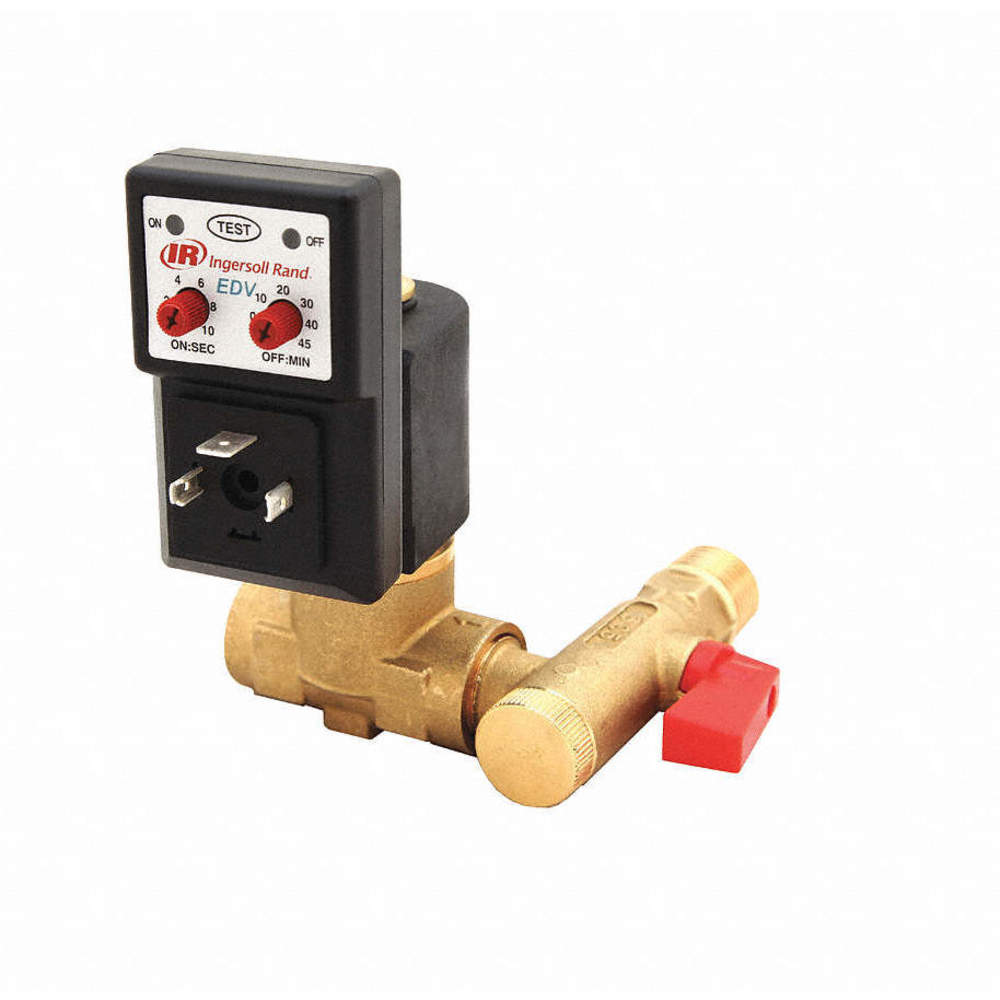

C

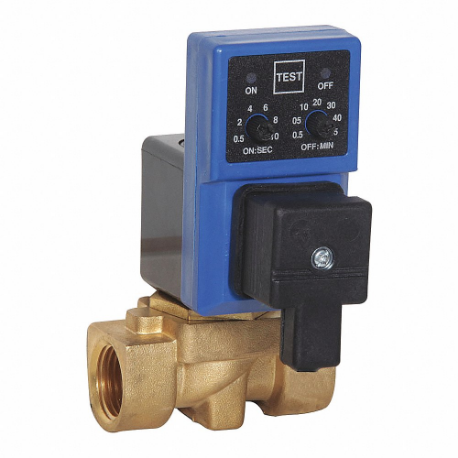

D

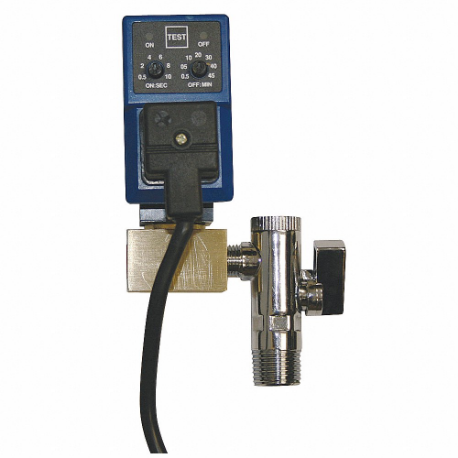

E

F

G

H

Style	Model	Amps Ac	Body Material	Drain Rate	Drain Size	Item	Max. Pressure	Operating Temp. Range	Overall Depth	Price (ex. VAT)
A	53CE44	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€315.55
B	53CE42	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€311.23
C	53DN43	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€308.38
C	53CE43	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€336.54
D	53RG49	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€175.64
B	53CE41	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€303.93
D	53RG52	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€251.81
D	53RG51	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€180.00
D	53RG50	-	-	-	-	Timed Electric Auto Drain Valve	-	-	-	€216.17
E	13X523	0.1	Brass	0.75 gpm	1/8"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	2-29/32"	€132.99
F	13X522	0.1	Brass	0.75 gpm	1/8"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	2-29/32"	€132.99
E	13X529	0.3	Brass	4.53 gpm	1/2"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	3-13/64"	€145.53
F	13X528	0.3	Brass	4.53 gpm	1/2"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	3-13/64"	€152.91
E	13X527	0.3	Brass	4.33 gpm	3/8"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	3-13/64"	€141.70
F	13X526	0.3	Brass	4.33 gpm	3/8"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	3-13/64"	€139.32
E	13X525	0.3	Brass	2.55 gpm	1/4"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	3-13/64"	€131.65
F	13X524	0.3	Brass	2.55 gpm	1/4"	Electric Auto Drain Valve	250 psi	14 Degrees to 140 Degrees F	3-13/64"	€137.94
G	13X535	0.4	Brass	17.5 gpm	1/2"	Electric Auto Drain Valve	300 psi	14 Degrees to 140 Degrees F	3-35/64"	€194.69
G	13X534	0.4	Brass	17.5 gpm	1/2"	Electric Auto Drain Valve	300 psi	14 Degrees to 140 Degrees F	3-35/64"	€226.98
G	13X533	0.4	Brass	16.5 gpm	3/8"	Electric Auto Drain Valve	300 psi	14 Degrees to 140 Degrees F	3-35/64"	€194.69
G	13X532	0.4	Brass	16.5 gpm	3/8"	Electric Auto Drain Valve	300 psi	14 Degrees to 140 Degrees F	3-35/64"	€205.51
G	13X531	0.4	Brass	15.5 gpm	1/4"	Electric Auto Drain Valve	300 psi	14 Degrees to 140 Degrees F	3-35/64"	€205.51
G	13X530	0.4	Brass	15.5 gpm	1/4"	Electric Auto Drain Valve	300 psi	14 Degrees to 140 Degrees F	3-35/64"	€189.64
H	38XT52	0.25	Brass	6.0 gpm	1/4"	Electric Auto Drain Valve	250 psi	35 Degrees to 95 Degrees F	5"	€647.81
H	38XT57	0.25	316 Stainless Steel	6.0 gpm	1/4"	Electric Auto Drain Valve	250 psi	35 Degrees to 95 Degrees F	5"	€1,133.40

DYNAQUIP CONTROLS -

Timed Electric Auto Drain Valve

A

Style	Model	Drain Rate	Drain Size	Overall Height	Pipe Size	Voltage	Price (ex. VAT)
A	AD2A 1/2	3.1 gal./cycle	1/2"	5 21/64"	1/2" NPT	12 VDC	€403.18
A	AD2A 3/4	6.0 gal./cycle	3/4"	5.875"	3/4" NPT	12 VDC	€374.90
A	AD2A 1	7.7 gal./cycle	1"	6 13/64"	1" NPT	12 VDC	€432.28
A	AD2A 1 1/4	12.8 gal./cycle	1.25"	6 51/64"	1-1/4" NPT	115V	€524.34
