CARLING TECHNOLOGIES Toggle Switches

Wide range of SPDT, DPDT, DPST, SPST and 3PDT toggle switches offered in 1 to 20-amp versions. Designed in accordance with UL, CSA, & VDE standards

Filter

CARLING TECHNOLOGIES -

DPDT Toggle Switch

CARLING TECHNOLOGIES 6GG5B-73A
CARLING TECHNOLOGIES LT2561-603-012B
CARLING TECHNOLOGIES 2GM54-73C
CARLING TECHNOLOGIES 2GX53-73/TABSD
CARLING TECHNOLOGIES 2GL54-73E
CARLING TECHNOLOGIES 2GO53-73/TABSF
CARLING TECHNOLOGIES 6GO53-73/TABSG
CARLING TECHNOLOGIES 2GM721-D-4B-BH
CARLING TECHNOLOGIES 2GM724-D-4B-BI
StyleModelAc Contact RatingActuator LengthHpMounting HoleNumber Of ConnectionsStem Dia. And Thread SizeStem LengthSwitch FunctionPrice (ex. VAT)
A6GG5B-7315A @ 125 VAC, 10A @ 250 VAC0.68"3/40.469" Dia.40.406"0.47"Off/Circuit 1 On/ Circuit 1&2 Momentary On€8.95
A2GL51-7315A @ 125 VAC, 10A @ 250 VAC0.687"3/40.5" Dia.615/32-32UNS-2A x 0.5" Dia.0.465"On/On€5.16
BLT2561-603-01215A @ 125 VAC, 10A @ 250 VAC0.68"3/40.469" Dia.80.406"0.47"On/Off/On€8.83
C2GM54-7315A @ 125 VAC, 10A @ 250 VAC0.687"3/40.5" Dia.615/32-32UNS-2A x 0.5" Dia.0.465"On/Off/On€6.89
D2GX53-73/TABS15A @ 125 VAC, 10A @ 250 VAC0.68"3/40.469" Dia.60.406"0.47"On/On Reversing€7.15
A2GM51-7315A @ 125 VAC, 10A @ 250 VAC0.687"3/40.5" Dia.615/32-32UNS-2A x 0.5" Dia.0.465"On/Off/On€5.23
E2GL54-7315A @ 125 VAC, 10A @ 250 VAC0.687"3/40.5" Dia.615/32-32UNS-2A x 0.5" Dia.0.465"On/On€6.35
F2GO53-73/TABS15A @ 125 VAC, 10A @ 250 VAC0.68"3/40.469" Dia.40.406"0.47"On/Off/On Reversing€5.47
G6GO53-73/TABS15A @ 125 VAC, 10A @ 250 VAC0.68"1/20.469" Dia.40.406"0.47"Momentary On/Off/Momentary On Reversing€8.45
H2GM721-D-4B-B20A @ 125 VAC, 10A @ 250 VAC0.68"1.50.469" Dia.60.406"0.379"On/Off/On€5.40
I2GM724-D-4B-B20A @ 125 VAC, 10A @ 250 VAC0.68"1.50.469" Dia.60.406"0.379"On/Off/On€6.33
CARLING TECHNOLOGIES -

DPST Toggle Switch

CARLING TECHNOLOGIES 2GK51-73A
CARLING TECHNOLOGIES 2GK54-73B
CARLING TECHNOLOGIES DK284-73C
CARLING TECHNOLOGIES 2GK721-D-4B-BD

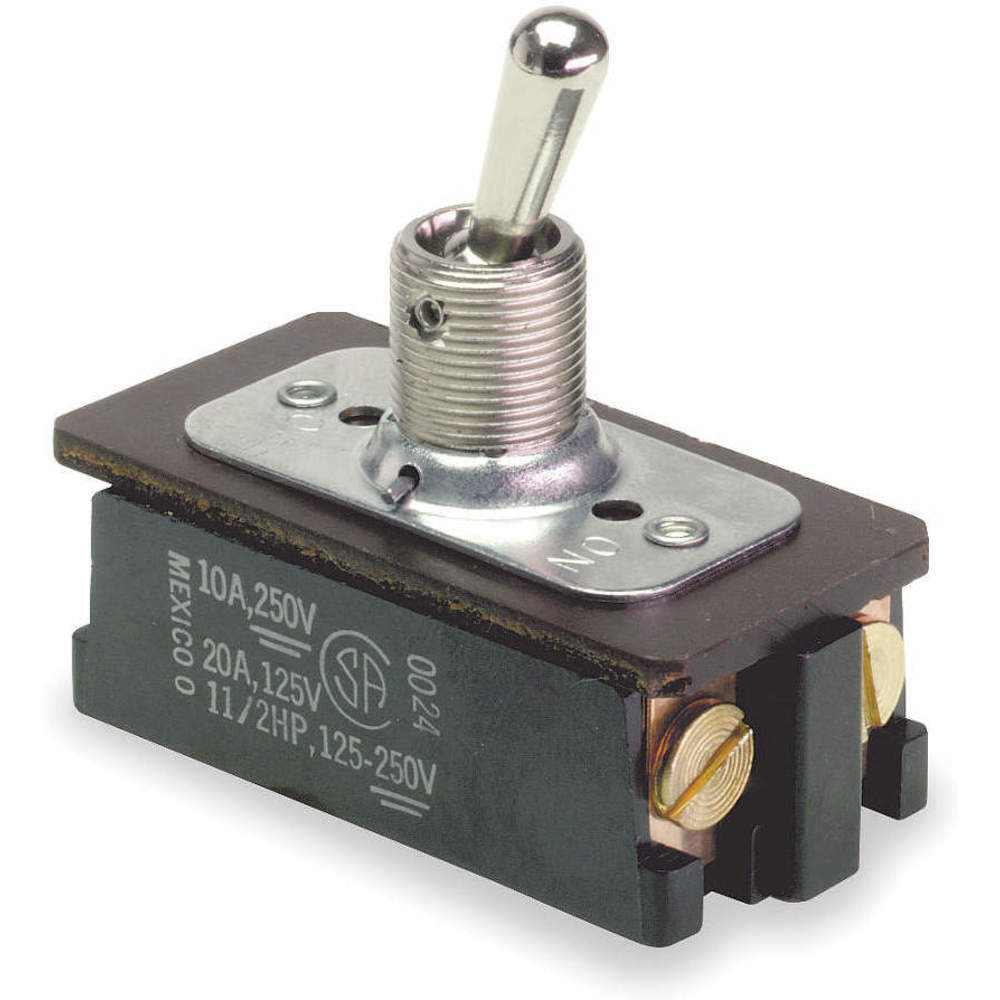

CARLING TECHNOLOGIES EK204-73E
CARLING TECHNOLOGIES 2GK724-D-4B-BF
StyleModelAc Contact RatingActuator LengthHpMounting HoleOperating Temp. RangeStem Dia. And Thread SizeStem LengthTerminalsPrice (ex. VAT)
A2GK51-7315A @ 125 VAC, 10A @ 250 VAC0.687"3/40.5" Dia.32 Degrees to 185 Degrees F15/32-32UNS-2A x 0.5" Dia.0.465"1/4" Tab€5.07
B2GK54-7315A @ 125 VAC, 10A @ 250 VAC0.687"3/40.5" Dia.32 Degrees to 185 Degrees F15/32-32UNS-2A x 0.5" Dia.0.465"Screw€4.99
CDK284-7316A @ 125 VAC, 8A @ 250 VAC0.687"10.5" Dia.0 Degrees to 150 Degrees F15/32-32UNS-2A x 0.5" Dia.0.465"Screw€6.88
D2GK721-D-4B-B20A @ 125 VAC, 10A @ 250 VAC0.68"1.50.469" Dia.-0.406"0.379"1/4" Tab€4.54
EEK204-7320A @ 125 VAC, 10A @ 250 VAC0.687"10.5" Dia.0 Degrees to 150 Degrees F0.47"0.465"Screw€10.60
F2GK724-D-4B-B20A @ 125 VAC, 10A @ 250 VAC0.68"1.50.469" Dia.-0.406"0.379"Screw€5.31
CARLING TECHNOLOGIES -

SPDT Toggle Switch

The UL-listed and CSA-certified Carling toggle switches are widely used in commercial and residential electrical appliances / equipment for On / Off and low voltage (12 / 24 VDC) applications. These SPDT toggle switches feature a sturdy mechanical lever handle to facilitate the flow of electric current in a circuit and a slow-break contact mechanism providing a slight time delay that allows AC waves to go through its zero-energy level. They have a lifespan of 50000 cycles, dielectric strength of 1000 V and AC contact rating of 15 A at 125 VAC. All these toggle switches are housed in an anti-tracking molded case to prevent dust buildup.

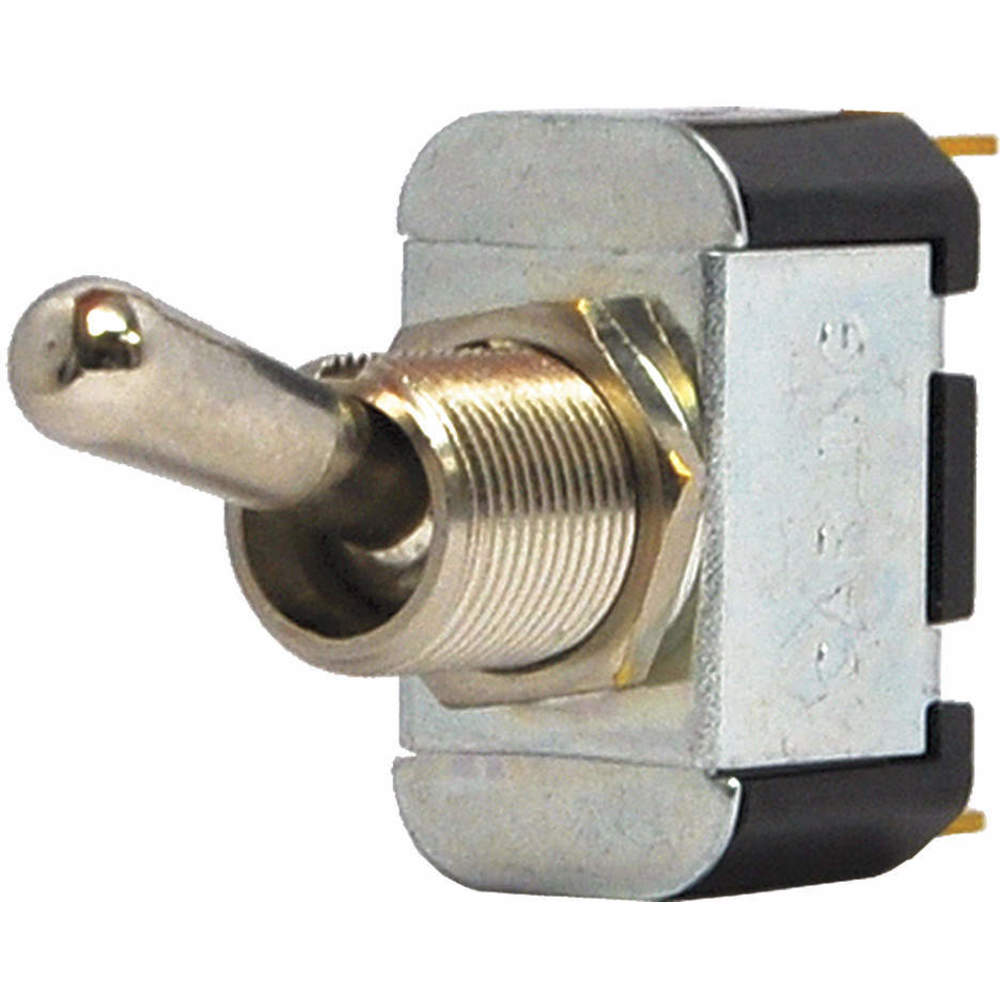

CARLING TECHNOLOGIES 2FB53-73-TABSA

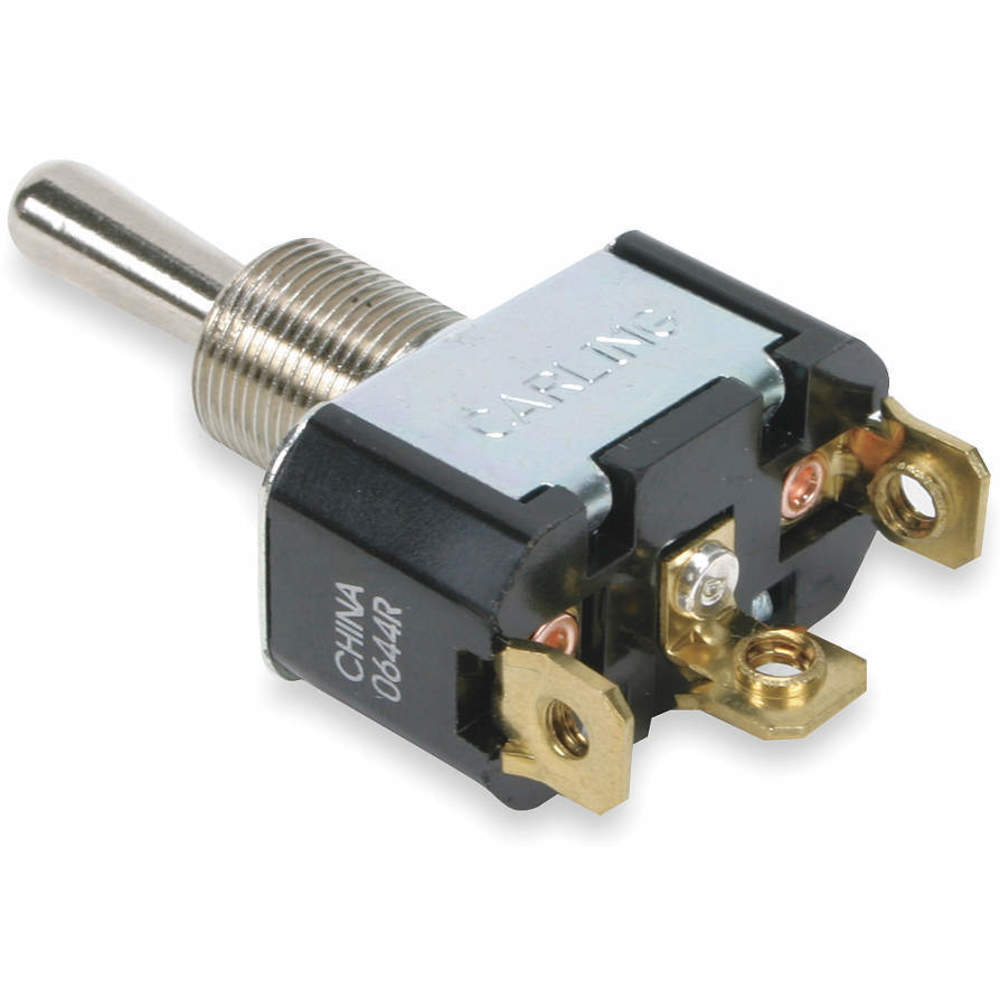

CARLING TECHNOLOGIES 6FC54-73B
CARLING TECHNOLOGIES 2FB54-73C
CARLING TECHNOLOGIES 2FC53-73-TABSD
CARLING TECHNOLOGIES LT-1561-601-012E
StyleModelMounting HoleNumber Of ConnectionsStem Dia. And Thread SizeSwitch FunctionTerminalsPrice (ex. VAT)
A2FB53-73-TABS0.5" Dia.30.47"On/On1/4" Tab€3.66
B6FC54-730.5" Dia.30.47"Momentary On/Off/Momentary OnScrew€5.28
C2FB54-730.5" Dia.30.47"On/OnScrew€4.69
D2FC53-73-TABS0.5" Dia.30.47"On/Off/On1/4" Tab€3.38
C2FC54-730.5" Dia.30.47"On/Off/OnScrew€4.57
D2GP51-730.469" Dia.60.406"Off/Circuit 1 On/Circuit 2 On1/4" Tab€6.36
ELT-1561-601-0120.469" Dia.50.406"On/Off/On1/4" Tab€6.66
D2GG51-730.469" Dia.60.406"Off/Circuit 1 On/Circuit 1 & 2 On1/4" Tab€4.60
CARLING TECHNOLOGIES -

3PDT Toggle Switch

CARLING TECHNOLOGIES HM254-73A
CARLING TECHNOLOGIES HL254-73B
StyleModelActuator LengthStem Dia. And Thread SizeSwitch FunctionPrice (ex. VAT)
AHM254-730.68"0.47"On/Off/On€10.02
BHL254-730.687"15/32-32UNS-2A x 0.5" Dia.On/On€11.47
CARLING TECHNOLOGIES -

SPST Toggle Switch

CARLING TECHNOLOGIES 110-S-73A
CARLING TECHNOLOGIES 111-16-73B
CARLING TECHNOLOGIES 6FA58-73C
CARLING TECHNOLOGIES LT-1511-610-012D
CARLING TECHNOLOGIES 2FA53-73-TABSE
StyleModelAc Contact RatingActuator LengthHpMounting HoleNumber Of ConnectionsStem Dia. And Thread SizeStem LengthSwitch FunctionPrice (ex. VAT)
A110-S-736A @ 125 VAC, 3A @ 250 VAC0.687"-0.5" Dia.20.5"0.465"On/Off€4.52
B111-16-736A @ 125 VAC, 3A @ 250 VAC0.68"-0.5" Dia.2--On/Off€4.02
C6FA58-7315A @ 125 VAC, 10A @ 250 VAC0.68"3/40.5" Dia.2--On/Momentary Off€4.27
C2FA54-7315A @ 125 VAC, 10A @ 250 VAC0.68"3/40.5" Dia.20.47"-On/Off€4.13
C6FA54-7315A @ 125 VAC, 10A @ 250 VAC0.68"3/40.5" Dia.2--Momentary On/Off€5.43
DLT-1511-610-01215A @ 125 VAC, 10A @ 250 VAC0.68"3/40.469" Dia.30.406"0.47"On/Off€6.28
E2FA53-73-TABS15A @ 125 VAC, 10A @ 250 VAC0.68"3/40.5" Dia.20.47"-On/Off€3.72
E2FAA01-7320A @ 125 VAC, 10A @ 250 VAC0.68"10.469" Dia.20.406"0.47"On/Off€5.55
ECA201-7320A @ 125 VAC, 10A @ 250 VAC0.68"1.50.469" Dia.20.406"0.47"On/Off€3.95
CARLING TECHNOLOGIES -

Toggle Switches

CARLING TECHNOLOGIES 2GE51-73A
CARLING TECHNOLOGIES HK254-73B
StyleModelActuator LengthContact FormMounting HoleNumber Of ConnectionsStem Dia. And Thread SizeStem LengthSwitch FunctionTerminalsPrice (ex. VAT)
A2GE51-730.68"SP3T0.469" Dia.40.406"0.47"On/On/On1/4" Tab€5.15
BHK254-730.687"3PST0.5" Dia.615/32-32UNS-2A x 0.5" Dia.0.465"On/OffScrew€7.60
