How to maintain Y and basket strainers?

For every strainer installation, routine cleaning is necessary.Pressure gauges should be installed on the inlet & outlet sides of the strainer to help determine when the screen needs to be cleaned.The pressure loss will typically be double that of a clean screen when the screen is 50 per cent clogged. It should not be permitted for the pressure drop to exceed 30 psi.Never disassemble the strainer when the line is under pressure or if a screen needs to be cleaned or replaced.

How to install these Y-type strainers?

Verify that the media and the strainer materials are compatible.Verify that the pipe & strainer are correctly aligned and provide sufficient support.Ensure that all pipe end connectors are clean and debris-free.Before installing the strainer, apply pipe sealant (pipe dope, Teflon tape, Loctite) to the male end pipe.Verify that the body's arrow points in the same direction as the flow.Use a wrench with flat jaws that correctly fit the hex flats on the strainer body and a pipe wrench on the pipe next to the strainer.Never use a pipe wrench to remove strainers from pipes.Do not ever use an installation torque through the strainer.A pipe joint seal can be established with correct thread sealant application without requiring a lot of turning effort.Before installing the strainer, check the system for leaks.

How can we replace the self-aligning screen of these Y-type strainers?

Drain and depressurise the system.Drain the body by opening the ball valve, removing the drain stopper, or loosening the cap.Take the strainer's cap off.Discard or clean the old screen after removal.Change the PTFE gasket's O-ring.Position the screen in the cap.Set up the line and start the cap into the body by hand.After the cap is finger-tight, use a wrench to tighten it for at least two turns.Use thread compound or sealant to reinstall the plug or ball valve.If a leak develops during the test, repeat the steps from starting.

Y And Basket Strainers

Filter

Y and basket strainers are suitable for the in-line removal of sediment, dirt, debris and solids from fluids. They are used as fluid control applications in meters, steam traps, regulators,...Read more

KISSLER & CO -

Basket Strainers

Style	Model	Price (ex. VAT)	Pkg. Qty.
A	59-2005	€3.63	1
B	59-2015	€2.42	5

SPEARS VALVES -

CPVC Basket Strainers, Flanged Ends, FKM Seals SS Screen

Style	Model	Price (ex. VAT)
A	BS33S6-025C	€6,637.54	RFQ
A	BS33S6-012C	€3,383.50	RFQ
A	BS33S6-080C	€15,499.44	RFQ
A	BS33S6-005C	€1,820.43	RFQ
A	BS33S6-120C	€45,269.63	RFQ
A	BS33S6-010C	€1,878.01	RFQ
A	BS33S6-007C	€1,860.26	RFQ
A	BS33S6-060C	€11,530.69	RFQ
A	BS33S6-100C	€33,206.75	RFQ
A	BS33S6-020C	€3,901.86	RFQ
A	BS33S6-015C	€3,600.68	RFQ
A	BS33S6-030C	€7,667.79	RFQ
A	BS33S6-040C	€6,222.26	RFQ

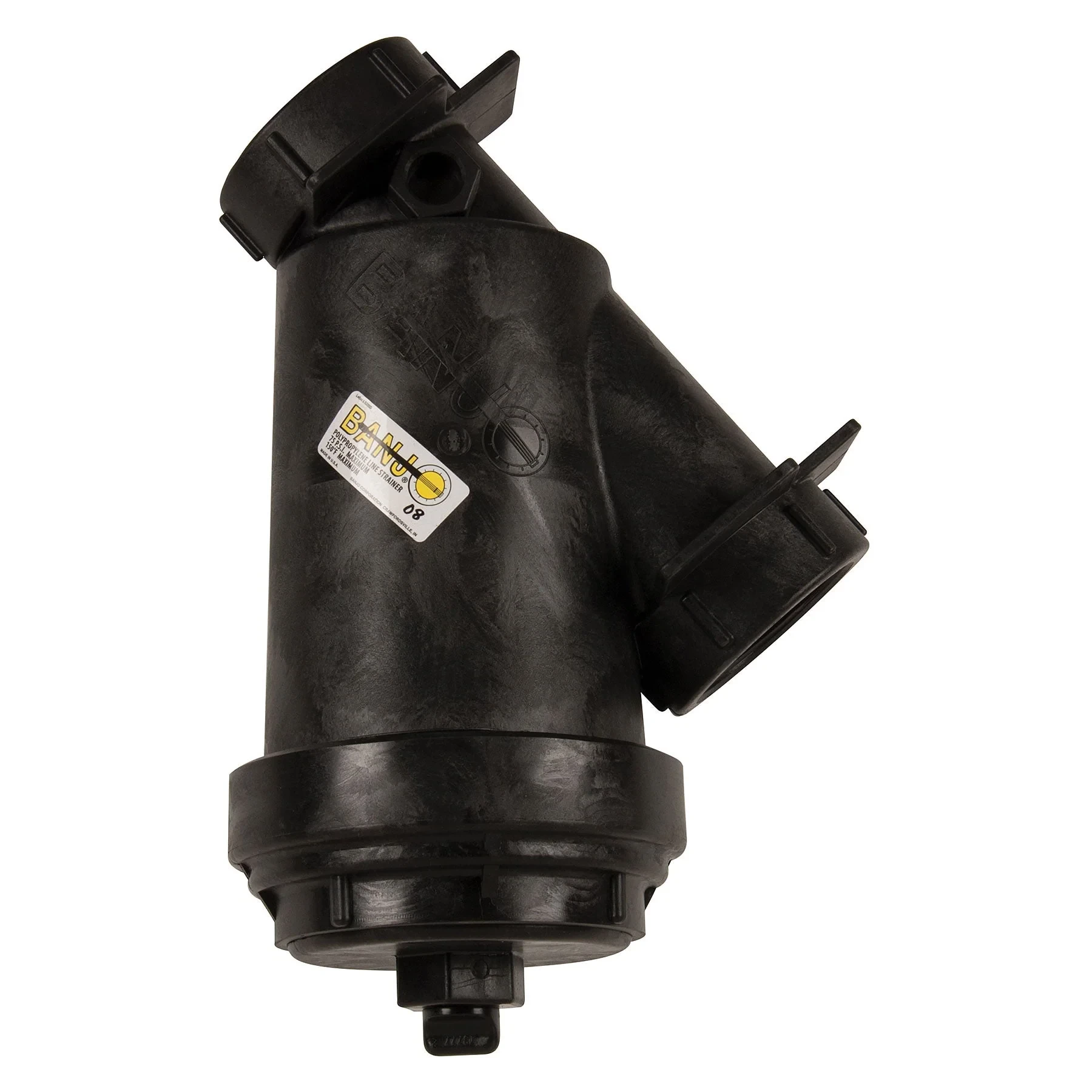

BANJO FITTINGS -

Y Strainer 1 Inch

Style	Model	Mesh Size	Screen Size	Price (ex. VAT)
A	LS100-20	20	20 Mesh	€43.21
A	LS100-40	40	40 Mesh	€41.70
A	LS100-80	80	80 Mesh	€43.38

APPROVED VENDOR -

Y Strainer, Cast Iron Body

Style	Model	Height	Size	Width	Price (ex. VAT)
A	20H622	2.187"	3/8"	3.187"	€11.41
A	20H623	2.187"	1/2"	3.187"	€11.41
A	20H624	2.437"	3/4"	3.75"	€46.02
A	20H625	2.625"	1"	4"	€67.66
A	20H626	3.375"	1.25"	5"	€27.53
A	20H627	3.875"	1.5"	5.75"	€102.11
A	20H628	4.75"	2"	7"	€156.68
A	20H629	5.875"	2.5"	9.25"	€107.68
A	20H630	6"	3"	10"	€345.57

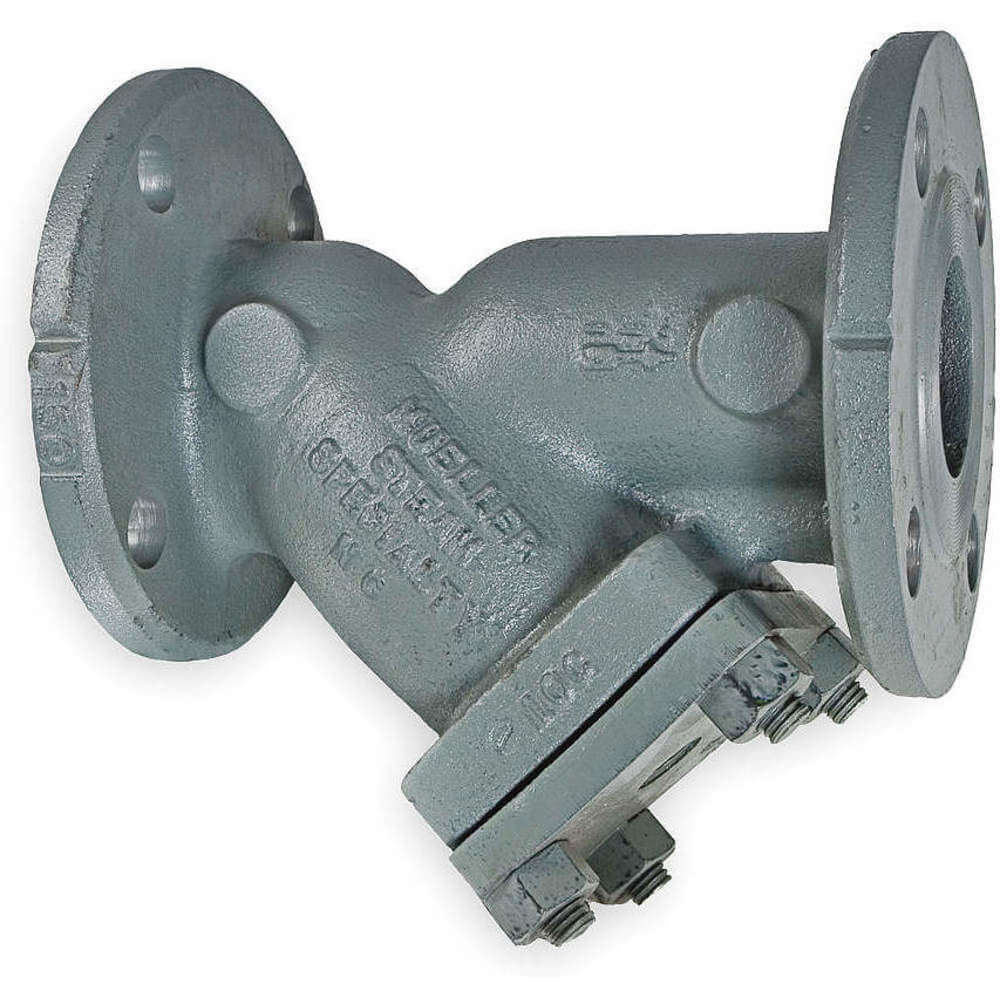

MUELLER STEAM -

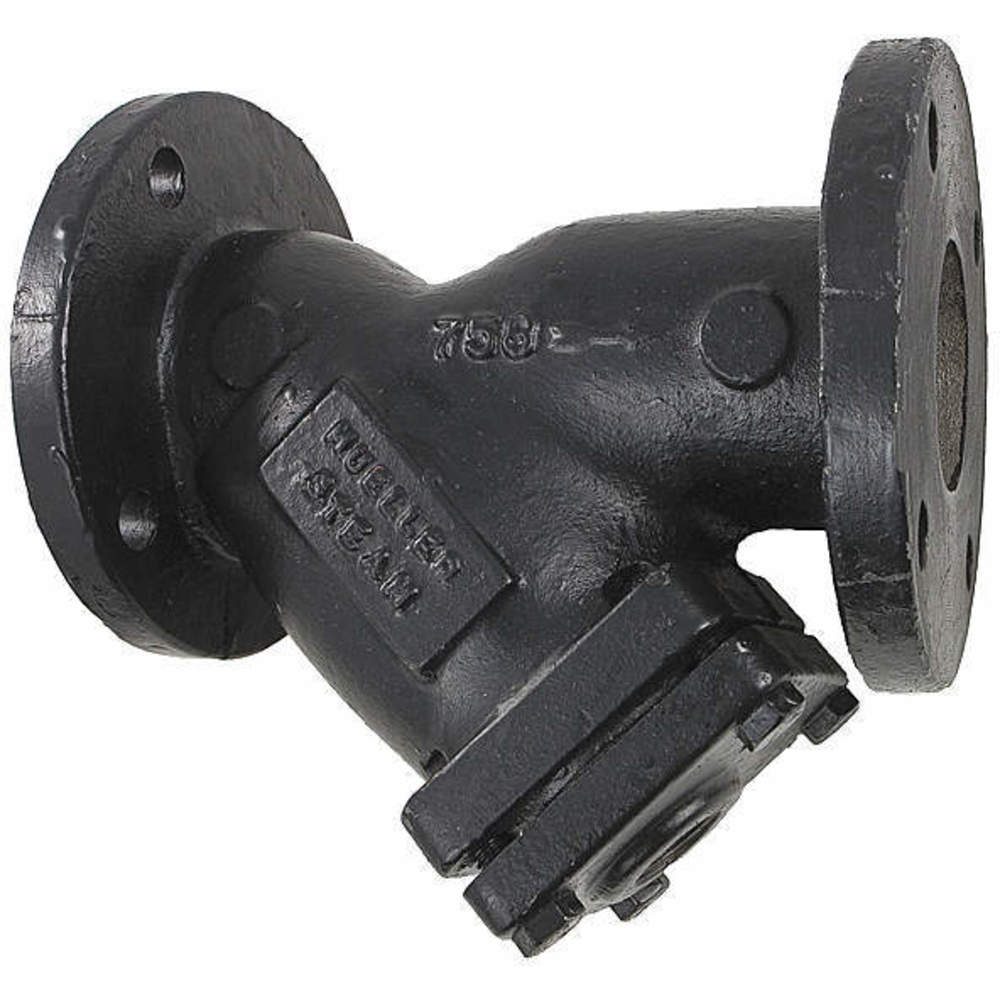

Y Type Strainer

Style	Model	Class	Connection	Material	Max. Pressure	Screen Size	Size	Price (ex. VAT)
A	3 782 SS-N flanged end	-	FNPT	Cast Stainless Steel	285 @ 100 Degrees F For WOG, 150 @ 565 Degrees F For Steam	0.062"	3"	€2,976.88
A	21/2 782 SS-N flanged ends	-	FNPT	Cast Stainless Steel	285 @ 100 Degrees F For WOG, 150 @ 565 Degrees F For Steam	0.062"	2.5"	€2,316.36
B	4 758 N	-	FNPT	Cast Iron	200 @ 150 Degrees F For WOG, 125 @ 450 Degrees F For Steam	0.062"	4mm	€586.17
A	4 782SS -N	-	FNPT	Cast Stainless Steel	285 @ 100 Degrees F For WOG, 150 @ 565 Degrees F For Steam	0.062"	4mm	€4,817.43

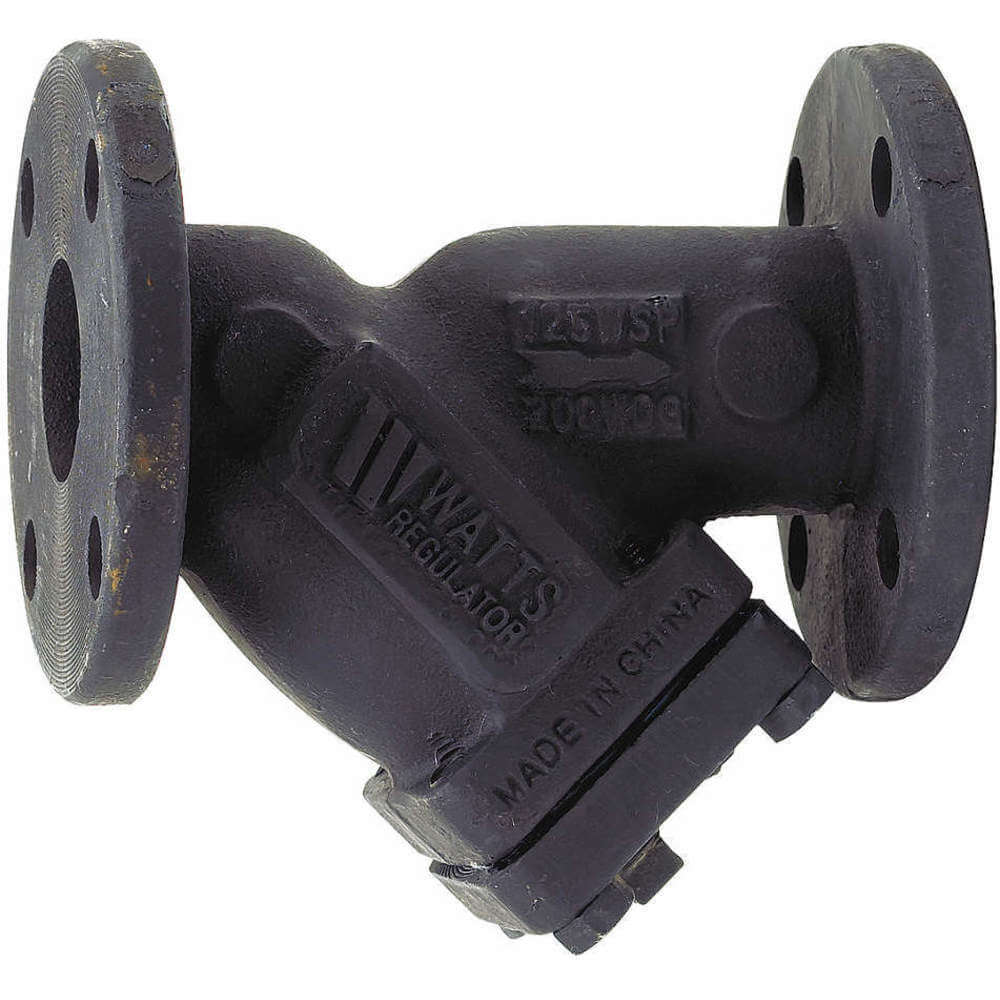

B	21/2 758N Iron Body flanged	125	FNPT	Cast Iron	200 @ 150 Degrees F For WOG, 125 @ 450 Degrees F For Steam	0.062"	2.5"	€245.61
B	3 758 N Iron Body	125	FNPT	Cast Iron	200 @ 150 Degrees F For WOG, 125 @ 450 Degrees F For Steam	0.062"	3"	€332.14

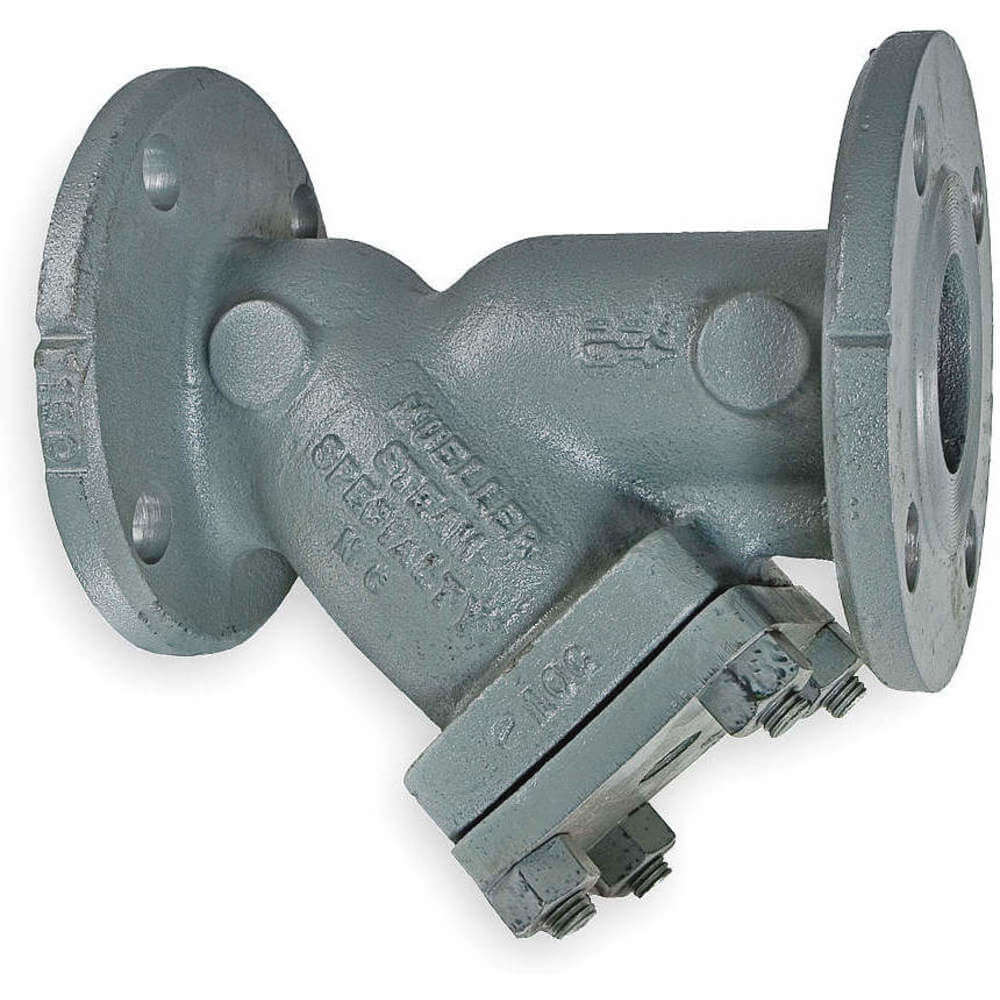

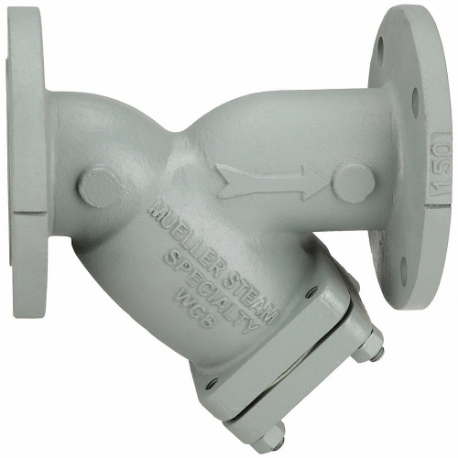

C	3 781 CS-N flanged ends	150	Flanged	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	3"	€1,205.93
A	4 781 SS- N flanged	150	Flanged	Cast Stainless Steel	285 @ 100 Degrees F For WOG, 150 @ 565 Degrees F For Steam	0.062"	4mm	€3,562.15
A	21/2 781 SS-N Flanged end	150	Flanged	Cast Stainless Steel	285 @ 100 Degrees F For WOG, 150 @ 565 Degrees F For Steam	0.062"	2.5"	€1,849.41
C	4 781 CS-N flanged end	150	Flanged	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	4mm	€1,737.64
A	3 781 SS-N flanged	150	Flanged	Cast Stainless Steel	285 @ 100 Degrees F For WOG, 150 @ 565 Degrees F For Steam	0.062"	3"	€2,380.75
D	4 752 iron body flanged	250	Class 250 Flange	Cast Iron	500 @ 150 Degrees F For WOG, 250 @ 450 Degrees F For Steam	0.062"	4mm	€1,142.08
D	3 752 Iron body flanged	250	Class 250 Flange	Cast Iron	500 @ 150 Degrees F For WOG, 250 @ 450 Degrees F For Steam	0.062"	3"	€632.39
E	2 582 CS socket weld	600	Socket Weld	Cast Carbon Steel	1480 At 100 Deg F For WOG, 1010 At 750 Deg F For Steam	1/16"	2"	€343.01
E	11/4 582 CS socket weld	600	Socket Weld	Cast Carbon Steel	1480 At 100 Deg F For WOG, 1010 At 750 Deg F For Steam	1/16"	1.25"	€235.24
F	1/2 581-SS screwed end	600	FNPT	Cast Stainless Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	1/2"	€270.73
E	1 582 CS socket weld	600	Socket Weld	Cast Carbon Steel	1480 At 100 Deg F For WOG, 1010 At 750 Deg F For Steam	1/16"	1"	€161.69
E	1/4 582 CS socket weld	600	Socket Weld	Cast Carbon Steel	1480 At 100 Deg F For WOG, 1010 At 750 Deg F For Steam	1/16"	1/4"	€296.83
G	2 581 CS screwed end	600	FNPT	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	2"	€322.20
G	11/2 581 CS screwed end	600	FNPT	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	1.5"	€272.82
G	11/4 581 CS srewed end	600	FNPT	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	1.25"	€222.22
E	1/2 582 CS socket weld	600	Socket Weld	Cast Carbon Steel	1480 At 100 Deg F For WOG, 1010 At 750 Deg F For Steam	1/16"	1/2"	€175.44
G	1 581 CS Screwed ends	600	FNPT	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	1"	€271.57
G	3/4 581 CS screwed end	600	FNPT	Cast Carbon Steel	1480 @ 100 Degrees F For WOG, 1010 @ 750 Degrees F For Steam	1/16"	3/4"	€130.95
E	3/4 582 CS socket weld	600	Socket Weld	Cast Carbon Steel	1480 At 100 Deg F For WOG, 1010 At 750 Deg F For Steam	1/16"	3/4"	€1,015.43

HAYWARD -

YS Series Y-strainer 1 Inch

Style	Model	Connection	Material	Width	Price (ex. VAT)
A	YS10100S	Socket	PVC	2.16"	€136.85
B	YS00100S	Socket	Clear PVC	2.16"	€144.33
C	YS20100S	Socket	CPVC	2"	€450.90
C	YS20100T	Thread	CPVC	2"	€450.77
A	YS10100T	Threaded	PVC	2.16"	€136.85
B	YS00100T	Threaded	Clear PVC	2.16"	€141.94
D	YS10100TU	Threaded	PVC	2.16"	€152.62

HAYWARD -

YS Series Y-strainer 1/2 Inch

Style	Model	Connection	Connection Type	Housing Material	Material	Screen Size	Width	Price (ex. VAT)
A	YS10050S	Socket	-	-	PVC	1/32"	1.5"	€109.59
B	YS00050S	Socket	Socket	PVC	Clear PVC	1/32"	1.5"	€113.61
C	YS20050S	Socket	-	-	CPVC	1/32"	1.38"	€313.93
C	YS20050T	Thread	Threaded	CPVC	CPVC	1/32"	1.38"	€314.39
A	YS10050T	Threaded	-	-	PVC	1/8"	1.5"	€112.16
B	YS00050T	Threaded	-	-	Clear PVC	1/32"	1.5"	€115.22
D	YS10050TU	Threaded	-	-	PVC	1/32"	1.5"	€122.08

HAYWARD -

YS Series Y-strainer 2 1/2 Inch

Style	Model	Connection	Price (ex. VAT)
A	YS10250S	Socket	€534.29
A	YS10250T	Threaded	€533.78
B	YS10250TU	Threaded	€575.29

HAYWARD -

YS Series Y-strainer 2 Inch

Style	Model	Connection	Connection Type	Housing Material	Material	Width	Price (ex. VAT)
A	YS10200S	Socket	-	-	PVC	3.75"	€296.60
B	YS00200S	Socket	Socket	PVC	Clear PVC	3.75"	€307.51
C	YS20200S	Socket	Socket	CPVC	CPVC	3.38"	€911.57
C	YS20200T	Thread	-	-	CPVC	3.38"	€911.57
A	YS10200T	Threaded	-	-	PVC	3.75"	€296.60
B	YS00200T	Threaded	-	-	Clear PVC	3.75"	€306.08
D	YS10200TU	Threaded	Threaded	PVC	PVC	3.75"	€322.93

HAYWARD -

YS Series Y-strainer 3/4 Inch

Style	Model	Connection	Connection Type	Height	Material	Width	Price (ex. VAT)
A	YS00075S	Socket	Socket	3.75"	Clear PVC	2"	€128.61
B	YS20075S	Socket	-	3.72"	CPVC	1.69"	€376.49
C	YS10075S	Socket	Socket	3.75"	PVC	2"	€125.08
B	YS20075T	Thread	-	3.72"	CPVC	1.69"	€376.18
C	YS10075T	Threaded	-	3.75"	PVC	2"	€124.07
A	YS00075T	Threaded	Threaded	3.75"	Clear PVC	2"	€128.61
D	YS10075TU	Threaded	-	3.75"	PVC	2"	€140.75

HAYWARD -

YS Series Y-strainer, 1 1/4 Inch

Style	Model	Connection	Material	Price (ex. VAT)
A	YS10125S	Socket	PVC	€270.28
B	YS00125S	Socket	Clear PVC	€259.38
A	YS10125T	Threaded	PVC	€262.07
B	YS00125T	Threaded	Clear PVC	€282.27
C	YS10125TU	Threaded	PVC	€284.19

HAYWARD -

YS Series Y-strainer, 3 Inch

Style	Model	Connection	Material	Width	Price (ex. VAT)
A	YS10300S	Socket	PVC	5.5"	€673.98
B	YS20300S	Socket	CPVC	4.69"	€1,114.97
B	YS20300T	Thread	CPVC	4.69"	€1,138.42
C	YS10300TU	Threaded	PVC	5.5"	€743.17
A	YS10300T	Threaded	PVC	5.5"	€670.77

SPEARS VALVES -

PVC Basket Strainers, Socket Ends, FKM Seals SS Screen

Style	Model	Price (ex. VAT)
A	BS32S6-005	€1,624.00	RFQ
A	BS32S6-012	€2,272.78	RFQ
A	BS32S6-010	€1,271.14	RFQ
A	BS32S6-007	€1,271.14	RFQ
A	BS32S6-040	€7,917.18	RFQ
A	BS32S6-060	€11,879.17	RFQ
A	BS32S6-015	€2,903.62	RFQ
A	BS32S6-030	€6,195.77	RFQ
A	BS32S6-100	€27,842.19	RFQ
A	BS32S6-080	€15,897.93	RFQ
A	BS32S6-025	€5,355.06	RFQ
A	BS32S6-120	€27,542.10	RFQ

HAYWARD -

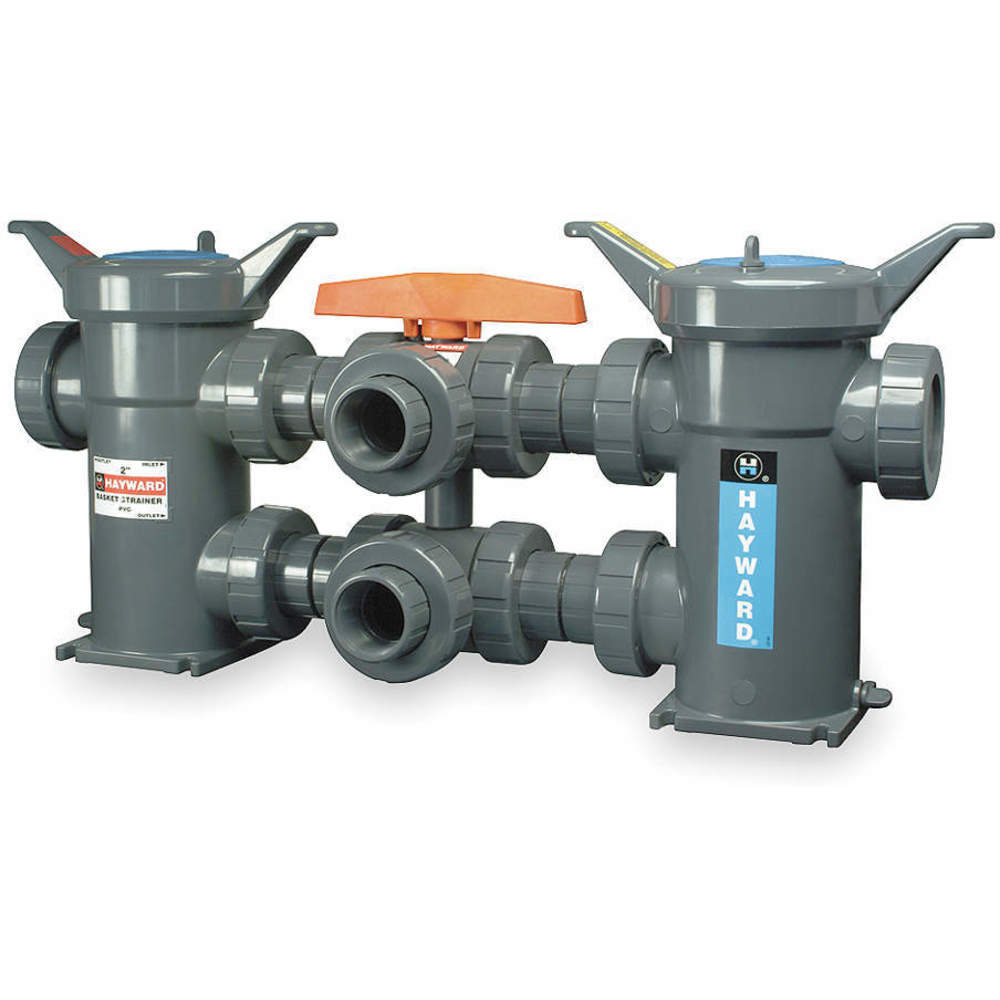

DB Series Duplex Basket Strainers

Style	Model	Height	Housing Material	Material	Pipe Size	Screen Size	Size	Width	Price (ex. VAT)
A	DB1075ST132	11.7"	PVC	PVC	3/4"	1/32"	3/4"	11"	€2,564.06
A	DB1100ST132	11.7"	PVC	PVC	1"	1/32"	1"	11"	€2,583.80
A	DB2050ST132	11.7"	CPVC	CPVC	1/2"	1/32"	1/2"	11"	€3,629.49
A	DB2100ST132	11.7"	CPVC	CPVC	1"	1/32"	1"	11"	€3,629.57
A	DB1050ST132	11.7"	PVC	PVC	1/2"	1/32"	1/2"	11"	€2,389.59
A	DB2075ST132	11.7"	CPVC	CPVC	3/4"	1/32"	3/4"	11"	€3,629.49
A	DB1200ST18	15.5"	PVC	PVC	2"	1/8"	2"	13.5"	€3,046.98
A	DB2125ST18	15.5"	CPVC	CPVC	1.25"	1/8"	1.25"	13.5"	€5,657.28
A	DB2200ST18	15.5"	CPVC	CPVC	2"	1/8"	2"	13.5"	€5,296.57
A	DB2150ST18	15.5"	CPVC	CPVC	1.5"	1/8"	1.5"	13.5"	€5,657.28

SPEARS VALVES -

CPVC Basket Strainers, Socket Ends, EPDM Seals CPVC Screen

Style	Model	Price (ex. VAT)
A	BS22C6-007C	€1,491.35	RFQ
A	BS22C6-015C	€3,183.92	RFQ
A	BS22C6-025C	€3,708.26	RFQ
A	BS22C6-030C	€4,807.94	RFQ
A	BS22C6-005C	€1,471.86	RFQ
A	BS22C6-100C	€23,735.16	RFQ
A	BS22C6-010C	€1,507.41	RFQ
A	BS22C6-020C	€3,431.49	RFQ
A	BS22C6-012C	€2,964.47	RFQ

SPEARS VALVES -

CPVC Y Strainers, SR Threaded Ends, FKM

Style	Model	Price (ex. VAT)
A	YS31C12-012CSR	€1,404.33	RFQ
A	YS31S30-015CSR	€1,846.49	RFQ
A	YS31C20-005CSR	€641.60	RFQ
A	YS31C12-010CSR	€922.23	RFQ
A	YS31C20-010CSR	€729.55	RFQ
A	YS31C20-030CSR	€2,294.51	RFQ
A	YS31C20-020CSR	€1,591.05	RFQ
A	YS31C20-015CSR	€1,595.70	RFQ
A	YS31C30-012CSR	€1,404.33	RFQ
A	YS31C8-010CSR	€922.23	RFQ
A	YS31S12-005CSR	€694.13	RFQ
A	YS31S12-012CSR	€1,689.94	RFQ
A	YS31S12-015CSR	€1,846.49	RFQ
A	YS31S8-010CSR	€1,253.26	RFQ
A	YS31S20-030CSR	€2,729.52	RFQ
A	YS31S30-020CSR	€2,269.92	RFQ
A	YS31S30-040CSR	€4,454.31	RFQ
A	YS31S30-030CSR	€2,729.52	RFQ
A	YS31C12-030CSR	€2,294.51	RFQ
A	YS31C20-012CSR	€1,110.93	RFQ
A	YS31C12-015CSR	€1,595.70	RFQ
A	YS31C30-007CSR	€708.02	RFQ
A	YS31C20-040CSR	€3,907.64	RFQ
A	YS31C30-005CSR	€641.60	RFQ
A	YS31C30-020CSR	€2,011.26	RFQ

SPEARS VALVES -

PVC Basket Strainers, Socket Ends, FKM Seals PVC Screen

Style	Model	Price (ex. VAT)
A	BS32P6-030	€4,669.02	RFQ
A	BS32P6-010	€810.03	RFQ
A	BS32P6-060	€8,827.30	RFQ
A	BS32P6-100	€21,945.92	RFQ
A	BS32P6-007	€1,034.85	RFQ
A	BS32P6-020	€2,022.79	RFQ
A	BS32P6-120	€27,343.07	RFQ
A	BS32P6-015	€2,022.79	RFQ
A	BS32P6-040	€6,182.95	RFQ
A	BS32P6-012	€2,022.79	RFQ
A	BS32P6-080	€11,768.10	RFQ

SPEARS VALVES -

PVC Clear Y Strainers, Flanged Ends, FKM Seals PVC Screen

Style	Model	Price (ex. VAT)
A	YS33P8-010CL	€332.36	RFQ
A	YS33P8-030CL	€2,187.01	RFQ
A	YS33P8-012CL	€533.24	RFQ
A	YS33P8-015CL	€813.91	RFQ
A	YS33P8-040CL	€3,526.31	RFQ
A	YS33P8-005CL	€401.49	RFQ
A	YS33P8-020CL	€1,011.12	RFQ
A	YS33P8-007CL	€416.72	RFQ

HAYWARD -

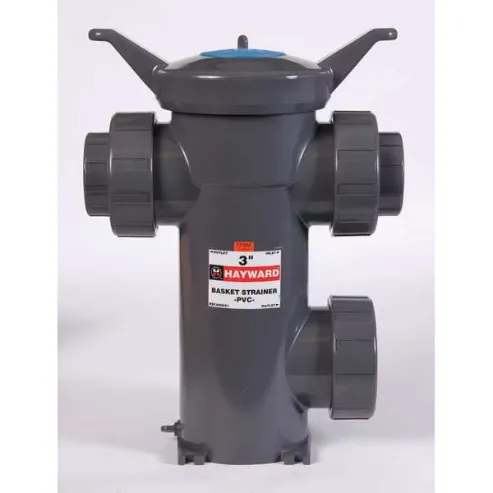

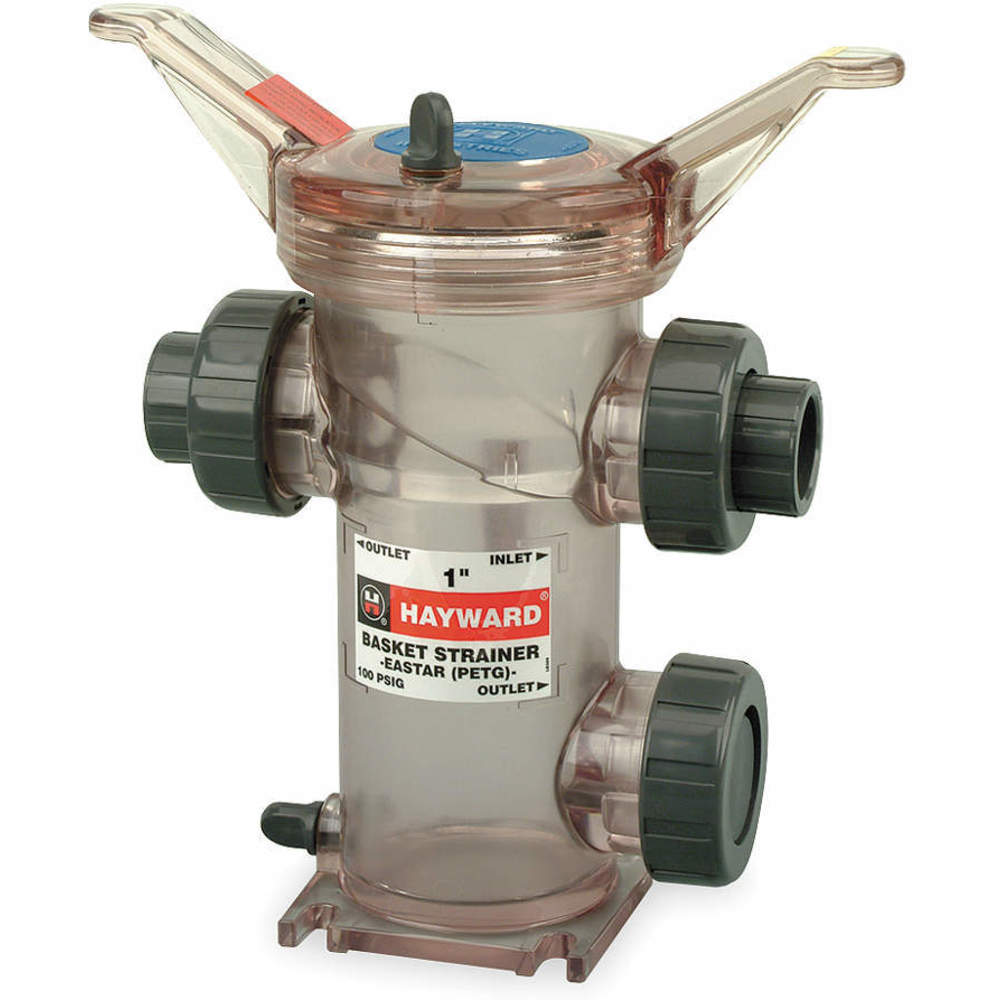

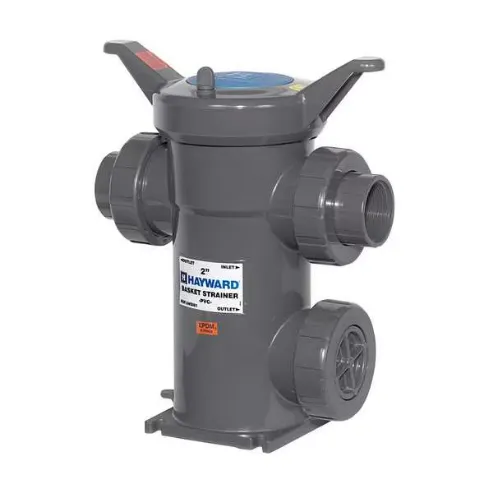

Simplex Strainer

Style	Model	Connection	Height	Item	Screen Size	Seal	Size	Width	Price (ex. VAT)
A	SB1300FE18	Flanged	22 19/64"	Simplex Strainer	1/8"	EPDM	3"	20 23/64"	€2,137.01
A	SB1300SE18	Socket	22 19/64"	Simplex Strainer	1/8"	EPDM	3"	16 13/32"	€2,056.39
B	SB1400SE18	Socket	22 19/64"	Simplex Strainer	1/8"	EPDM	4mm	17 17/64"	€1,958.49
B	SB1250SE18	Socket	22 19/64"	Simplex Strainer	1/8"	EPDM	2.5"	16 33/64"	€1,963.47
B	SB1150STE18	Socket/Threaded	15.5"	Simplex Strainer	1/8"	EPDM	1.5"	12 11/16"	€650.91
B	SB1075STE132	Socket/Threaded	11 45/64"	Simplex Strainer	1/32"	EPDM	3/4"	8 41/64"	€534.09
A	SB1050STE132	Socket/Threaded	11 45/64"	Simplex Strainer	1/32"	EPDM	1/2"	8 41/64"	€490.06
A	SB1100STE132	Socket/Threaded	11 45/64"	Simplex Strainer	1/32"	EPDM	1"	8 41/64"	€433.63

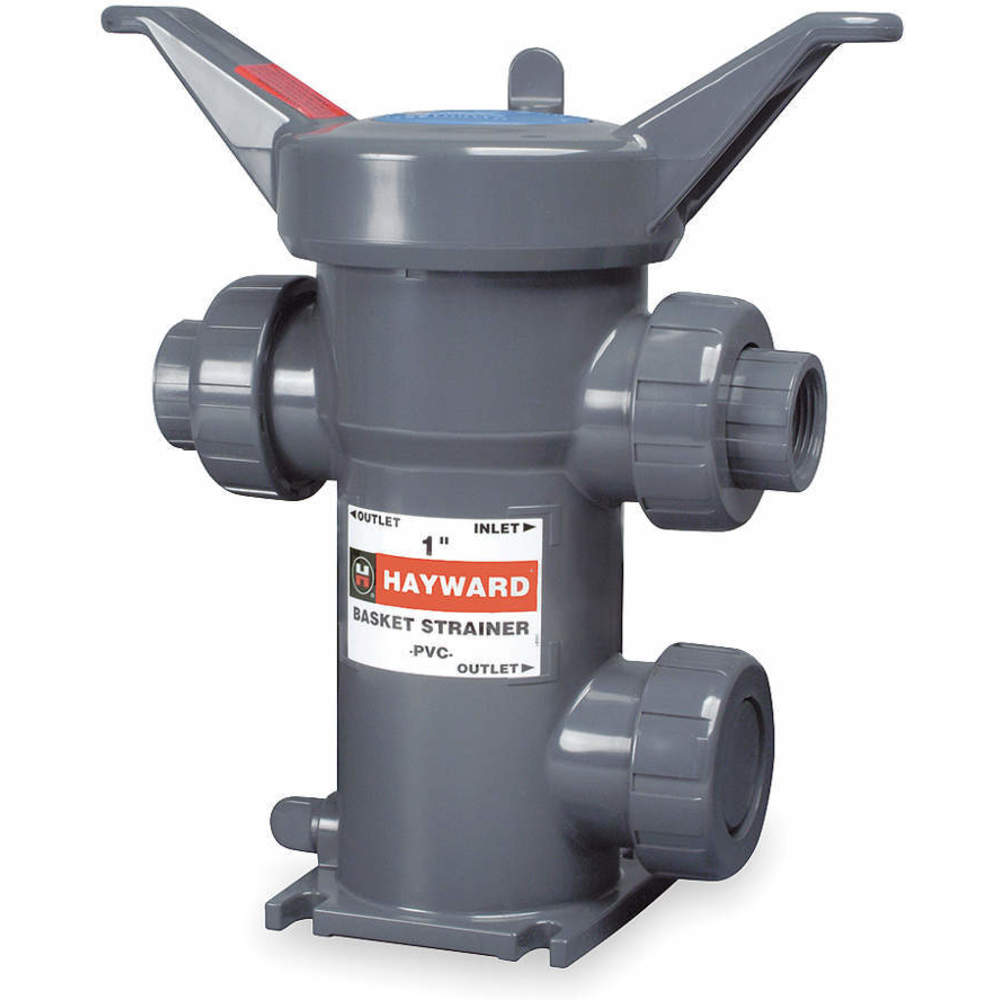

C	SB1150ST18	Socket/Threaded	13.38"	Basket Strainer	1/8"	FPM	1.5"	13.5"	€731.07
A	SB1125STE18	Socket/Threaded	15.5"	Simplex Strainer	1/8"	EPDM	1.25"	12.75"	€862.65
A	SB1200STE18	Socket/Threaded	15.5"	Simplex Strainer	1/8"	EPDM	2"	12.75"	€862.40
B	SB1400TE18	Threaded	22 19/64"	Simplex Strainer	1/8"	EPDM	4mm	17 17/64"	€1,966.42
A	SB1250TE18	Threaded	22 19/64"	Simplex Strainer	1/8"	EPDM	2.5"	16 33/64"	€2,009.74
A	SB1300TE18	Threaded	22 19/64"	Simplex Strainer	1/8"	EPDM	3"	16 13/32"	€1,891.20

HAYWARD -

YS Series Screen

Style	Model	Material	Screen	Size	Price (ex. VAT)
A	YSX2010022	CPVC	CPVC	1"	€82.80
A	YSX2005022	CPVC	CPVC	1/2"	€56.12
A	YSX2007522	CPVC	CPVC	3/4"	€64.36
A	YSX2020022	CPVC	CPVC	2"	€138.04
B	YSX1010022	PVC	PVC	1"	€51.49
B	YSX1005022	PVC	PVC	1/2"	€39.43
B	YSX1007522	PVC	PVC	3/4"	€46.32
B	YSX1020022	PVC	PVC	2"	€102.07

SSI -

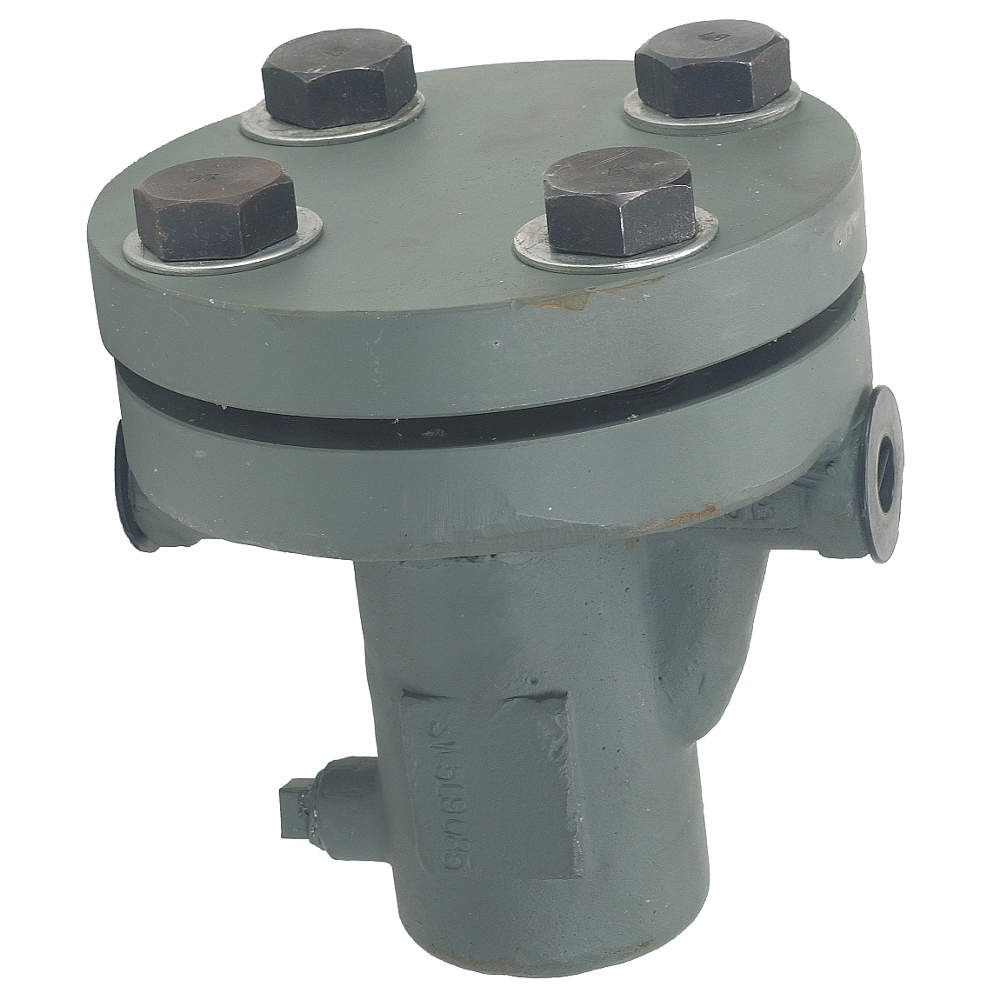

Y Strainer

Style	Model	Material	Price (ex. VAT)
A	0125-1500Y2TC-1	Carbon Steel	€639.00
A	0125-1500Y2TT-1	Stainless Steel	€1,548.27

12...9 10

Y And Basket Strainers

Y and basket strainers are used for screening out debris, rust, dust and other contaminants accumulated in the pipelines. These units feature a mesh cylinder which captures large particulates that can otherwise interfere with the operation of valves, pumps and meters. Raptor Supplies offers a wide range of these strainers from brands like Apollo, Banjo, Bell & Gossett, Grainger, Hayward, Watts, Wilkins, SSI, Mueller Industries, Mueller Steam and GF Piping Systems. Hayward basket strainers provide a large straining area for an uninterrupted flow and withstanding pressure ratings up to 150 psi. These units facilitate quick cleaning and replacement by simply removing the threaded plugs from the cover, and can be mounted horizontally for performing well in high-flow applications. Mueller Steam Y-strainers are designed for flushing out pipe scale, gaskets and debris with the help of a screen chamber attached to a valve, without hindering the flow. These strainers feature cast iron construction with a tapered seat for an excellent fit. They are available in flanged, threaded (FNPT) and socket weld type connection variants further integrated with a perforated mesh chamber.

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Y And Basket Strainers

Basket Strainers

CPVC Basket Strainers, Flanged Ends, FKM Seals SS Screen

Y Strainer 1 Inch

Y Strainer, Cast Iron Body

Y Type Strainer

YS Series Y-strainer 1 Inch

YS Series Y-strainer 1/2 Inch

YS Series Y-strainer 2 1/2 Inch

YS Series Y-strainer 2 Inch

YS Series Y-strainer 3/4 Inch

YS Series Y-strainer, 1 1/4 Inch

YS Series Y-strainer, 3 Inch

PVC Basket Strainers, Socket Ends, FKM Seals SS Screen

DB Series Duplex Basket Strainers

CPVC Basket Strainers, Socket Ends, EPDM Seals CPVC Screen

CPVC Y Strainers, SR Threaded Ends, FKM

PVC Basket Strainers, Socket Ends, FKM Seals PVC Screen

PVC Clear Y Strainers, Flanged Ends, FKM Seals PVC Screen

Simplex Strainer

YS Series Screen

Y Strainer

Y And Basket Strainers

Frequently Asked Questions

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Y And Basket Strainers

Y And Basket Strainers

Frequently Asked Questions

How to maintain Y and basket strainers?

What standards do Mueller basket strainers comply with?

How to install these Y-type strainers?

How can we replace the self-aligning screen of these Y-type strainers?

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
