EATON Danfoss MRV3-10 Series Directional Control Valves


Eaton Danfoss MRV3-10 Series directional control valves are ideal for controlling the fluid flow in harvesters, refuse haulers and other industrial applications. These 4-way 2 / 3-position style, screw-in cartridge valves offer easy mounting / installation.

Filter

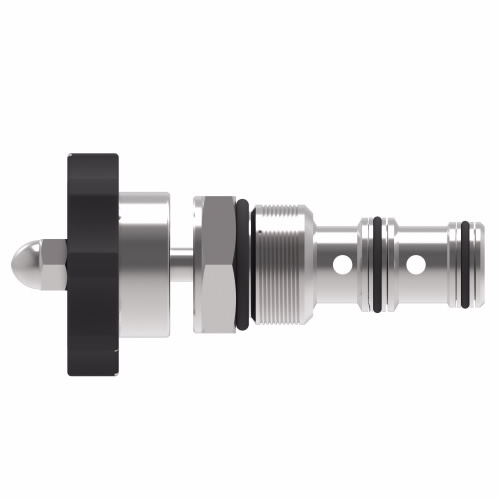

EATON 565965A

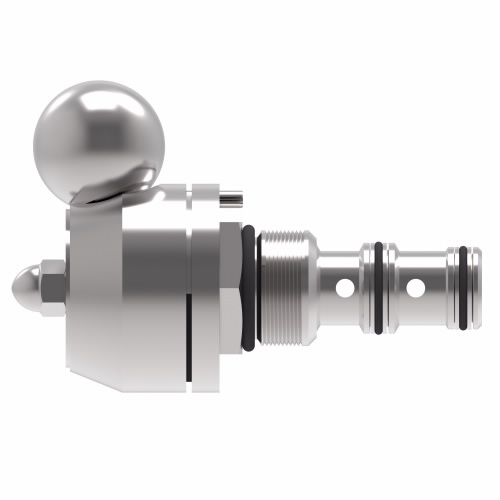

EATON 02-166110B

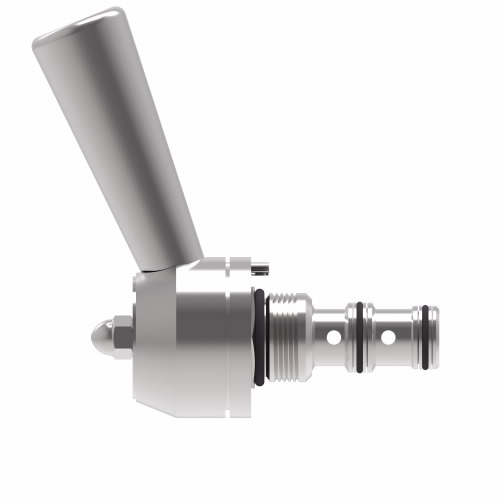

EATON 566354C
StyleModelPrice (ex. VAT)
A
565965		€121.74
B
02-166110		€199.04
C
566354		€200.94
C
02-112887		€167.46

Working Mechanism

  • These valves direct the fluid flow between valve ports 1 & 3 and block valve port 2 in one position.
  • Users need to turn the operator 90 degrees to direct the flow between valve ports 1 & 2 and block port 3.
  • During cross-over transitions, all these ports get blocked.

Features

  • Eaton Danfoss MRV3-10 Series directional control valves have steel construction with hardened & ground-working components.
  • These manual semi-rotary valves can control the flow of general-purpose hydraulic fluids complying with standards like MIL-H-5606, SAE 10 & SAE 20.
  • These direct-acting MRV3-10 Series directional control valves have Buna-N seals to prevent leakage.
  • The allowable stem torque applicable in the valve cavity is 47 to 54 Nm.
  • These Vickers Eaton MRV3-10 Series directional control valves have a pressure rating of 210 bar (3000 psi).

Compatible Accessories

  • Eaton 889599 Seal Kit: This seal repair kit having Viton seal is used to replace the worn-out or damaged seal and provide chemical resistance in these flow control valves.
  • Eaton 565804 Seal Kit: This seal repair kit having a Buna-N seal is used to replace worn-out or damaged Buna-N seals in these flow control valves.

Frequently Asked Questions

What is the operating temperature of these Eaton Danfoss MRV3-10 Series directional control valves?

These Eaton Danfoss MRV3-10 Series directional control valves can operate at temperatures ranging from -40 to 120 degrees C.

What is the flow rate of these Eaton Danfoss MRV3-10 Series directional control valves?

They have 3 ports with a maximum flow rate of 23 l/min (6 gpm).

How to prevent contaminants in these Eaton Danfoss MRV3-10 Series directional control valves?

Users are recommended to install filtration equipment complying with ISO cleaning code 18/16/13 before the valves to prevent contaminants from entering them.
