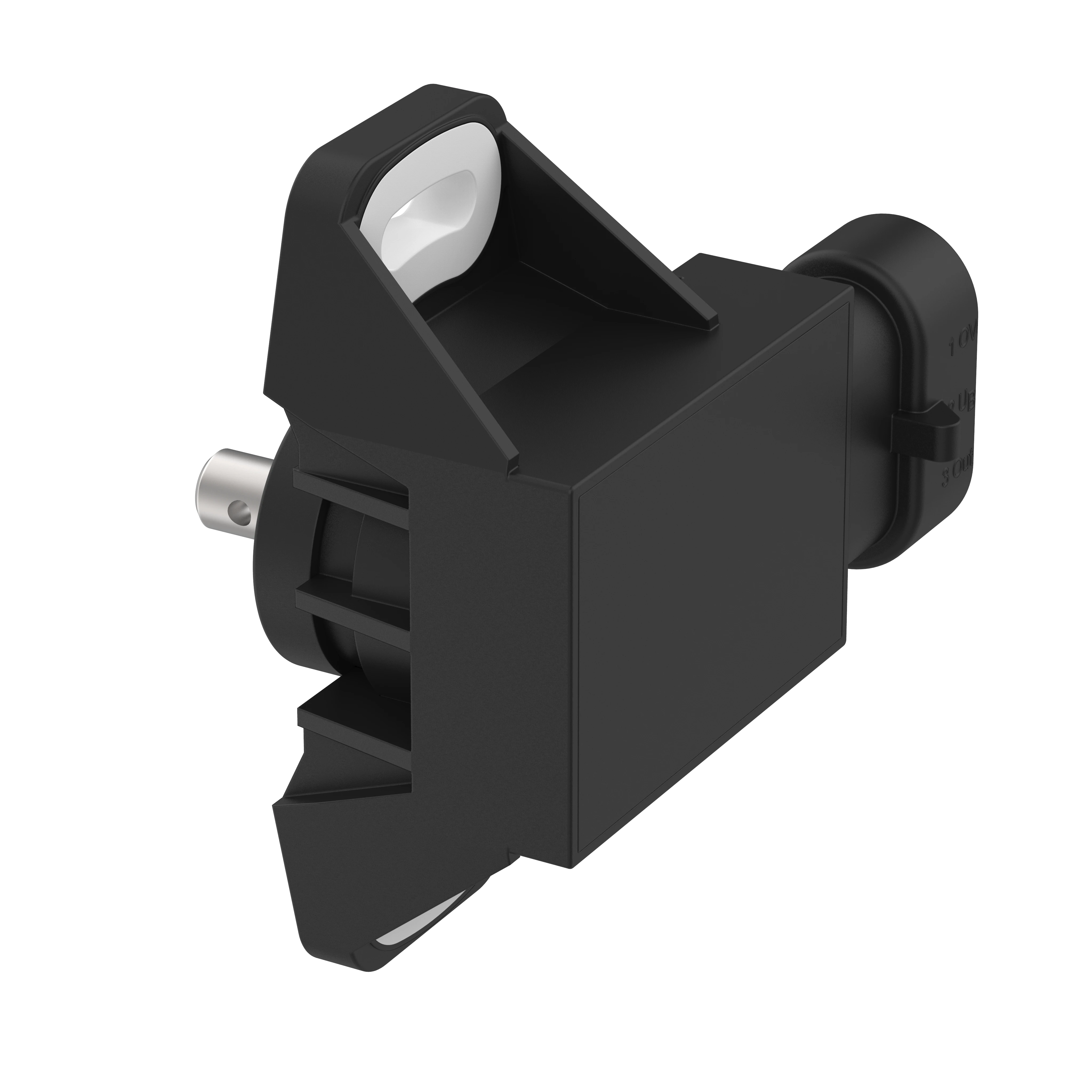

ELOBAU Angle Sensors, 120 Degree

Out of stock

Sku

CM8WQE

Angle Sensors, 120 Degree

More Information
Max. Operating Temp.	85 Deg. C
Brand	ELOBAU
Model No	424A11A120
Connector Type	AMP Superseal 1.5
Housing Material	PBT
Min. Operating Temp.	-40 Deg. C
Technology	Hall
Min. Storage Temp.	-40 Deg. C
Max. Storage Temp.	85 Deg. C
Item	Angle Sensor
Signal Update Rate	2000 Hz
Min. Load Resistance	20000 Ohm
Bearings	Ball Bearing
Ip Rating	Ip67
Resolution	0.1 Deg.
Min. Operating Voltage	10V DC
Max. Operating Voltage	30V DC
Current Consumption	10 mA
Torque For Fastening Screws	2.5 Nm
Max. Shaft Load, Axial	50 N
Signal Sequence	Counter Clock Wise
Temperature Coefficient	typ. - 250 ppm/K to typ. +250 ppm/K
Min. Output Signal	0.5V DC
Mean Time To Failure	133A
Max. Output Signal	4.5V DC
Angle Measuring Range	120 Deg.
Output Signal Center Position/zero Position	2.5V DC
Output Voltage	0.5 to 4.5V
Output	1
Max. Radial	100 N
Typical Linearity Error	-5 Deg. to +5 Deg.
