LEESON Brakemotors, Three Phase, TEFC, C Face With Base


Leeson brake motors are used on conveyors, machine tools, speed reducers, door operators and hoists which require a quick stop. They offer braking as a safety measure when power is cut abruptly.

Filter
LEESON 122250A
LEESON 140639B
LEESON 114155C
LEESON 119563D
LEESON 122248E
LEESON 122249F
LEESON 110670G
LEESON 110669H
LEESON 110671I
StyleModelEnclosureFrameFull Load AmpsHPHzInsulation ClasskWMotor Thermal ProtectionPrice (ex. VAT)
A
122250		TEFC145TC6-5.8 / 2.92 / 1 1/250/60F1.49 / 1.129700K46€1,842.86
B
140639		TEFC215TC26.8 / 13.410 / 7 1/250/60F7.50 / 5.60-€4,671.90
C
114155		TEFC56C2.8 / 1.43/460B0.56-€1,319.26
D
119563		TEFC56C3.2-3.2 / 1.6160F0.759700K46€1,611.86
E
122248		TEFC143TC3.2 / 1.6160F0.759700K46-33€1,620.99

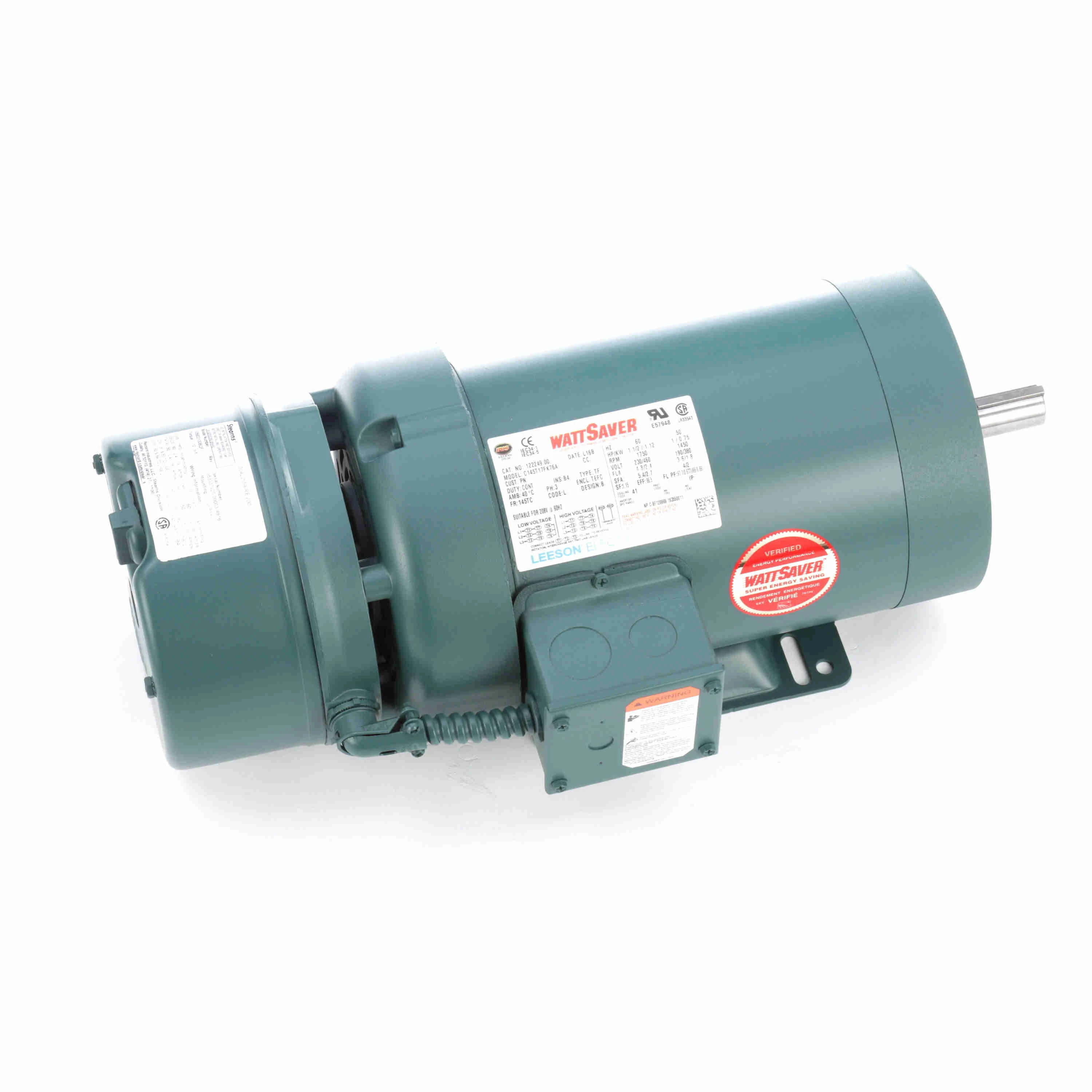

F
122249		TEFC145TC4.8 / 2.41 1/2 / 150/60B1.12 / .759700K46-33€1,781.84
G
110670		TENV56C2.0-1.8 / .91/260B.37-€1,127.62
H
110669		TENVC56C1.4-1.3 / .651/360B.246-€1,004.99
I
110671		TENV56C2.7-2.5 / 1.253/460F.56-€1,319.26

Working Mechanism

  • Brake motors use an electromagnetic field for powering and braking the motor.
  • They function by pushing a magnetic pole rotor through the applied current.
  • The poles of the stator (surrounding the rotor) apply force to turn the shaft.
  • When static AC or DC current is injected into the unit, the poles of the stator become static and stop the rotor.

Features

  • Leeson brake motors feature durable steel frame construction for structural rigidity and Polyrex EM lubrication to resist oil & water leakage at temperatures up to 40 degrees Celsius.
  • They have a drive-end, C-Face endshield with rigid base mounting for quick installation.
  • These NEMA Design B units offer premium Class B / F insulation for temperature control.
  • The brakes of these models are fail-safe and spring-set, owing to dual voltage brake coils.
  • These motors produce torque up to 10 hp at 50 / 60Hz power supply.
  • They come with a TEFC / TENV enclosure to ensure protection from dust, water and air-borne contaminants.
  • These triple-phase units have a power Off manual release for user convenience in case of a power failure. The load is automatically stopped when power is turned Off.
  • They offer continuous duty operation at speeds up to 1800 rpm.

Standards and Approvals

  • NEMA
  • IEC

Frequently Asked Questions

What is the difference between single, double and triple-phase motors?

  • Single-phase motor: Electricity flows through a single conductor.
  • Double-phase motor: Electricity flows through 4-wire conductors (2 for each phase).
  • Triple-phase motor: Electricity flows through 3 separate conductors.

What do Class B and F insulation mean?

These motors have Class B or F insulation for temperature control. Class B insulated motors can handle temperatures up to 130 degrees C and Class F motors can withstand a maximum temperature of 105 degrees C.

What is the difference between TENV and TEFC motors?

Totally enclosed non-ventilated (TENV) motors are designed without air openings and are ideal for applications where frequent sanitising or cleaning is required. TEFC (totally enclosed fan-cooled) motors come with an external fan to circulate outside air to the motor.
