RON CRANE SCALES Crane Dynamometer


Ron Crane Scales crane dynamometers measure the weight or force applied to a crane's hook or lifting equipment. They consist of a load sensor connected to the crane's lifting cable, which detects and displays the load's weight in real time. These dynamometers are useful in construction, manufac...turing, shipping and logistic applications. They optimise load distribution to avoid overloading and damage. These Ron Crane Scales dynamometers are majorly used by wind turbine operators / installers, shipping workers, safety inspection officers, oil & gas staffers and offshore workers.Read more

Filter
RON CRANE SCALES RON3050CW05A
RON CRANE SCALES RON2501S05CCB
RON CRANE SCALES RON2501DOS05CCC
RON CRANE SCALES RON3025MCW05D
RON CRANE SCALES RON2000S05CCE
RON CRANE SCALES RON3025MCW010F
RON CRANE SCALES RON3050CW10G
RON CRANE SCALES RON3050CW01H
RON CRANE SCALES RON3050CW03I
StyleModelCapacityDisplayFinishMaterialOverall HeightOverall LengthOverall WidthPower SourcePrice (ex. VAT)
A
RON3050CW05		10,000 lb.Digital 2" LCDIridized And Polyurethane CoatedAluminum16.7"9"5"1.5V Alkaline Disposable Batteries€2,425.87
B

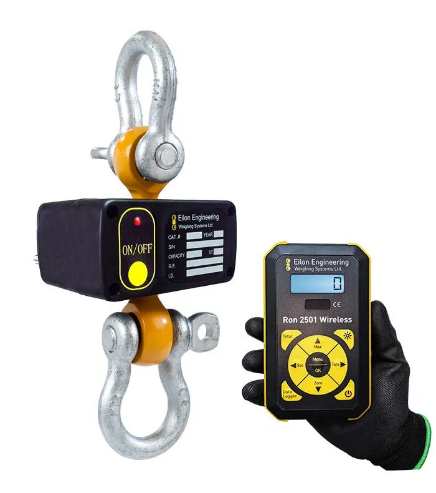

RON2501S05CC		10,000 lb.Digital 1/2" LCDPolyurethane PaintSteel5.8"4"1.7"1.5V Alkaline Disposable Batteries€4,974.83
C

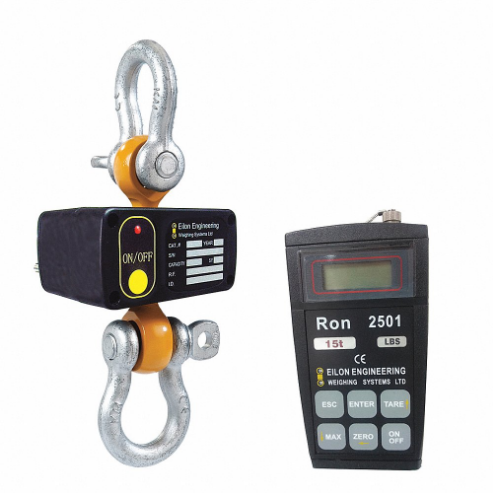

RON2501DOS05CC		10,000 lb.Digital HandheldPolyurethane PaintSteel5.8"4"1.7"3 - AA€5,396.91
D

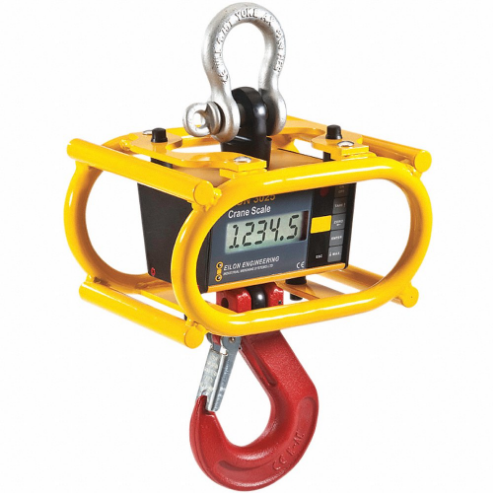

RON3025MCW05		10,000 lb.Digital 1" LCDIridized And Polyurethane CoatedAluminum16.7"6.3"5"1.5V Alkaline Disposable Batteries€2,241.51
E
RON2000S05CC		10,000 lb.Digital 1/2" LCDPolyurethane PaintSteel5.8"3"1.7"1.5V Alkaline Disposable Batteries€3,892.14
C
RON2501DOS10CC		20,000 lb.Digital HandheldPolyurethane PaintSteel7.7"4"2.4"3 - AA€5,685.80
F
RON3025MCW010		20,000 lb.Digital 1" LCDIridized And Polyurethane CoatedAluminum21.8"6.3"5"1.5V Alkaline Disposable Batteries€6,198.13
B
RON2501S10CC		20,000 lb.Digital 1/2" LCDPolyurethane PaintSteel7.7"4"2.4"1.5V Alkaline Disposable Batteries€5,266.15
G
RON3050CW10		20,000 lb.Digital 2" LCDIridized And Polyurethane CoatedAluminum21.8"9"5"1.5V Alkaline Disposable Batteries€7,226.55
E
RON2000S12CC		24,500 lb.Digital 1/2" LCDPolyurethane PaintSteel7.7"3"2.4"1.5V Alkaline Disposable Batteries€4,510.26
E
RON2000S20CC		40,000 lb.Digital 1/2" LCDPolyurethane PaintSteel8.7"3"3"1.5V Alkaline Disposable Batteries€4,540.59
C
RON2501DOS25CC		50,000 lb.Digital HandheldPolyurethane PaintSteel9.4"3.4"4"3 - AA€6,320.89
B
RON2501S25CC		50,000 lb.Digital 1/2" LCDPolyurethane PaintSteel9.4"4"3.4"1.5V Alkaline Disposable Batteries€2,657.76
B
RON2501S50CC		100,000 lb.Digital 1/2" LCDPolyurethane PaintSteel12.6"4"4.5"1.5V Alkaline Disposable Batteries€6,342.18
C
RON2501DOS50CC		100,000 lb.Digital HandheldPolyurethane PaintSteel12.6"4.5"4"3 - AA€6,777.33
H
RON3050CW01		2000 lb.Digital 2" LCDIridized And Polyurethane CoatedAluminum13.2"9"5"1.5V Alkaline Disposable Batteries€2,292.96
E

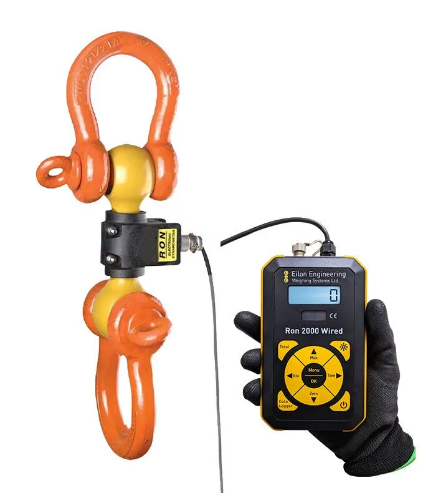

RON2000S01CC		2000 lb.Digital 1/2" LCDPolyurethane PaintSteel4.9"3"0.7"1.5V Alkaline Disposable Batteries€3,624.20
F
RON3025MCW01		2000 lb.Digital 1" LCDIridized And Polyurethane CoatedAluminum13.2"6.3"5"1.5V Alkaline Disposable Batteries€4,579.73
G

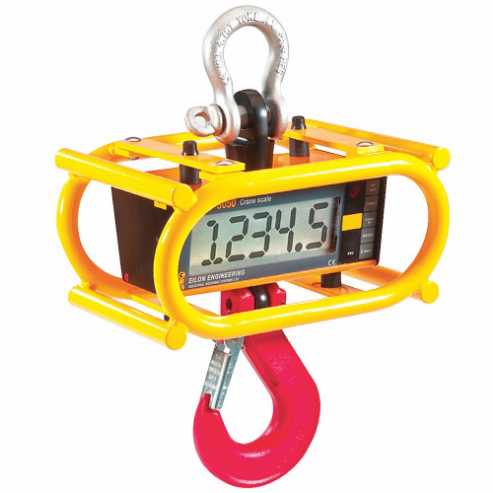

RON3050CW016		3200 lb.Digital 2" LCDIridized And Polyurethane CoatedAluminum13.2"9"5"1.5V Alkaline Disposable Batteries€6,106.70
F
RON3025MCW016		3200 lb.Digital 1" LCDIridized And Polyurethane CoatedAluminum13.2"6.3"5"1.5V Alkaline Disposable Batteries€2,132.60
F
RON3025MCW03		6000 lb.Digital 1" LCDIridized And Polyurethane CoatedAluminum15.7"6.3"5"1.5V Alkaline Disposable Batteries€2,169.48
I

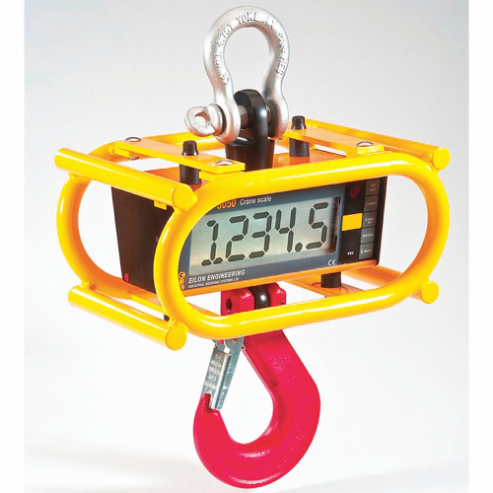

RON3050CW03		6000 lb.Digital 2" LCDIridized And Polyurethane CoatedAluminum15.79"5"1.5V Alkaline Disposable Batteries€6,389.52

Working Mechanism

  • Before starting up the dynamometer, make sure that the shackles you intend to use are appropriate for the system.
  • After confirmation, press the power key to turn on the system.
  • The display will show BATT, then the remaining battery life (in percentage) of the indicator and then the load cell, followed by the unit of measurement.
  • Following that, the current weight value will be displayed.
  • Now, before loading the system, press the 'Zero' button.
  • After that, the system will read GROSS, and then 0.
  • Now, you can load the crane, and the dynamometer will show the exact loading value.
  • When you are finished with the system, press the power button to turn it off.
  • Finally, return both the load cell and indicator to their carrying case or another appropriate storage place.

Features

  • Ron Crane Scales crane dynamometers have 90-degree offset shackle holes to eliminate bending stress on the load cell.
  • They are available in both integrated and handheld display variants.
  • These lightweight dynamometers have load cell bodies made of high-grade aerospace steel for durability.
  • Their compact size ensures minimal loss of headroom.
  • These dynamometers also allow users to change measurement units to metric tons, shorttons (2000 lbs), kg, Ib and more.
  • They have heavy-duty designs and are equipped with shock-absorbing mechanisms to handle jerks.
  • These Ron Crane Scales dynamometers are available in load capacities ranging from 2000 to 100000 lb.
  • They can operate up to 2000 hours on a single charge.
  • Ron 2501-S05CC dynamometer is equipped with advanced communication software that allows users to operate it remotely using smartphones, tablets or laptops.
  • Selected models come with a Pelican carrying case to keep the instruments safe and secure during transportation.

Standards and Approvals

  • ASME
  • IEC

Frequently Asked Questions

How will I know when it is time to replace or charge the batteries?

The batteries should be charged:

  • Before using the unit for the first time.
  • If more than two months have passed since the last charge.
  • When the Ron dynamometer displays LO:BAT (low battery) on the screen.

Are these dynamometers safe for outdoor use?

Yes, Ron dynamometers are IP65-rated, making them ideal for use in outdoor settings.

How to switch between gross and net weight values on Ron Crane Scale dynamometers?

  • Ron dynamometers are equipped with a Tare function to allow the user to ensure the display reads zero even though there may be weight on the system from a sling, shackles or a container. This capability eliminates the need for the operator to subtract the weight of the container when only the net amount of the load is required.
  • To use the Tare mode, load the system with the container and then press TARE.
  • The screen will now display NET, then the value 0.
  • Zero display means that the system is now in Net mode.
  • The system will display NET on the screen about once every minute to remind the operator that it is in Net mode.
  • Now, to exit out of Net mode, press TARE again.
  • The display will show GROSS, indicating that the system is back in Gross mode.
  • Note that switching between Gross and Net modes will clear the MAX.

How often should I calibrate these dynamometers?

Ron dynamometers must be calibrated annually unless otherwise specified by national laws.

Do these dynamometers show the maximum registered load for every cycle?

Yes, these dynamometers from Ron Crane Scales have a MAX (peak hold) option that allows users to save the highest weight recorded since the system was last turned on or the Gross / Net mode was changed.
Press the MAX key until the display shows :M:AX. It will now display the maximum recorded load since the last MAX reset for approximately two seconds with colons between the digits. After that, the system goes back to the current value with a beep sound indicating that the system is now ready for a new operation.

What is the accuracy of Ron Crane Scales dynamometers?

They have an accuracy of +/- 0.1%.
