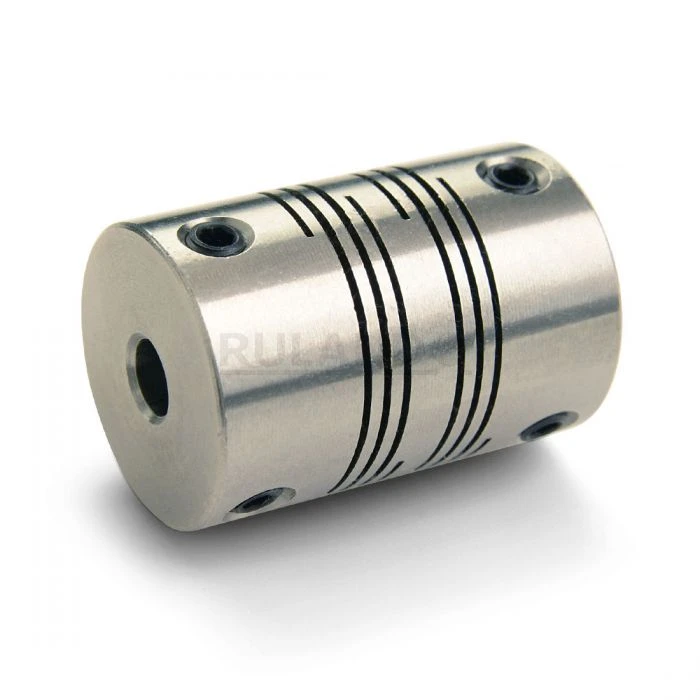

RULAND MANUFACTURING F-Series Beam Couplings, Six-Beam Set Screw, Metric
Out of stock
Sku
CY3RPJ
F-Series Beam Couplings, Six-Beam Set Screw, Metric
RULAND MANUFACTURING
More Information
Upc634529010457
Raptor Price€74.84
Optimization Phaseopt_1
Price SourceGrainger
Harmonization Code8483608000
Model NoFSMR16-5-5-A
BrandRULAND MANUFACTURING
Ship Pack Width (in)3
Ship Pack Length (in)1.00
Ship Pack Height (in)0.6
Max. Parallel Misalignment (in.)0.008
Max. Bore5
Max. Axial Misalignment (in.)+/-0.005
Max. Angular Misalignment3 Degrees
Length Through Bore12 mm
FinishBright
Style6-Beam Set Screw
Setscrew Location2 (120 deg.)
Screw SizeM4 mm
Overall Length25.4mm
Outside Dia.15.9mm
MaterialAluminum
Bore Dia.5 mm x 5 mm
Max. Rpm6000
ItemMotion Control Coupling
Max. Temp. Range (f)225 Degrees
SizeFSMR16
Torsional Stiffness (deg./in.-lbs.)0.363
Clearance Dia.20.22mm
Torque13 In.Lbs.
Min. Bore2279646
Screw TypeSet Screw
