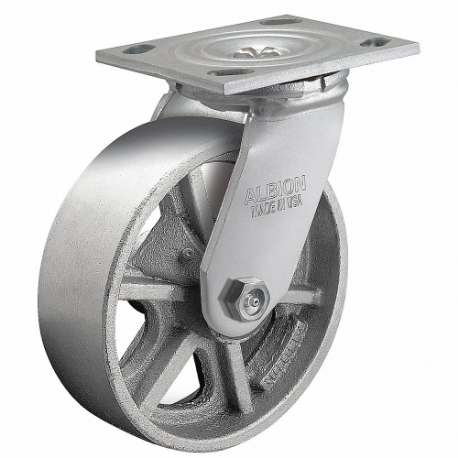

| Application | Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Features | Heat Resistant Wheel, Impact Resistant Wheel, Kingpin, Medium Heavy Duty Caster |
| For Axle Dia. | 1/2" |
| Frame Construction | Cold Forging |
| Frame Finish | Zinc Plated |
| Hub Length | 2.188" |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.625" x 3" |
| Load Rating | 1250 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/4" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4.5" x 4" |
| Mounting Plate Thickness | 1/4" |
| Non-marking | No |
| Nsf Listed | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | 0°F to 800°F |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Overall Wheel Width | 2" |
| Swivel Construction | Kingpin |
| Swivel Lead | 1 3/4" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 3/4" |
| Tread Material, Wheel Material | Cast Iron |
| Tread Shape | Flat Tread |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Cast Iron |
| Wheel Core Type | Solid |
| Wheel Dia. | 6" |
| Wheel Material | Cast Iron |
| Wheel Width | 2" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 145 Bhn |
| Wheel/tread Hardness Rating | Extra Hard |
| With Toe Plate | No |
| Ship weight (kg) | 3.897 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
FH0650924 | Caster Wheel | €459.53 | |
 |
05DT05201SFBD | Caster | €229.78 | |
 |
05DT06201S | Caster | €203.51 | |
|
05DT08201SFBD | Caster | €268.61 | |
 |
05DT06201R | Caster | €162.26 | |
|
05DT04201SFBD | Caster | €217.06 | |
|
05DT04201R | Caster | €132.59 |
