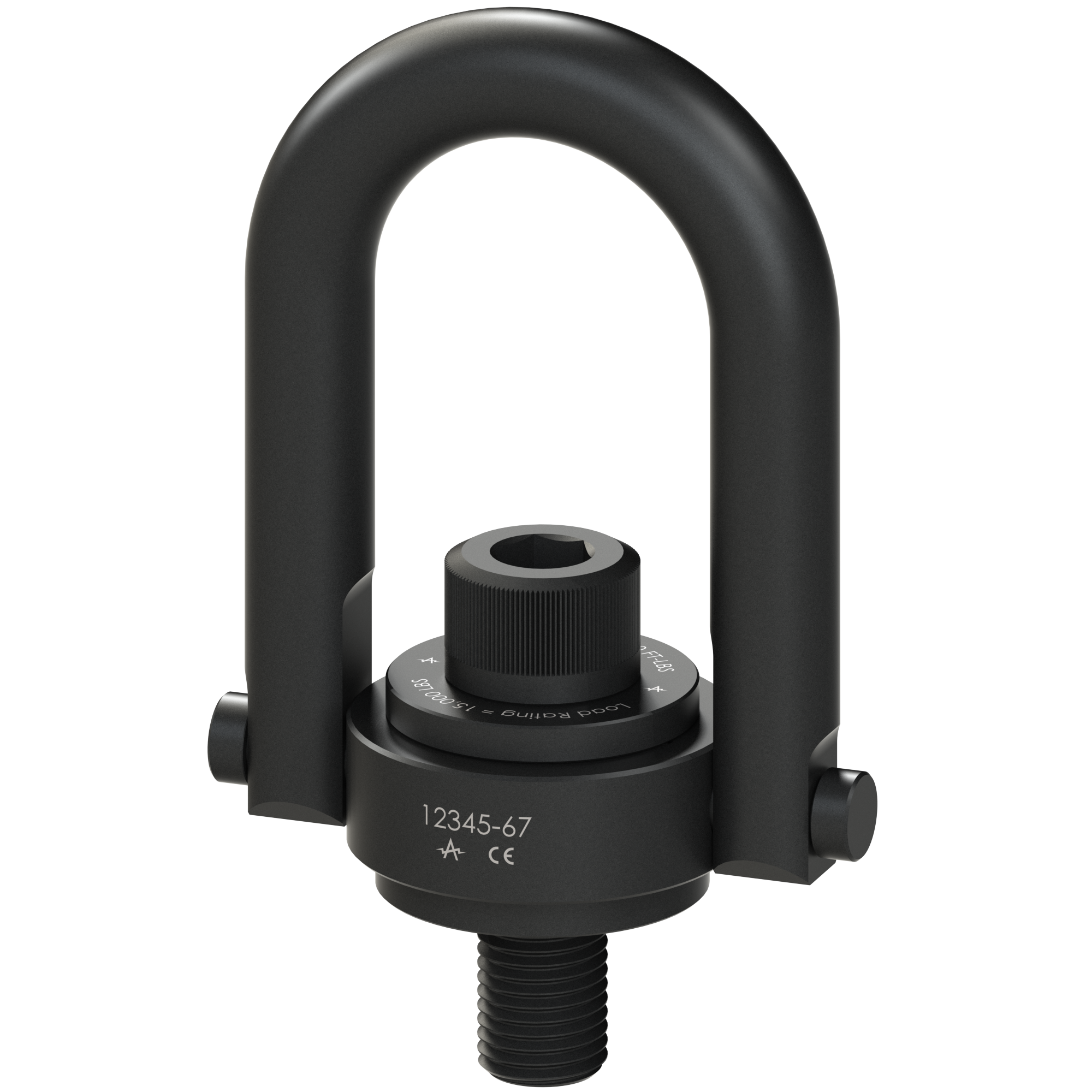

| Item | Hoist Ring |
| Finish | Black Oxide |
| Inside Length | 235.71mm |
| Inside Width | 196.85mm |
| Load Capacity | 51000Kg |
| Material | 4140 Alloy Steel |
| Movement | 360° Swivels, 180° Pivots |
| Safety Factor | Minimum of 5:1 |
| System Of Measurement | Metric |
| Thickness | 82.55mm |
| Thread Length | 178mm |
| Thread Size | M90 x 6.0 |
| Torque | 9560 N-m |
| Width | 403.86mm |
| Model | Load Capacity | Thread Size | Torque | Width | Inside Width | Thread Length | Inside Length | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 24008 | 400Kg | M8x1.25 | 9.5 Nm | 46.7 mm | 19.1 mm | 17mm | 32.1 mm | 84.8 mm | €95.03 | |
| 24010 | 450Kg | M10x1.50 | 16 Nm | 46.7 mm | 19.1 mm | 17mm | 30.2 mm | 84.8 mm | €95.03 | |
| 24012 | 1050Kg | M12x1.75 | 37 Nm | 89.4 mm | 38 mm | 19mm | 59.4 mm | 140.4 mm | €113.88 | |
| 24014 | 1050Kg | M12x1.75 | 37 Nm | 89.4 mm | 38 mm | 19mm | 108.6 mm | 189.6 mm | €126.06 | |
| 24016 | 1900Kg | M16x2.00 | 80 Nm | 89.4 mm | 38 mm | 24mm | 55.4 mm | 145.4 mm | €113.88 | |
| 24018 | 1900Kg | M16x2.00 | 80 Nm | 89.4 mm | 38 mm | 24mm | 104.6 mm | 194.6 mm | €126.06 | |
| 24020 | 2200Kg | M20x2.50 | 135 Nm | 89.4 mm | 38 mm | 30mm | 51.4 mm | 151.4 mm | €115.82 |
