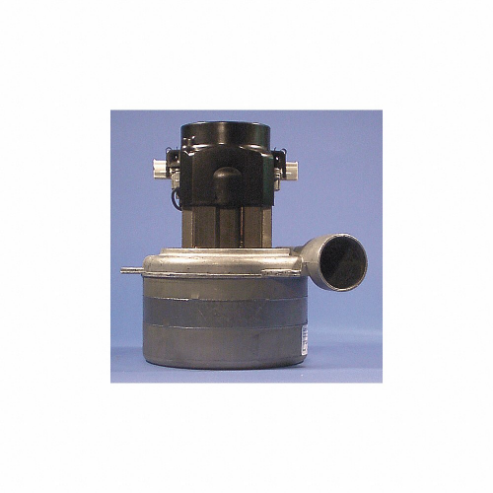

AMETEK LAMB 117123-00 Vacuum Motor, Tangential, 5.7 Inch Body Dia., 3 Stage, 1 Speed, 120VAC

Ametek Lamb 117123-00 vacuum motor / blower allows air to flow into the bottom of the motor and discharge it through an air tube on the side. It is suitable for wet pickup applications since debris and moisture will not contact the motor windings. This motor moves clean and dry air in commercial canisters or utility vacuums, sprayers / foggers, car washes, and central vacuum systems.

Features:

• This vacuum motor / blower has ball motor bearings, providing smooth and reliable motor operation.
• It features a tangential bypass discharge design, ensuring efficient airflow and suction power.
• Ametek Lamb 117123-00 vacuum motor / blower offers a single-phase motor design, simplifying installation and operation.
• This motor further features an open motor enclosure design to facilitate cooling and maintenance accessibility.
• It offers a strong starting torque and runs at high speeds.
• Ametek Lamb 117123-00 vacuum motor / blower incorporates an aluminium fan end bracket to reduce vibration and increase longevity.
• This three-stage motor has a plastic casing for ease of handling and transportation.

Compatible Accessories:

• Ametek Lamb Replacement Motor Brush Set: These carbon brush sets can be used to make an electrical contact that will conduct current between stationary wires and moving elements.

Standards and Approvals:

• UL (E47185)

Frequently Asked Questions:

Q. Does this vacuum motor require lubrication?

A. No, Ametek Lamb 117123-00 vacuum motor comes with permanently lubricated bearings.

Q. What are the power ratings of this vacuum motor?

A.

• Current - 7A
• Voltage - 240VAC
• Frequency - 50 / 60 Hz

Q. What is the maximum air flow rate of this vacuum motor?

A.

• 95 CFM

Q. What safety precautions should I take when using Ametek Lamb 117123-00 vacuum motor / blower?

A.

• Read the manual thoroughly before operating the vacuum motor to understand safety guidelines.
• Ensure the vacuum motor is connected to a properly rated power supply for safe usage.
• Always connect the vacuum motor to a grounded electrical outlet to prevent electrical shock.
• Keep the vacuum motor away from water to avoid electrical hazards.
• Operate the vacuum motor in a well-ventilated area to prevent overheating.
• Avoid extreme temperatures to prevent damage to the vacuum motor.
• Do not overload the vacuum motor to prevent overheating and damage.
• Regularly inspect and maintain the vacuum motor as per manufacturer recommendations.
• Unplug the vacuum motor when not in use to prevent accidental start-up.
