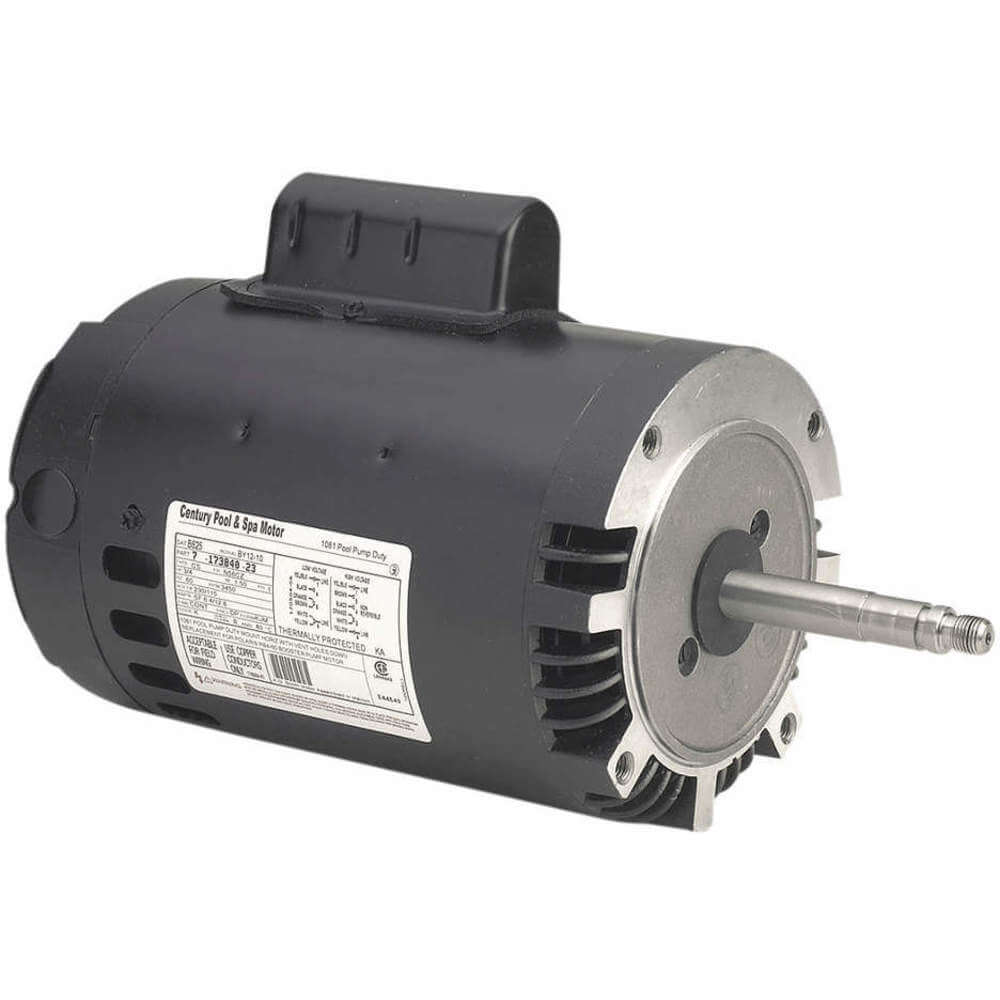

| Item | Pool and Spa Pump Motor |
| Ambient Temp. Range | 40°C |
| Bearing Type | Ball |
| Bearings | Ball |
| Bolt Circle Dia. | 5.812" |
| Color | Black |
| Conduit Box Position | F1, F3 |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure | Open Dripproof |
| Finish | Black |
| Flange Material | Aluminum |
| Frame | 56Cz |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4 |
| Hp | 3/4 hp |
| Hz | 60 |
| Insulation Class | Class B |
| Length Less Shaft | 9.688" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pumps |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Drip Proof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face Footless |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pool And Spa Pump |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting | Face |
| Nameplate Rpm | 3450 RPM |
| Number Of Speeds | 1 |
| Overall Height | 11" |
| Overall Length | 13 1/2" |
| Phase | 1 |
| Rotation | Ccwse |
| Rpm Range | 3001-3600 |
| Service Factor | 1.5 |
| Service Factor Amps | 12.8A |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Shaft Dia. | 5/8" |
| Shaft Length | 3 7/8" |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 303 |
| Shaft Thread Class | Class 2A |
| Shaft Thread Direction | Right Hand |
| Shaft Thread Size | 1/2"-20 |
| Shaft Thread Type | Fine |
| Thermal Protection | Auto |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230 |
| Weight | 27 lbs. |
| Ship weight (kg) | 27 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| HS code | 8501404040 |
| Country of Origin | CN |
| Product | Model | Ambient Temp. Range | Bearings | Efficiency Group | Flange Material | Frame | Full Load Amps | HP | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
USN1202 | 50 Degrees C | Ball | High | Aluminum | 56J | 20.4/11-10 | 2 | B | €728.10 | |
 |
USN1152 | 50 Degrees C | Ball | High | Aluminum | 56J | 15.6/8.5-7.8 | 1.5 | B | €651.80 | |
 |
SN1202 | 50 Degrees C | Ball | High | Aluminum | 56J | 13.0-11.8 | 2 | B | €887.68 | |
 |
SN1152 | 50 Degrees C | Ball | High | Aluminum | 56J | 20.4/11-10 | 1.5 | B | €777.25 | |
 |
SN1102 | 50 Degrees C | Ball | High | Aluminum | 56J | 15.6/8.5-7.8 | 1 | B | €659.48 | |
 |
SN1072 | 50 Degrees C | Ball | High | Aluminum | 56J | 11.0/6.0-5.5 | 3/4 | B | €636.43 | |
 |
USN1302 | 50 Degrees C | Ball | High | Aluminum | 56J | 16.0-14.8 | 3 | B | €1,174.91 |
