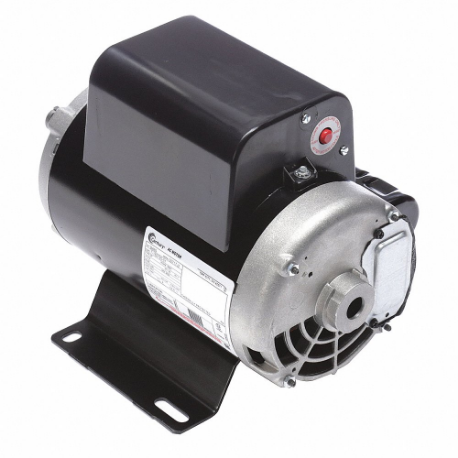

| Item | Pressure Washer Motor |
| Ambient Temp. | 40°C |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Body Dia. | 5.9" |
| Duty Cycle | Continuous |
| Finish | Powder Coated |
| Frame | R56Y |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 24A |
| Hp | 6 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Motor Application | Pressure Washer |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Overall Height | 10 1/8" |
| Overall Length | 14 9/16" |
| Phase | 1 |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | Yes |
| Usable @ 208v | Yes |
| Voltage | 230V AC |
| Weight | 50 lbs. |
| Ship weight (kg) | 21.78 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
