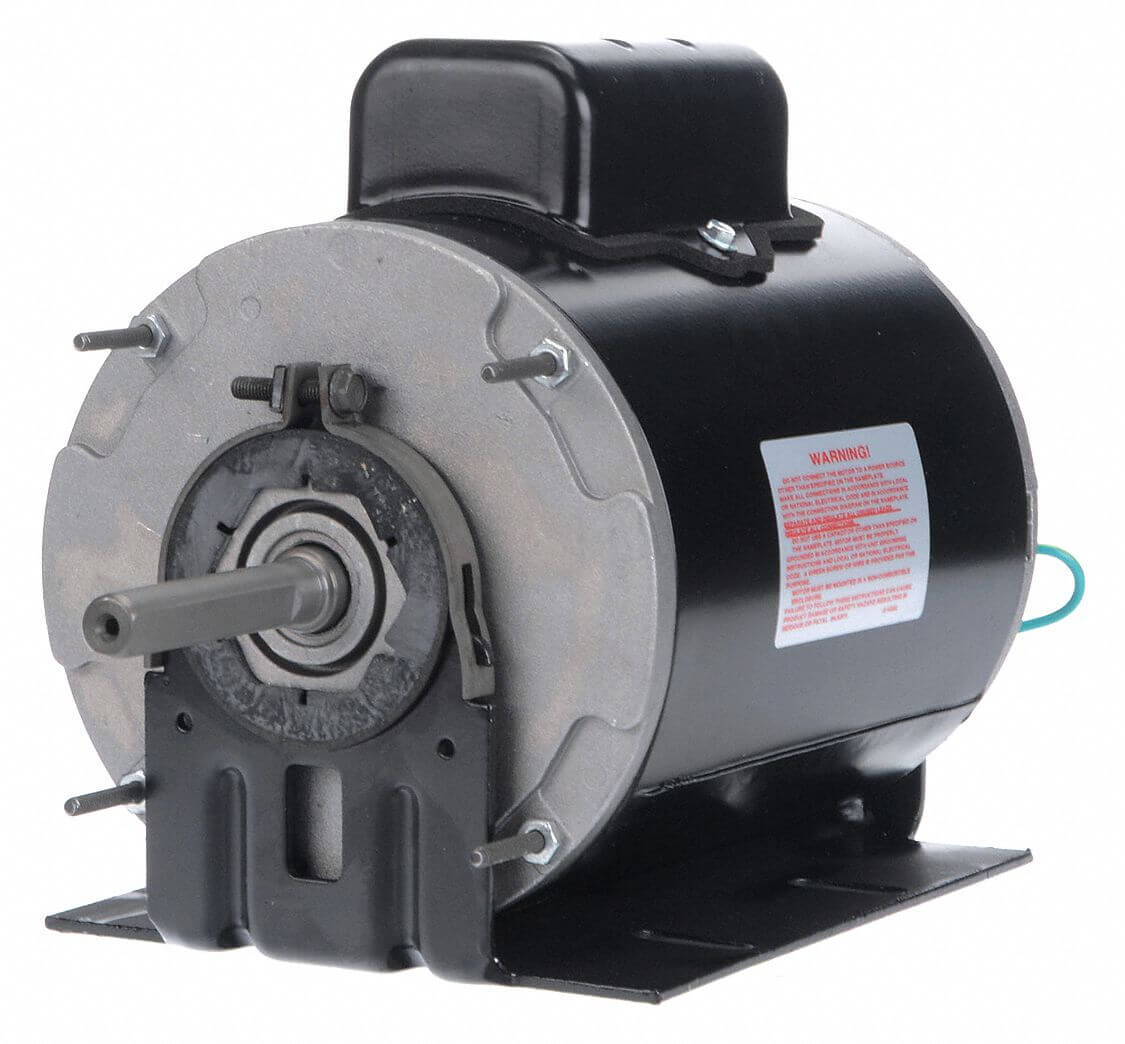

| Item | Direct Drive Blower Motor |
| Bearings | Ball |
| Body Dia. | 5.625" |
| Bolt Circle Dia. | 5.187" |
| Capacitor Included | Yes |
| Capacitor Required | Included |
| Duty | Continuous Air Over |
| Enclosure | Totally Enclosed Air-Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 6.5/3.25 |
| Hp | 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 8.375" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Dr Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | PSC |
| Mounting | Cradle/Stud |
| Nameplate Rpm | 1100 |
| Number Of Speeds | 1 |
| Overall Length | 11" |
| Phase | 1 |
| Resilient Ring Dia. | 2.5" |
| Ring To Ring Center | 7.875" |
| Rotation | CW/CCW |
| Rpm Range | 1001-1100 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3.125" |
| Shaft Orientation | All Angle |
| Shaft Type | Double Flat |
| Stud Length | 7/8" |
| Stud Location | Shaft End |
| Stud Pattern | 3-5/8 x 3-5/8" |
| Stud Size | #8-32 |
| Thermal Protection | Auto |
| Voltage | 115/230 |
| Warranty | 1 yr. |
| Ship weight (kg) | 9.8505 |
| Ship height (cm) | 25.65 |
| Ship length (cm) | 33.27 |
| Ship width (cm) | 17.53 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Bolt Circle Dia. | Full Load Amps | HP | Length Less Shaft | Motor Mounting Position | Motor Shaft Design | Number of Speeds | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

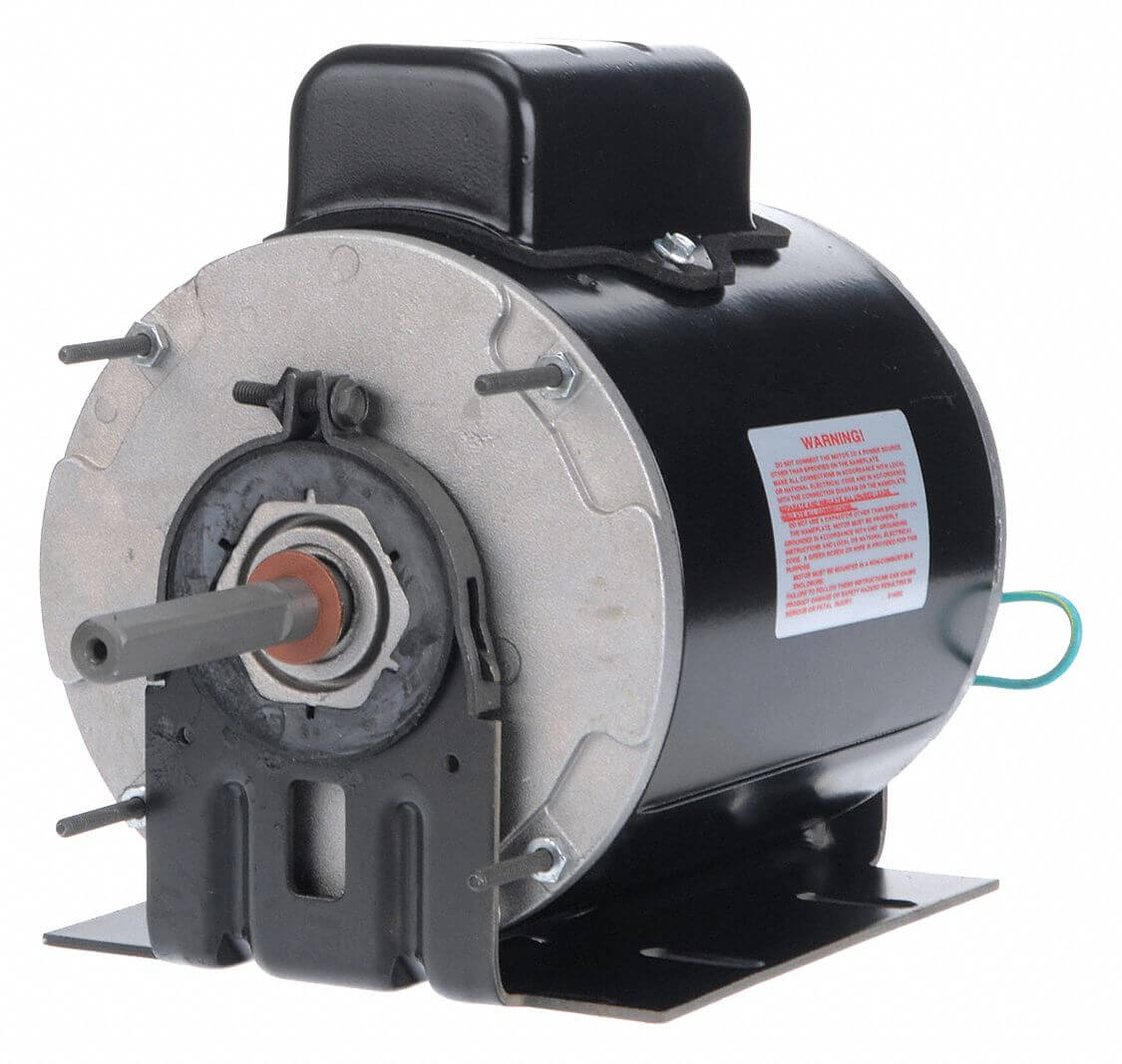

C046A | 5.187" | 4.5/2.3 | 1/3 | 7.25" | All Angle | Double-Flat | 1 | 10" | €312.84 | |
 |

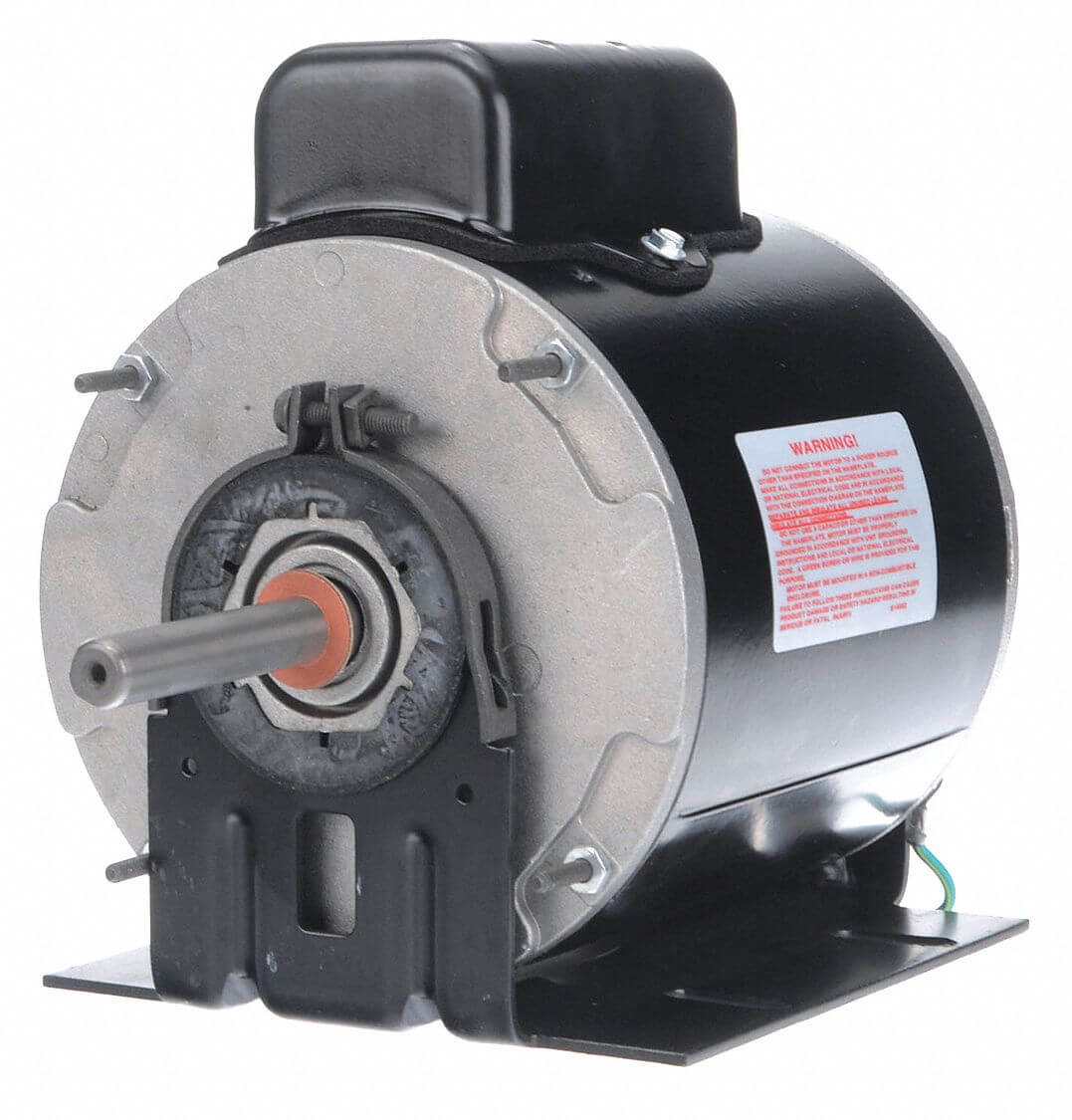

C045A | 5.187" | 4.0/2.0 | 1/4 | 7" | All Angle | Double-Flat | 1 | 9.75" | €324.29 | |
 |
C059A | 5.15" | 3.4 | 1/4 | 7.625" | Horizontal | Flat | 2 | 10.125" | €258.96 |
