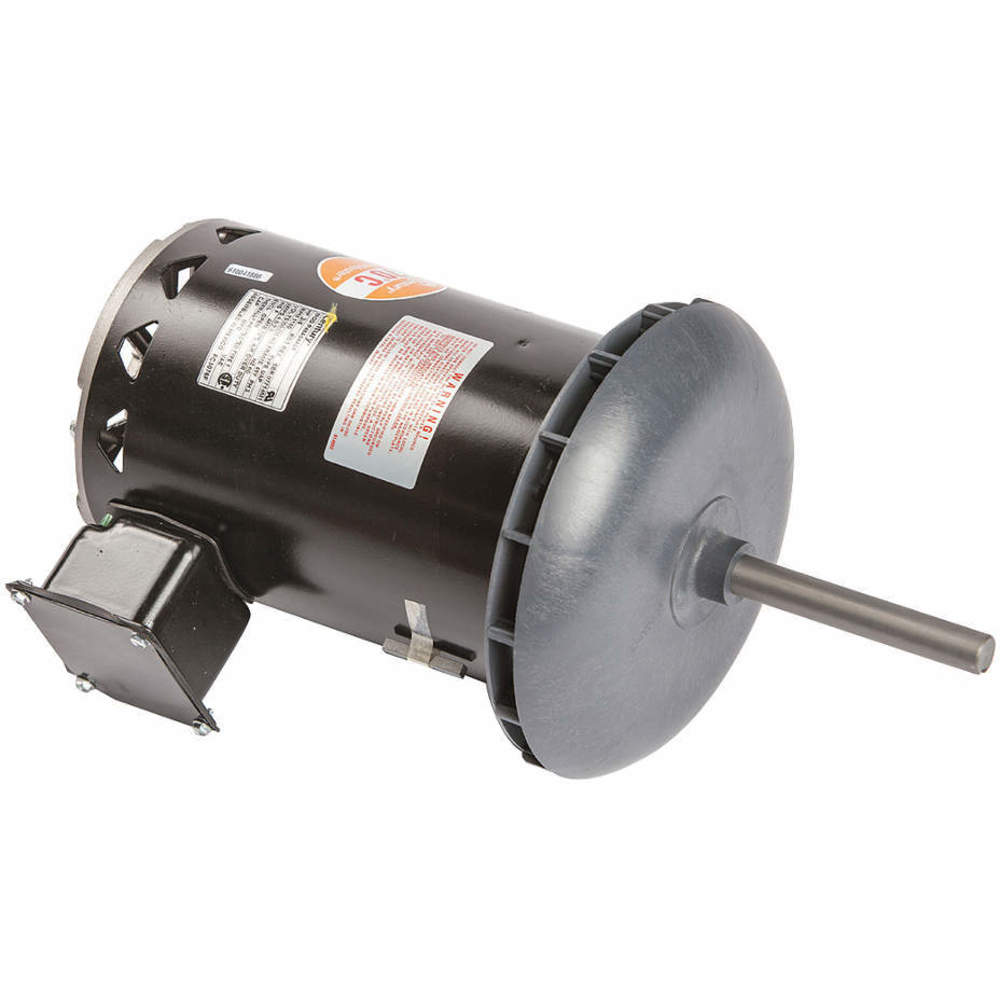

| Item | Condenser Fan Motor |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 5 5/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty | Continuous Air-Over |
| Duty Cycle | Continuous |
| Enclosure | Open Air-Over |
| Features | Belly Band; Thermally Protected; Vertical Shaft Up |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.0-4.0/1.5 |
| Hp | 3/4 hp |
| Hz | 60 |
| Insulation Class | Class F |
| Lead Length | 5" |
| Length Less Shaft | 10.938" |
| Max. Ambient Temp. | 70°C |
| Motor Application | Hvac/R |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Band |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Mounting | Band |
| Nameplate Rpm | 1140 RPM |
| Number Of Speeds | 1 |
| Overall Length | 15" |
| Phase | 3 |
| Power | 560 W |
| Removable Base | Yes |
| Rotation | CW/CCW |
| Rpm Range | 1101-1200 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 4.062" |
| Shaft Orientation | Vertical |
| Shaft Type | Keyed With Single Flat |
| Thermal Protection | Auto |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460 |
| Weight | 24 lbs. |
| Ship weight (kg) | 24 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 22.86 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Bearings | Body Dia. | Capacitor Required | Enclosure | Frame | Full Load Amps | HP | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FC1066AF | Ball | 5.625" | 2MDY7 | Open Air-Over | 48Y | 4.0/2.0 | 5/8 | F | €435.93 | |
 |
FC1086AF | Ball | 5.625" | 2MDW2 | Open Air-Over | 48Y | 4.6/2.3 | 7/8 | F | - | RFQ
|
 |
FC1106F | Ball | 5.625" | 2MDW3 | Open Air-Over | 48Y | 6.4/3.2 | 1 | F | €676.07 | |
 |
FC1156F | Ball | 5.625" | 2MDW3 | Open Air-Over | 48Y | 7.0/3.5 | 1.5 | F | €825.35 | |
 |
FC3106F | Ball | 5.625" | - | Open Air-Over | 48Y | 5.6/2.8 | 1 | F | €837.69 | |
 |
FC3156F | Ball | 5.625" | - | Open Air-Over | 48Y | 5.8/2.9 | 1.5 | F | €999.90 | |
 |
C512V1 | Double Sealed Ball | 6.5" | 2MDV9 | Open Air-Over | 56Y | 3.5-3.4/1.7 | 1/2 | B | - | RFQ
|
