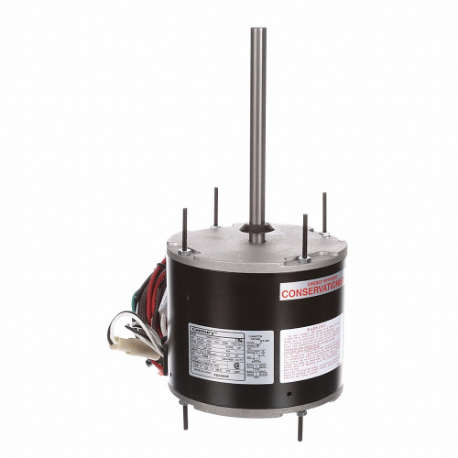

| Item | Direct Drive Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | 2MDV6 |
| Extended Thru-bolts | No |
| Frame | 48 |
| Frame Material | Steel |
| Full Load Amps | 1.8/1.1A |
| Hp | 1/3 hp to 1/5 hp |
| Insulation Class | Class F |
| Motor Application | Condenser Fan |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Stud |
| Nameplate Rpm | 1075 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 2 |
| Overall Length | 12 1/8" |
| Phase | 1 |
| Replacement For | 51-23053-21 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6 1/2" |
| Stud Length | 1 1/4" |
| Stud Location | Opposite Lead End |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Thread Length | 1 1/4" |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 16 lbs. |
| Ship weight (kg) | 6.48 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
