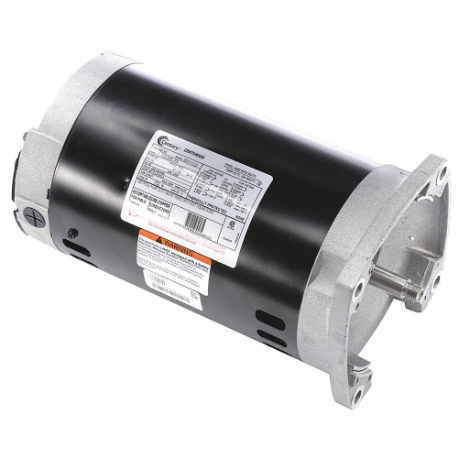

| Item | Square Flange Pool Pump Motor |
| Ambient Temp. | 50°C |
| Bearing Type | Ball |
| Bolt Circle Dia. | 7 1/8" |
| Duty Cycle | Continuous |
| Frame | 56Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5-4.6/2.3A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Motor Application | Pool And Spa Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Overall Height | 6 1/2" |
| Overall Length | 13 3/16" |
| Phase | 3 |
| Service Factor | 1.65 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 28 lbs. |
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
