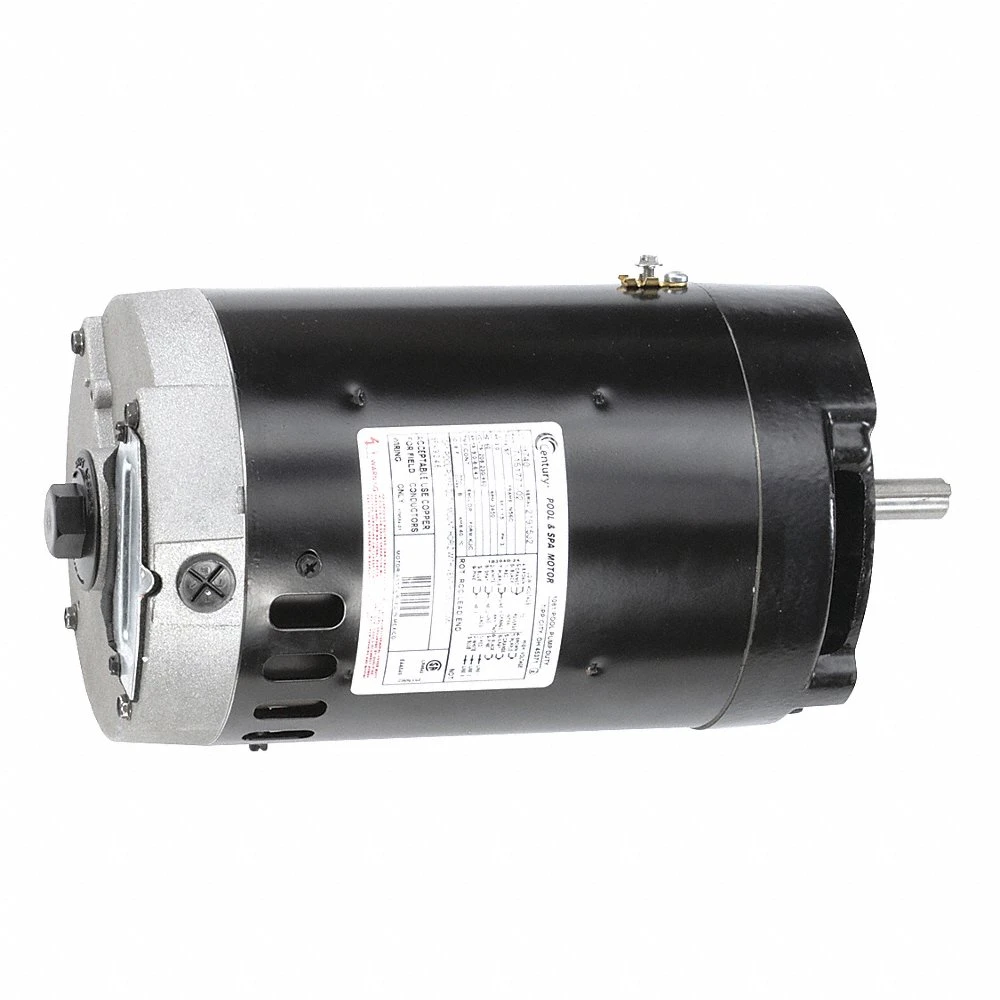

| Item | Pump Motor |
| Application | Pumps |
| Bearing Type | Ball |
| Body Dia. | 6 2/5" |
| Bolt Circle Dia. | 5 15/16" |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2-1.8/1A |
| Height | 6 1/2" |
| Hp | 3 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pool And Spa Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Overall Length | 13 5/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 37 lbs. |
| Ship weight (kg) | 37 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
| Product | Model | Frame | Frame Material | Full Load Amps | HP | Hz | Length Less Shaft | Motor Application | Motor Shaft Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B586 | L56HCZ | Rolled Steel | 4.8-4.5A | 1 | 60 Hz | 10 7/64" | Farm Duty | - | €728.16 | |
 |
H155 | 56J | Steel | 2.6-2.6/1.3A | 1/2 | 60 Hz | 8 1/2" | General Application | - | €459.89 | |
 |
H446 | 56J | Steel | 3.4/1.7A | 3/4 | 50/60 Hz | 9 1/2" | General Application | Threaded | €465.59 | |
 |
H506 | 56J | Steel | 4.3-4/2A | 1 | 50/60 Hz | 9 1/4" | General Application | Threaded | €563.82 | |
 |
H607 | 56J | Steel | 5.8-5.6/2.8A | 1 1/2 | 60 Hz | 9 3/4" | General Application | Threaded | €711.10 | |
 |
H609ES | 56C | - | 4.2/2.1A | 1 1/2 | 60 Hz | 10 3/8" | General Application | Keyed | €914.42 | |
 |
H733 | 56J | Steel | 6.8-6.6/3.3A | 2 | 50/60 Hz | 10 1/4" | General Application | Threaded | €875.33 |
