| Item | Jet Pump Motor |
| Bearings | Ball |
| Body Dia. | 5.6" |
| Bolt Circle Dia. | 5 7/8" |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.7/11.4A |
| Height | 5 5/8" |
| Hp | 3/4 |
| Hz | 60 Hz |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 104 Deg. F |
| Motor Application | Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 3450 |
| Nema Design | None |
| Number Of Speeds | 1 |
| Overall Length | 11 9/16" |
| Phase | 1 |
| Service Factor | 1.5 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Voltage | 115/230V AC |
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| Country of Origin | CN |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Overall Length | Service Factor | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

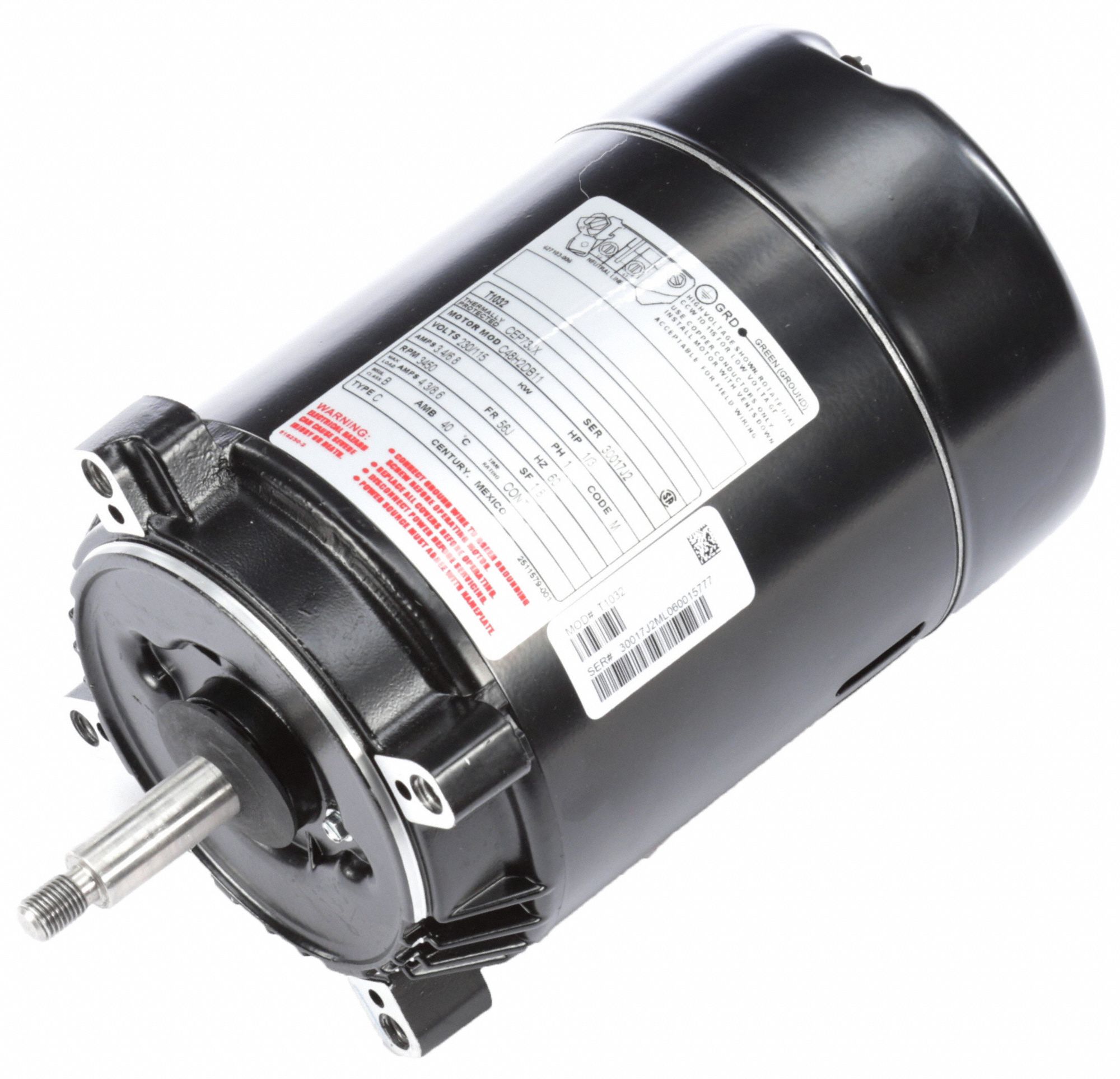

T1032 | 56J | 3.4/6.8A | 1/3 | 8 3/8" | 10 13/16" | 1.8 | 2 7/16" | €343.39 |
