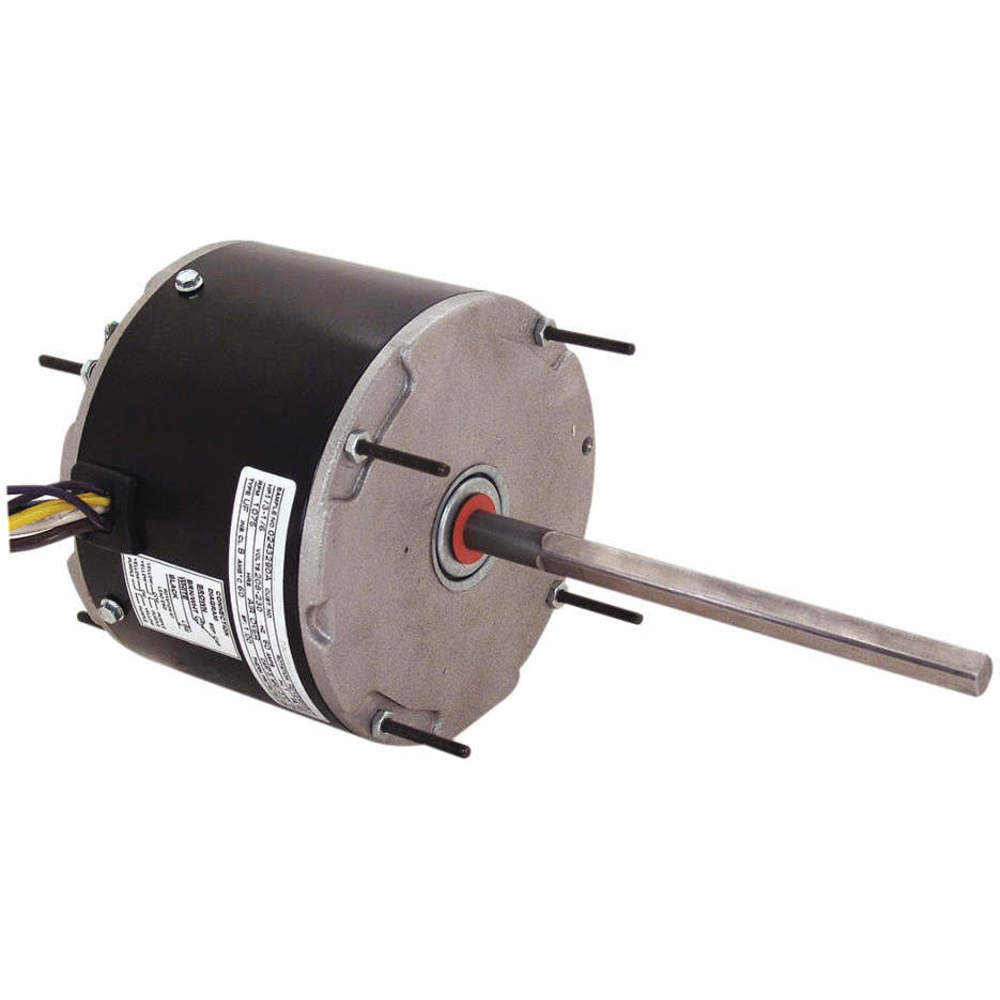

| Item | Condenser Fan Motor |
| Bearings | Sleeve |
| Body Dia. | 5.625" |
| Bolt Circle Dia. | 5.187" |
| Capacitor Required | 2Mdv4 |
| Enclosure | Totally Enclosed Air-Over |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 0.7-0.7 |
| Hp | 1/8 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 4.187" |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Application | OEM Replacements |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | PSC |
| Mounting | Stud/Hole |
| Nameplate Rpm | 825 |
| Number Of Speeds | 1 |
| Overall Length | 9" |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | Under 1000 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 4 13/16" |
| Stud Pattern | 3-5/8 x 3-5/8" |
| Thermal Protection | Auto |
| Voltage | 208-230 |
| Ship weight (kg) | 10 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 35 |
| Ship width (cm) | 16.31 |
| HS code | 8501404040 |
| Country of Origin | IN |
| Product | Model | Bearings | Body Dia. | Bolt Circle Dia. | Capacitor Required | Enclosure | Frame | Full Load Amps | HP | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OAN1076 | Ball | 5.625" | - | 2MDV8 | Open Air-Over | 48Y | 2.6 | 3/4 | - | RFQ
|
|
OAN1076V1 | Ball | 5.625" | - | 2MDV8 | Open Air-Over | 48Y | 2.8 | 3/4 | €496.23 | |
 |
OAN470 | Ball | 5-11/16" | 5.15" | 2MDV4 | Open Air-Over | 48Y | 0.9 | 1/4 | €509.67 | |
 |
OAN010 | Ball | 5-11/16" | - | 2MDV6 | Open Air-Over | 48Y | 1.0 | 1/3 | €464.54 | |
 |
OAN460 | Ball | 5-11/16" | - | 2MDV9 | Open Air-Over | 48Y | 1.0 | 3/4 | €481.69 | |
 |
OAN747 | Ball | 5-11/16" | - | 2MDV9 | Open Air-Over | 48Y | 2.0 | 3/4 | €648.54 | |
 |
OPV748 | Sleeve | 5" | - | Included | Open | 42Y | 2.1/1.9/1.4 | 1/6, 1/12, 1/20 | €366.26 |
