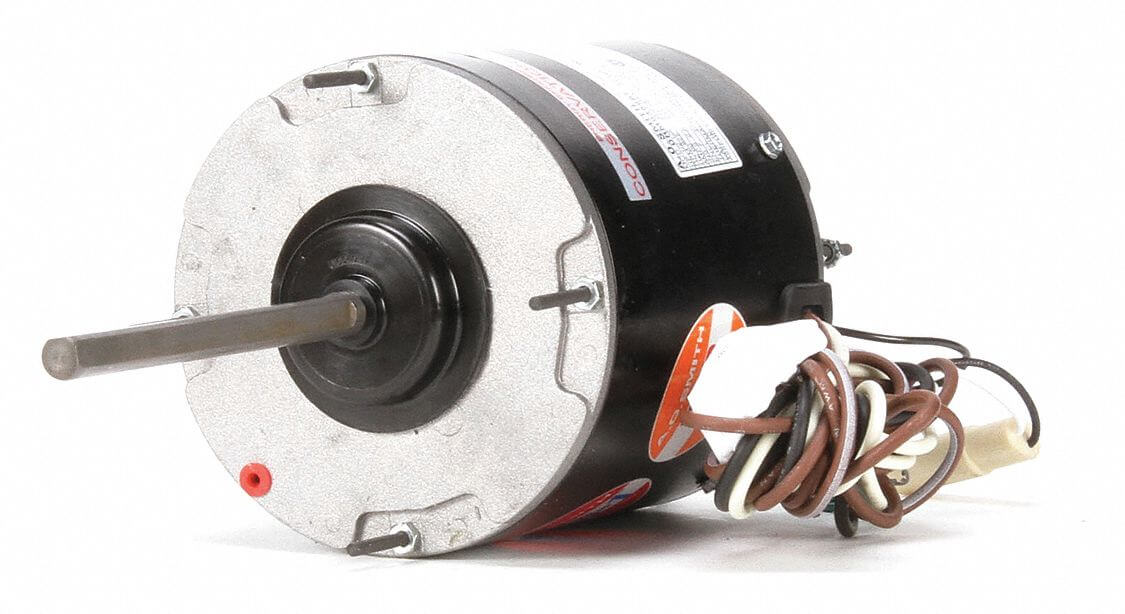

| Item | Direct Drive Blower Motor |
| Base Type | Removable |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Included | Yes |
| Capacitor Required | Included |
| Duty | Continuous Air Over |
| Duty Cycle | Continuous Air Over |
| Enclosure | Totally Enclosed Air-Over |
| Features | Drain Plug; Quick Change Rotation Plug |
| Flange Type | Non Ventilated |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.5A |
| Hp | 1/2 hp to 1/5 hp |
| Hz | 60 |
| Includes | Belly Band |
| Insulation Class | Class F |
| Lead Length | 48" |
| Length Less Shaft | 6 1/2" |
| Max. Ambient Temp. | 70°C |
| Motor Application | Hvac/R |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting | Stud |
| Mounting Stud Length | 1 1/8" |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Nameplate Rpm | 825 RPM |
| Number Of Speeds | 1 |
| Number Of Studs | 4 |
| Overall Length | 13" |
| Phase | 1 |
| Power | 370 W |
| Removable Base | Yes |
| Rotation | CW/CCW |
| Rpm Range | Under 1000 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6 1/2" |
| Shaft Orientation | Horizontal |
| Shaft Type | Flat |
| Stud Length | 7/8, 1-1/8" |
| Stud Location | Shaft End |
| Stud Pattern | 5-1/8 x 5-1/8" |
| Stud Size | #8-32 |
| Thermal Protection | Auto |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Warranty | 1 yr. |
| Weight | 18 lbs. |
| Ship weight (kg) | 18 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 39.5 |
| Ship width (cm) | 16.38 |
| HS code | 8501404040 |
| Country of Origin | IN |
