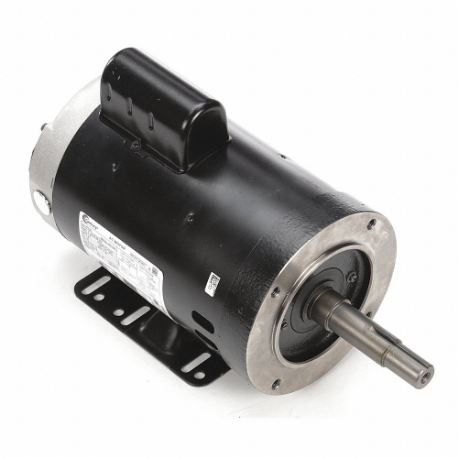

| Item | Close-Coupled Pump Motor |
| Ambient Temp. | 40°C |
| Bearing Protection | External Slinger |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty Cycle | Continuous |
| Finish | Powder Coated |
| Frame | P143JM |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.5/15A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| No. Of Speeds | 1 |
| Overall Height | 6 3/4" |
| Overall Length | 15 9/16" |
| Phase | 1 |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 4 1/4" |
| Thermal Protection | None |
| Usable @ 208v | Yes |
| Voltage | 230/115V AC |
| Weight | 40 lbs. |
| Ship weight (kg) | 18.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
