| Item | Belt Drive Motor |
| Application | Hvac/R |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 5 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | Open |
| Frame | 48Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.9A |
| Hp | 1/6 hp |
| Hz | 60 |
| Insulation Class | Class B |
| Length | 9 1/4" |
| Length Less Shaft | 7 1/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | H Vac/R |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Drip Proof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | belt drive fan/blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting | Cradle |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Overall Length | 9 1/8" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 6.938" |
| Rotation | CW/CCW |
| Rpm Range | 1701 - 1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 7/8" |
| Stud Pattern | 3-5/8 x 3-5/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 11 lbs. |
| Ship weight (kg) | 11 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 19.05 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Bearings | Body Dia. | Enclosure | Frame | Full Load Amps | HP | Length Less Shaft | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

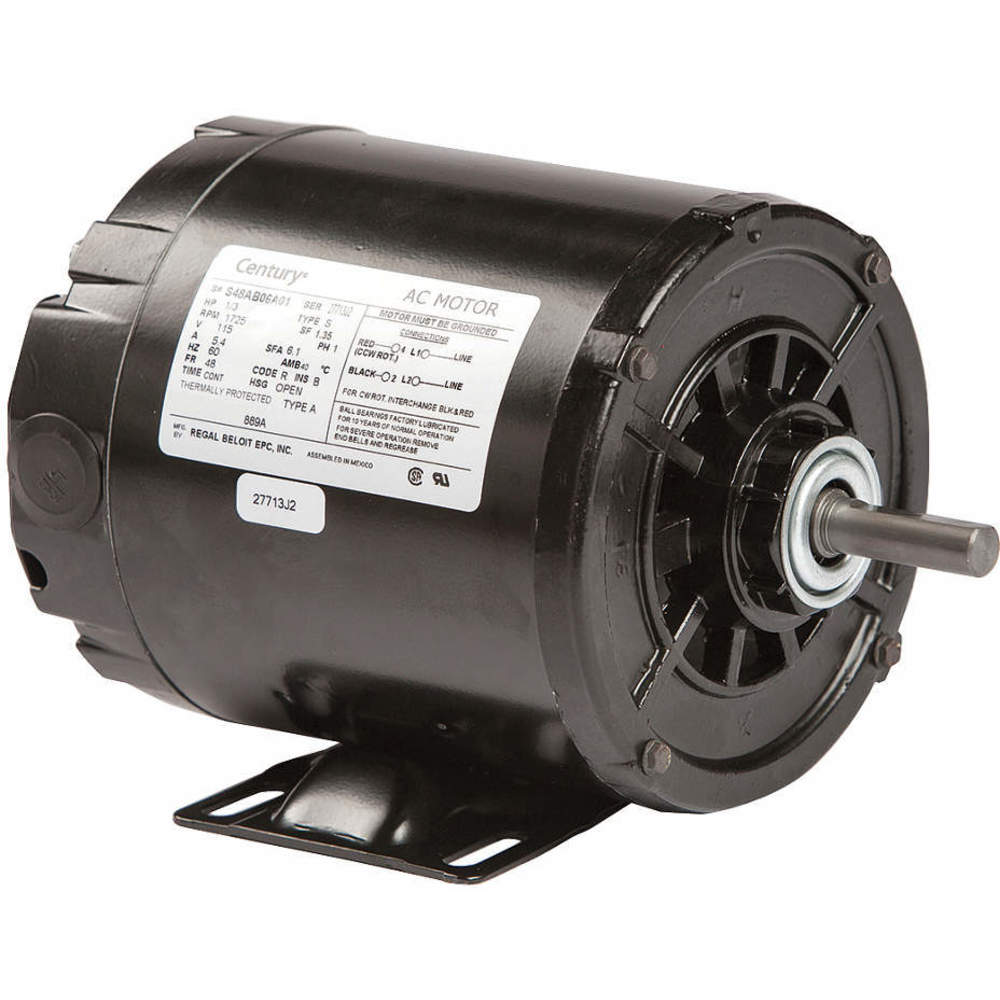

889A | Ball | 5.625" | Open Dripproof | 48 | 6.1 | 1/3 | 8" | Split-Phase | €237.87 | |
 |

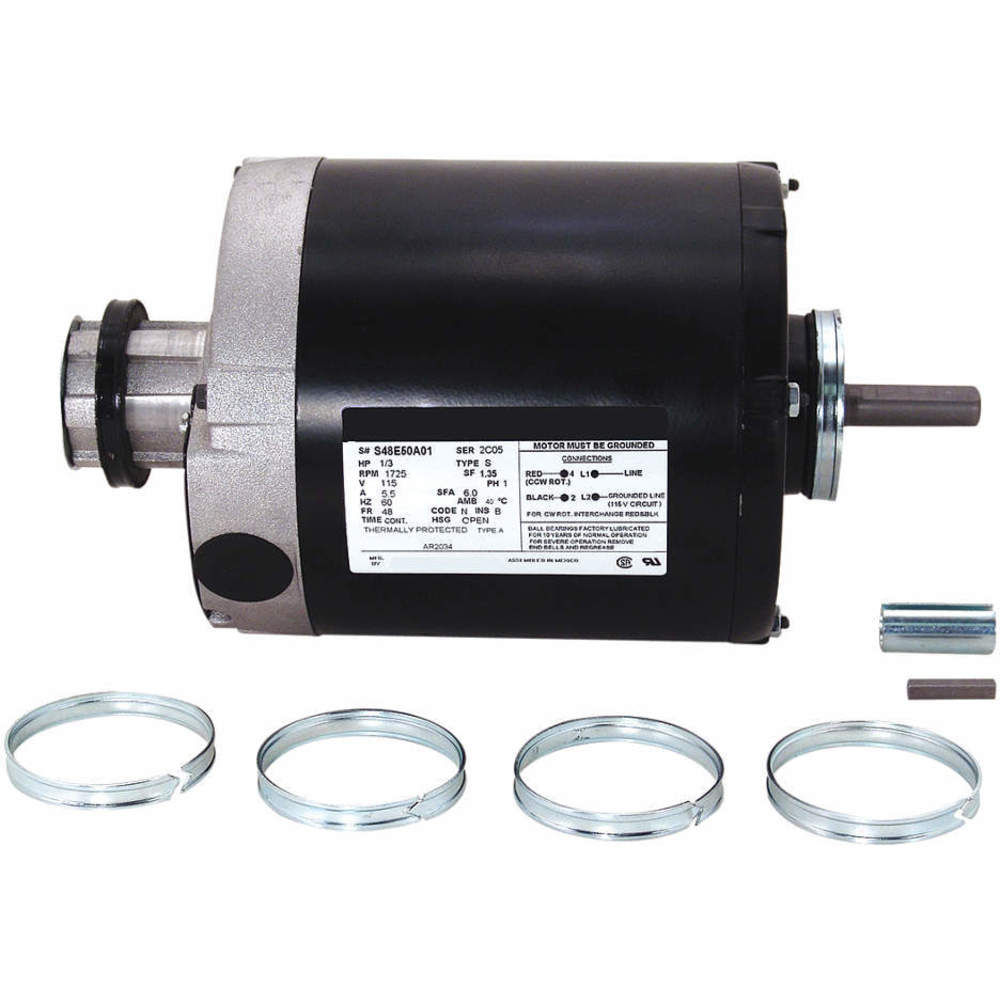

AR2054 | Sleeve | 5.625" | Open Dripproof | 48 | 8.0 | 1/2 | 9.625" | Split-Phase | €318.70 | |
 |

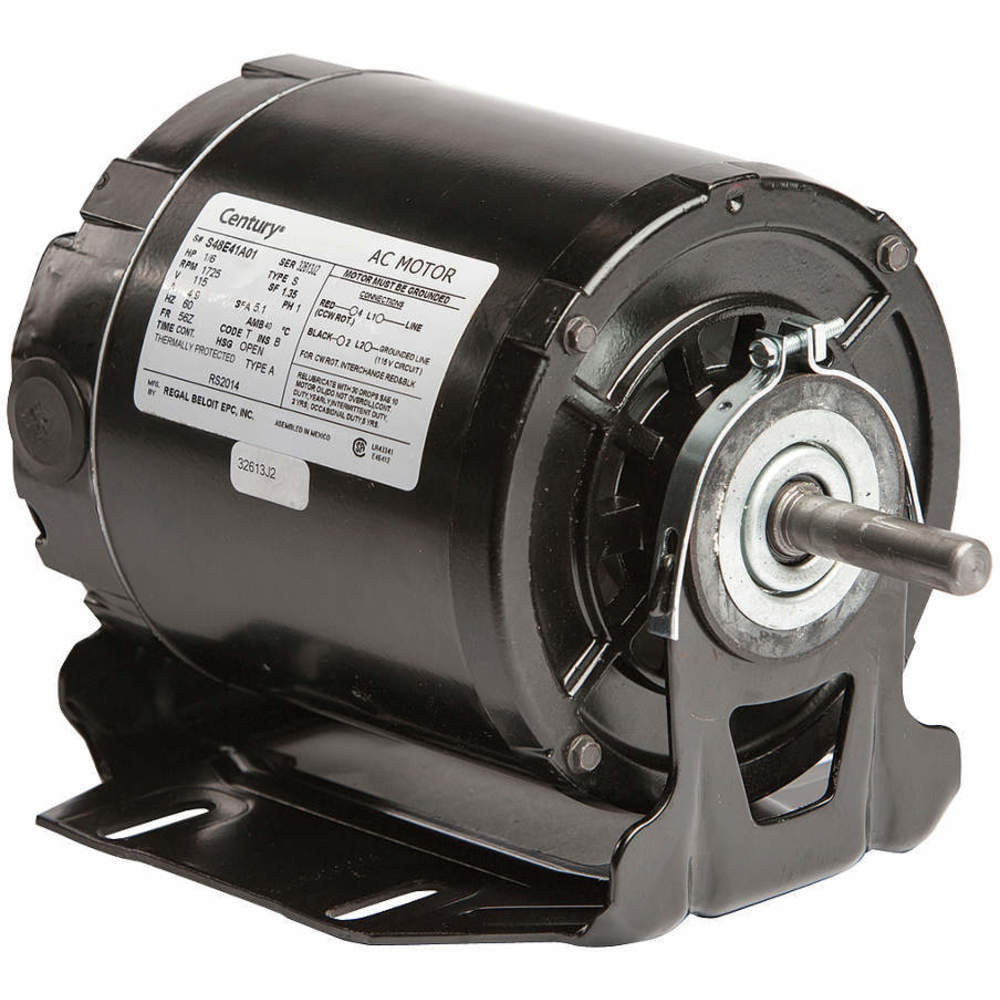

RS2014 | Sleeve | 5.625" | Open | 56Z | 5.1 | 1/6 | 7.75" | Split-Phase | €257.46 | |
 |

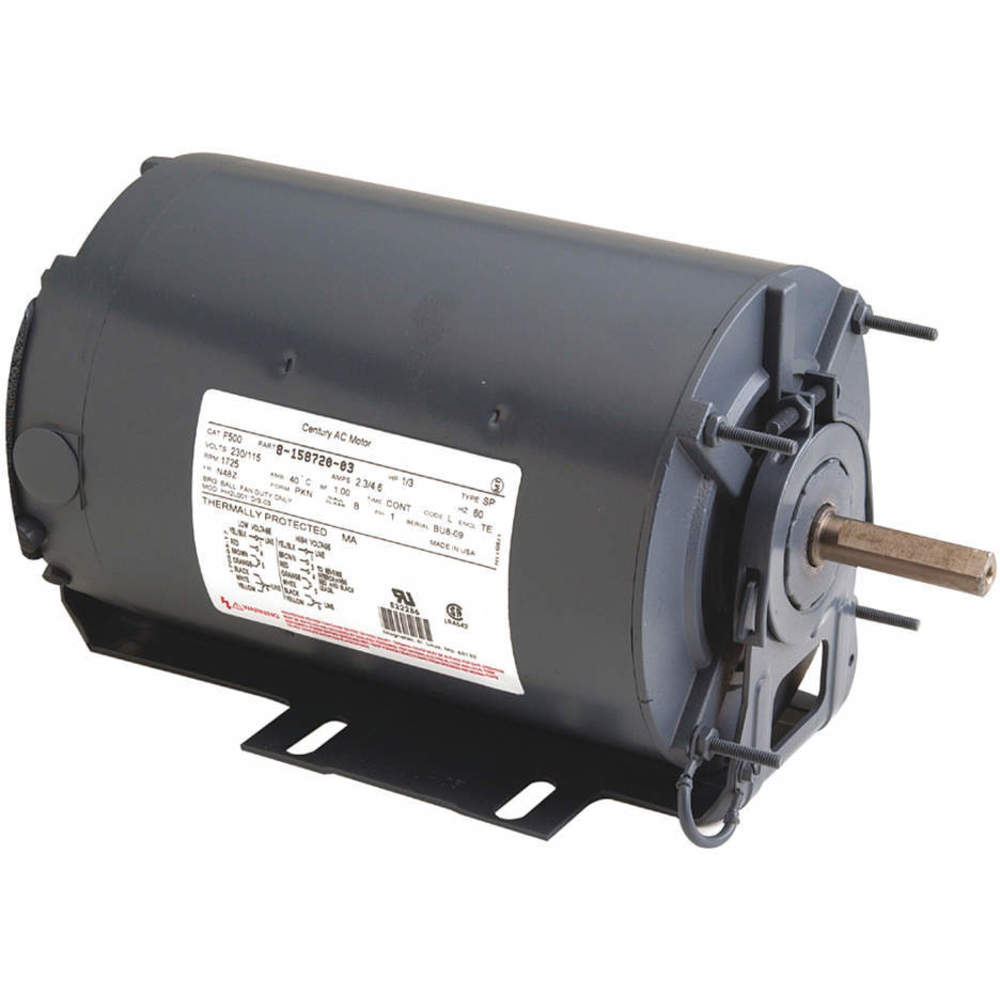

F344V1 | Ball | 5.625" | Open Dripproof | 48Z | 6.3/3.2 | 1/3 | 8" | Split-Phase | €295.02 | |
 |

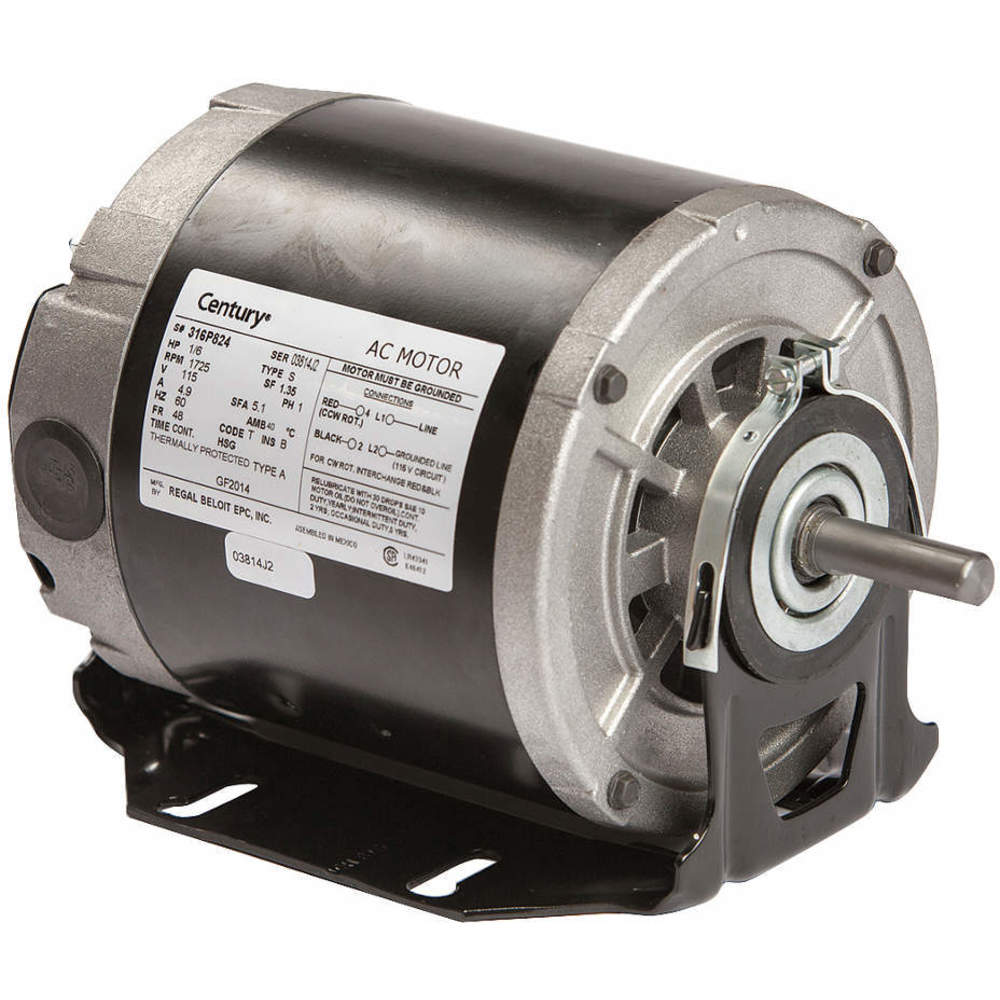

GF2014 | Sleeve | 5.625" | Open | 48 | 5.1 | 1/6 | 7.375" | Split-Phase | €256.65 | |
 |

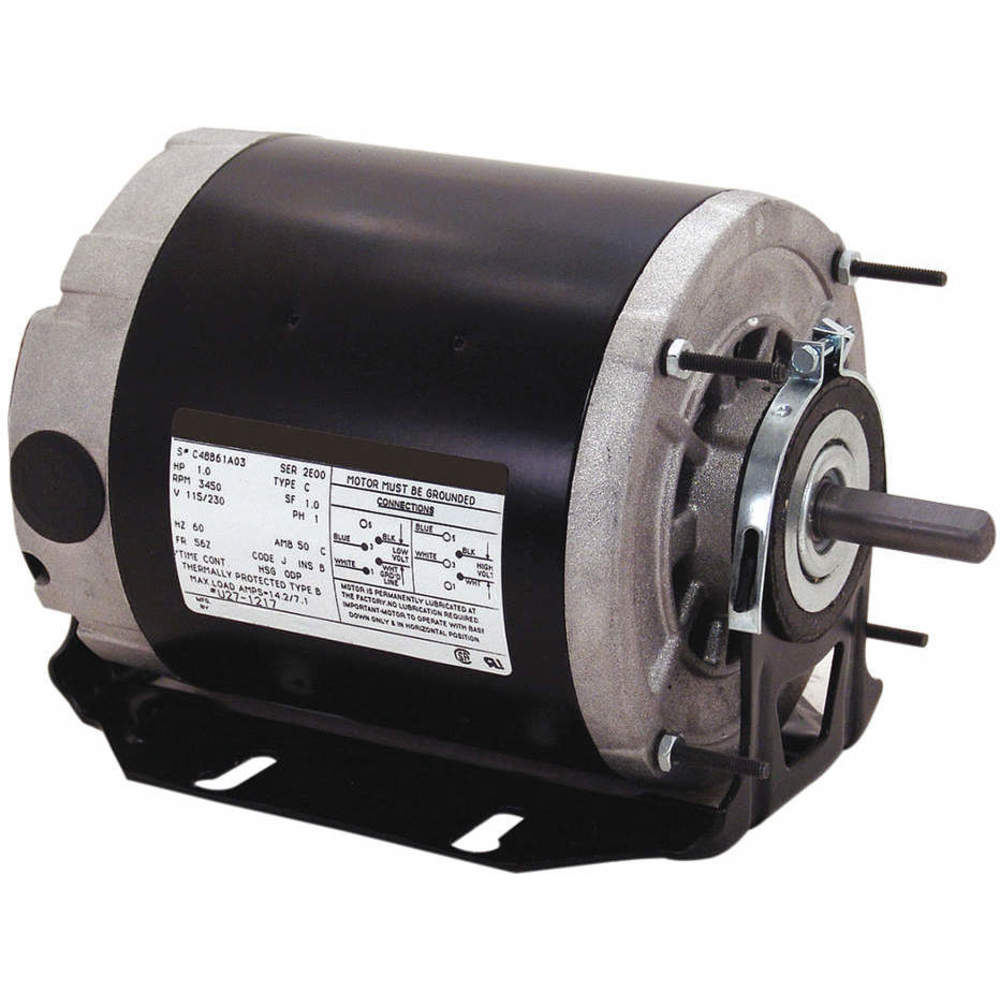

BF2054 | Ball | 5.625" | Open | 48 | 8.2/4.1 | 1/2 | 8.437" | Split-Phase | - | RFQ
|
 |
SGF2034V3 | Ball | 6.5" | Open Dripproof | 56Z | 5.2/3.0 | 1/3, 1/15 | 9.187" | Split-Phase | €461.50 |
