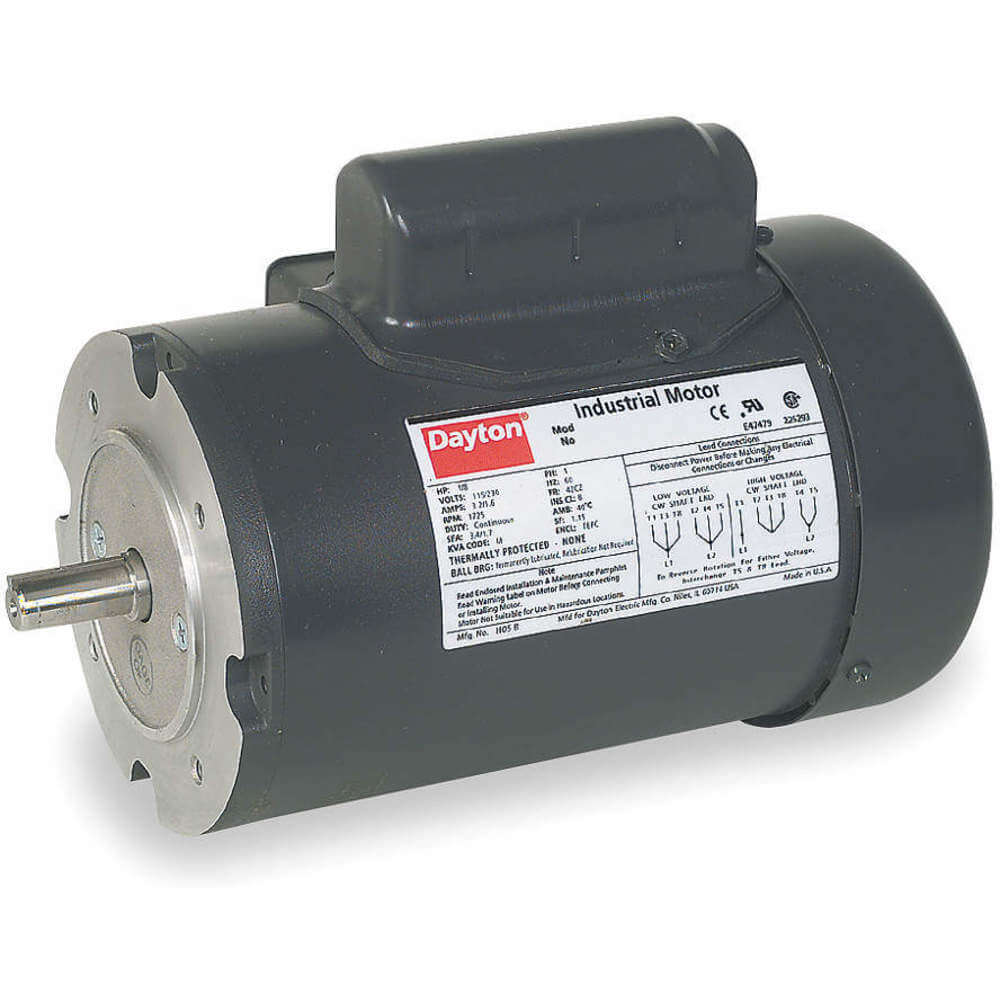

DAYTON 1K058 General Purpose Motor Carbon Steel Tefc 1/4 Hp 1725 Rpm 42cz

Name: DAYTON 1K058 General Purpose Motor Carbon Steel Tefc 14 Hp 1725 Rpm 42cz
Brand: DAYTON
SKU: AA9ZJN
Price: 676.97 EUR
Availability: InStock

Item: AA9ZJN Model: 1K058

See variants (214)

In Stock

Check Availability

Get it by Tuesday, Dec 3

Flat Shipping at € + TVA € flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€676.97 /unit

Add To Cart

Request a Quote

Payment Options Available

Product Specifications:

Item	General Purpose Motor
Bearings	Ball
Duty	Continuous
Efficiency	60.3%
Frame	42CZ
Frame Material	Steel
Full Load Amps	5.8/2.9
Hp	1/4
Hz	60
Insulation Class	B
Length Less Shaft	9 10/16"
Max. Ambient Temp.	40 Degrees C
Motor Application	General Application
Motor Design	Capacitor-Start
Motor Enclosure Design	Totally Enclosed Fan-Cooled
Motor Mounting Position	All Angle
Motor Mounting Type	Face
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Thermal Protection	None
Mounting	Face
Nameplate Rpm	1725
Number Of Speeds	1
Overall Length	10 11/19"
Phase	1
Rotation	CW/CCW
Rpm Group	1701-1800
Rpm Range	1701-1800
Service Factor	1.15
Shaft Dia.	1/2"
Shaft Length	1.125"
Voltage	115/230
Warranty	1 Years

Shipping Info:

Ship weight (kg)	9.0675
Ship height (cm)	23.88
Ship length (cm)	31.75
Ship width (cm)	21.08
HS code	8501404040
Country of Origin	US

Product Variants

Model	Efficiency Group	Frame	Frame Material	Full Load Amps	HP	Hz	Insulation Class	Inverter Rated	Price
10C897	Energy Efficient	48	Steel	2.2-2.3/1.15	1/2	50/60	B	Yes	€515.49
10C899	Energy Efficient	48	Steel	2.8-2.8/1.4	3/4	50/60	B	Yes	€615.84
10C901	Energy Efficient	48	Steel	1.8-1.8/0.9	1/2	50/60	B	Yes	€411.03
11W365	-	56C	Steel	1.0-1.0/0.5	1/4	60	F	-	€421.52
11W368	-	56C	Steel	1.5-1.5/0.7	1/3	60	F	-	€324.65
11W369	NEMA Premium(R)	143TC/145TC	Steel	6.90-6.32/3.16	1.5	60	F	-	€1,069.77
1K057	-	42CZ	Steel	4.2/2.1	1/6	60	B	-	€579.45
