| Item | Universal AC/DC Motor |
| Average Brush Life | 300 hrs. |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 3 7/8" |
| Conduit Box Position | F1 |
| Enclosure | Open Dripproof |
| Finish | Unfinished |
| Frame | Nonstandard |
| Frequency | 60 Hz |
| Full Load Amps | 12.1A |
| Hp | 1 hp |
| Hz | 60 |
| Insulation Class | Class A |
| Length | 9" |
| Length Less Shaft | 9 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Universal AC/DC Motor |
| Motor Design | Universal Ac/Dc |
| Motor Enclosure Design | Open Frame |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | belt drive fan/blower |
| Motor Thermal Protection | None |
| Motor Type | Standard |
| Mount Hole Size | #10-32 |
| Mounting | Face |
| Mounting Holes | (4) #10-32 |
| Nameplate Rpm | 10000 RPM |
| Number Of Mounting Holes | 4 |
| Number Of Speeds | 1 |
| O.c. Mounting | 3 1/4" x 3 1/4" |
| Overall Length | 9.031" |
| Phase | 1 |
| Rotation | Ccw |
| Rpm Range | Over 3600 |
| Service Factor | 1 |
| Shaft Dia. | 0.438" |
| Shaft Length | 1 1/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 10.2 lbs. |
| Ship weight (kg) | 4.59 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 10.16 |
| HS code | 8501206000 |
| Country of Origin | US |
| Product | Model | Body Dia. | Full Load Amps | HP | Length Less Shaft | Mounting | Overall Length | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

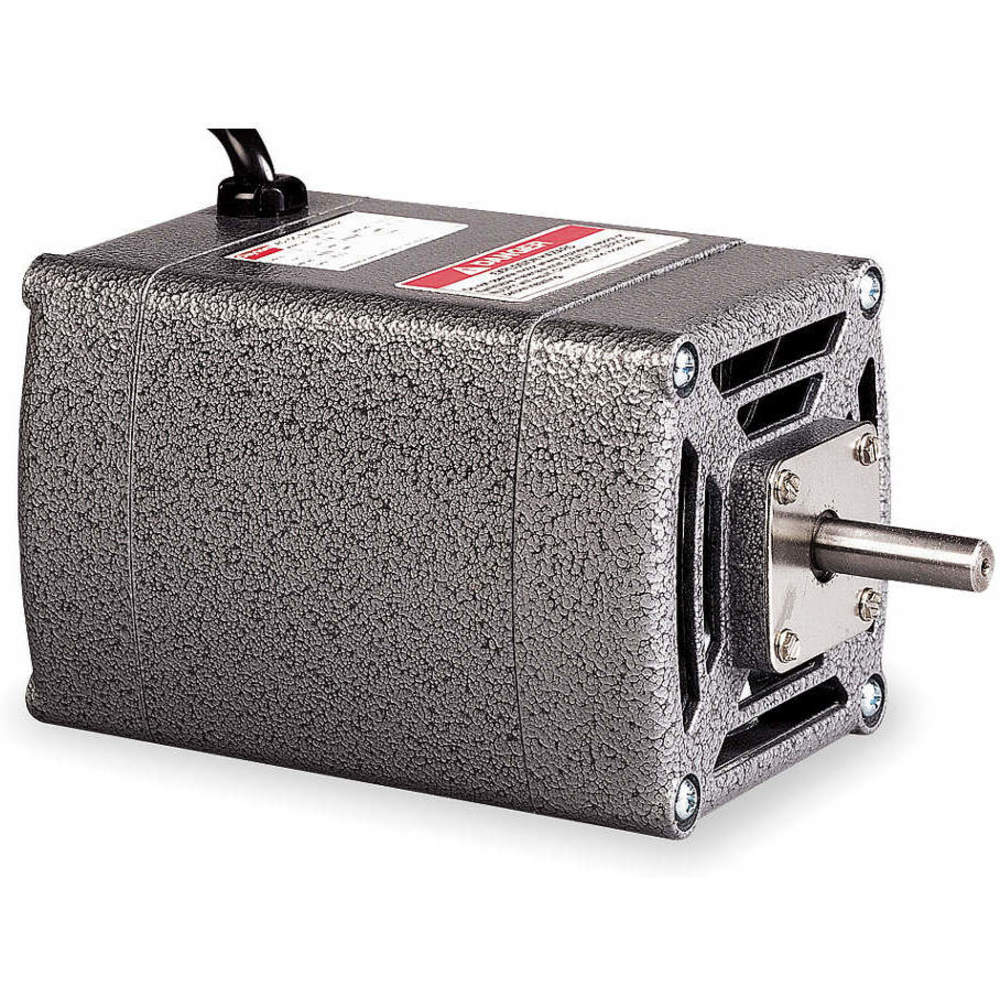

2M145 | 3-3/4 x 3-1/2" | 6.3 | 1/2 | 6.187" | Hole | 7.437" | 3/8" | €309.72 |
