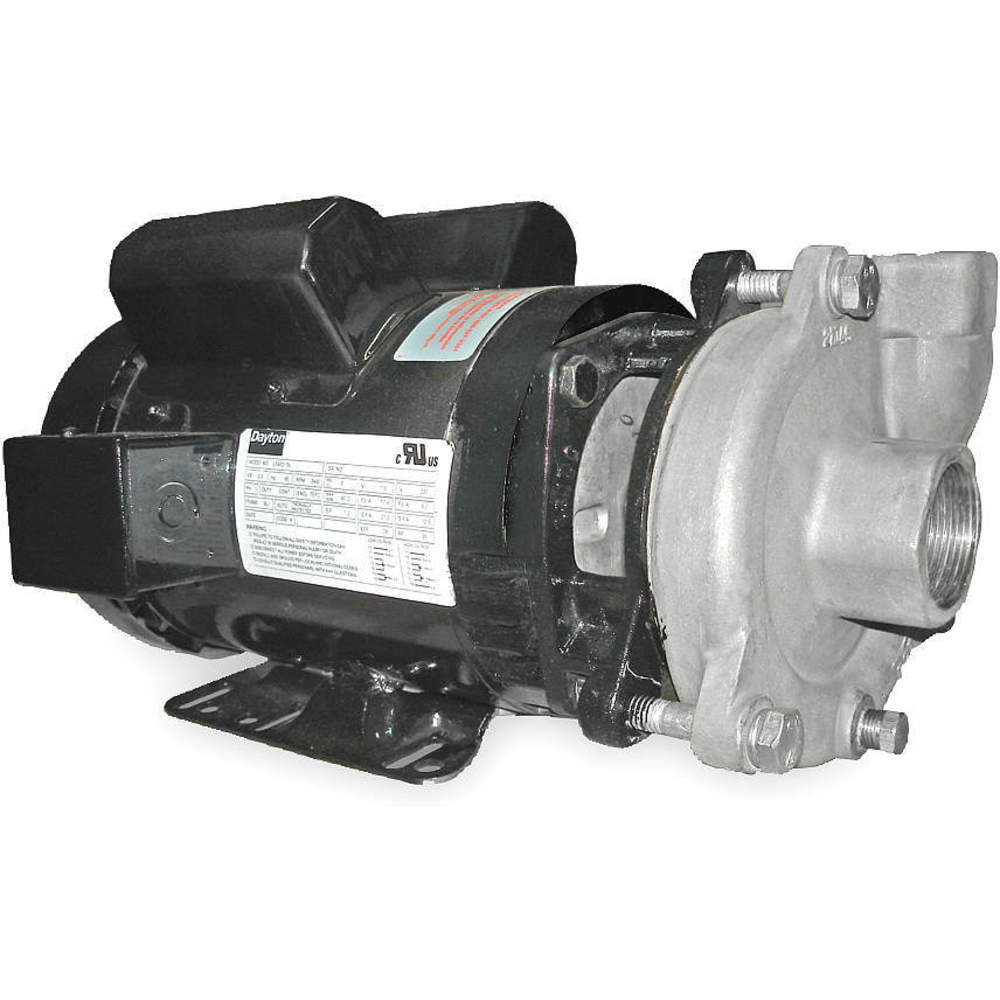

| Item | Centrifugal Pump |
| Amps | -/12.5 |
| Bearing Type | Ball |
| Best Efficiency Gpm @ Head | 119 @ 57 Ft. |
| Best Efficiency Range Gpm @ Head | 60-144 @ 75-35 Ft. |
| Drain Plug | Side and bottom |
| Duty | Continuous |
| Frame | 56J |
| Gpm Of Water @ 10 Ft. Of Head | 170 |
| Gpm Of Water @ 15 Ft. Of Head | 166 |
| Gpm Of Water @ 20 Ft. Of Head | 162 |
| Gpm Of Water @ 25 Ft. Of Head | 154 |
| Gpm Of Water @ 30 Ft. Of Head | 146 |
| Gpm Of Water @ 40 Ft. Of Head | 130 |
| Gpm Of Water @ 50 Ft. Of Head | 110 |
| Gpm Of Water @ 60 Ft. Of Head | 82 |
| Gpm Of Water @ 70 Ft. Of Head | 35 |
| Height | 7" |
| Housing Material | Stainless Steel |
| Hp | 3 |
| Hz | 60 |
| Impeller Material | Stainless Steel |
| Impeller Type | Semi Open Non-Clogging |
| Inlet | 2" |
| Inlet Pressure | 220 PSI |
| Length | 14 13/16" |
| Max. Case Pressure | 200 PSI |
| Max. Dia. Solids | 1/2" |
| Max. Flow Rate | 170 GPM |
| Max. Fluid Viscosity | 100 SSU |
| Max. Gpm @ Head | 170 @ 10 Ft. |
| Max. Head | 74 Ft. |
| Max. Liquid Temp. | 200 F |
| Max. Pressure | 32 psi |
| Max. Specific Gravity | 1.0 |
| Min. Flow Rate | 35 GPM |
| Min. Gpm @ Head | 35 @ 70 Ft. |
| Motor Enclosure | TEFC |
| Motor Rpm | 3450 |
| Motor Type | Capacitor Start |
| Nema/iec Frame | 56J |
| Outlet | 1-1/2" |
| Phase | 1 |
| Port Rotation | 4 Position |
| Screw Material | Stainless Steel |
| Seal Application | Long life When not Run Dry or Pumping Abrasives |
| Seal Material | Viton, Carbon, Ceramic, SS |
| Seal Type | Mechanical |
| Service Factor | 1 |
| Shaft Material | Stainless Steel |
| Shaft Size | 5/8" |
| Type | Centrifugal |
| Voltage | 230 |
| Volute Material | Stainless Steel |
| Wetted Materials | SS, Viton, Carbon, Ceramic |
| Width | 7.625" |
| Ship weight (kg) | 31.8375 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 44.45 |
| Ship width (cm) | 20.32 |
| HS code | 8413702005 |
| Country of Origin | IN |
| Model | Amps | Best Efficiency GPM @ Head | Best Efficiency Range GPM @ Head | Duty | Frame | GPM of Water @ 10 Ft. of Head | GPM of Water @ 15 Ft. of Head | GPM of Water @ 20 Ft. of Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2ZWN9 | 7.5/3.8 | 30 @ 26 Ft. | 25-37 @ 30-25 Ft. | Continuous | 56J | 41 | 37 | 34 | €381.43 | |
| 2ZWP1 | 8.4/4.8 | 38 @ 27 Ft. | 25-50 @ 35-15 Ft. | Continuous | 56J | 67 | 63 | 57 | €397.78 | |
| 2ZWP2 | 1.8-1.7/0.9 | 38 @ 27 Ft. | 25-50 @ 35-15 Ft. | Continuous | 56J | 67 | 63 | 57 | €425.04 | |
| 2ZWP3 | 11.3/5.6 | 47 @ 36 Ft. | 35-63 @ 45-20 Ft. | Continuous | 56J | 72 | 67 | 63 | €442.06 | |
| 2ZWP4 | 2.7-2.5/1.2 | 47 @ 36 Ft. | 35-63 @ 45-20 Ft. | Continuous | 56J | 72 | 67 | 63 | €420.95 | |
| 2ZWP5 | 14.4/7.2 | 75 @ 38 Ft. | 60-98 @ 45-20 Ft. | Continuous | 56J | 88 | 83 | 77 | €442.67 | |
| 2ZWP6 | 3.7-3.2/1.6 | 75 @ 38 Ft. | 60-98 @ 45-20 Ft. | Continuous | 56J | 88 | 83 | 77 | €630.84 |
