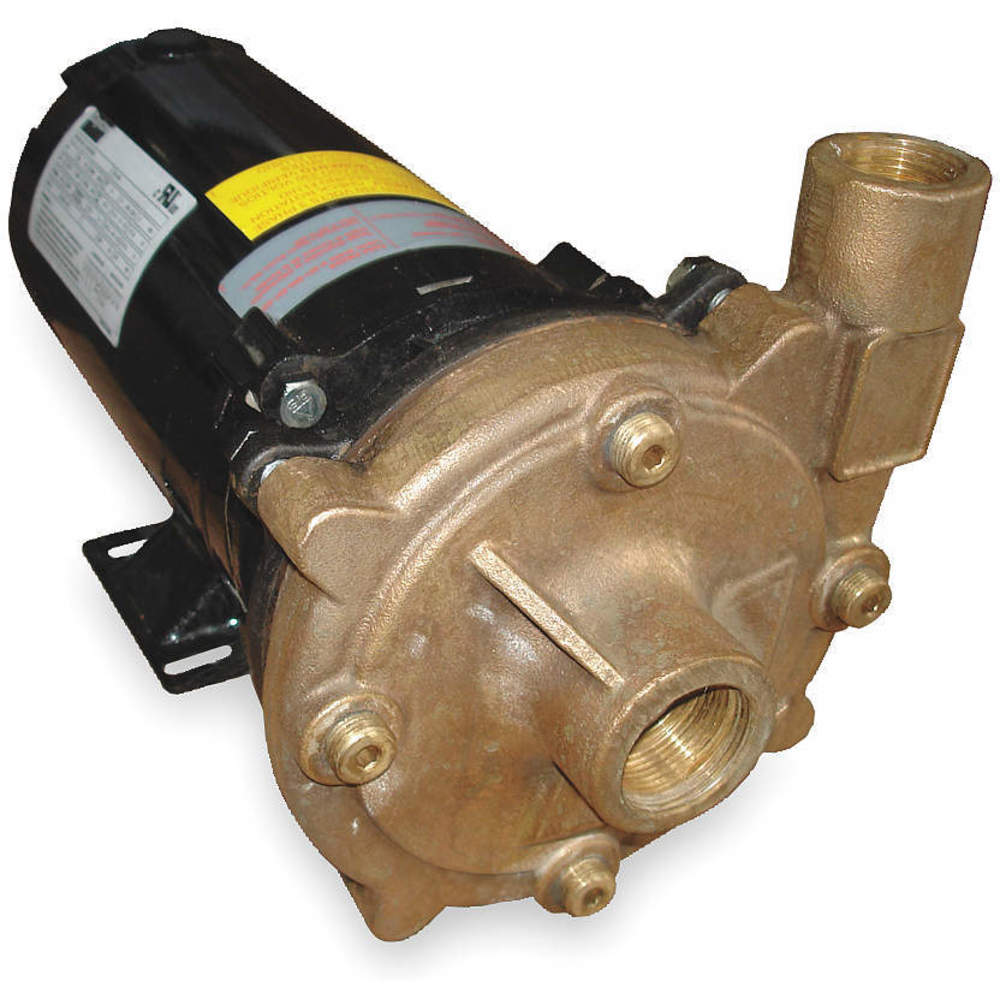

| Item | Centrifugal Pump |
| Amps | 4.4-3.9/2.0 |
| Bearing Type | Ball |
| Best Efficiency Gpm @ Head | 54 @ 70 Ft. |
| Best Efficiency Range Gpm @ Head | 40-78 @ 80-40 Ft. |
| Drain Plug | Easily Accessible |
| Duty | Continuous |
| Frame | 56J |
| Gpm Of Water @ 10 Ft. Of Head | 94 |
| Gpm Of Water @ 15 Ft. Of Head | 92 |
| Gpm Of Water @ 20 Ft. Of Head | 90 |
| Gpm Of Water @ 25 Ft. Of Head | 87 |
| Gpm Of Water @ 30 Ft. Of Head | 85 |
| Gpm Of Water @ 40 Ft. Of Head | 78 |
| Gpm Of Water @ 50 Ft. Of Head | 71 |
| Gpm Of Water @ 60 Ft. Of Head | 62 |
| Gpm Of Water @ 70 Ft. Of Head | 54 |
| Gpm Of Water @ 80 Ft. Of Head | 43 |
| Gpm Of Water @ 90 Ft. Of Head | 32 |
| Height | 9" |
| Housing Material | Bronze |
| Hp | 1.5 |
| Hz | 60 |
| Impeller Material | 316 Stainless Steel |
| Impeller Type | Closed |
| Inlet | 1-1/2" |
| Inlet Pressure | 200 PSI |
| Length | 15.25" |
| Max. Case Pressure | 200 PSI |
| Max. Dia. Solids | 5/16" |
| Max. Fluid Viscosity | 100 SSU |
| Max. Gpm @ Head | 94 @ 10 Ft. |
| Max. Head | 110 ft. |
| Max. Liquid Temp. | 200 F |
| Max. Pressure | 47 PSI |
| Max. Specific Gravity | 1.0 |
| Min. Gpm @ Head | 32 @ 90 Ft. |
| Motor Enclosure | ODP |
| Motor Rpm | 3450 |
| Motor Type | ODP |
| Nema/iec Frame | 56J |
| Outlet | 1-1/4" |
| Phase | 3 |
| Port Rotation | 4 Position Increments |
| Screw Material | Stainless Steel |
| Seal Application | Long life When not Run Dry or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical Carbon on Ceramic |
| Service Factor | 1.3 |
| Shaft Material | 303 Stainless Steel |
| Type | High Head |
| Voltage | 208-230/460 |
| Volute Material | Bronze |
| Wetted Materials | Bronze, Brass, Viton, Carbon, Ceramic, 316 SS |
| Width | 8.75" |
| Ship weight (kg) | 25.236 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 40.13 |
| Ship width (cm) | 22.35 |
| HS code | 8413702005 |
| Country of Origin | IN |
| Product | Model | Amps | Bearing Type | Best Efficiency GPM @ Head | Best Efficiency Range GPM @ Head | Frame | GPM of Water @ 10 Ft. of Head | GPM of Water @ 15 Ft. of Head | GPM of Water @ 20 Ft. of Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2ZWZ6 | 8.4/4.8 | Ball | - | 14-36 @ 70-30 Ft. | 56J | 42 | 40 | 39 | €854.19 | |
|
2ZWZ7 | 1.8-1.7/0.9 | Ball | - | 14-36 @ 70-30 Ft. | 56J | 42 | 40 | 39 | €752.85 | |
 |
2ZWZ8 | 11.3/5.6 | Ball | 33 @ 59 Ft. | 20-44 @ 80-35 Ft. | 56J | 53 | 51 | 49 | €805.24 | |
|
2ZWZ9 | 2.7-2.5/1.2 | Ball | 33 @ 59 Ft. | 20-44 @ 80-35 Ft. | 56J | 53 | 51 | 49 | €785.77 | |
|
2ZXA3 | 13.5/6.4 | Ball | 54 @ 70 Ft. | 40-78 @ 80-40 Ft. | 56J | 94 | 92 | 90 | €1,024.60 | |
 |
2ZXA5 | 16.6/8.3 | Ball | 54 @ 70 Ft. | 40-78 @ 80-40 Ft. | 56J | 94 | 92 | 90 | €1,426.51 | |
 |
2ZXA6 | 6.0-5.8/2.9 | Ball | 54 @ 70 Ft. | 40-78 @ 80-40 Ft. | 56J | 94 | 92 | 90 | €1,451.36 |
