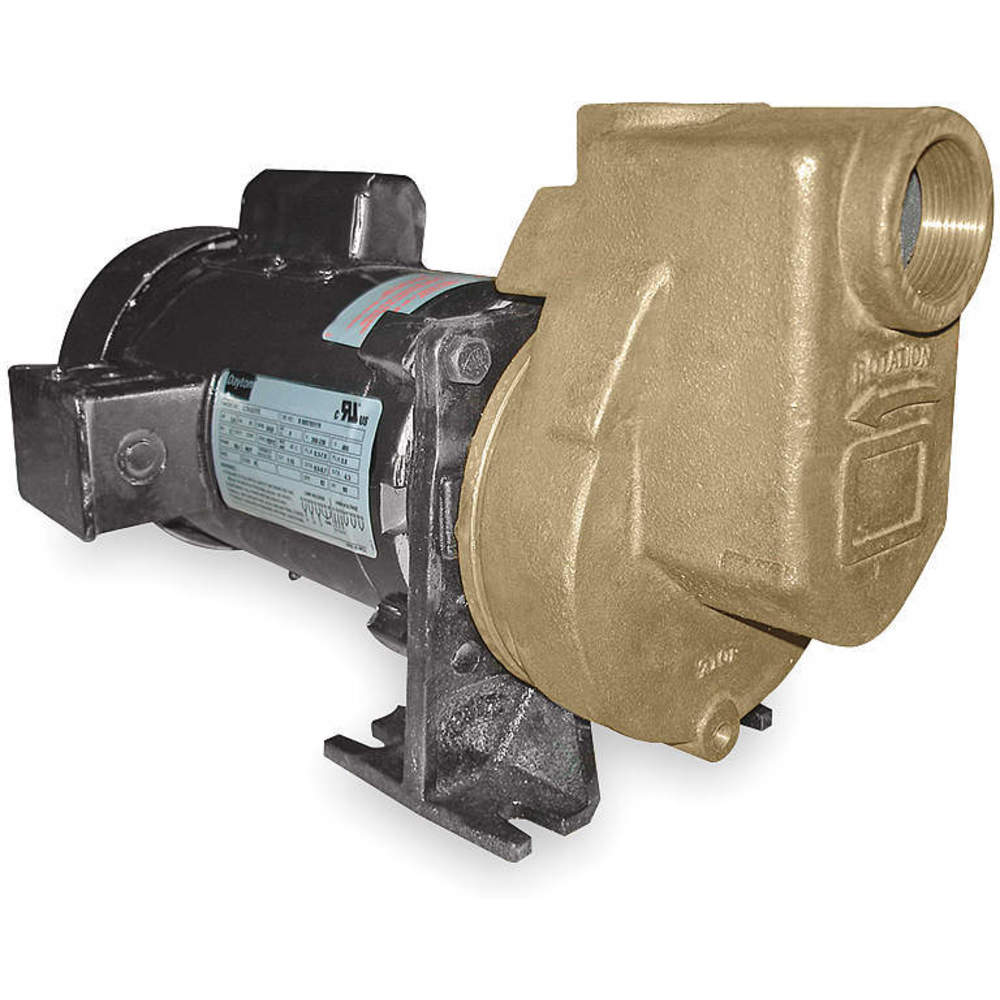

| Item | Centrifugal Pump |
| Amps | 10.7/5.3 |
| Bearing Type | Ball |
| Best Efficiency Gpm @ Head | 24 @ 40 Ft. |
| Best Efficiency Range Gpm @ Head | 14-52 @ 45-20 Ft. |
| Drain Plug | Easily Accessible at Bottom |
| Duty | Continuous |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 10 Ft. Of Head | 61 |
| Gpm Of Water @ 15 Ft. Of Head | 56 |
| Gpm Of Water @ 2 Ft. Of Head | 69 |
| Gpm Of Water @ 20 Ft. Of Head | 52 |
| Gpm Of Water @ 25 Ft. Of Head | 47 |
| Gpm Of Water @ 30 Ft. Of Head | 42 |
| Gpm Of Water @ 40 Ft. Of Head | 24 |
| Gpm Of Water @ 5 Ft. Of Head | 65 |
| Gpm Of Water @ 50 Ft. Of Head | 4 |
| Height | 9.5" |
| Housing Material | Bronze |
| Hp | 3/4 |
| Hz | 60 |
| Impeller Material | Stainless Steel |
| Impeller Type | Open |
| Inlet | 1-1/2" |
| Inlet Pressure | 75 PSI |
| Length | 17 5/16" |
| Max. Case Pressure | 75 PSI |
| Max. Dia. Solids | 3/8" |
| Max. Fluid Viscosity | 100 SSU |
| Max. Gpm @ Head | 69 @ 2 Ft. |
| Max. Head | 52 ft. |
| Max. Liquid Temp. | 200 F |
| Max. Pressure | 22.5 psi |
| Max. Specific Gravity | 1.3 |
| Min. Gpm @ Head | 4 @ 50 Ft. |
| Motor Enclosure | TEFC |
| Motor Rpm | 3450 |
| Motor Type | TEFC |
| Nema/iec Frame | 56J |
| Outlet | 1-1/2" |
| Phase | 1 |
| Port Rotation | Single |
| Screw Material | Stainless Steel |
| Seal Application | Long life When not Run Dry or Pumping Abrasives |
| Seal Material | Viton, Carbon, Ceramic, SS |
| Seal Type | Mechanical |
| Service Factor | 1.5 |
| Shaft Material | Stainless Steel |
| Suction Lift | 6 Ft. |
| Type | Self-Priming |
| Voltage | 115/230 |
| Volute Material | Bronze |
| Wetted Materials | Bronze, Viton, Carbon, Ceramic, SS |
| Width | 6.12" |
| Ship weight (kg) | 24.66 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 43.94 |
| Ship width (cm) | 15.49 |
| HS code | 8413702005 |
| Country of Origin | IN |
| Product | Model | Amps | Best Efficiency GPM @ Head | Best Efficiency Range GPM @ Head | Drain Plug | Frame | GPM @ 20 PSI | GPM of Water @ 10 Ft. of Head | GPM of Water @ 15 Ft. of Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12N810 | 8.2-7.4/3.7 | 119 @ 46 Ft. | 51 to 37 @ 93 to 155 Ft. | 3/4"-14 NPT | 182JM | - | 241 | 227 | €1,528.35 | |
 |
12N811 | 8.2-7.4/3.7 | 119 @ 46 Ft. | 51 to 37 @ 93 to 155 Ft. | 3/4"-14 NPT | 182JM | - | 241 | 227 | €3,139.32 | |
|
12N812 | 13.4-12.6/6.3 | 120 @ 67 Ft. | 69 to 59 @ 105 to 142 Ft. | 3/4"-14 NPT | 184JM | - | 295 | 279 | €1,542.06 | |
 |
12N813 | 13.4-12.6/6.3 | 120 @ 67 Ft. | 69 to 59 @ 105 to 142 Ft. | 3/4"-14 NPT | 184JM | - | 295 | 279 | €2,750.24 | |
|
12N814 | 18.8-17.8/8.9 | 148 @ 82 Ft. | 86 to 71 @ 129 to 187 Ft. | 3/4"-14 NPT | 184JM | - | 352 | 342 | €1,877.68 | |
|
12N815 | 18.8-17.8/8.9 | 148 @ 82 Ft. | 86 to 71 @ 129 to 187 Ft. | 3/4"-14 NPT | 184JM | - | 352 | 342 | €2,934.56 | |
 |
2ZXP1 | 10.7/5.2-5.3 | 24 @ 40 Ft. | 14-52 @ 45-20 Ft. | Easily Accessible at Bottom | 56J | - | 61 | 56 | €723.31 |
