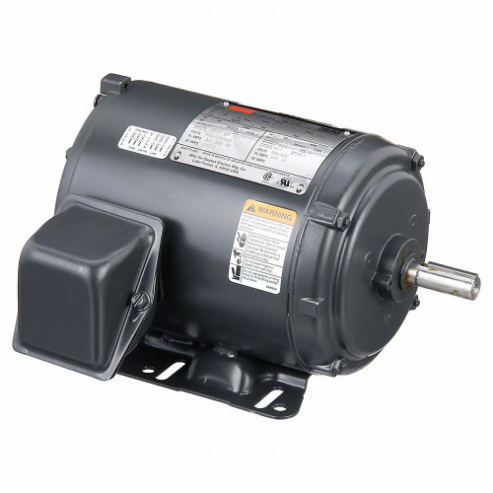

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Nema Premium Efficient |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Full Load Amps | 3.6/1.8 |
| Hp | 1 |
| Hz | 50/60 |
| Insulation Class | F |
| Inverter Rated | Yes |
| Length Less Shaft | 9.187" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1750 |
| Nominal Efficiency | 85.5% |
| Number | CC060A |
| Overall Length | 11.125" |
| Phase | 3 |
| Rpm Group | 1701-1800 |
| Rpm Range | 1701-1800 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Voltage | 230/460 |
| Ship weight (kg) | 17.055 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 28.27 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
| Product | Model | Capacitor Required | Efficiency Group | Frame | Frame Material | Full Load Amps | Green Certification or Other Recognition | HP | Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2TJ12 | - | - | 184T | Steel | 20.5 | - | 5 | 60 | €1,199.02 | |
 |
5GD60 | - | - | 56C | Steel | 11.0/5.4-5.5 | - | 3/4 | 60 | €464.03 | |
 |
5K596BE | - | - | 56 | Rolled Steel | 8.0 | - | 1/2 | 60 | €327.52 | |
|
5K618BE | - | - | 56 | Rolled Steel | 7.2/5.0 | - | 1/2, 1/4 | 60 | €421.85 | |
 |
5K968 | - | - | 213T | Steel | 20.5 | - | 5 | 60 | €1,699.88 | |
 |
5PHA7 | - | - | 56 | Rolled Steel | 10.1/5.1 | - | 3/4 | 60 | €414.40 | |
 |
5UKH0 | - | - | 215T | Steel | 41.5 | - | 10 | 60 | €2,589.28 |
