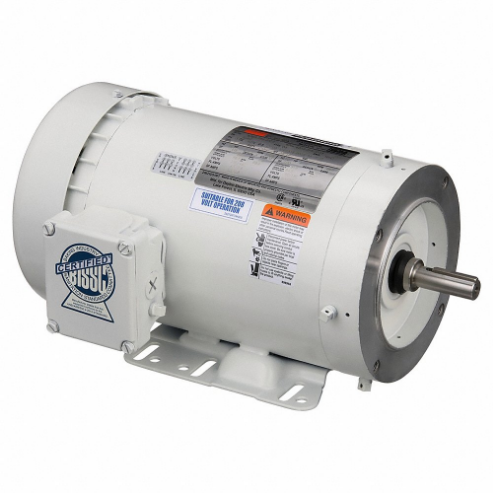

| Item | Washdown Motor |
| Bearings | Ball |
| Body Dia. | 6.5" |
| Conduit Box | Oversize Cast Aluminum With Nitrile Gasket |
| Duty | Continuous |
| Efficiency Group | Nema Premium Efficient |
| Endshields | Cast Aluminium |
| Frame | 56Hc |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.8/2.8 |
| Hp | 2 |
| Hz | 50/60 |
| Length Less Shaft | 10.75" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Nameplate Rpm | 3505 |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number | Cc030A |
| Overall Length | 12.625" |
| Phase | 3 |
| Rpm Range | 3001-3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Shaft Material | Stainless Steel |
| Voltage | 230/460 |
| Ship weight (kg) | 19.035 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
| Product | Model | Body Dia. | Conduit Box | Efficiency Group | Enclosure | Frame | Frame Material | Full Load Amps | HP | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11G244 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56C | Stainless Steel | 7.6/4.0-3.8 | 3/4 | €1,043.83 | |
 |
11G245 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56C | Stainless Steel | 11.2 /5.8-5.6 | 1 | €1,082.86 | |
 |
11G246 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56C | Stainless Steel | 14.8/7.6-7.4 | 1.5 | €989.38 | |
|
11G247 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56C | Stainless Steel | 8.9-7.4 | 2 | €1,072.94 | |
|
11G248 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56C | Stainless Steel | 9.9-8.5 | 2 | €1,227.48 | |
 |
11G252 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56HC | Stainless Steel | 5.0/2.6-2.5 | 1/2 | €906.60 | |
 |
11G253 | 6.5" | - | - | Totally Enclosed Fan-Cooled | 56HC | Stainless Steel | 7.6/4.0-3.8 | 3/4 | €1,065.66 |
