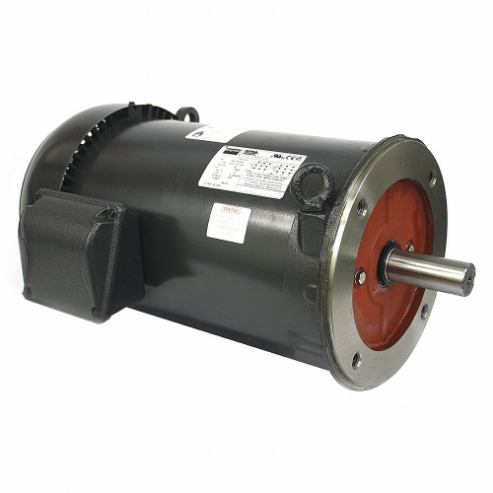

| Item | General Purpose Motor |
| Cc Number | Cc029A |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Frame Material | Steel |
| Full Load Amps | 7.6/3.8A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 15 5/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Nameplate Rpm | 1765 RPM |
| Number Of Speeds | 1 |
| Overall Length | 17 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | None |
| Voltage | 230/460V AC |
| Warranty | 2 yrs. |
| Ship weight (kg) | 43.2 |
| Country of Origin | MX |
| Product | Model | Capacitor Required | Efficiency Group | Frame | Frame Material | Full Load Amps | Green Certification or Other Recognition | HP | Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2TJ12 | - | - | 184T | Steel | 20.5 | - | 5 | 60 | €1,199.02 | |
 |
5GD60 | - | - | 56C | Steel | 11.0/5.4-5.5 | - | 3/4 | 60 | €464.03 | |
 |
5K596BE | - | - | 56 | Rolled Steel | 8.0 | - | 1/2 | 60 | €327.52 | |
|
5K618BE | - | - | 56 | Rolled Steel | 7.2/5.0 | - | 1/2, 1/4 | 60 | €421.85 | |
 |
5K968 | - | - | 213T | Steel | 20.5 | - | 5 | 60 | €1,699.88 | |
 |
5PHA7 | - | - | 56 | Rolled Steel | 10.1/5.1 | - | 3/4 | 60 | €414.40 | |
 |
5UKH0 | - | - | 215T | Steel | 41.5 | - | 10 | 60 | €2,589.28 |
