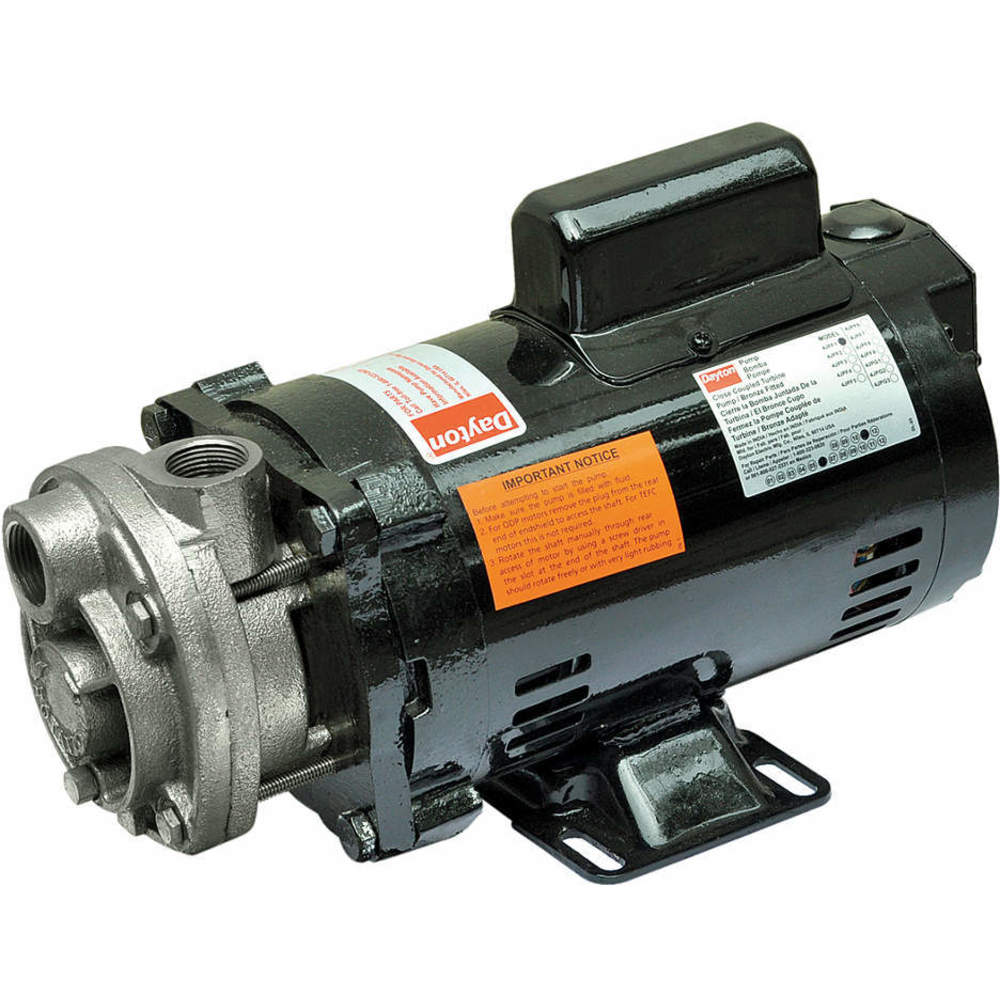

DAYTON 4JPF1 Turbine Pump 1/3 Hp 1-phase 7.5/3.8 Amp

Item: AD8EXT Model: 4JPF1
In Stock

Get it by Tuesday, Nov 19

€842.53 /unit
Add To Cart
Request a Quote

Payment Options Available

Product Specifications:

ItemTurbine pump
Amps7.5/3.8
Bearing TypeBall
Best Efficiency Gpm @ Head1.0 @ 85 Ft.
Best Efficiency Range Gpm @ Head55 - 110 @ 1.7 - 0.6 Ft.
ConstructionBronze impeller, Buna-N O-ring gaskets, mechanical seal with Buna-N and stainless steel parts and carbon / ceramic seats, cast iron cover and motor bracket with hard electroless nickel plating and replacable bronze shaft sleeve.
Drain PlugEasily Accessible at Bottom
DutyContinuous
Frame56J
Frequency60 Hz
Gpm0.9
Gpm @ 10 Psi2.9
Gpm @ 100 Psi0.7
Gpm @ 20 Psi2.6
Gpm @ 30 Psi2.3
Gpm @ 40 Psi2
Gpm @ 50 Psi1.8
Gpm @ 60 Psi1.6
Gpm @ 75 Psi1.3
Gpm @ 80 Psi1.1
Height6.3"
Housing MaterialCast Iron with nickel plating
Hp1/3
Hz60
Impeller MaterialBronze
Impeller TypeOpen
Inlet3/4"
Inlet Pressure150 PSI
Length13.2"
Max. Case Pressure200 PSI
Max. Flow Rate2.5 GPM
Max. Fluid Viscosity100 SSU
Max. Liquid Temp.-20 to 230 Degrees F
Max. Pressure140 psi
Max. Specific Gravity1
Min. Flow Rate0.4 GPM
Motor EnclosureODP
Motor Rpm3450
Motor TypeCapacitor-Start, Induction Run
Nema/iec Frame56J
Outlet3/4"
Phase1
Screw MaterialZinc Plated
Seal ApplicationLong life When not Run Dry or Pumping Abrasives
Seal MaterialBuna-N with Carbon and Ceramic Faces & 316 Stainless Steel Spring
Seal TypeMechanical Seal
Service Factor1.75
Shaft Material304 Stainless Steel
Shaft Size5/8"
TypeCentrifugal
Voltage115/230
Volute MaterialCast Iron with Nickel Plating
Wetted MaterialsBronze, Cast Iron,Buna-N, Carbon, Ceramic and 316 Stainless Steel
Width6.5"

Shipping Info:

Ship weight (kg) 16.083
Ship height (cm)34.8
Ship length (cm)55.88
Ship width (cm)28.45
HS code8413702005
Country of OriginIN

Product Details:

    • GPM of Water @ 120 PSI (0.4)

Product Variants

ProductModelAmpsMotor TypePhaseVoltagePrice
DAYTON 4JPF2 Turbine Pump 1/3 Hp 3-phase 1.4/0.7 Amp | AD8EXU 4JPF21.5-1.4/0.73 Phase3208-230/460-
