| Item | Aeration Fan Motor |
| Bearings | Ball |
| Duty | Continuous |
| Finish | Baked Enamel Paint |
| Frame | 143TZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 22.2/11.1 |
| Hp | 2 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 11.437" |
| Max. Ambient Temperature | 50 Degrees C |
| Motor Application | Farm Duty |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Aeration Fan |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 3450 |
| Overall Length | 13.75" |
| Phase | 1 |
| Rpm Range | 3001-3600 |
| Service Factor | 1.00 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.25" |
| Voltage | 115/230 |
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
| Product | Model | Finish | Frame | Full Load Amps | HP | Length Less Shaft | Motor Mounting Position | Motor Shaft Design | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

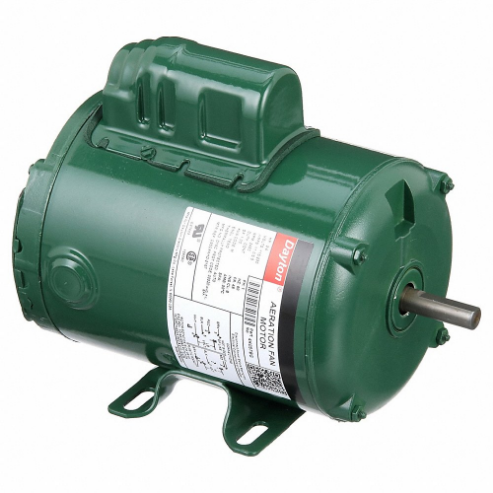

4K057BG | Baked Enamel Paint | 48 | 11.0/5.5 | 3/4 | 8" | All Angle | Flat | 9 9/16" | €551.37 | |
 |

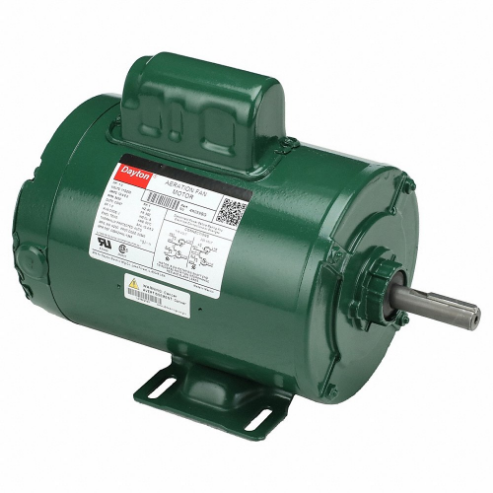

4K059 | Baked Enamel | 56Z | 12.4/6.2 | 1 | 9 15/16" | All Angle | Keyed | 12.25" | €544.46 | |
 |

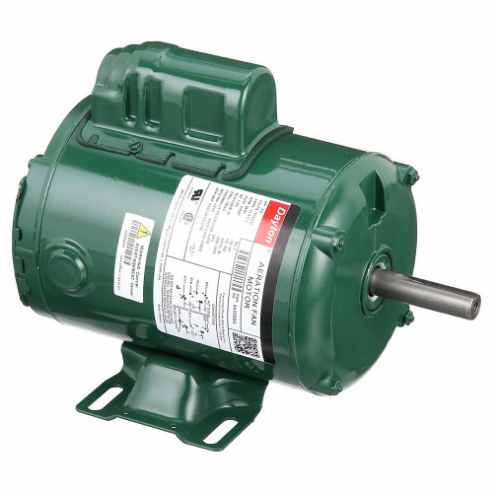

4K058BG | Baked Enamel Paint | 56Z | 11.0/5.5 | 3/4 | 8" | All Angle | Keyed | 10.375" | €500.08 | |
 |

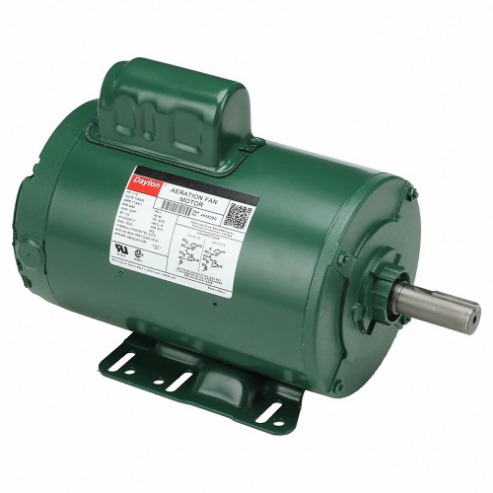

4K060 | Baked Enamel Paint | 143TZ | 17.4/8.7 | 1.5 | 10 15/16" | Horizontal | Keyed | 13.25" | €677.32 | |
 |

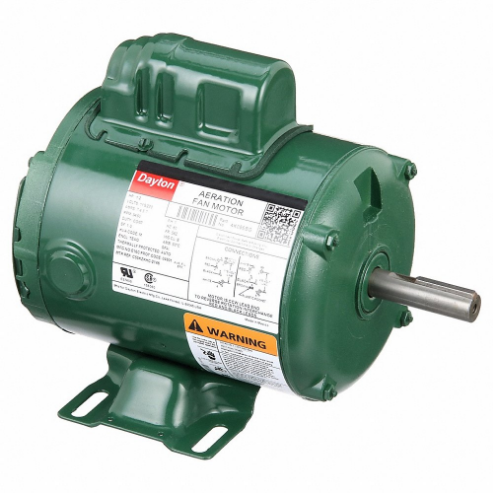

4K056BG | - | - | - | - | - | - | - | - | €453.84 | |
 |

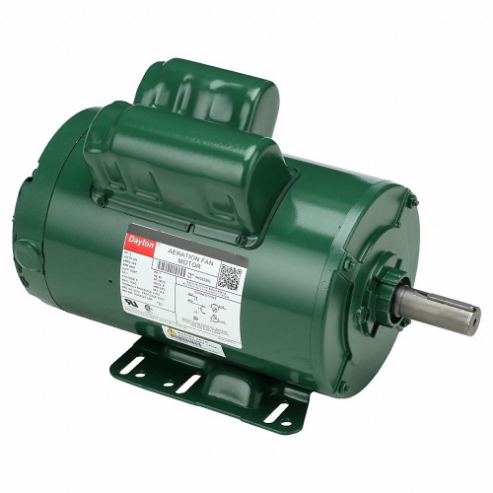

4K062 | - | - | - | - | - | - | - | - | €838.99 |
