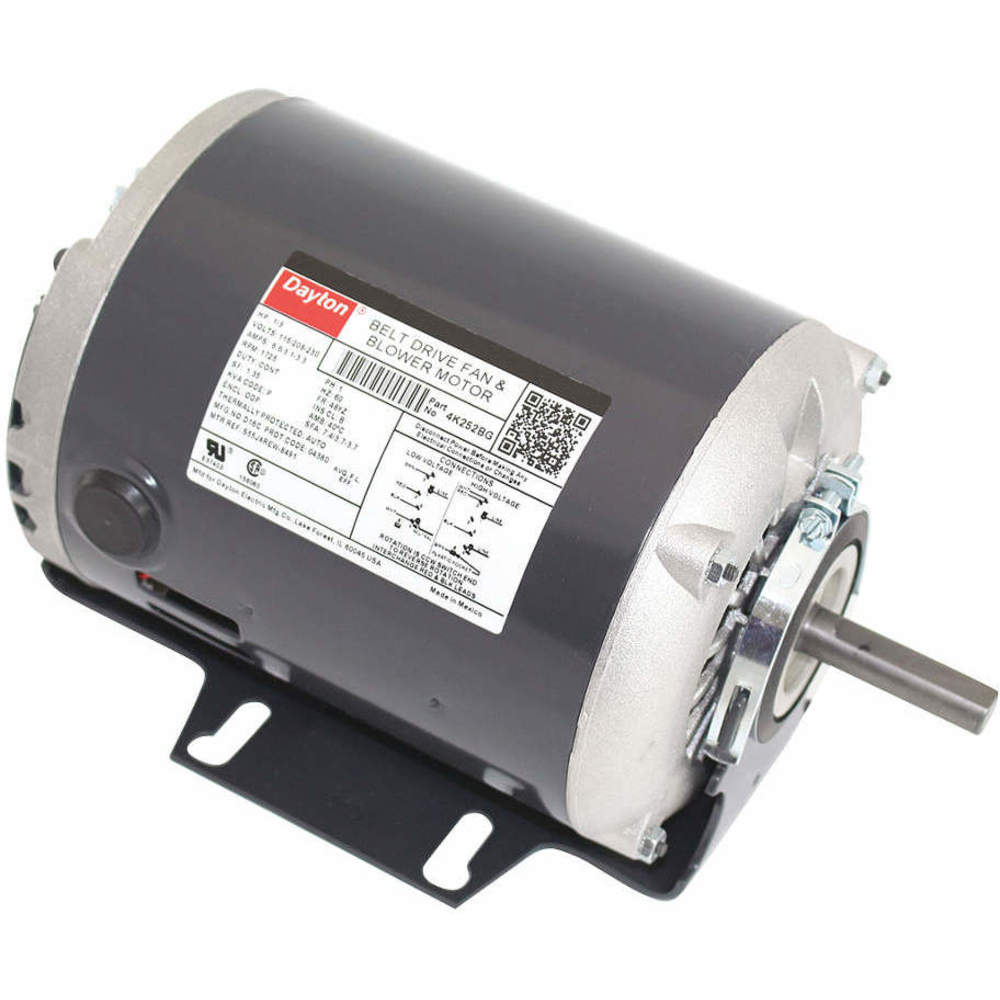

| Item | Belt Drive Motor |
| Bearings | Ball |
| Body Dia. | 5.625" |
| Duty | Continuous |
| Enclosure | Open Dripproof |
| Frame | 48Yz |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.4-3.1 |
| Hp | 1/3 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 8.375" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Dr Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split-Phase |
| Mounting | Cradle |
| Nameplate Rpm | 1725 |
| Nominal Efficiency | 56.40% |
| Overall Length | 10.25" |
| Phase | 1 |
| Resilient Ring Dia. | 2.5" |
| Ring To Ring Center | 8-1/16" |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1.875" |
| Thermal Protection | Auto |
| Voltage | 115/208-230 |
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
| Product | Model | Bearings | Body Dia. | Frame | Frame Material | Full Load Amps | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGG1 | Ball | 5.625" | 48YZ | - | 6.2/2.8-3.1 | 1/4 | 60 | B | €336.38 | |
|
1AGG2 | Ball | 5.625" | 48Z | - | 5.8/3.1-2.9 | 1/3 | 60 | B | €434.53 | |
 |
3K091 | Ball | 5.625" | 48Y | Rolled Steel | 4.6/2.2-2.3 | 1/4 | 60 | B | €252.43 | |
 |
3K371 | Ball | 5.625" | 48 | - | 5.1/2.9 | 1/3, 1/9 | 60 | B | €325.24 | |
 |
3K384 | Sleeve | 5.625" | 48Y | Steel | 6.6 | 1/3 | 60 | B | €220.05 | |
 |
3K386 | Ball | 5.625" | 48Y | - | 5.1/2.9 | 1/3, 1/9 | 60 | B | €383.69 | |
 |
3K613 | Ball | 5.625" | 48Y | Rolled Steel | 4.4/2.2-2.0 | 1/6 | 60 | B | €270.43 |
