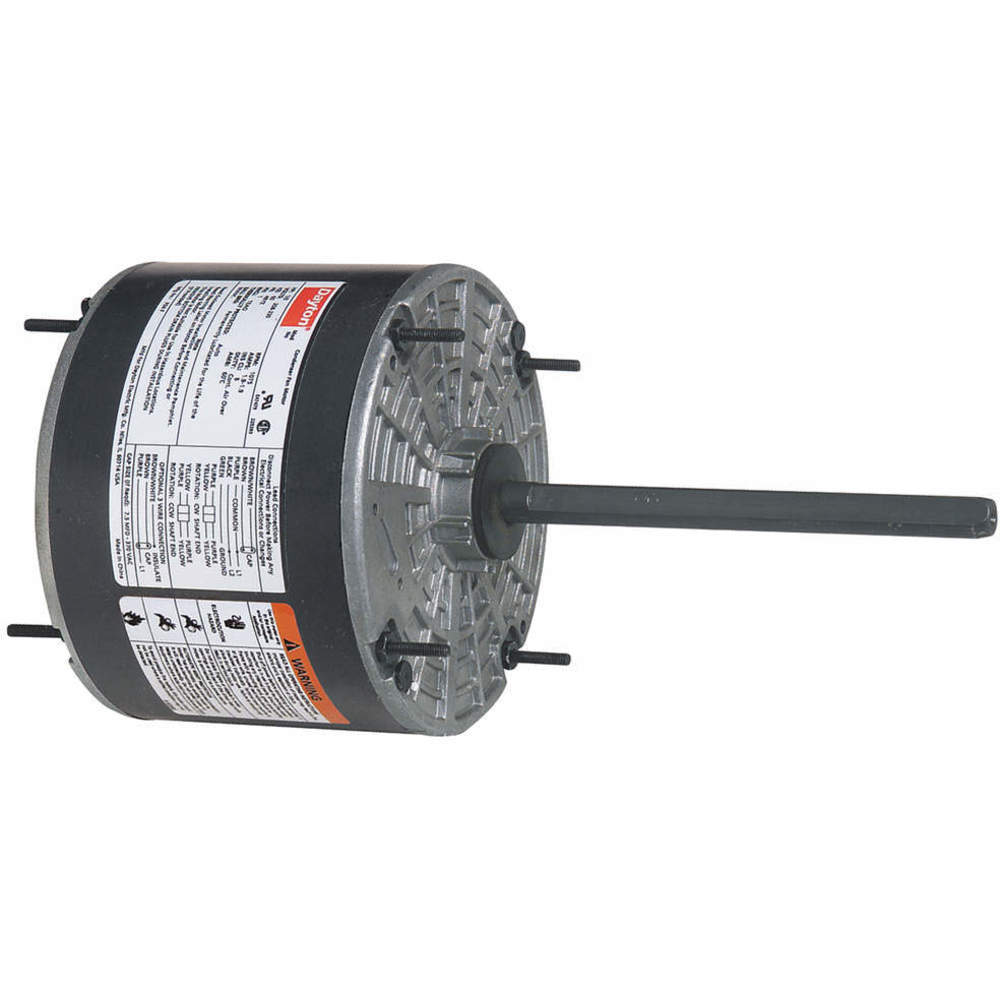

| Item | Condenser Fan Motor |
| Bearings | Ball |
| Body Dia. | 5.625" |
| Bolt Circle Dia. | 5.125" |
| Capacitor Required | 2Mdv4 |
| Duty | Continuous Air-Over |
| Enclosure | Totally Enclosed Air-Over |
| Frame | 48Yz |
| Frequency | 60 Hz |
| Full Load Amps | 1.5 - 1.4 |
| Hp | 1/4 |
| Hz | 60 |
| Insulation Class | B |
| Lead Length | 30" |
| Length Less Shaft | 4 11/16" |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | PSC |
| Mounting | Stud |
| Nameplate Rpm | 1075 |
| Number Of Speeds | 1 |
| Overall Length | 10.875" |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | 1001-1100 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Shaft Orientation | Up/Down |
| Shaft Type | Double Flat |
| Stud Pattern | 3 5/8 x 3 5/8" |
| Stud Quantity | 4 |
| Stud Size | 8-32 NC-2A x 3/4" |
| Thermal Protection | Auto |
| Voltage | 208-230 |
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
| Product | Model | Bearings | Capacitor Required | Enclosure | Frame | Full Load Amps | HP | Lead Length | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3LU93 | Ball | 2MDV4 | Totally Enclosed Air-Over | 48YZ | 1.3 - 1.2 | 1/6 | 30" | 5 3/16" | €212.74 | |
 |
3LU94 | Ball | 2MDV6 | Totally Enclosed Air-Over | 48YZ | 0.7 | 1/4 | 30" | 5 3/16" | €253.52 | |
 |
3LU95 | Ball | 2MDV6 | Totally Enclosed Air-Over | 48YZ | 2.1 - 2.1 | 1/4 | 30" | 5 11/16" | €176.74 | |
 |
3LU96 | Ball | 2MDV6 | Totally Enclosed Air-Over | 48YZ | 1.0 | 1/3 | 30" | 5 7/16" | €219.28 | |
 |
3LU97 | Ball | 2MDV6 | Totally Enclosed Air-Over | 48YZ | 2.6 - 2.4 | 1/3 | 30" | 5 15/16" | €238.00 | |
 |
3LU98 | Ball | 2MDV7 | Totally Enclosed Air-Over | 48YZ | 1.5 | 1/2 | 30" | 5 15/16" | €236.08 | |
 |
3LU99 | Ball | 2MDV7 | Totally Enclosed Air-Over | 48YZ | 2.2 | 3/4 | 30" | 6 7/16" | €265.35 |
